Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 6 illustrations

Illustrations

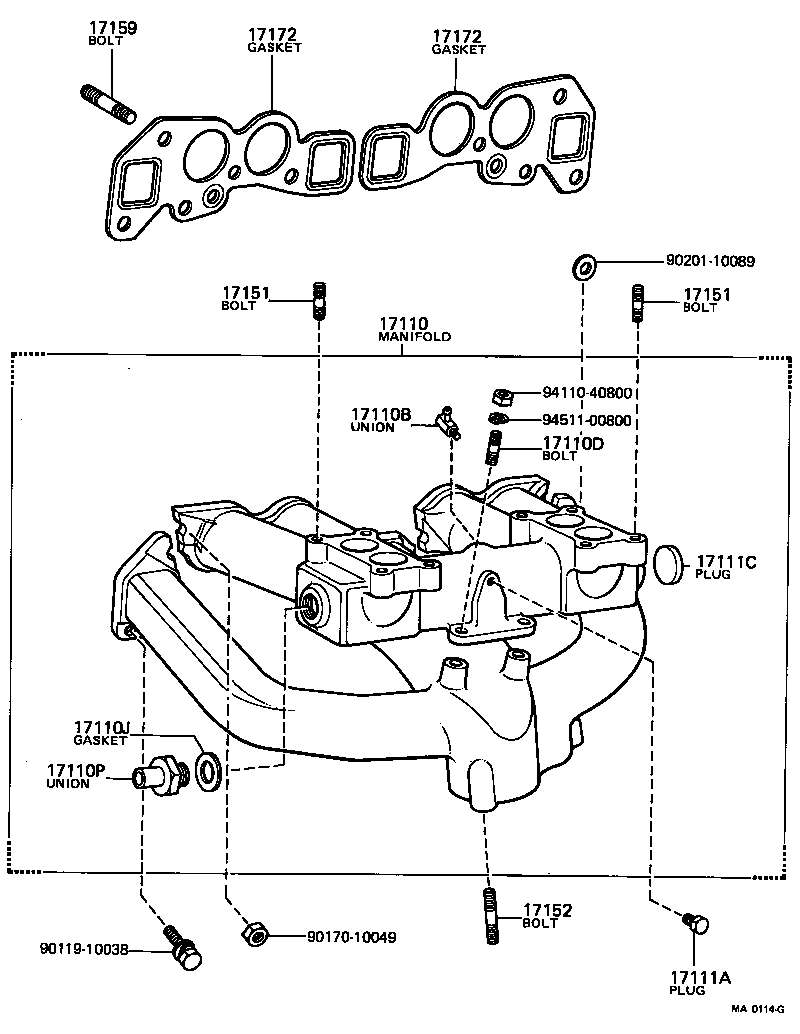

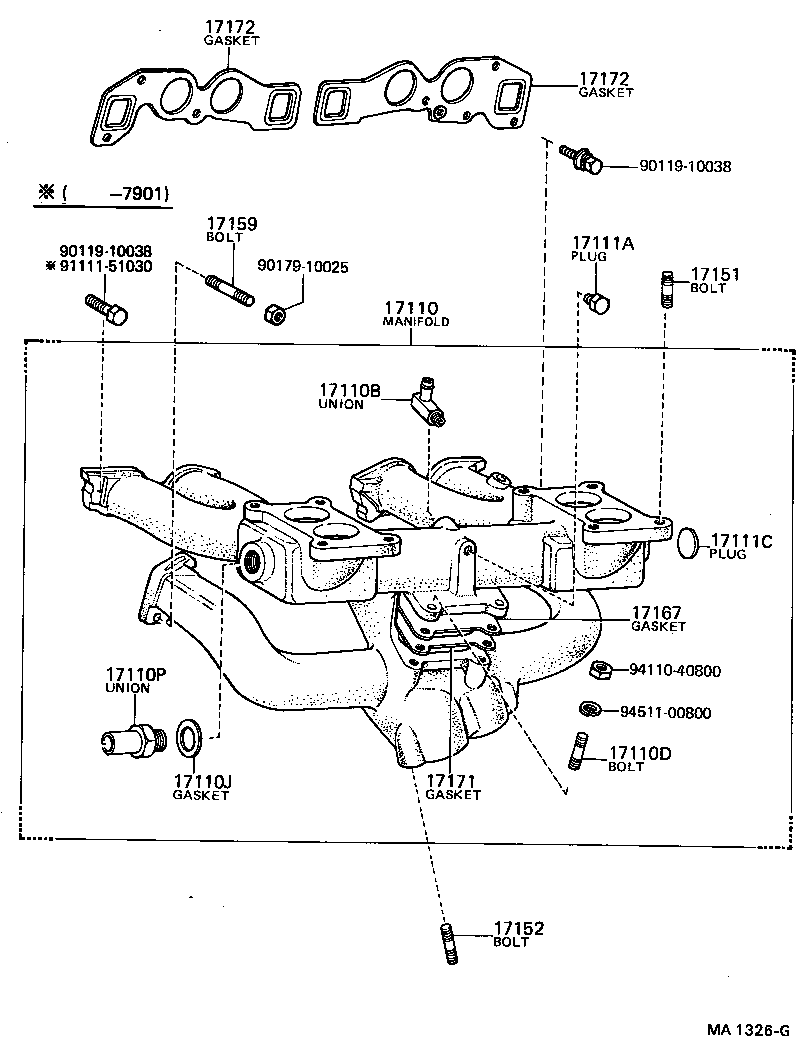

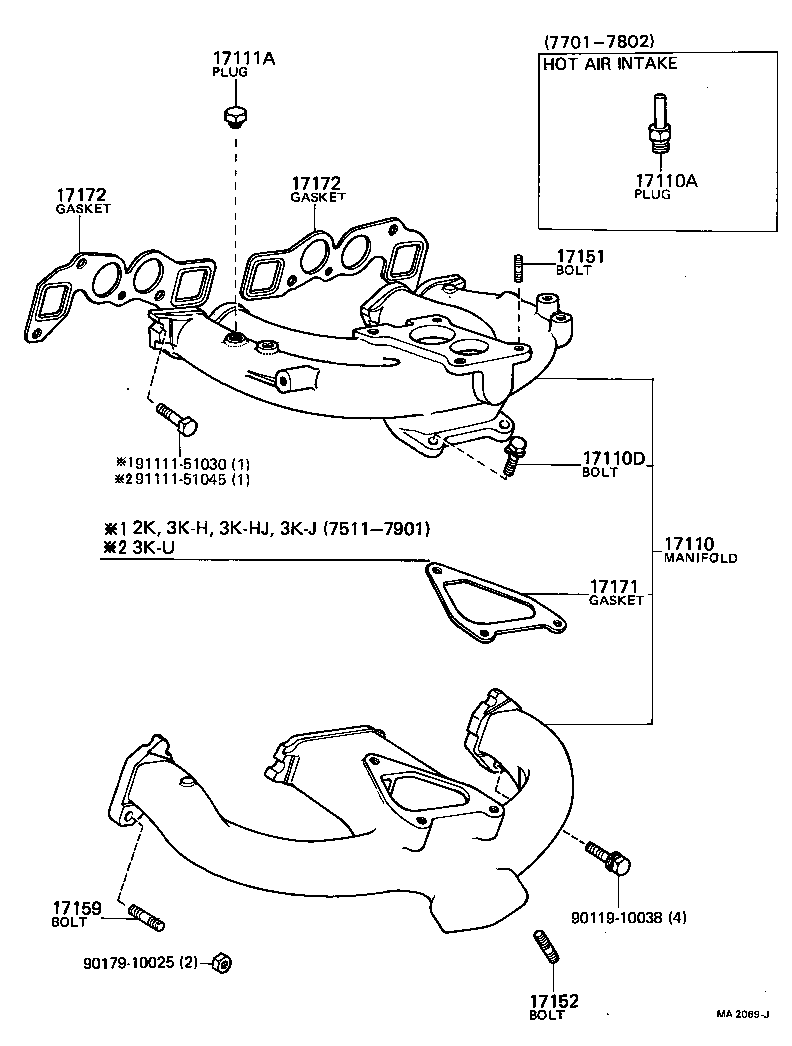

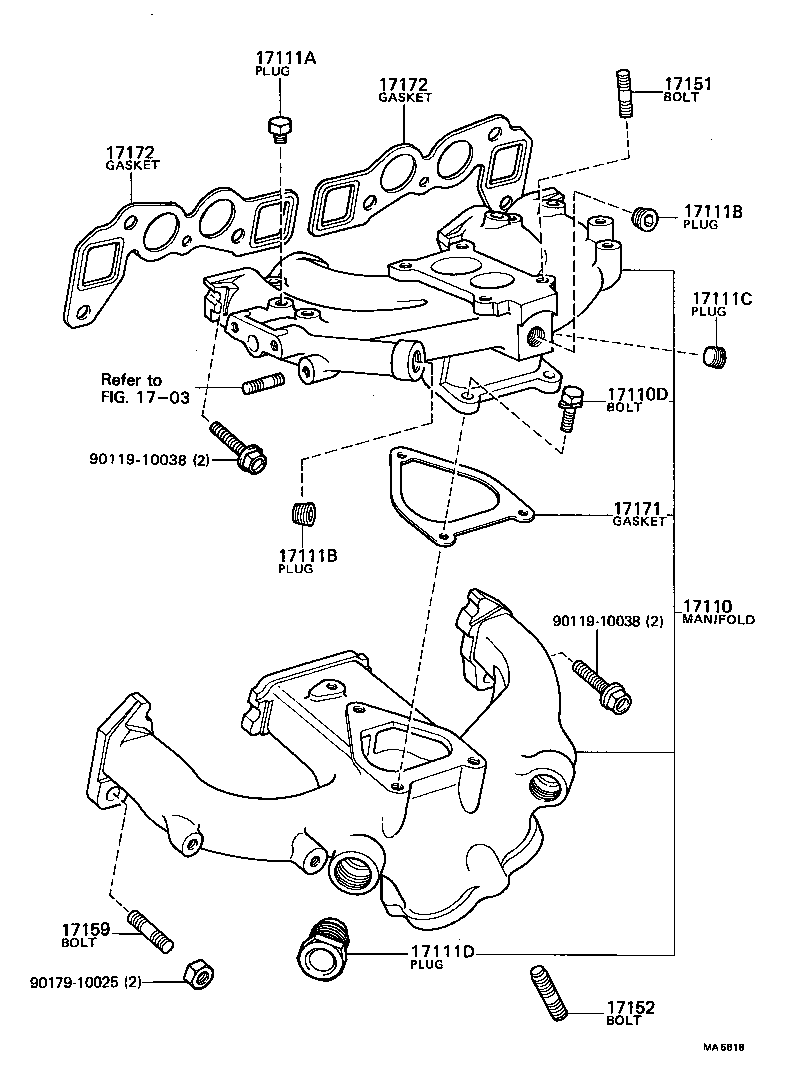

Figure MA0442D MA0442D 1969-04 → 1975-11 Figure MA0114G MA0114G 1969-04 → 1974-04 Figure MA1326G MA1326G 1974-04 → 1975-11 Figure MA2069J MA2069J 1975-11 → 1982-01 Figure MA5618 MA5618 1982-01 → — Figure MA2281 MA2281 1969-04 → 1971-12

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17110J Gasket, Manifold TO Heater Water Pipe Union
17110P Union, Manifold TO Heater Water Pipe Union
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
