Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

28 part groups · 8 illustrations

Illustrations

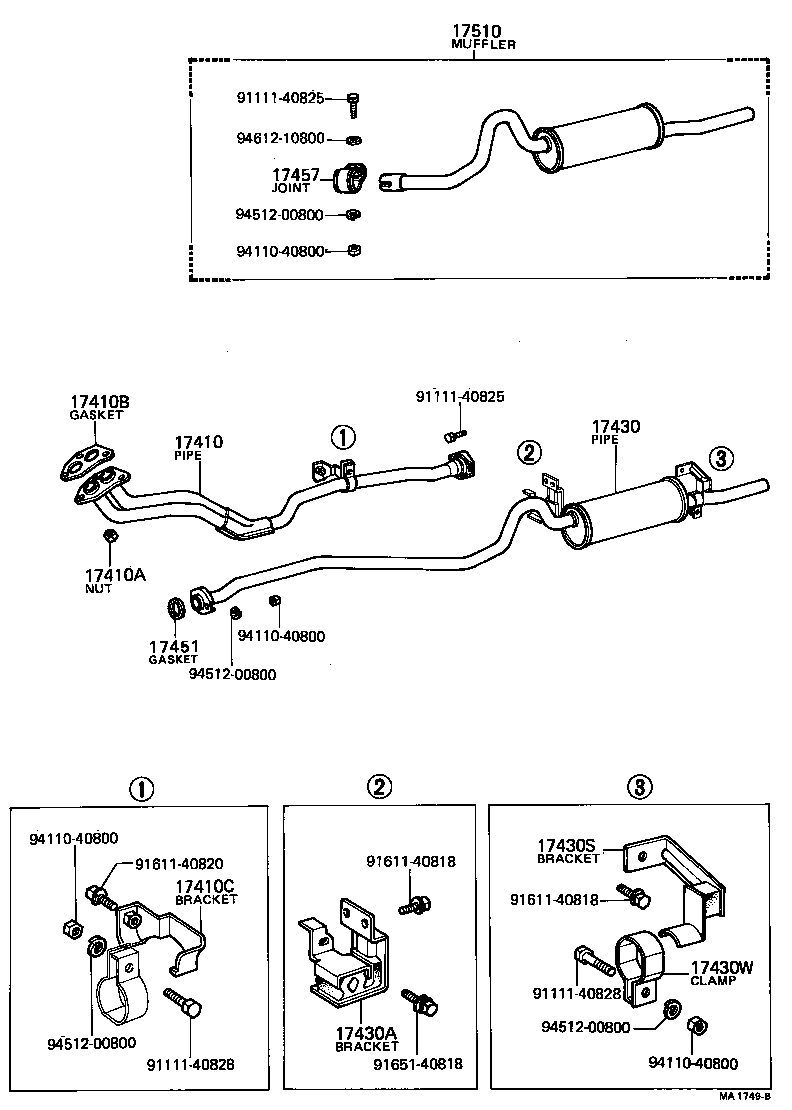

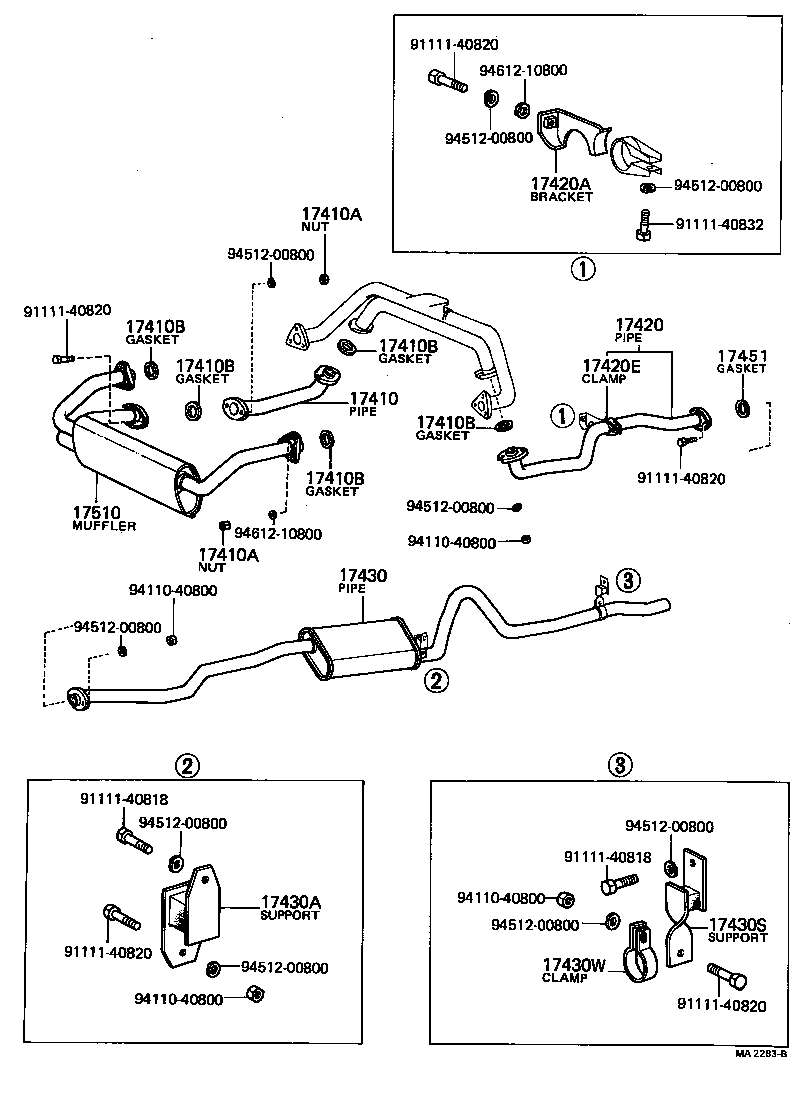

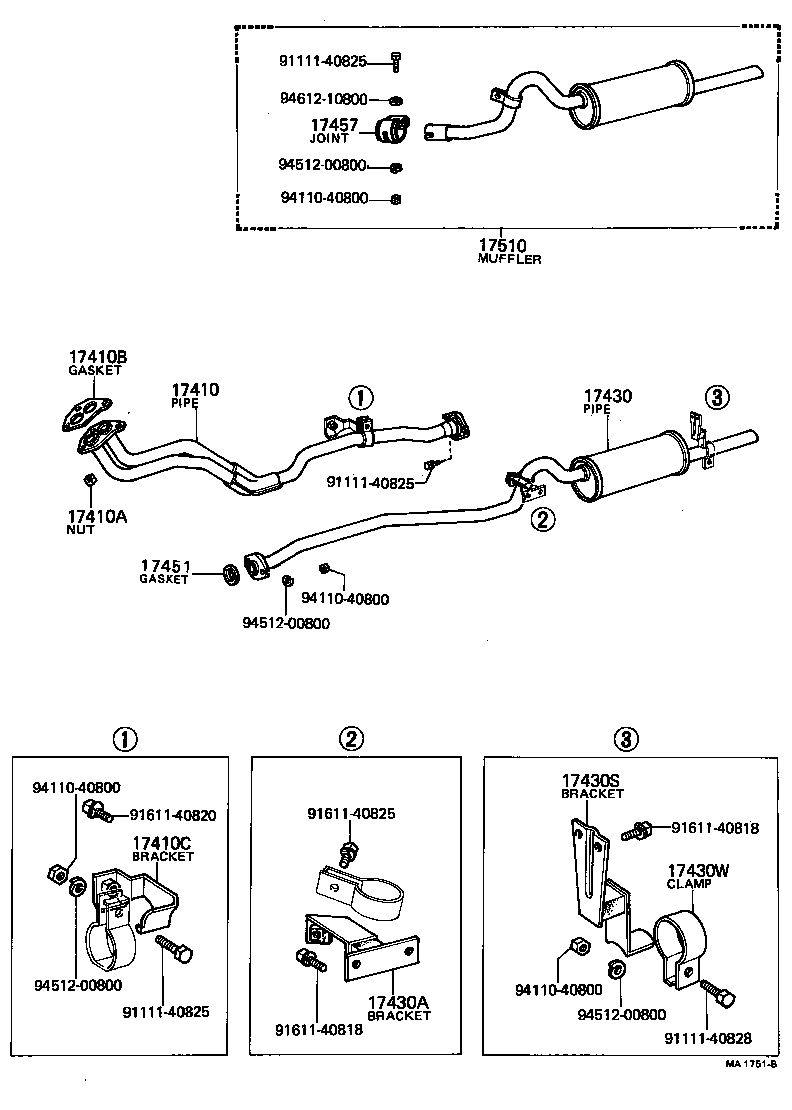

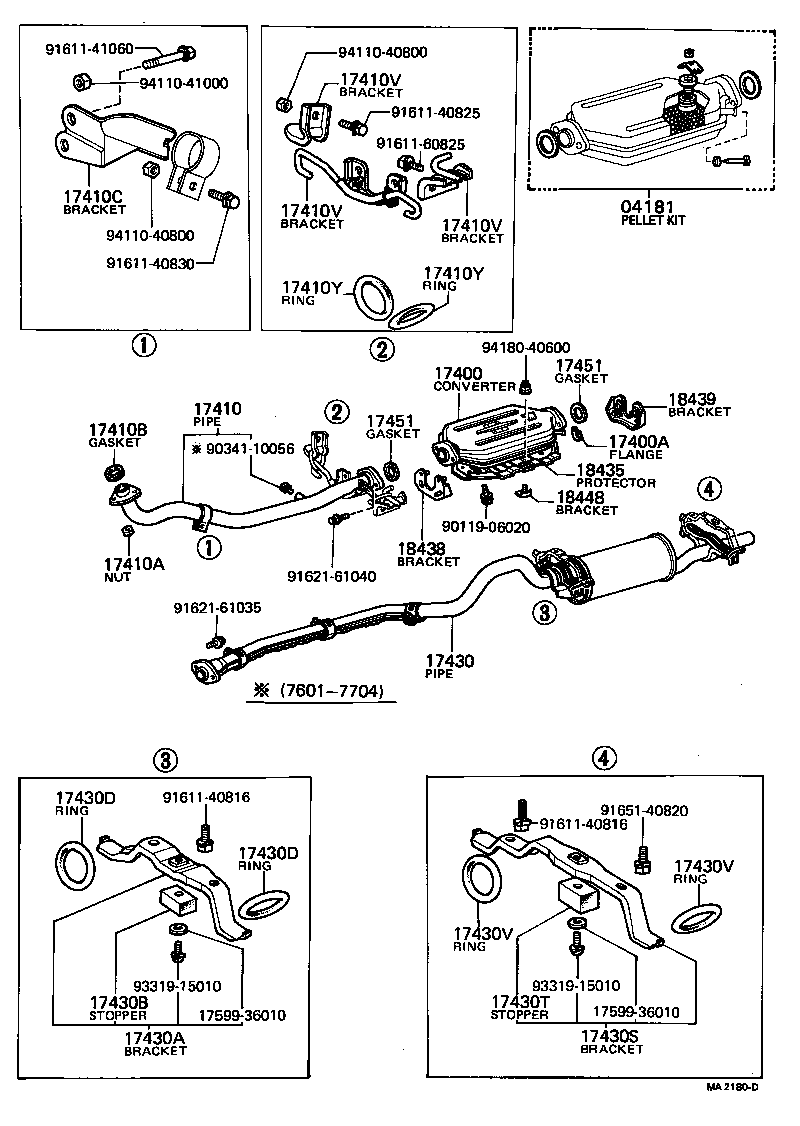

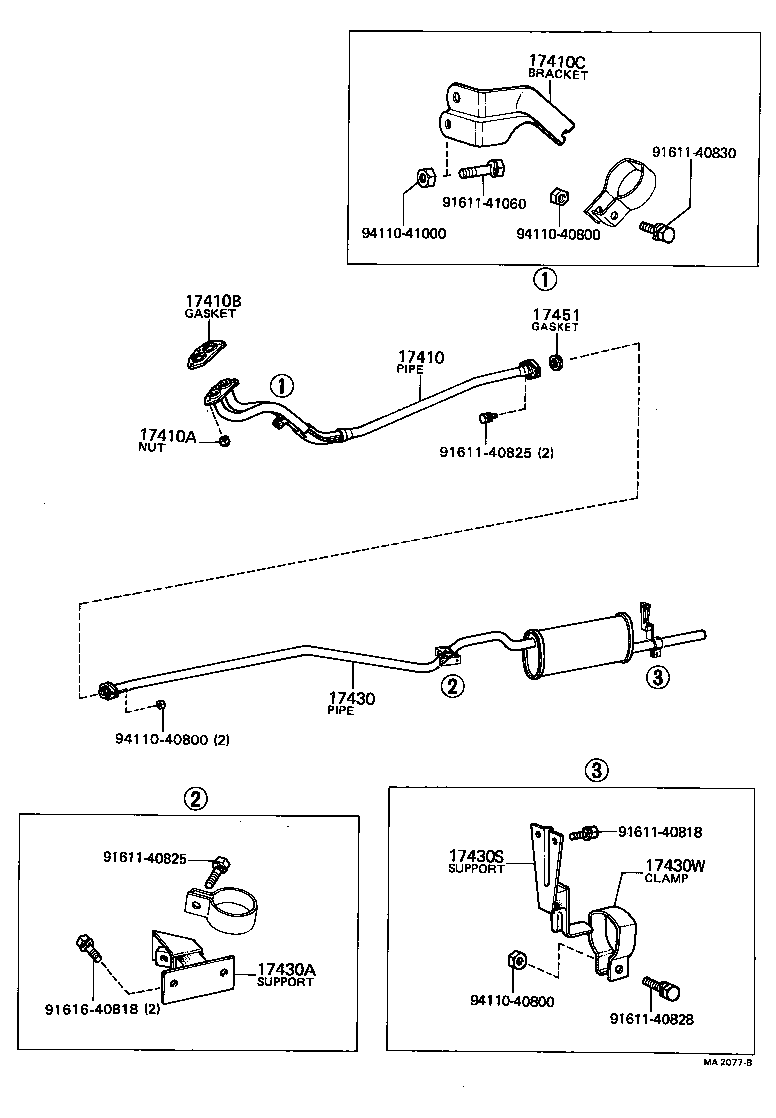

Figure MA2282A MA2282A 1969-04 → 1971-12 Figure MA2283B MA2283B 1969-04 → 1971-12 Figure MA1749B MA1749B 1969-04 → 1975-11 Figure MA1750B MA1750B 1969-04 → 1975-11 Figure MA1751B MA1751B 1969-11 → 1975-11 Figure MA2180D MA2180D 1976-01 → 1978-02 Figure MA2073A MA2073A 1975-11 → 1982-01 Figure MA2077B MA2077B 1975-11 → —

Part groups

PNCDescription
04181 Pellet Kit
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420E Clamp NO.2, Exhaust Pipe Center, Front
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17457 Joint, Exhaust Pipe
17510 Muffler Assy
18435 Protector, Catalytic Converter
18438 Bracket, Connector Protector, Front
18439 Bracket, Convertor Protector, Rear
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
