Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 8 illustrations

Illustrations

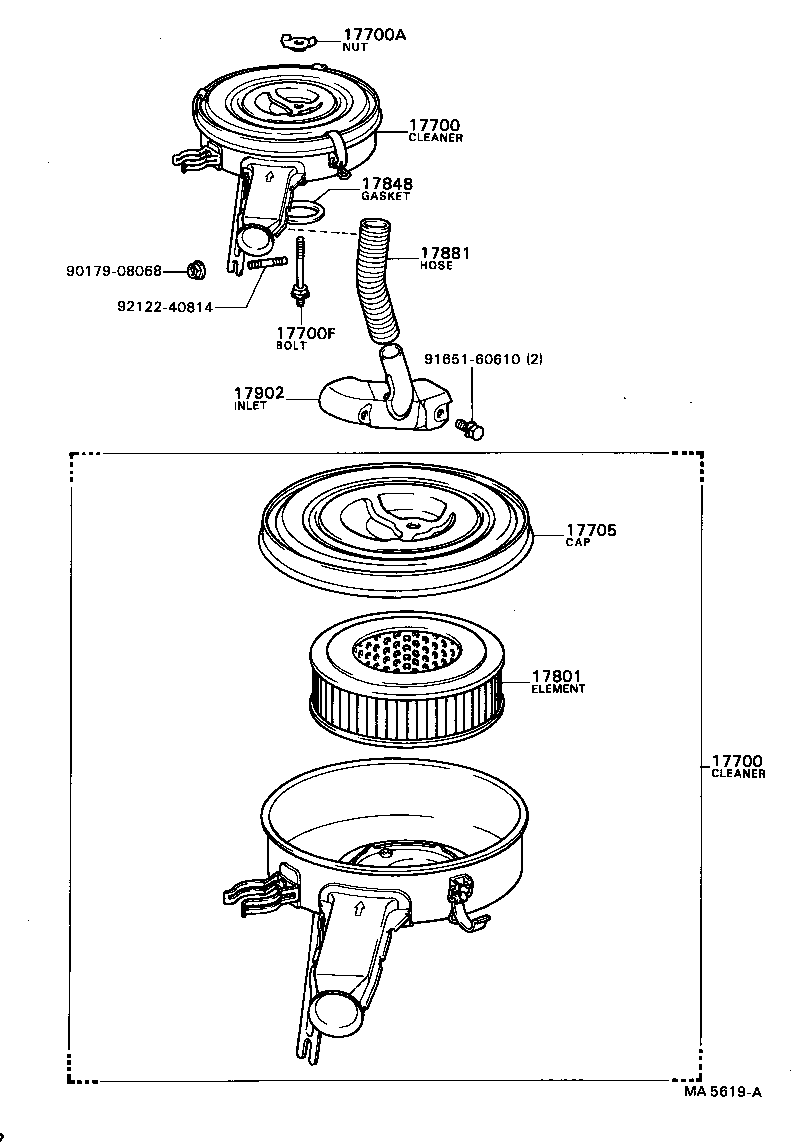

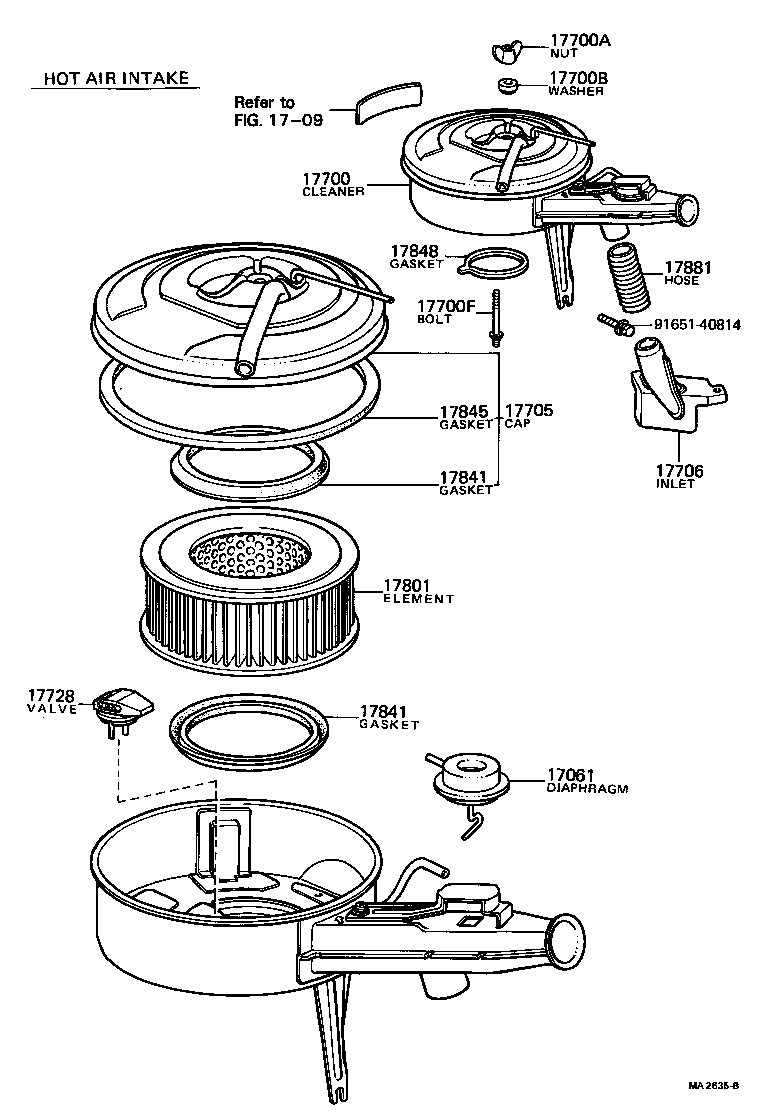

Figure MA0734B MA0734B 1969-04 → 1973-04 Figure MA1327B MA1327B 1973-04 → 1975-11 Figure MA2150D MA2150D 1975-11 → 1982-01 Figure MA0147B MA0147B 1969-04 → 1970-04 Figure MA1328B MA1328B 1970-04 → 1975-11 Figure MA2635B MA2635B 1977-01 → 1978-02 Figure MA5619A MA5619A 1982-01 → — Figure MA2284A MA2284A 1969-04 → 1971-12

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17897 Clamp, Hose(FOR AIR CLEANER)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
