Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 9 illustrations

Illustrations

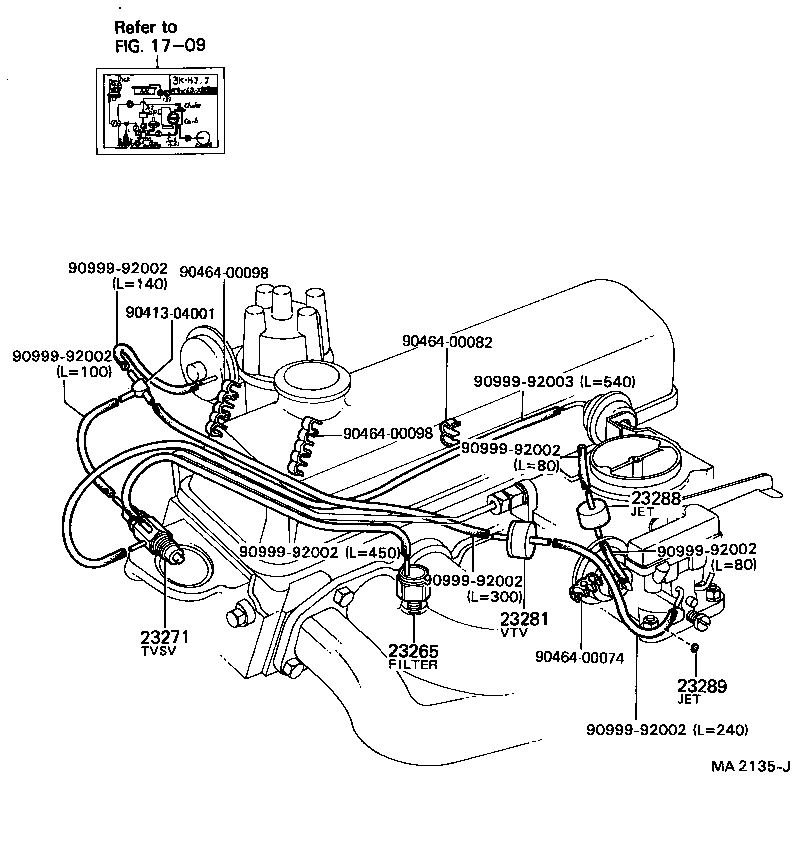

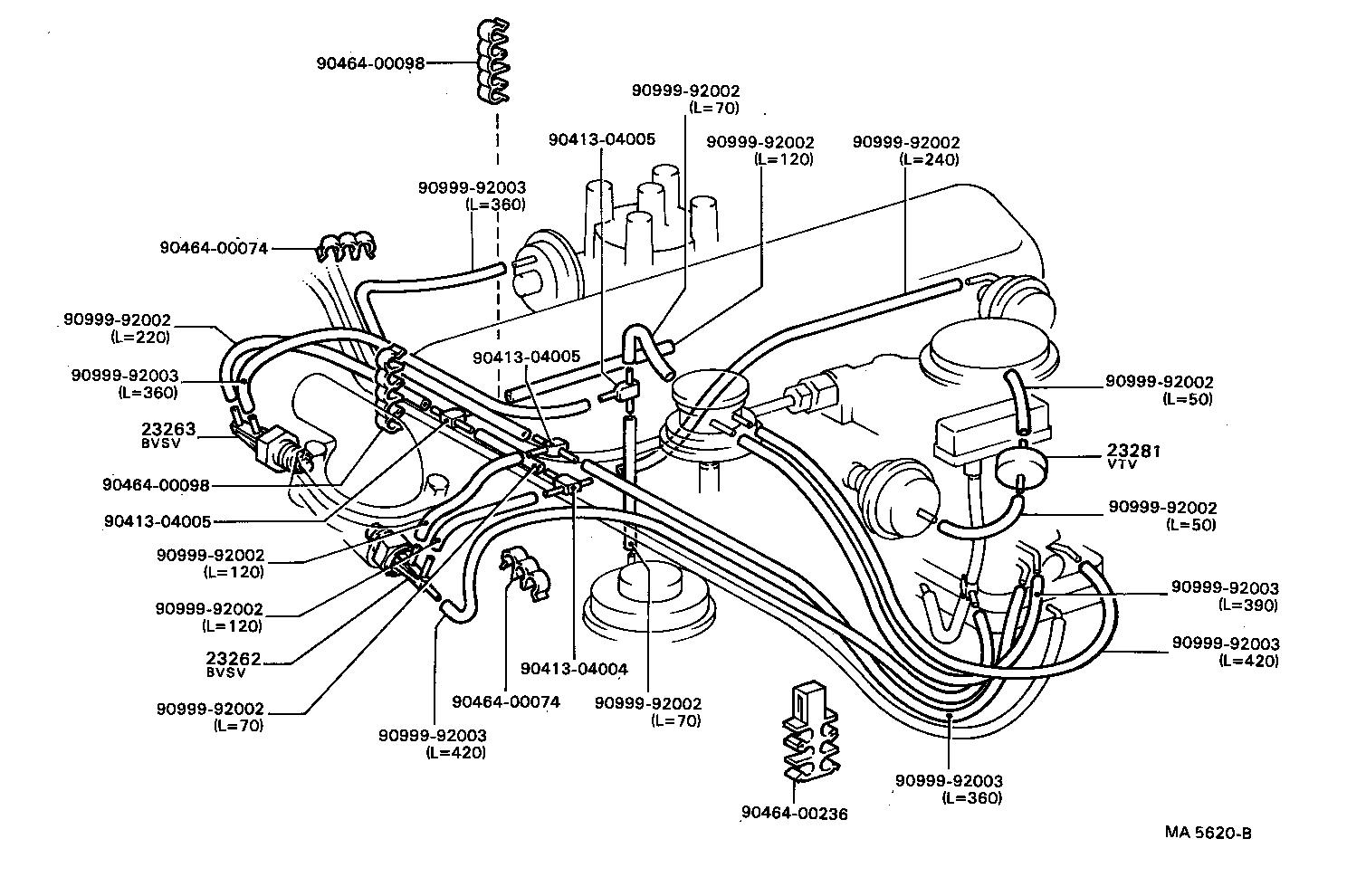

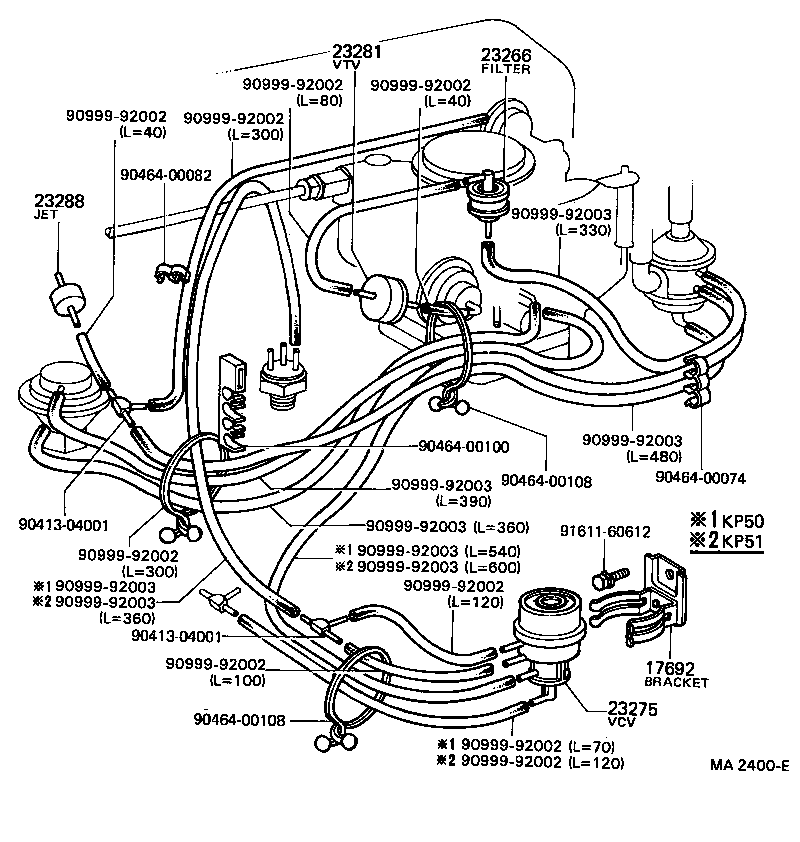

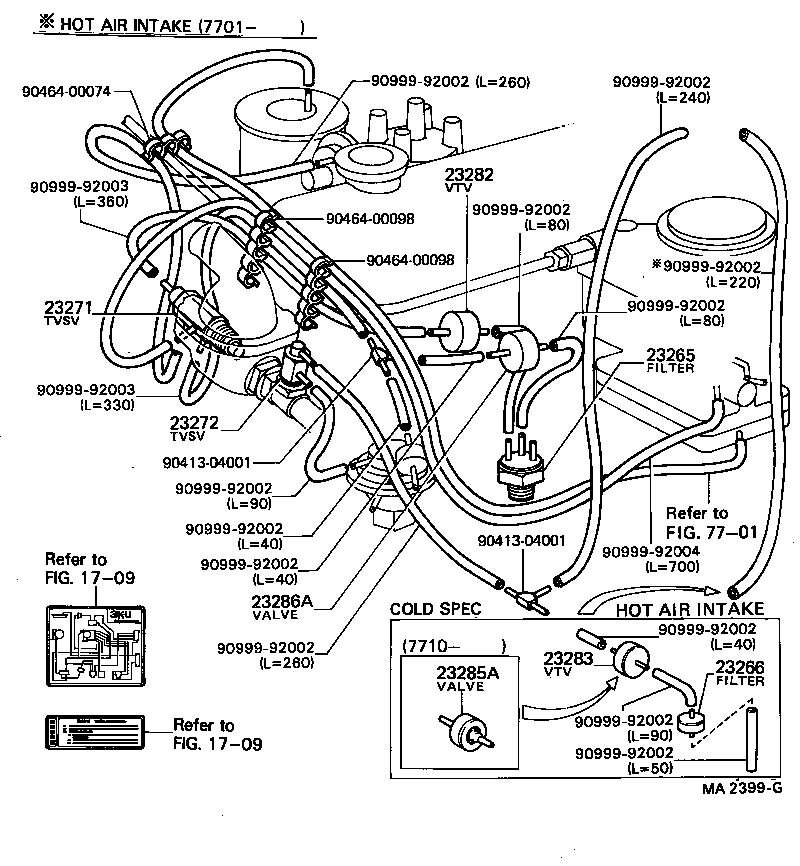

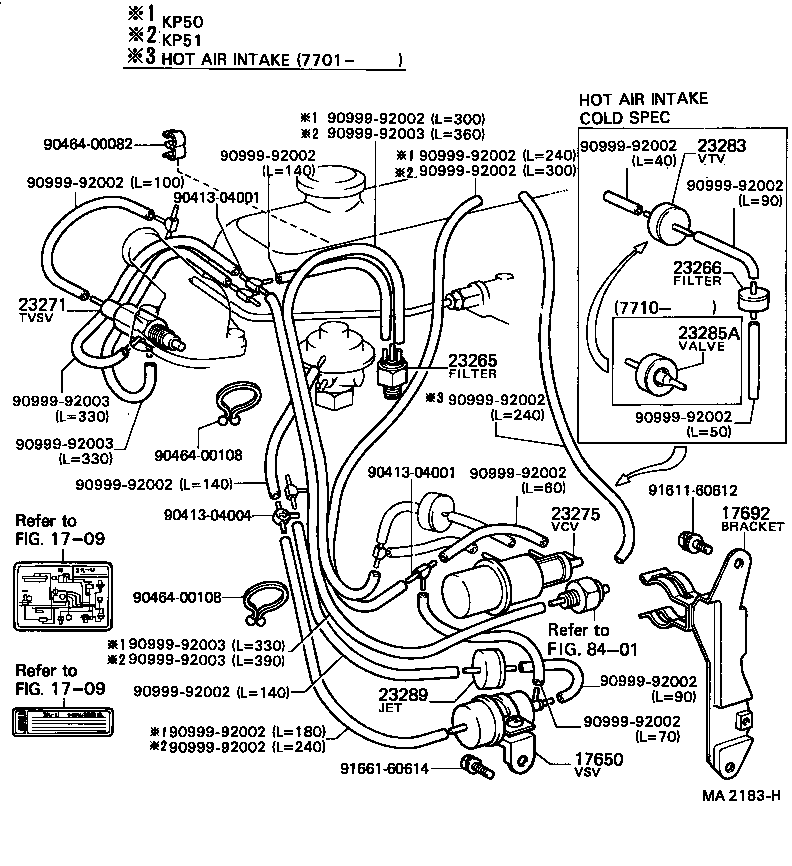

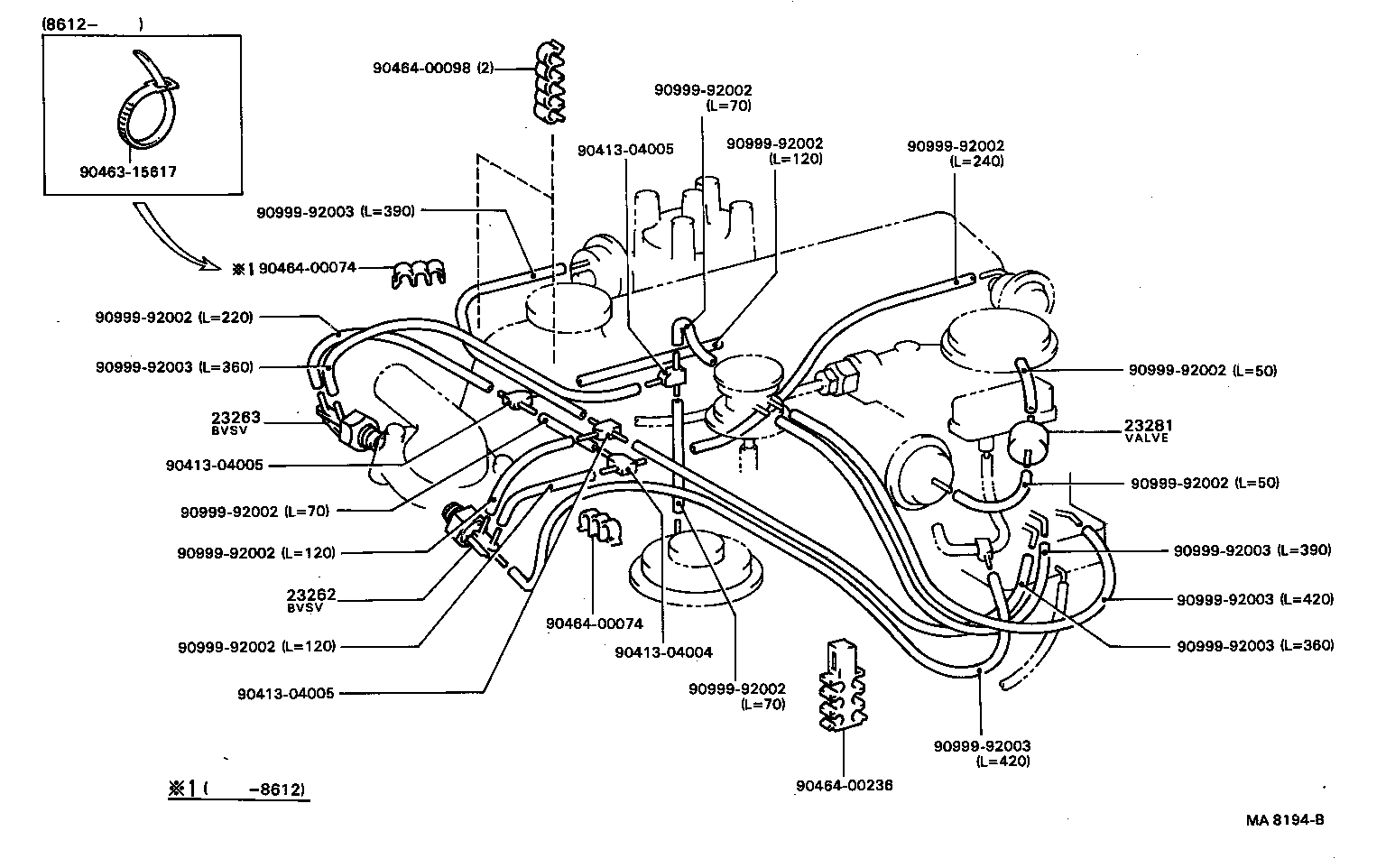

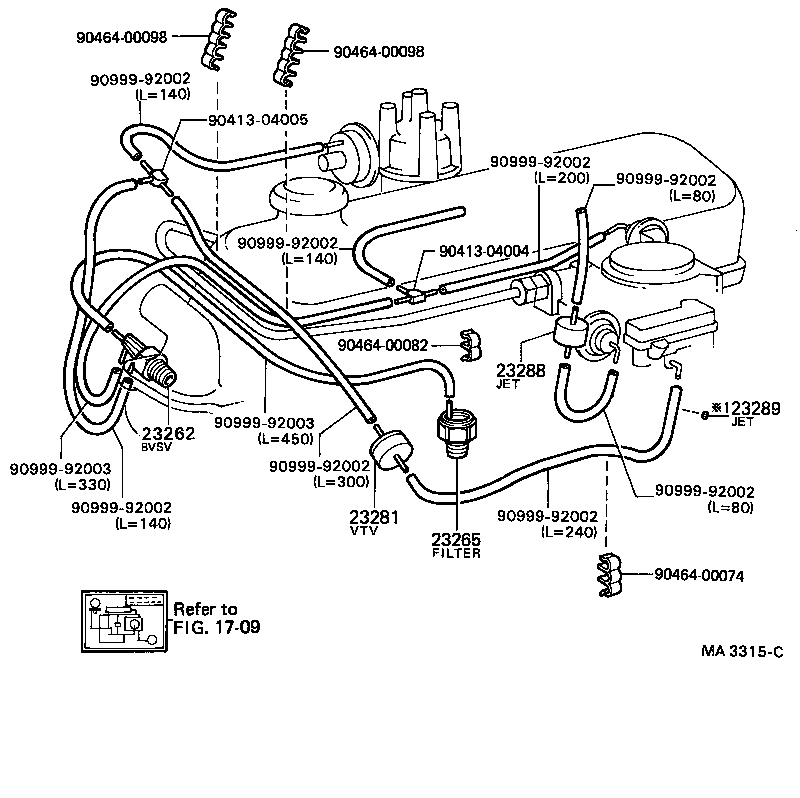

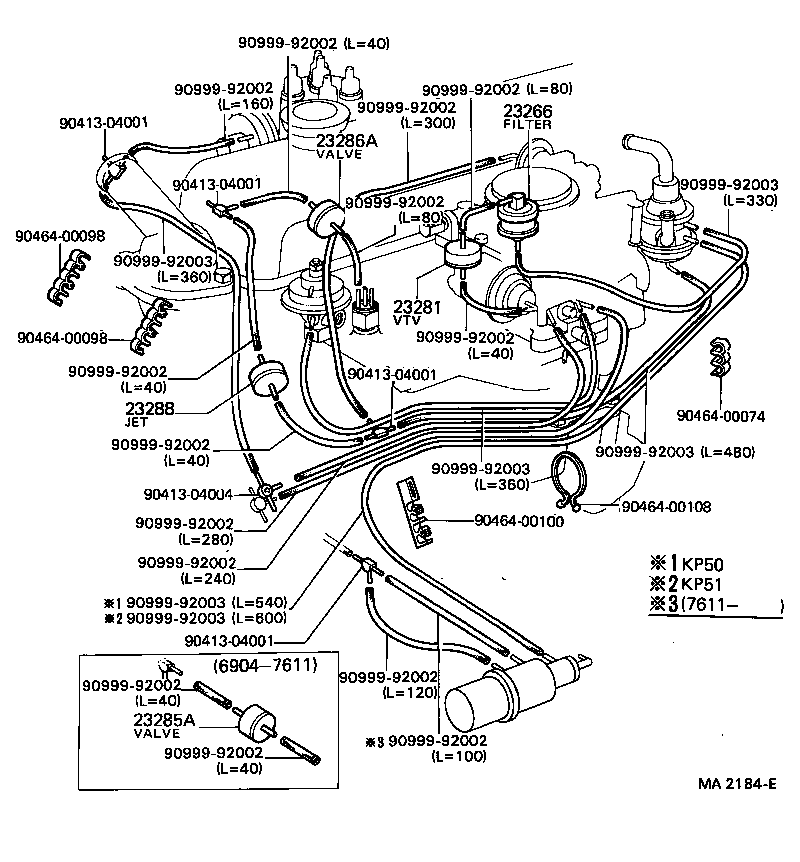

Figure MA9503A MA9503A 1975-11 → — Figure MA2183H MA2183H 1976-01 → 1978-02 Figure MA2184E MA2184E 1976-01 → 1978-02 Figure MA2399G MA2399G 1976-10 → 1978-02 Figure MA2400E MA2400E 1976-10 → 1978-02 Figure MA2135J MA2135J 1975-11 → 1978-05 Figure MA3315C MA3315C 1978-05 → 1982-01 Figure MA5620B MA5620B 1982-01 → 1985-04 Figure MA8194B MA8194B 1985-04 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17692 Bracket, Vacuum Control Valve, NO.2
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
