Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 3 illustrations

Illustrations

Figure MF1094C

MF1094C 1969-04 → 1975-11

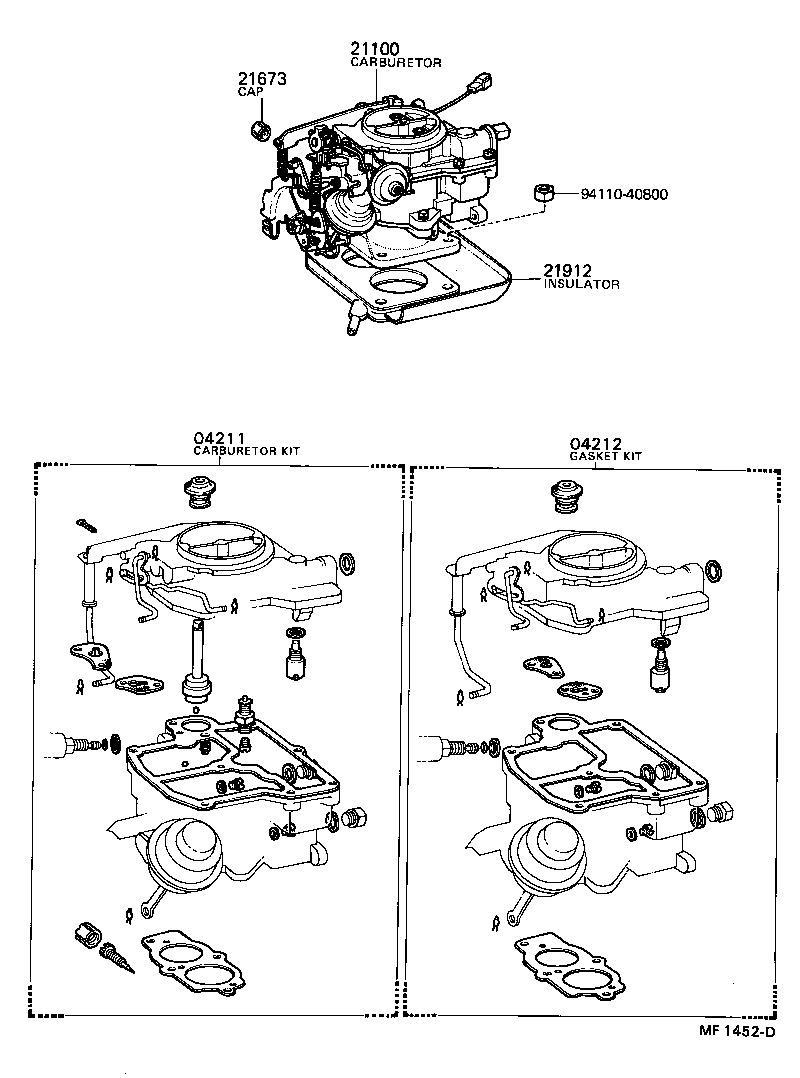

Figure MF1452D

MF1452D 1975-11 → —

Figure MF1094C

MF1094C 1969-04 → 1975-11

Part groups

PNC	Description
04211	Carburetor Kit
04212	Gasket Kit, Carburetor
21100	Carburetor Assy
21392A	Clamp, Choke Wire
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
