Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

21 part groups · 2 illustrations

Illustrations

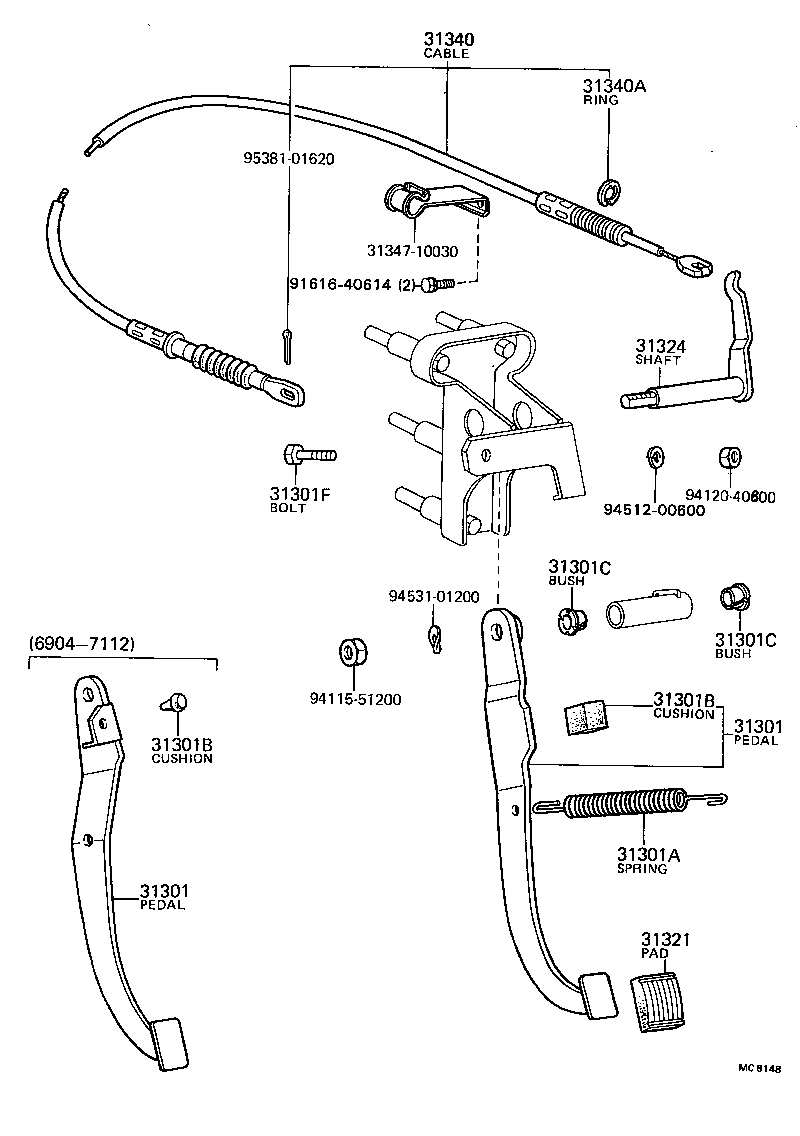

Figure MC0010B MC0010B 1969-04 → 1971-12 Figure MC8148 MC8148 1969-04 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31331 Wire, Clutch Release
31331A Spring, Compression(FOR CLUTCH RELEASE WIRE RETURN)
31340 Cable Assy, Clutch Release
31340A Ring, E(FOR CLUTCH RELEASE CABLE)
31341 Bracket, Clutch Cable
31368 Bellcrank, Clutch Release
31368A Bolt, Hexagon(FOR CLUTCH RELEASE BELLCRANK SHAFT)
31368B Collar(FOR CLUTCH RELEASE BELLCRANK SHAFT)
31368C Bush(FOR CLUTCH RELEASE BELLCRANK)
31368D Ring, O(FOR CLUTCH RELEASE BELLCRANK)
31368E Washer, Plate OR Retainer(FOR CLUTCH RELEASE BELLCRANK)
31369 Bracket, Clutch Release Bellcrank
31369A Spacer(FOR CLUTCH RELEASE BELLCRANK BRACKET)
31391 Holder, Clutch Return Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
