Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

44 part groups · 10 illustrations

Illustrations

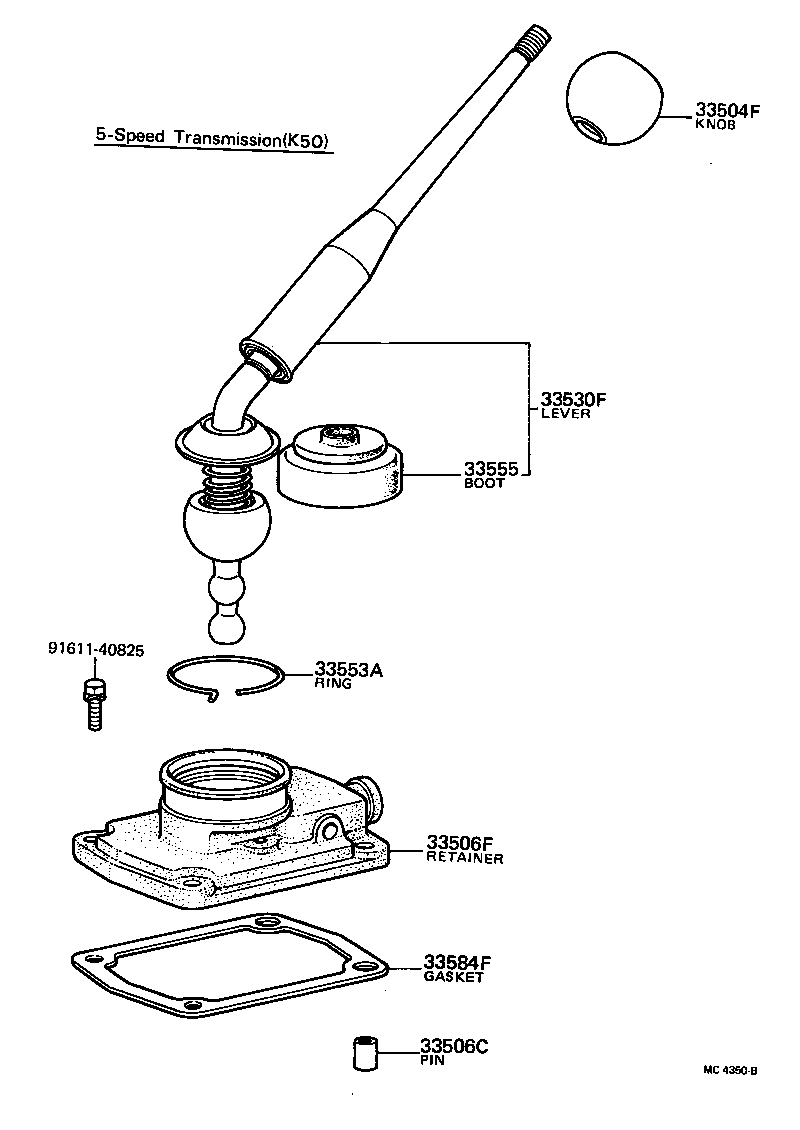

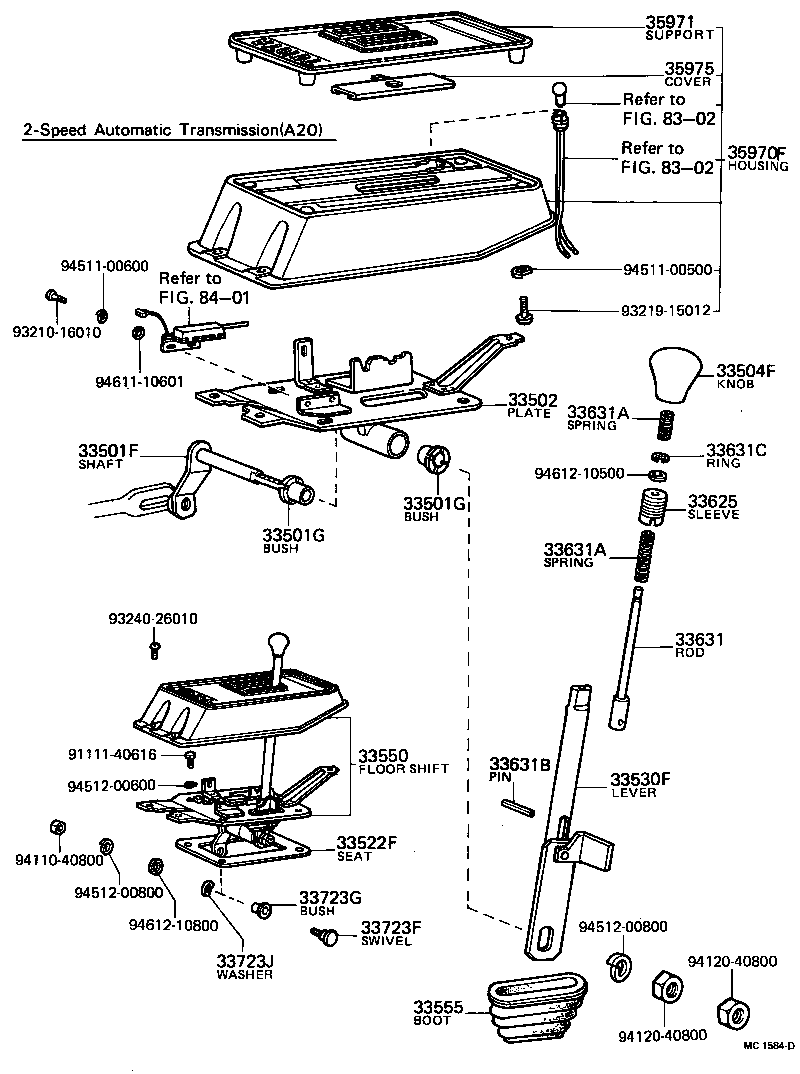

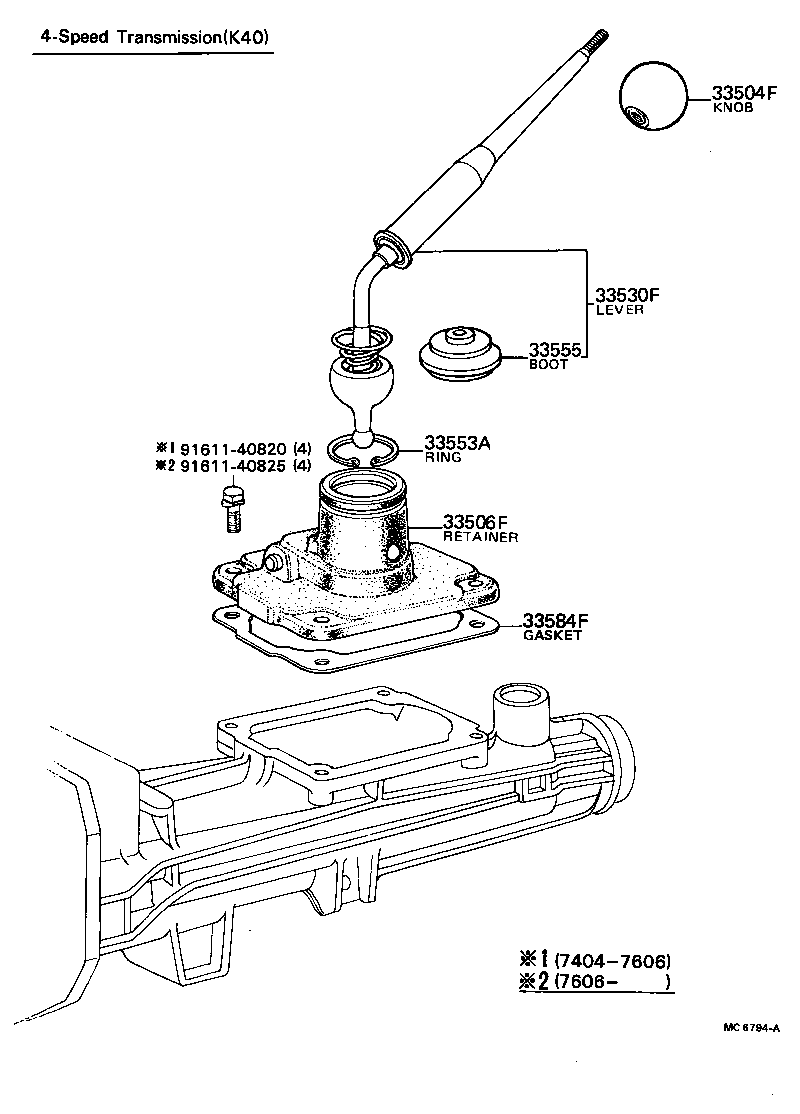

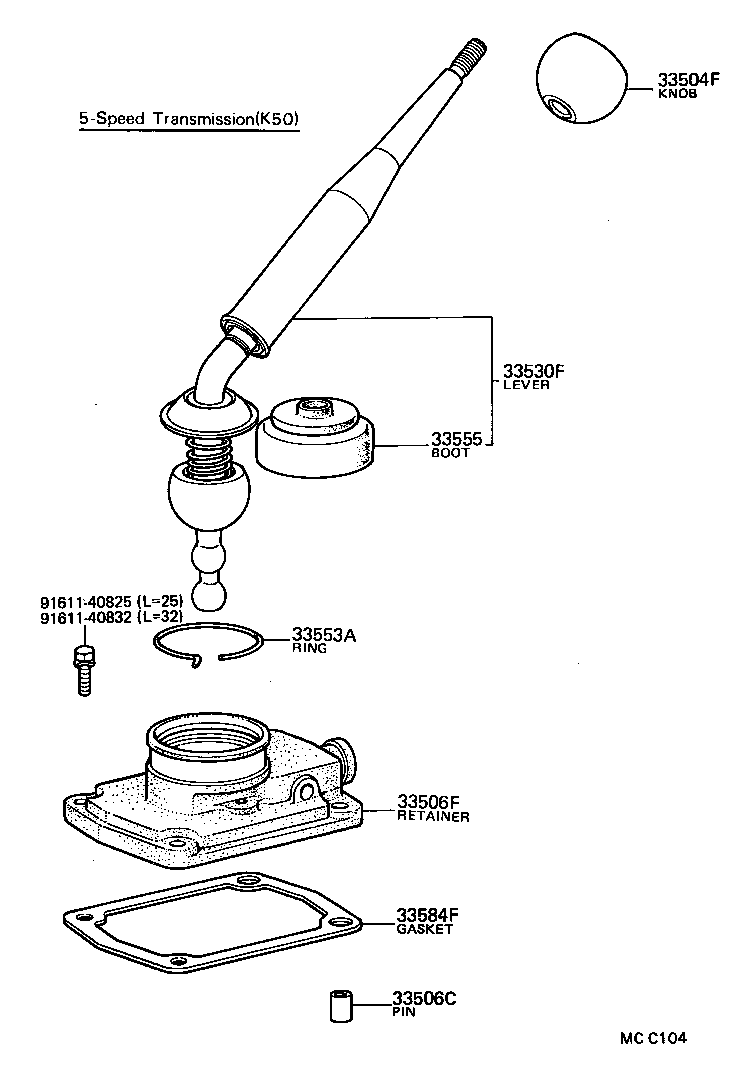

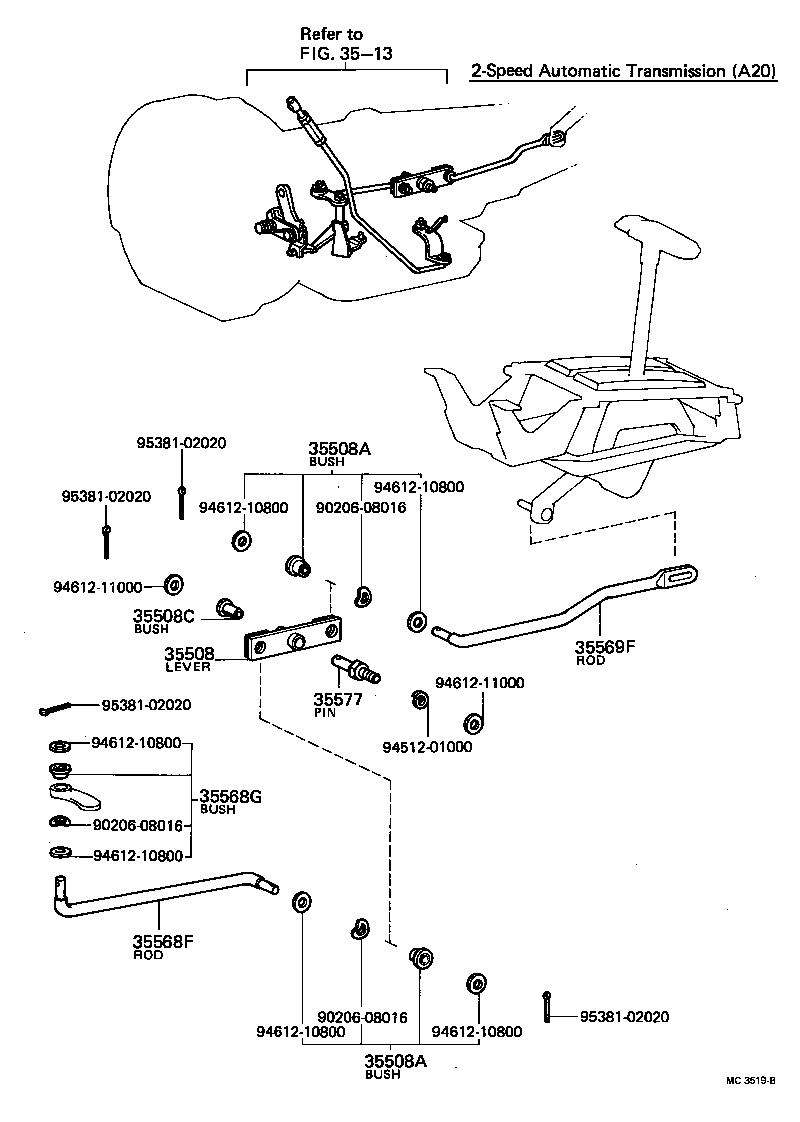

Figure MC0093C MC0093C 1969-04 → 1971-12 Figure MC0094F MC0094F 1969-04 → 1970-04 Figure MC6793 MC6793 1970-04 → 1974-04 Figure MC6794A MC6794A 1974-04 → 1985-08 Figure MCC104 MCC104 1985-08 → — Figure MC4350B MC4350B 1976-06 → 1978-02 Figure MC1584D MC1584D 1969-10 → 1975-11 Figure MC1584D MC1584D 1976-10 → 1978-02 Figure MC3519B MC3519B 1969-10 → 1975-11 Figure MC3519B MC3519B 1976-10 → 1978-02

Part groups

PNCDescription
33278 Support, Shift & Select Lever Shaft
33278A Pin, Shift And Select Lever Shaft Support Straight
33279 Gasket, Shift & Select Lever Shaft Support
33501F Shaft Sub-assy, Control (FOR FLOOR SHIFT)
33501G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33502 Plate Sub-assy, Shift Lever
33504F Knob Sub-assy, Shift Lever
33506C Pin, Shift Lever Retainer Ring
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33522F Seat, Shift Lever Plate (FOR FLOOR SHIFT)
33523B Pin, Shift Lever (FOR FLOOR SHIFT)
33527 Lever, Control Shift (FOR FLOOR SHIFT)
33530A Spring, Compression (FOR SHIFT LEVER)
33530C Bush (FOR SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33553A Ring, Snap (FOR SHIFT LEVER SPRING SHEET)
33555 Boot, Shift Lever
33555A Clip (FOR LEVER BOOT)
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33625 Sleeve, Shift Lever Knob
33631 Rod, Detent
33631A Spring, Compression (FOR DETENT ROD)
33631B Pin, Slotted Spring (FOR DETENT ROD)
33631C Ring, E (FOR DETENT ROD)
33723F Swivel, Connecting Rod (FOR FLOOR SHIFT)
33723G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33723H Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
33723J Washer, Wave (FOR FLOOR SHIFT CONTROL ROD SETTING)
33731F Rod, Gear Selecting, NO.1 (FOR FLOOR SHIFT)
33741F Rod, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33770H Cross Shaft Assy (FOR FLOOR SHIFT)
33778 Lever, Cross Shaft, NO.1
33778A Pin(FOR CROSS SHAFT LEVER, NO.1)
35508 Lever Sub-assy, Control Rod Joint
35508A Bush (FOR CONTROL ROD JOINT LEVER)
35508C Bush (FOR CONTROL ROD JOINT LEVER PIN)
35568F Rod, Shifting, 2ND
35568G Bush (FOR SHIFTING ROD, 2ND)
35569F Rod, Transmission Control, 1ST (FOR FLOOR SHIFT)
35577 Pin, Control Rod Joint Lever
35970F Housing Assy, Position Indicator
35971 Support, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
