Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

21 part groups · 2 illustrations

Illustrations

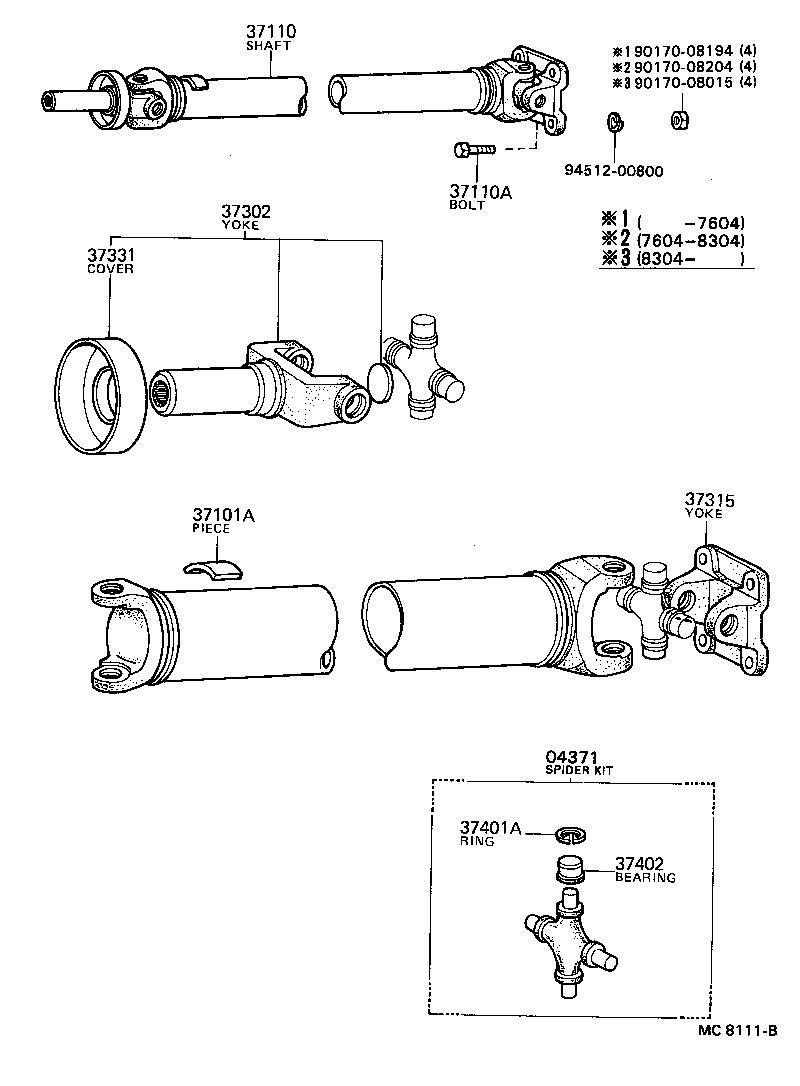

Figure MC0191E MC0191E 1969-04 → 1971-12 Figure MC8111B MC8111B 1969-04 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37341 Deflector, Propeller Shaft Dust, NO.1
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
41701 Tube Sub-assy, Torque
41705 Shaft Sub-assy, Drive Pinion Extension
41705A Bolt, Hexagon (FOR DRIVE PINION EXTENSION SHAFT)
41705B Nut, Hexagon (FOR DRIVE PINION EXTENSION SHAFT)
41705C Washer, Plate (FOR DRIVE PINION EXTENSION SHAFT)
41705D Bearing (FOR DRIVE PINION EXTENSION SHAFT)
41725 Insulator, Torque Tube
41732 Stabilizer, Torque Tube
41741 Member, Floor Cross, Center
41741A Cushion (FOR FLOOR CROSS CENTER MEMBER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
