Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

41 part groups · 8 illustrations

Illustrations

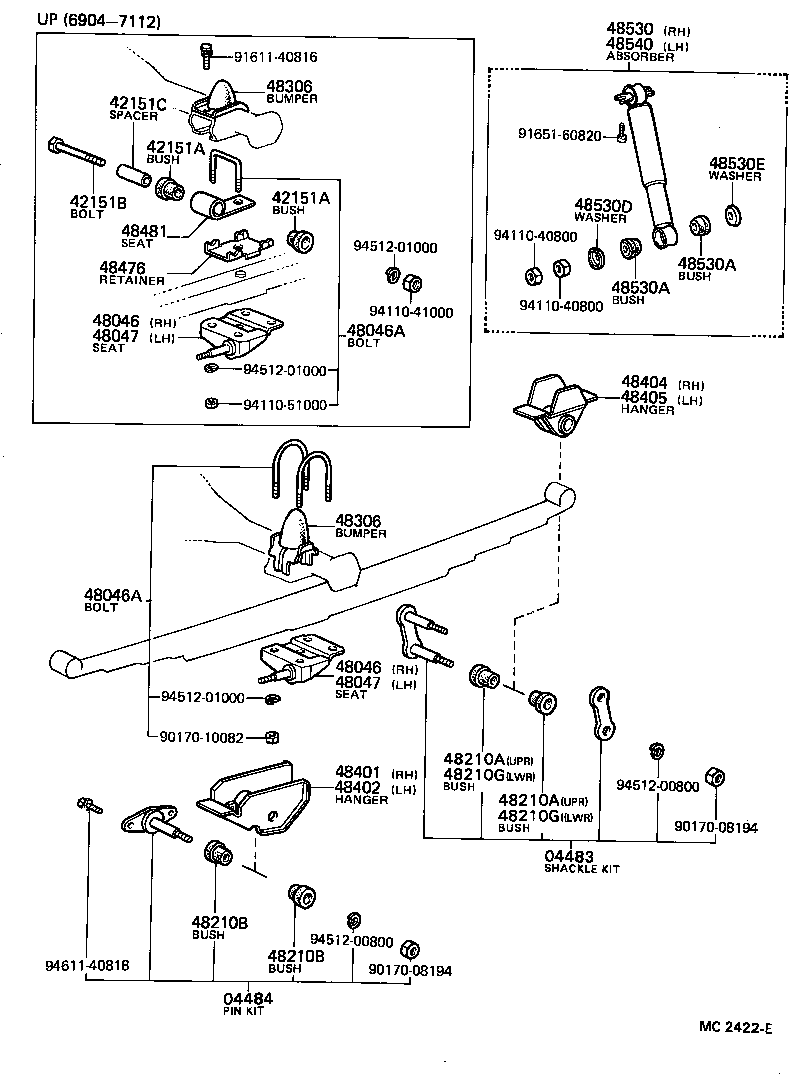

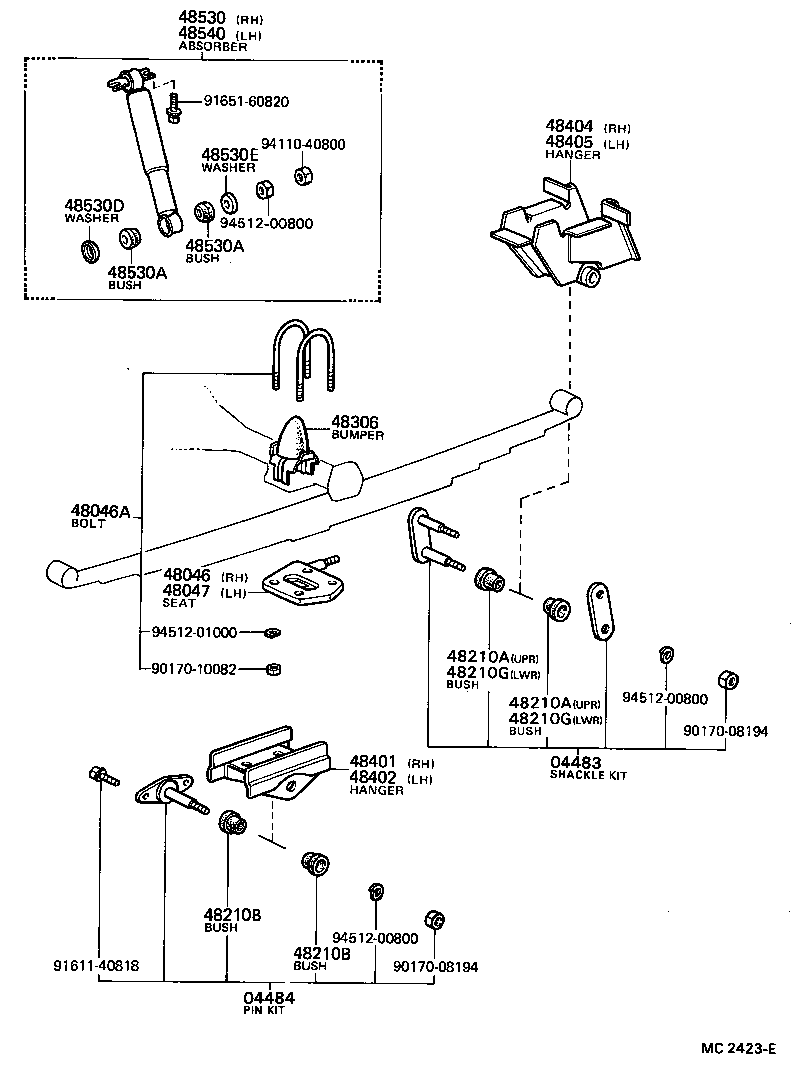

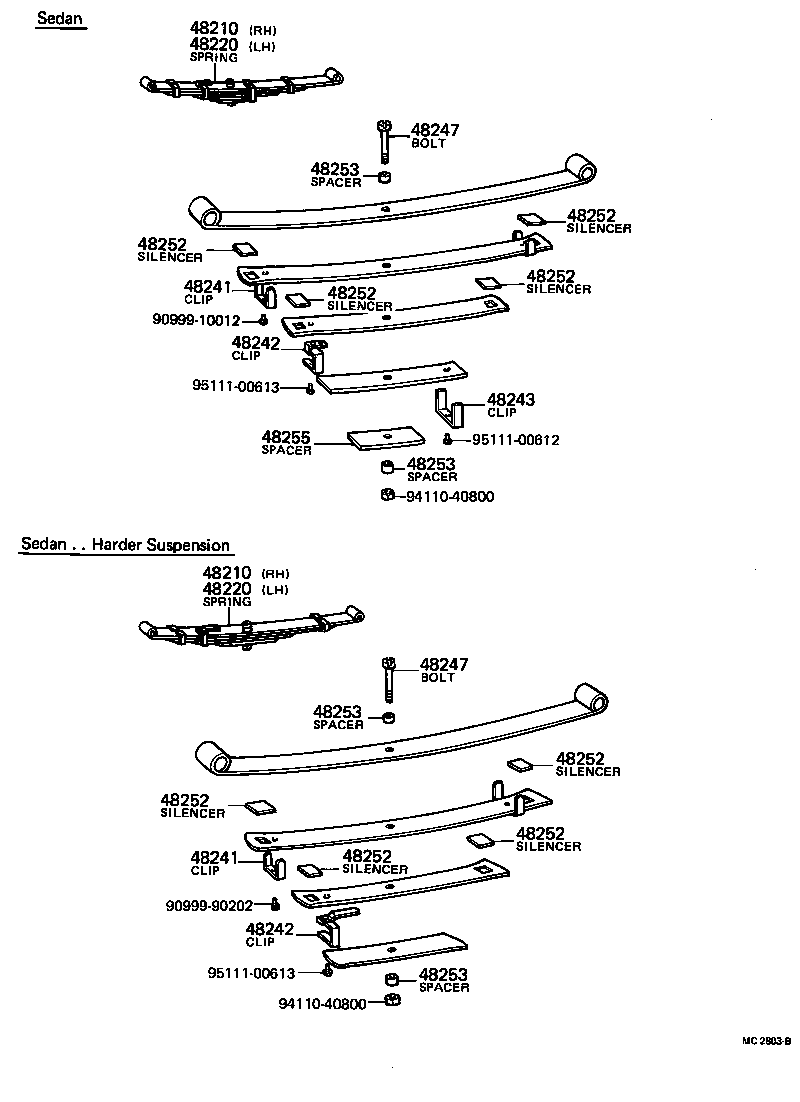

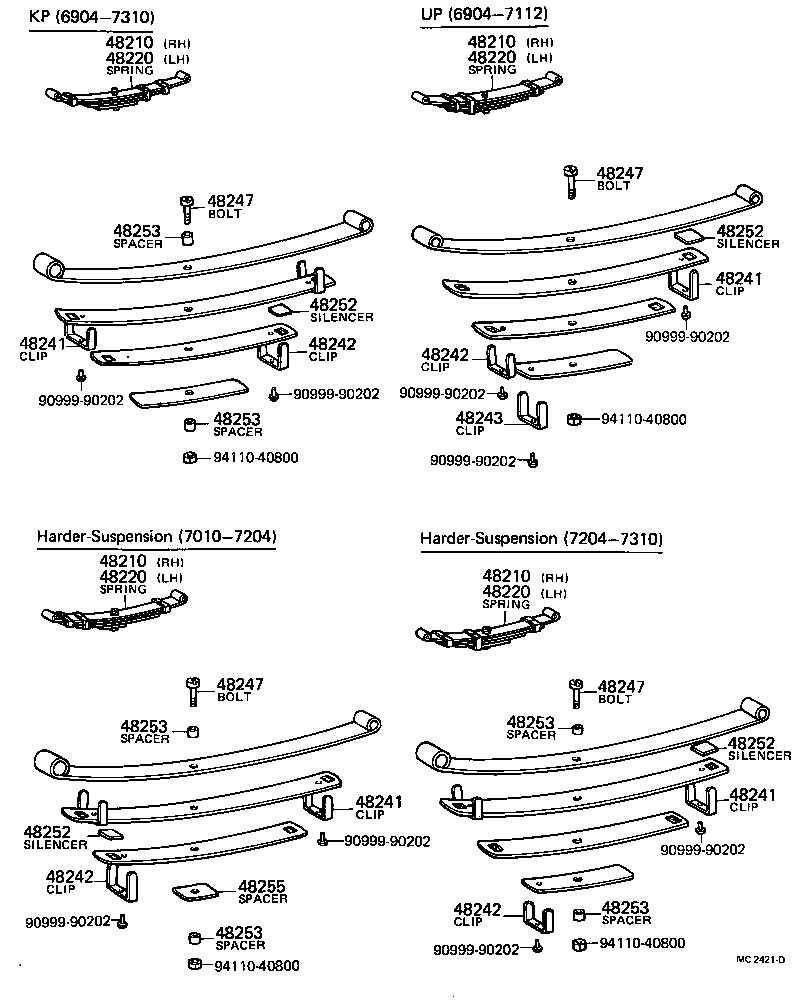

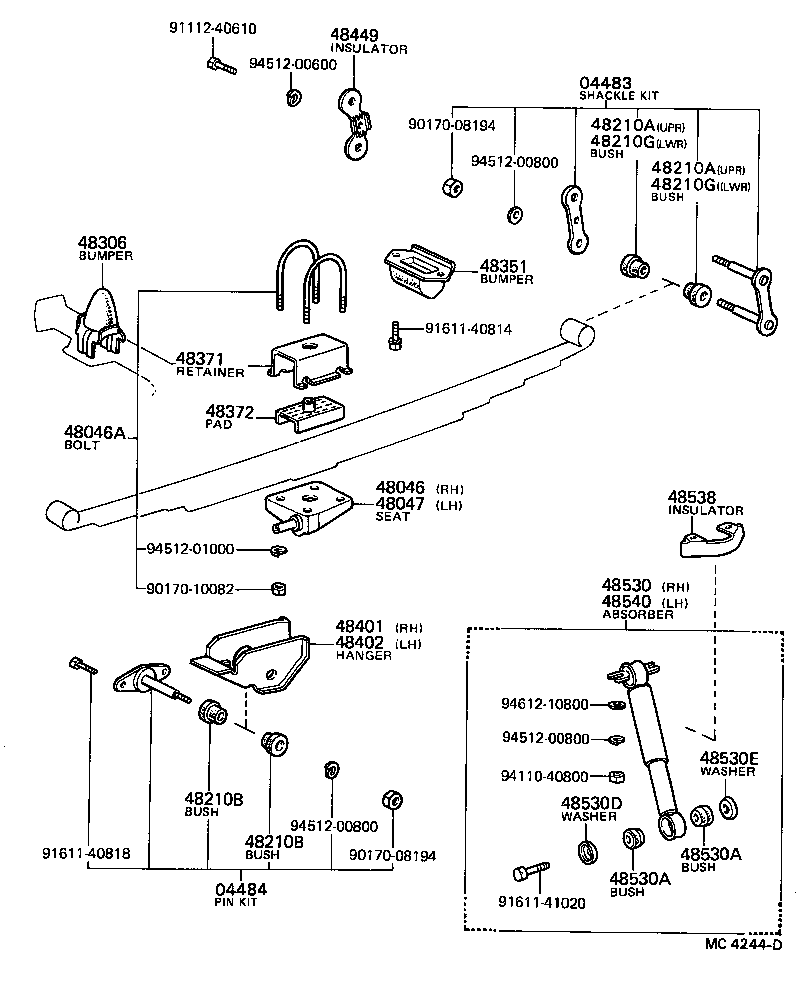

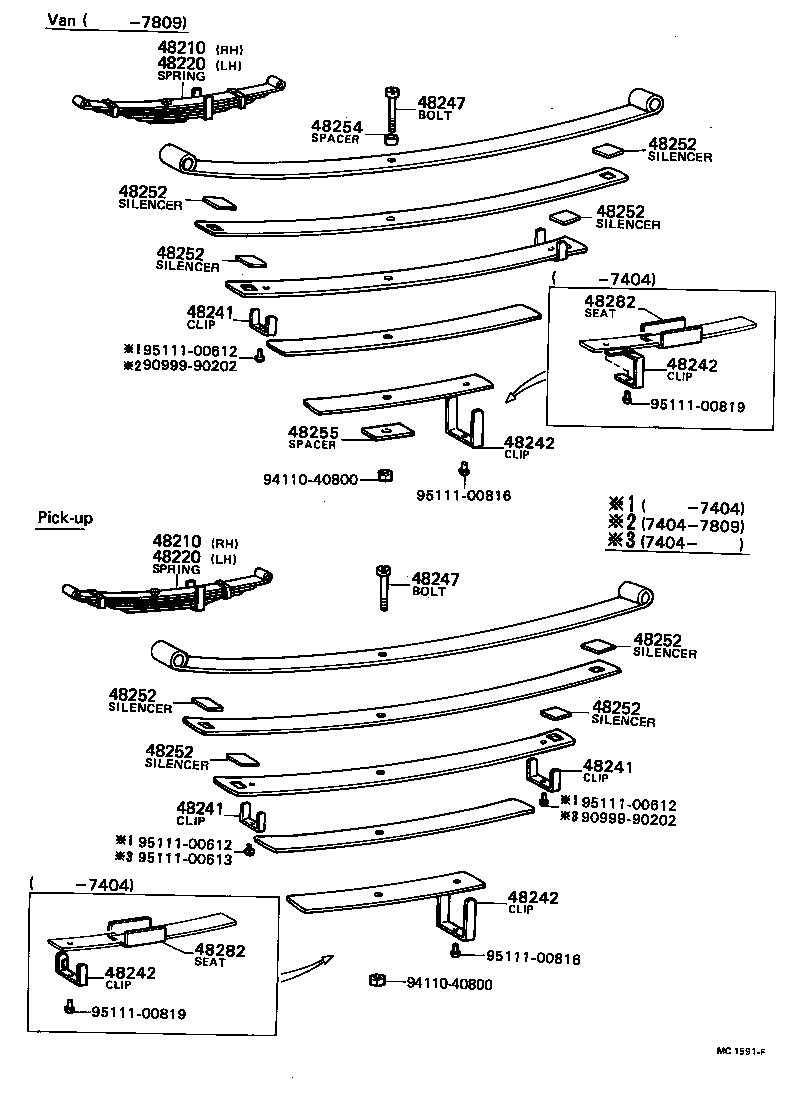

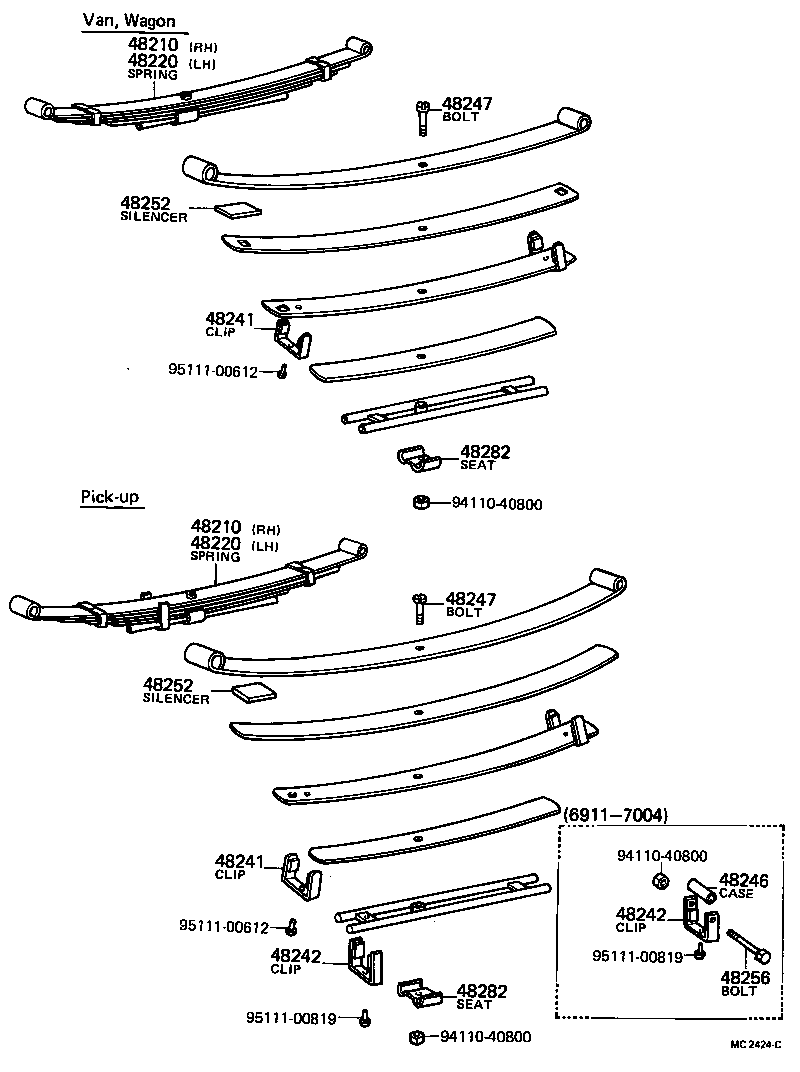

Figure MC2420E MC2420E 1969-04 → 1975-11 Figure MC2422E MC2422E 1969-04 → 1978-09 Figure MC2423E MC2423E 1969-11 → — Figure MC4244D MC4244D 1976-01 → 1978-02 Figure MC2421D MC2421D 1969-04 → 1973-10 Figure MC2803B MC2803B 1973-10 → 1978-02 Figure MC2424C MC2424C 1969-04 → 1973-10 Figure MC1591F MC1591F 1973-10 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
42151A Bush (FOR REAR SPRING SEAT)
42151B Bolt, Hexagon (FOR REAR SPRING SEAT BOLT)
42151C Spacer (FOR REAR SPRING SEAT)
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48282 Seat, Rear Helper Spring
48306 Bumper Sub-assy, Rear Spring
48351 Bumper, Differential Carrier
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48449 Insulator, Spring Shackle
48476 Retainer, U Bolt
48481 Seat, Rear Spring, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48538 Insulator, Rear Shock Absorber Bush Heat
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
