Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

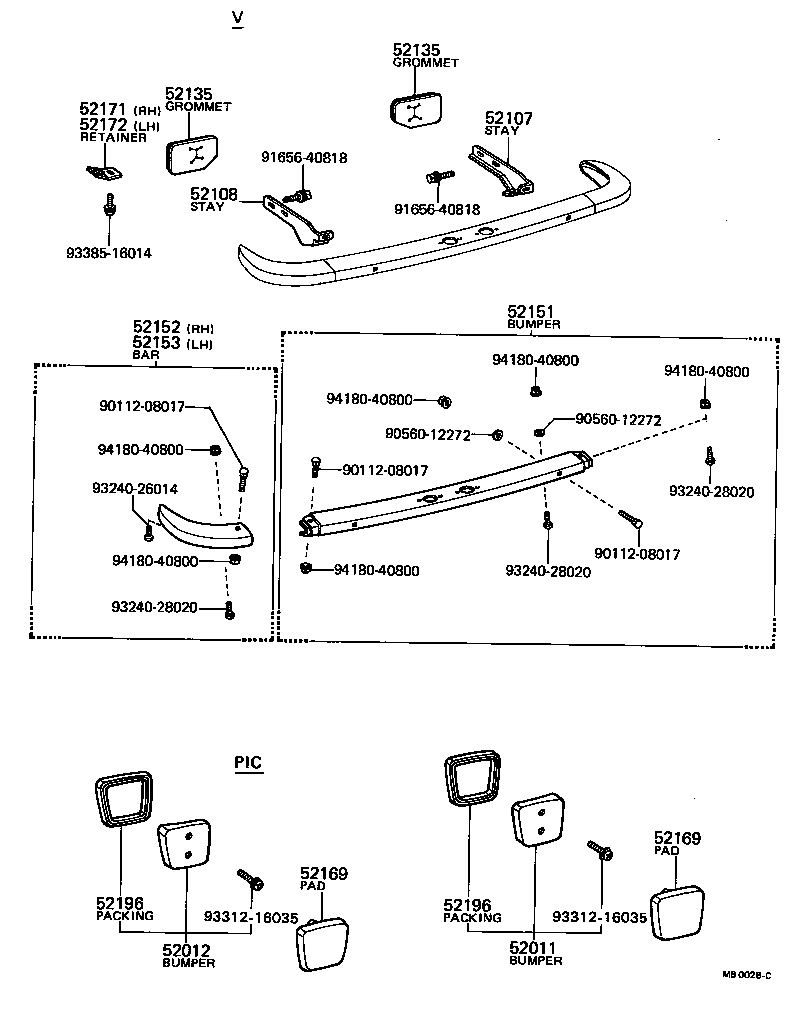

Figure MB0027F MB0027F 1969-04 → 1978-02 Figure MB0028C MB0028C 1969-04 → —

Part groups

PNCDescription
52011 Bumper Sub-assy, Rear RH
52012 Bumper Sub-assy, Rear, LH
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52135 Grommet, Rear Bumper Stay
52151 Bumper Assy, Rear
52152 Bar, Rear Bumper, RH
52153 Bar, Rear Bumper, LH
52154 Guard, Bumper, Rear RH
52155 Guard, Bumper, Rear LH
52169 Pad, Rear Bumper
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
52196 Packing, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
