Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

16 part groups · 3 illustrations

Illustrations

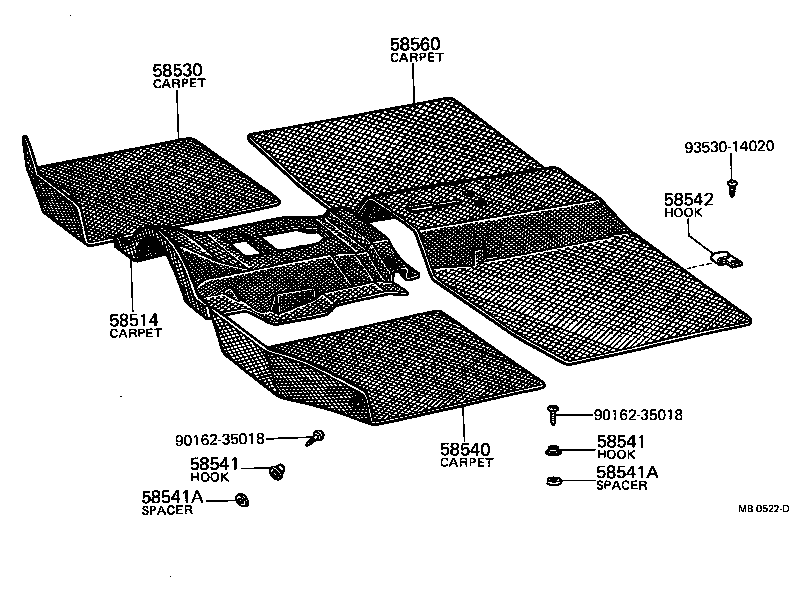

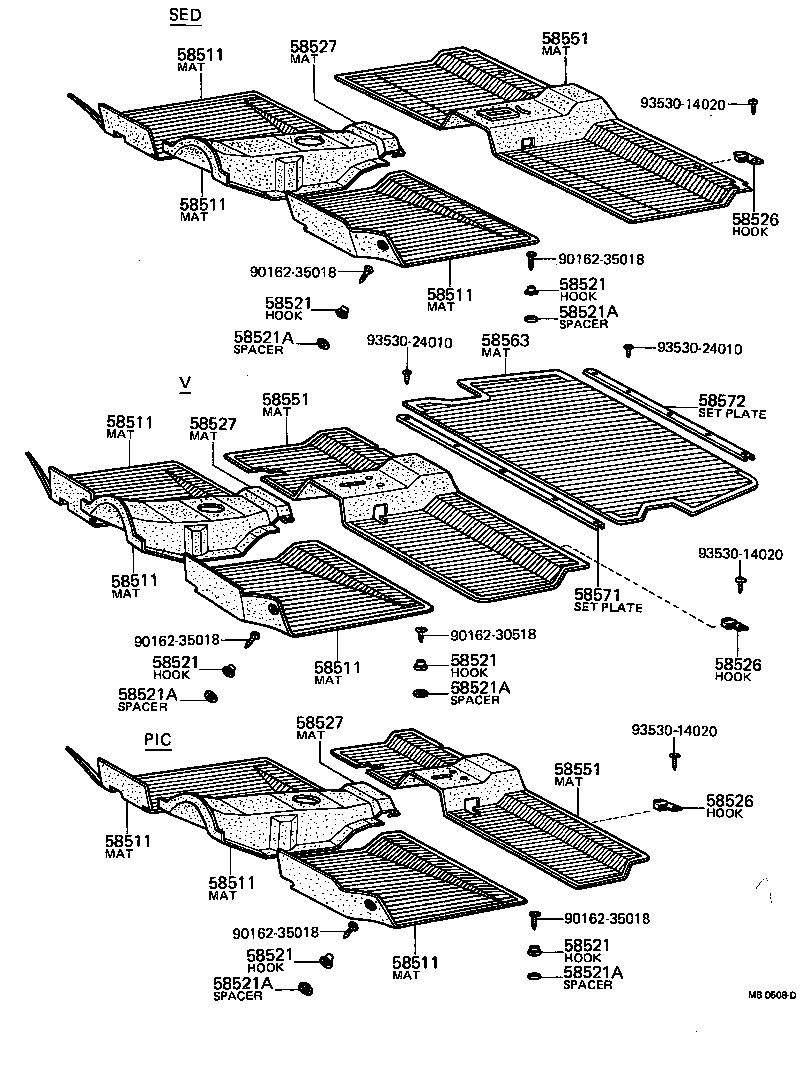

Figure MB0522X MB0522X 1969-04 → — Figure MB0508D MB0508D 1969-04 → 1975-11 Figure MB0522D MB0522D 1969-04 → —

Part groups

PNCDescription
58511 Mat, Floor, Front
58514 Carpet, Floor, Front Center
58521 Hook, Male, NO.1
58521A Spacer(FOR HOOK MALE NO.1)
58526 Hook, Male, NO.2
58527 Mat, Center Floor Crossmember
58530 Carpet Assy, Floor, Front RH
58540 Carpet Assy, Floor, Front LH
58541 Hook, Male, NO.1(FOR CARPET)
58541A Spacer(FOR CARPET HOOK MALE NO.1)
58542 Hook, Male, NO.2(FOR CARPET)
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
58563 Mat, Rear Floor
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
