Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

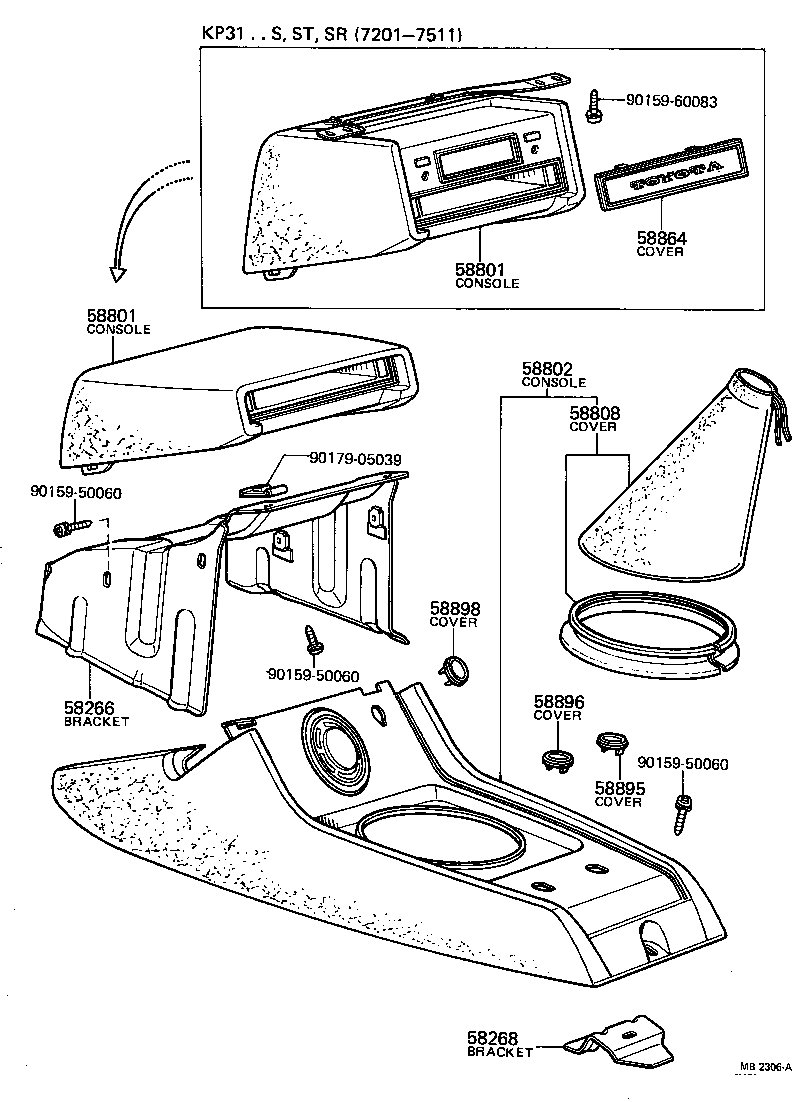

Figure MB1118E MB1118E 1970-04 → 1971-12 Figure MB2306A MB2306A 1972-01 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58268 Bracket, Console Box Support, Rear
58801 Console Sub-assy, Upper
58802 Console Sub-assy, Lower
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58811 Plate, Console, Front
58825 Plate, Shifting Hole Cover Retainer
58839 Holder, Shifting Hole Cover
58863 Ornament, Console
58864 Cover, Radio Tuner Opening
58895 Cover, Switch Hole, NO.1
58896 Cover, Switch Hole, NO.2
58898 Cover, Lamp Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
