Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

8 part groups · 2 illustrations

Illustrations

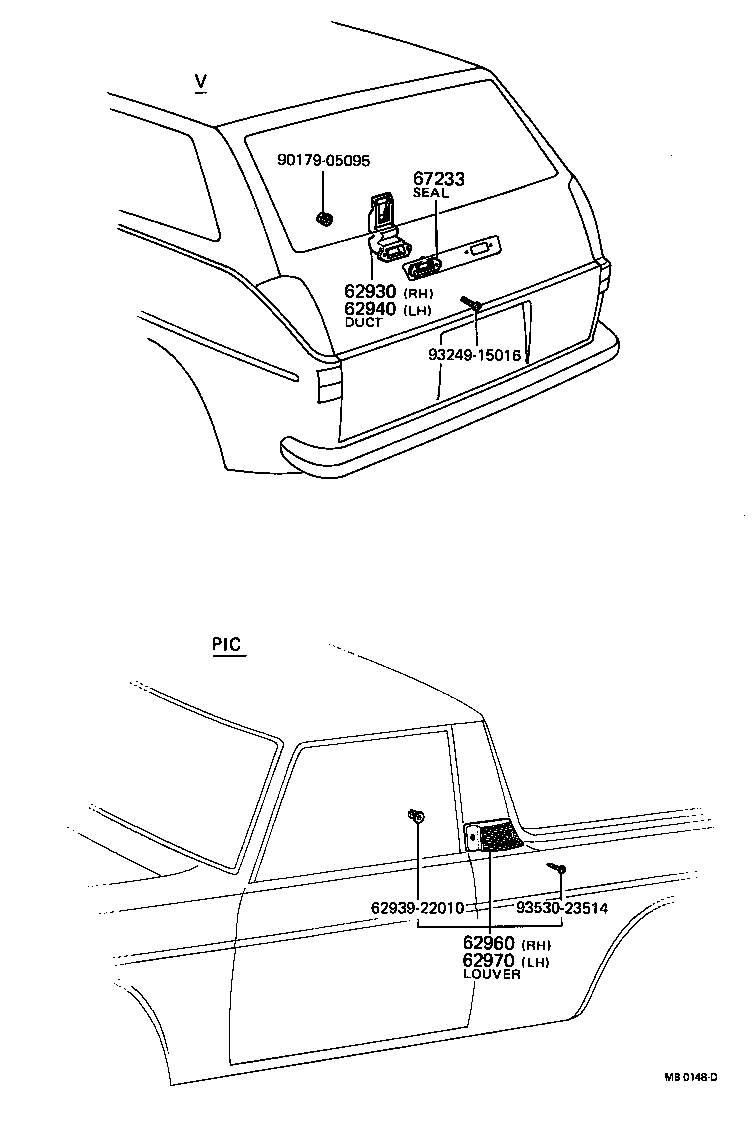

Figure MB2308F MB2308F 1969-04 → 1978-02 Figure MB0148D MB0148D 1969-04 → —

Part groups

PNCDescription
62930 Duct Assy, Roof Side Vent, RH
62940 Duct Assy, Roof Side Vent, LH
62951 Louver, Vent, Inner RH
62952 Louver, Vent, Inner LH
62955 Seal, Roof Side Vent
62960 Louver Assy, Roof Side Vent, RH
62970 Louver Assy, Roof Side Vent, LH
67233 Seal, Back Door Vent
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
