Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

25 part groups · 3 illustrations

Illustrations

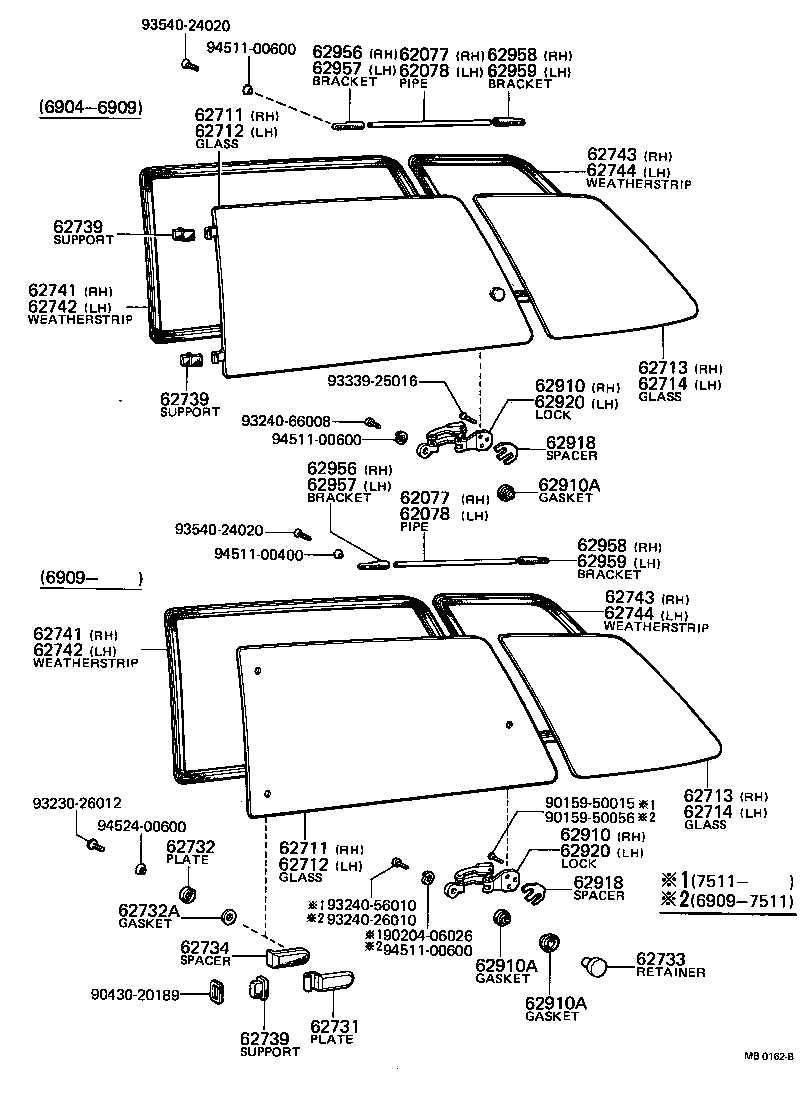

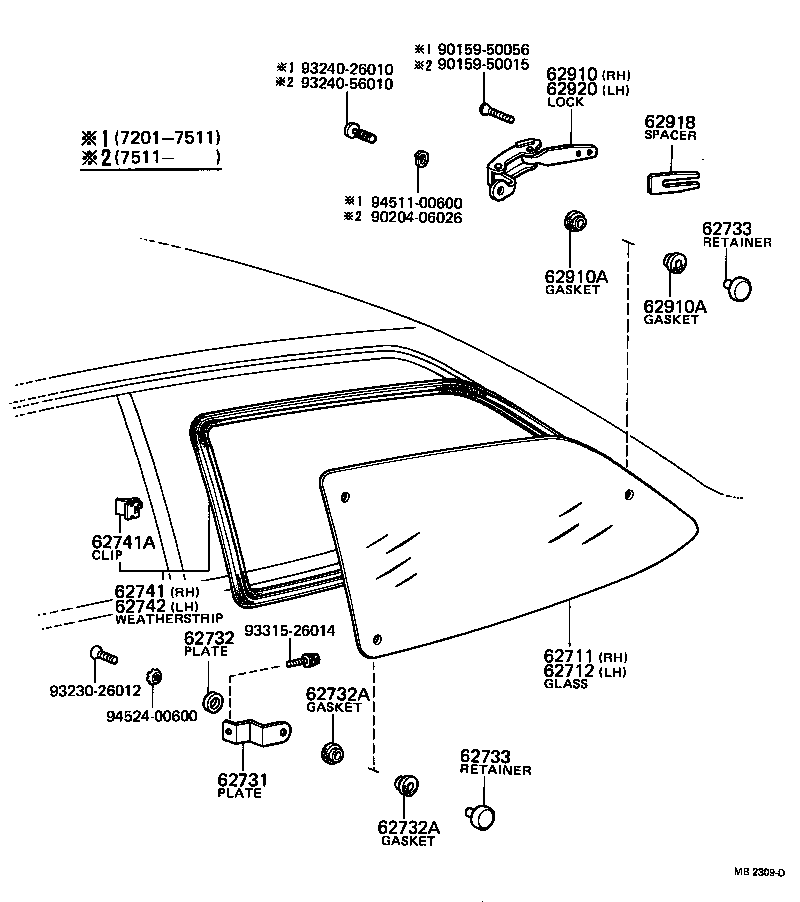

Figure MB0161F MB0161F 1969-04 → 1971-12 Figure MB2309D MB2309D 1972-01 → 1978-02 Figure MB0162B MB0162B 1969-04 → 1978-09

Part groups

PNCDescription
62077 Pipe Sub-assy, Quarter Window Guard B, RH
62078 Pipe Sub-assy, Quarter Window Guard B, LH
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62713 Glass, Quarter Window, Rear RH
62714 Glass, Quarter Window, Rear LH
62731 Plate, Quarter OR Side Window Hinge
62732 Plate, Quarter OR Side Window Hinge Finish
62732A Gasket(FOR QUARTER WINDOW HINGE FINISH PLATE)
62733 Retainer, Quarter OR Side Window Hinge
62734 Spacer, Quarter Window Hinge
62739 Support, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62741A Clip, Quarter Window Weatherstrip
62742 Weatherstrip, Quarter Window, LH
62743 Weatherstrip, Quarter Window, Rear RH
62744 Weatherstrip, Quarter Window, Rear LH
62910 Lock Assy, Quarter OR Side Window, RH
62910A Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62918 Spacer, Quarter Window Lock Support
62920 Lock Assy, Quarter Window, LH
62956 Bracket, Guard Pipe Quarter Window, Front RH
62957 Bracket, Guard Pipe Quarter Window, Front LH
62958 Bracket, Guard Pipe Quarter Window, Rear RH
62959 Bracket, Guard Pipe Quarter Window, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
