Toyota Publica
1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan
Discontinued model
Data version 1988-12

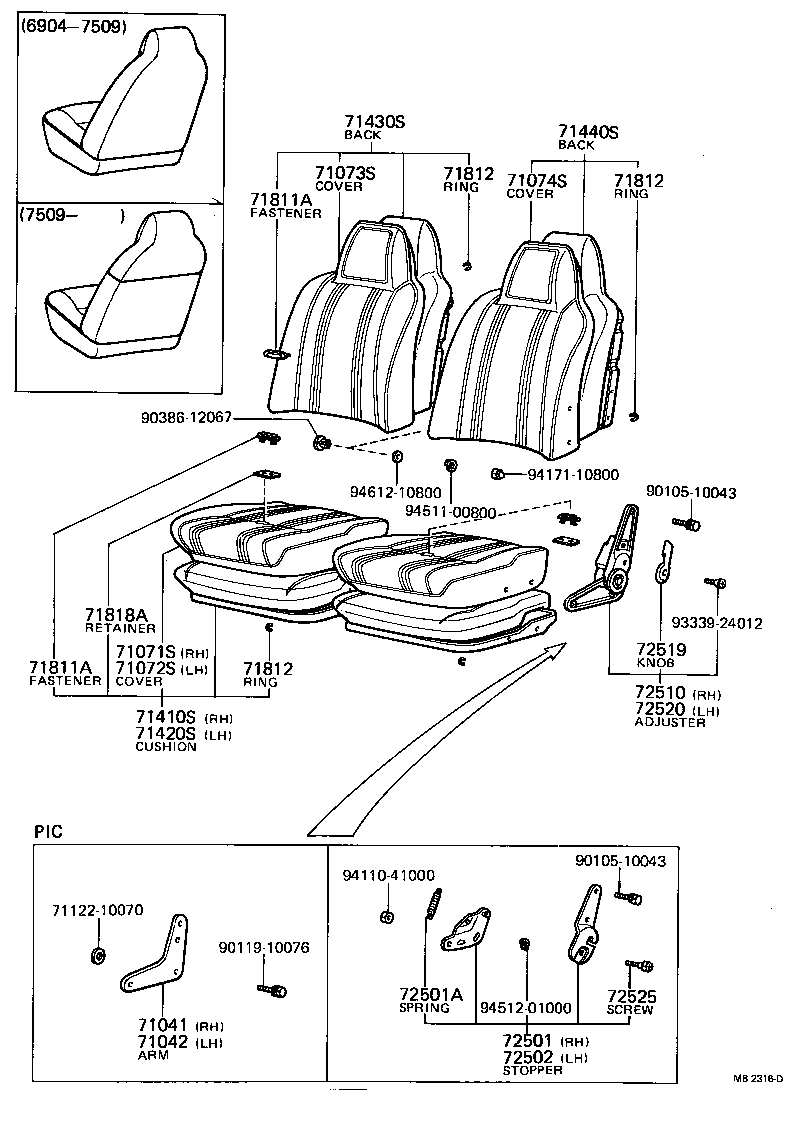

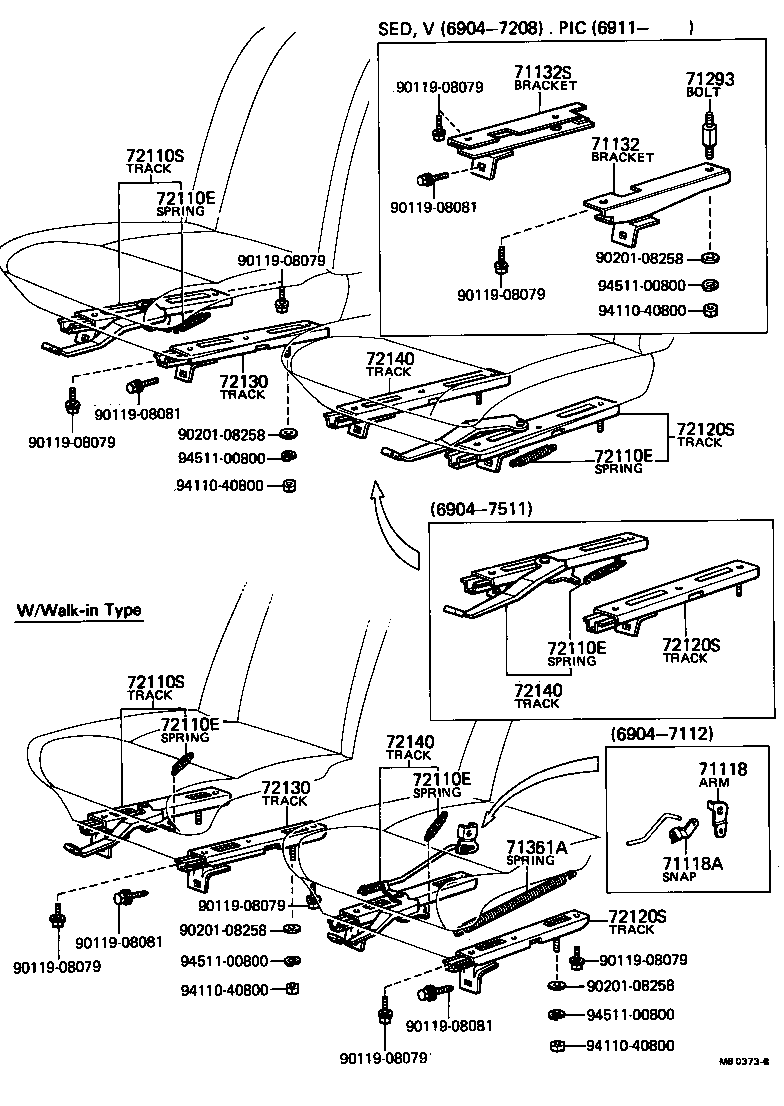

Front Seat & Seat Track
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71041 | Arm Sub-assy, Front Seat, RH |
| 71042 | Arm Sub-assy, Front Seat, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71118 | Arm, Front Seat Control |
| 71118A | Snap, Front Seat Control Arm |
| 71132 | Bracket, Front Seat Set, Outer LH |
| 71132S | Bracket, Front Seat Set, Inner LH |
| 71293 | Bolt, Front Seat Set |
| 71361A | Spring, Tension (FOR SEAT TRACK) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71811A | Fastener (FOR FRONT SEAT COVER) |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71818A | Retainer, Front Seat Cover Fastener |
| 71950 | Headrest Assy, Front Seat |
| 71998 | Grommet, Front Seat Headrest, RH |
| 71999 | Grommet, Front Seat Headrest, LH |
| 72110E | Spring, Tension, NO.1 (FOR SEAT TRACK) |
| 72110S | Track Assy, RH Seat, Outer (FOR SEPARATE SEAT) |
| 72120S | Track Assy, LH Seat, Outer (FOR SEPARATE SEAT) |
| 72130 | Track Assy, RH Seat, Inner |
| 72140 | Track Assy, LH Seat, Inner |
| 72501 | Stopper Assy, Front Seatback, RH |
| 72501A | Spring, Tension(FOR FRONT SEATBACK STOPPER) |
| 72502 | Stopper Assy, Front Seatback, LH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72519 | Knob, Reclining Seatback Adjusting Arm |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525 | Screw, Front Seatback Hinge |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
