Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

15 part groups · 2 illustrations

Illustrations

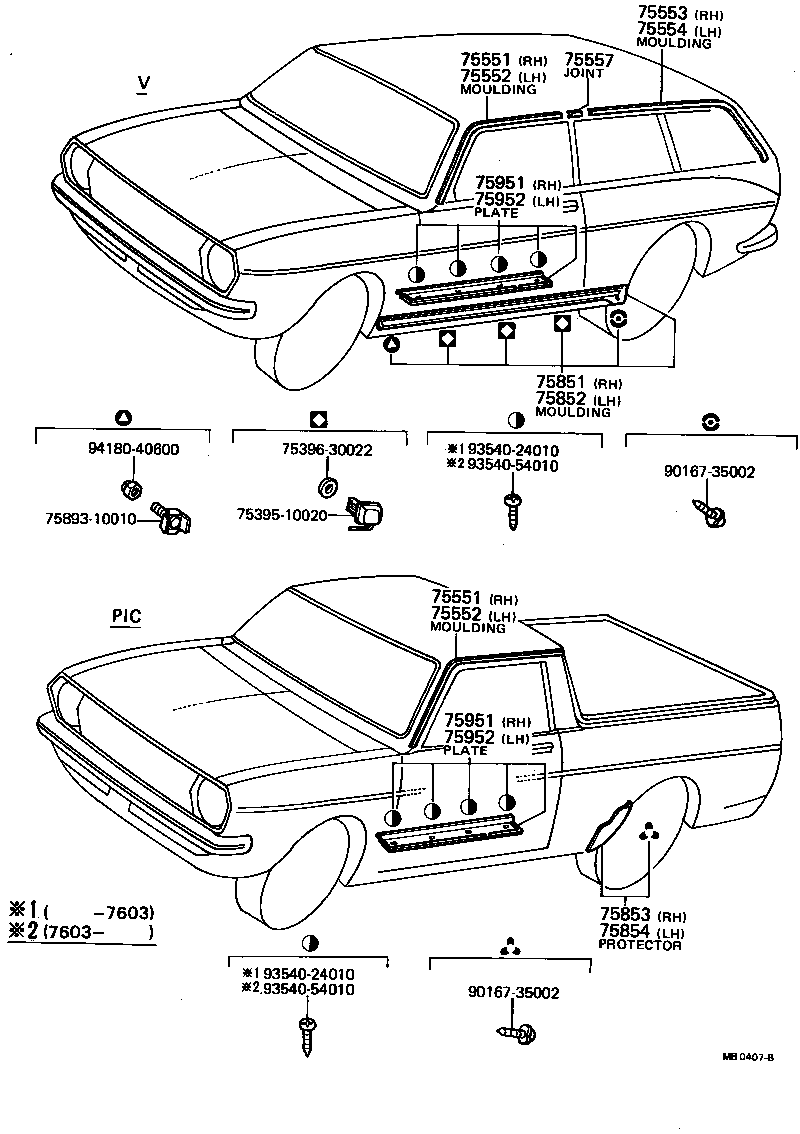

Figure MB0406C MB0406C 1969-04 → 1978-02 Figure MB0407B MB0407B 1969-04 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75557 Joint, Roof Drip Side Finish Moulding
75733 Moulding, Front Door Window Frame, Rear RH
75734 Moulding, Front Door Window Frame, Rear LH
75735 Moulding, Front Door Window Frame, Upper RH
75736 Moulding, Front Door Window Frame, Upper LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75853 Protector, Rear Fender, RH
75854 Protector, Rear Fender, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
