Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

10 part groups · 2 illustrations

Illustrations

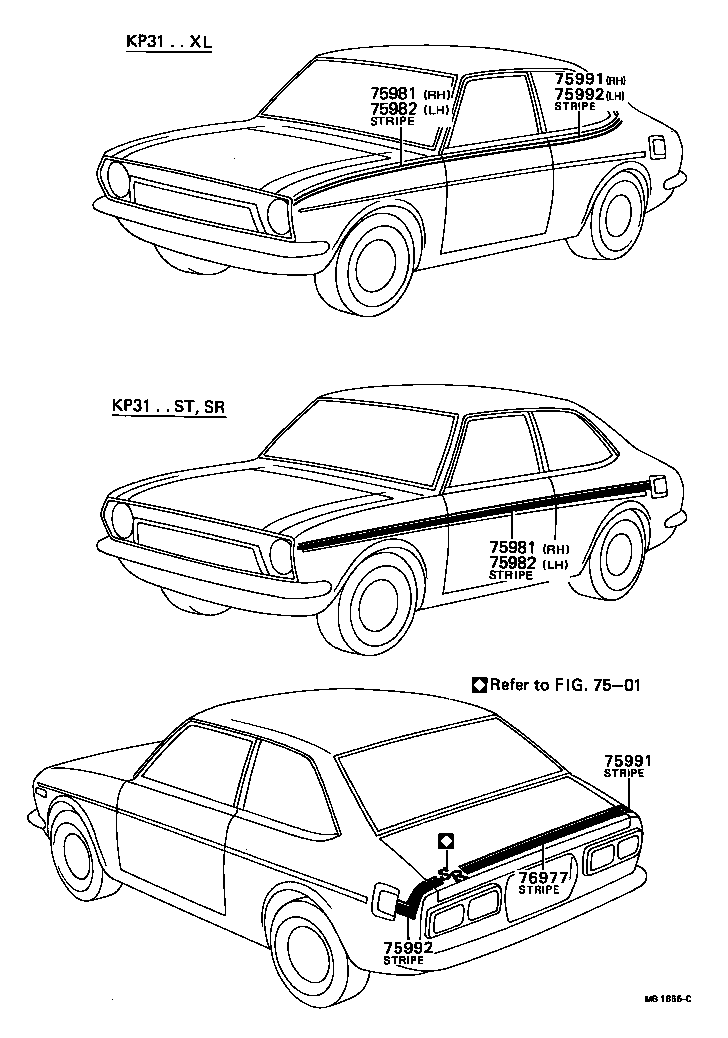

Figure MB1353D MB1353D 1970-10 → 1971-12 Figure MB1855C MB1855C 1972-01 → 1975-11

Part groups

PNCDescription
75980 Stripe Set
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75998 Stripe, Hood, RH
75999 Stripe, Hood, LH
76977 Stripe, Rear Body Back
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
