Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 7 illustrations

Illustrations

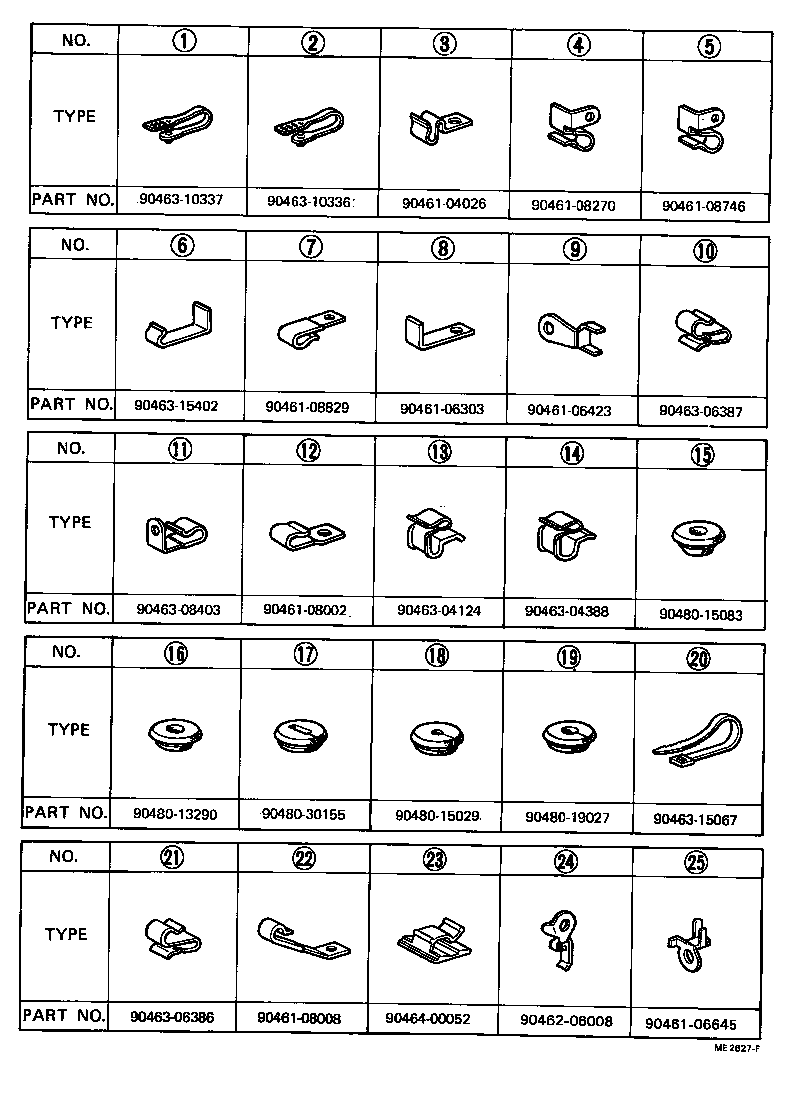

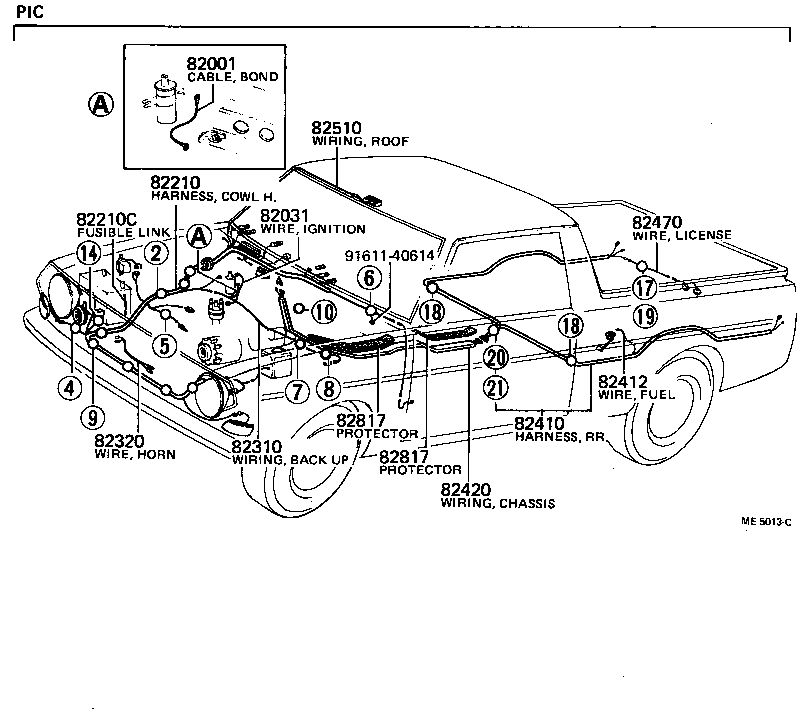

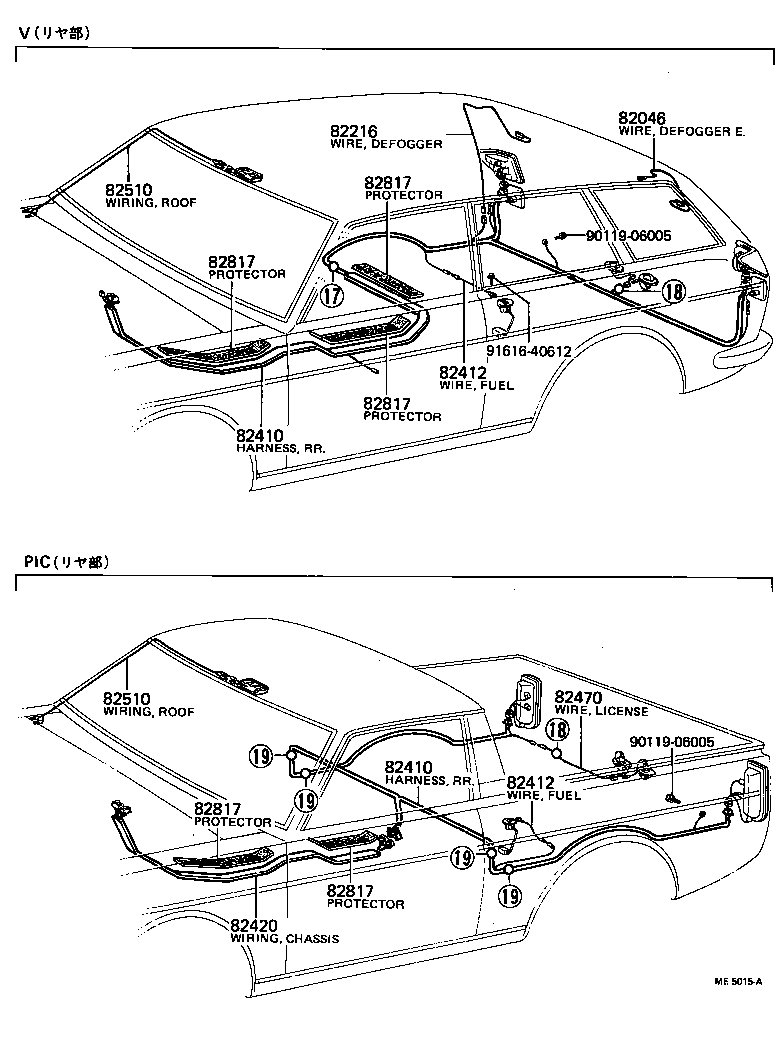

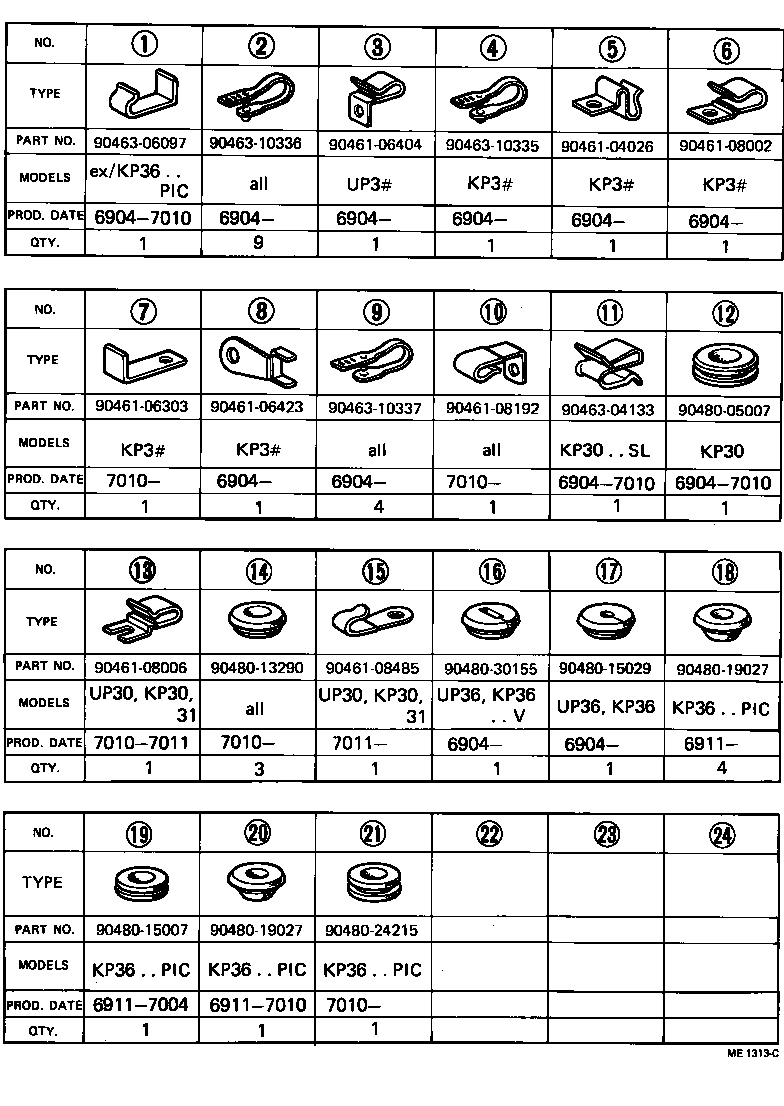

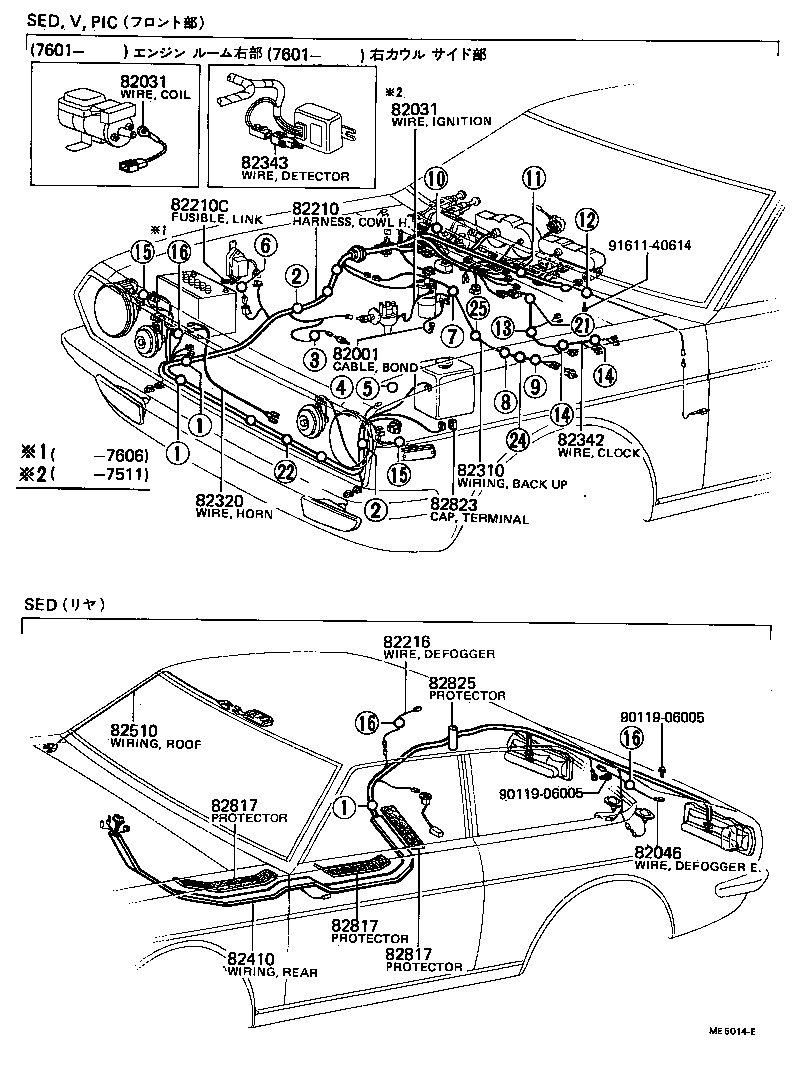

Figure ME5012B ME5012B 1969-04 → 1971-12 Figure ME5013C ME5013C 1969-04 → 1971-12 Figure ME1313C ME1313C 1969-04 → 1971-12 Figure ME5014E ME5014E 1972-01 → — Figure ME5015A ME5015A 1972-01 → — Figure ME2627F ME2627F 1972-01 → — Figure MEF540 MEF540 1972-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82216 Wire, Rear Window Defogger
82310 Wiring Assy, TO Back UP Lamp Switch
82320 Wire Assy, TO Horn
82342 Wire, Clock
82343 Wire, Detector
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82470 Wire Assy, License Lamp Feed
82510 Wiring Assy, Roof
82521 Wire, Interior Lamp Feed, A
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
