Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 3 illustrations

Illustrations

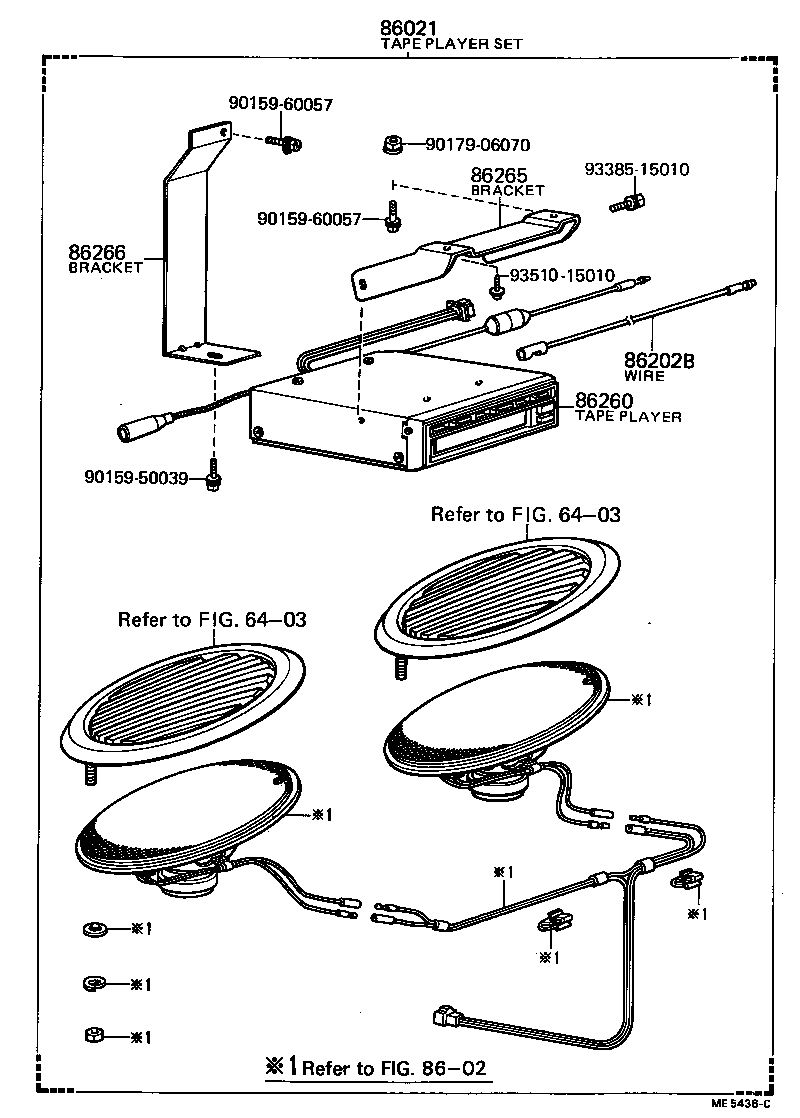

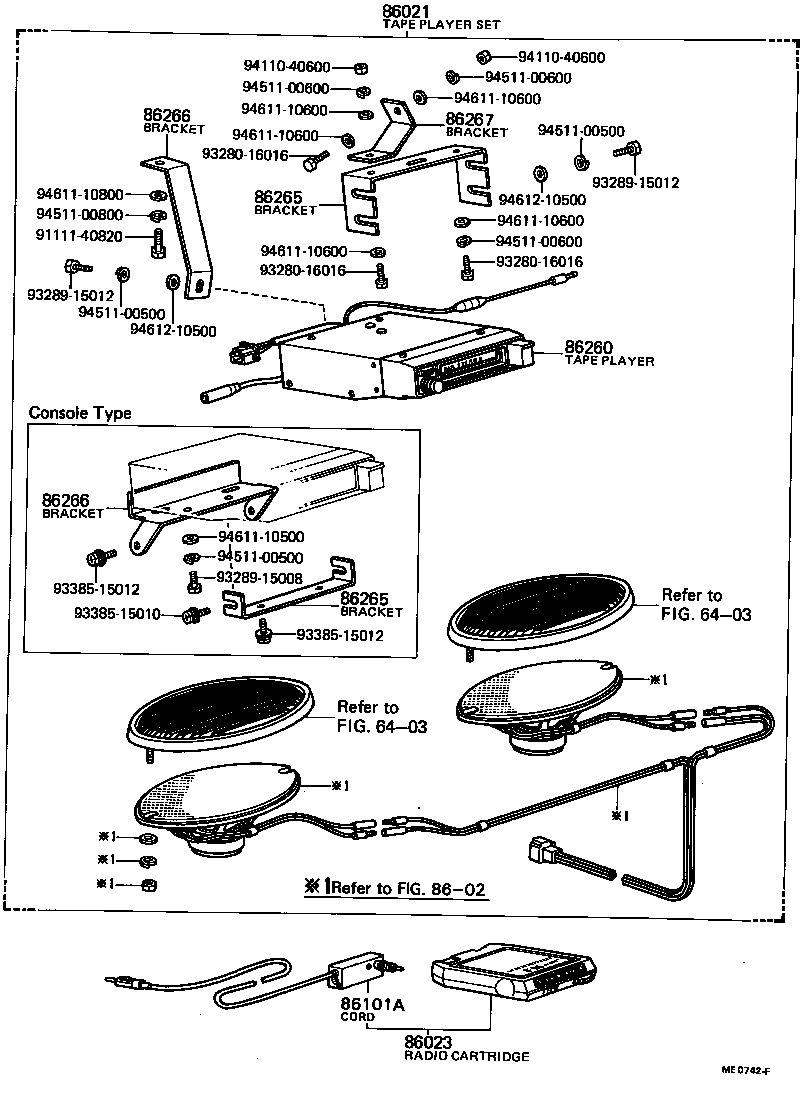

Figure ME3427D ME3427D 1969-04 → — Figure ME0742F ME0742F 1970-10 → 1976-03 Figure ME5436C ME5436C 1976-03 → 1978-02

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86021 Tape Player And Setting Parts Set
86023 Radio, Cartridge And Setting Parts Set
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86202B Wire, Tape Player
86211 Bracket, Radio, NO.1
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
