Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

44 part groups · 8 illustrations

Illustrations

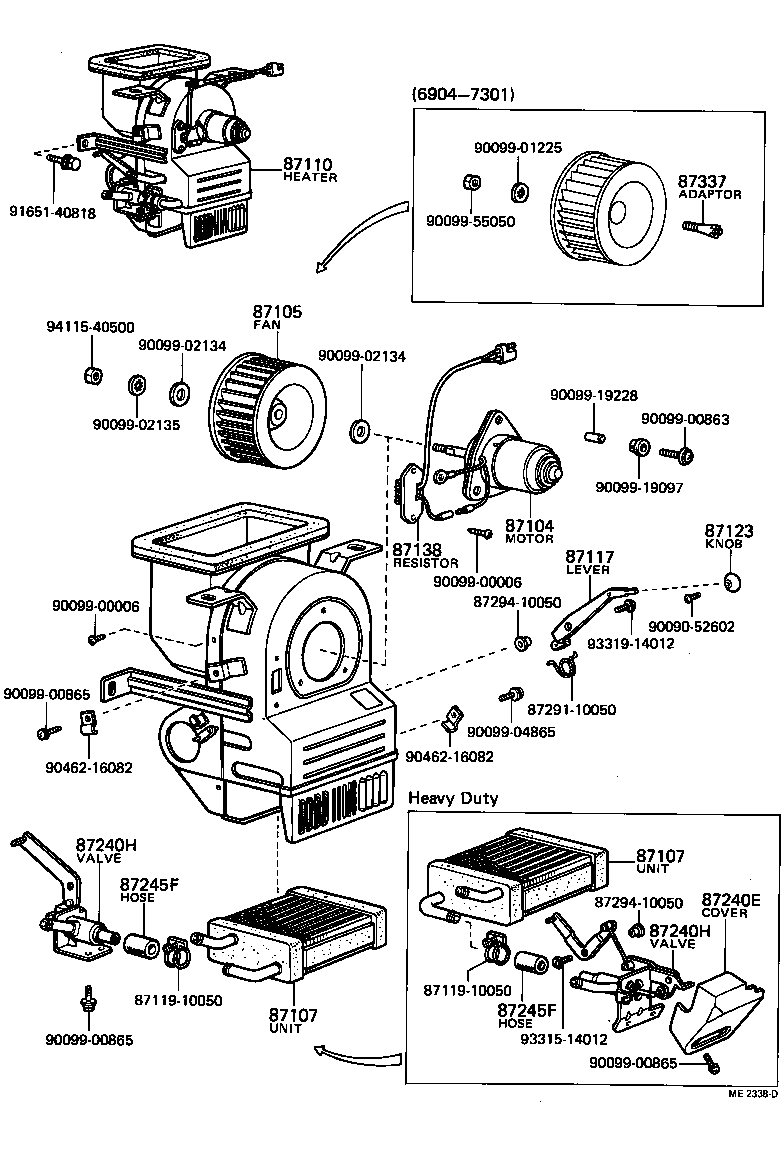

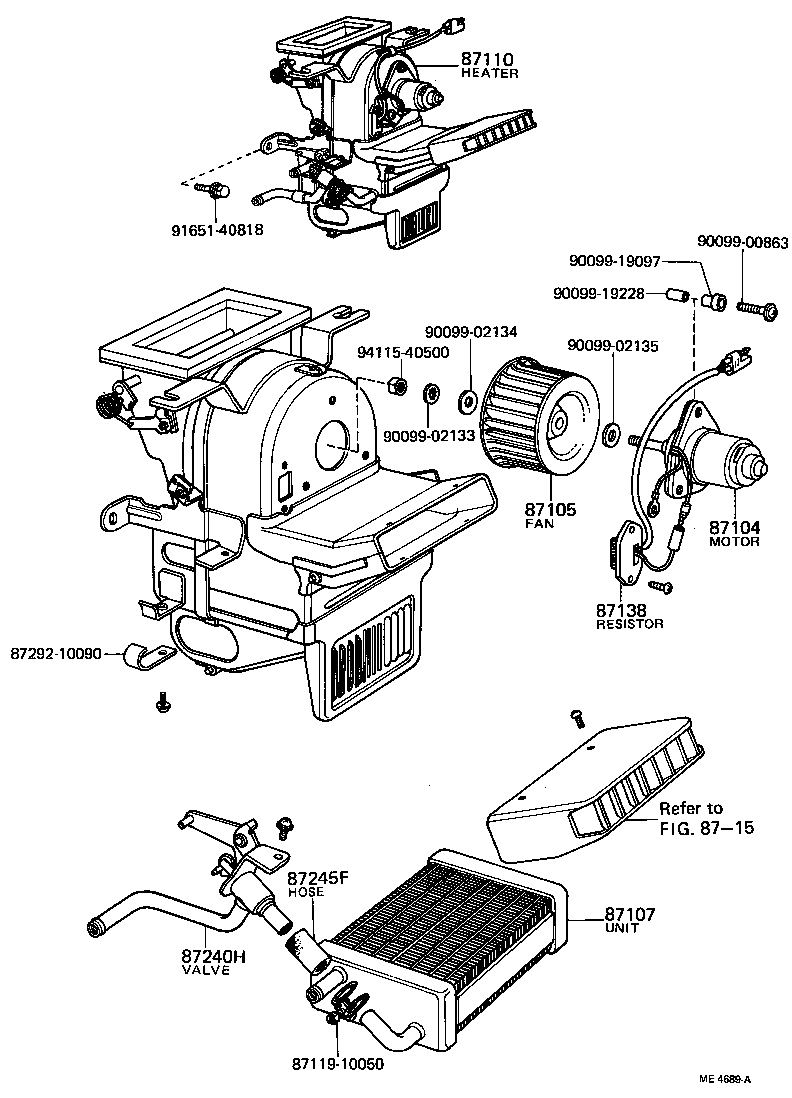

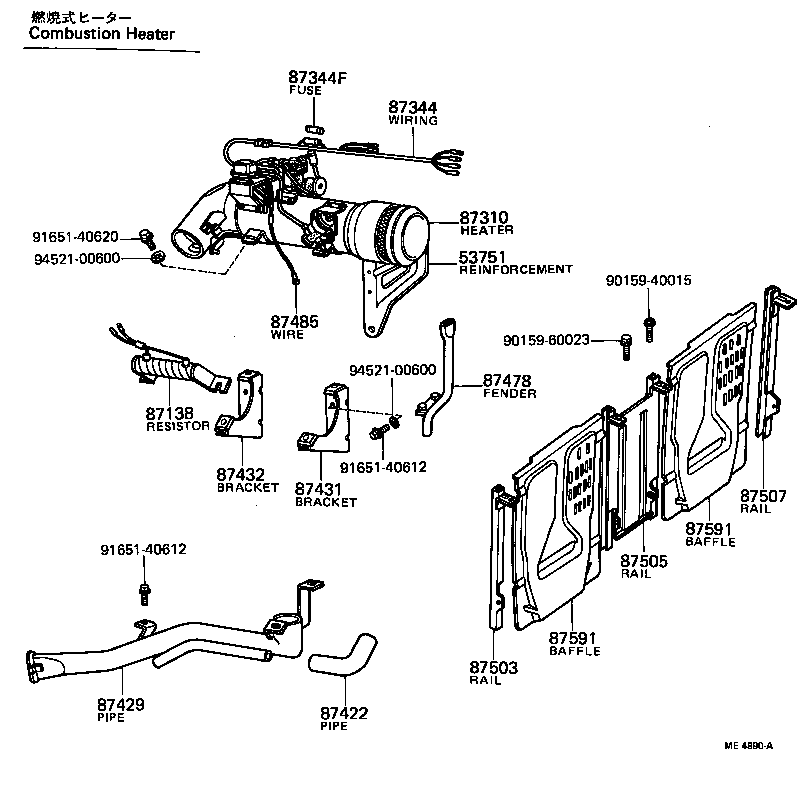

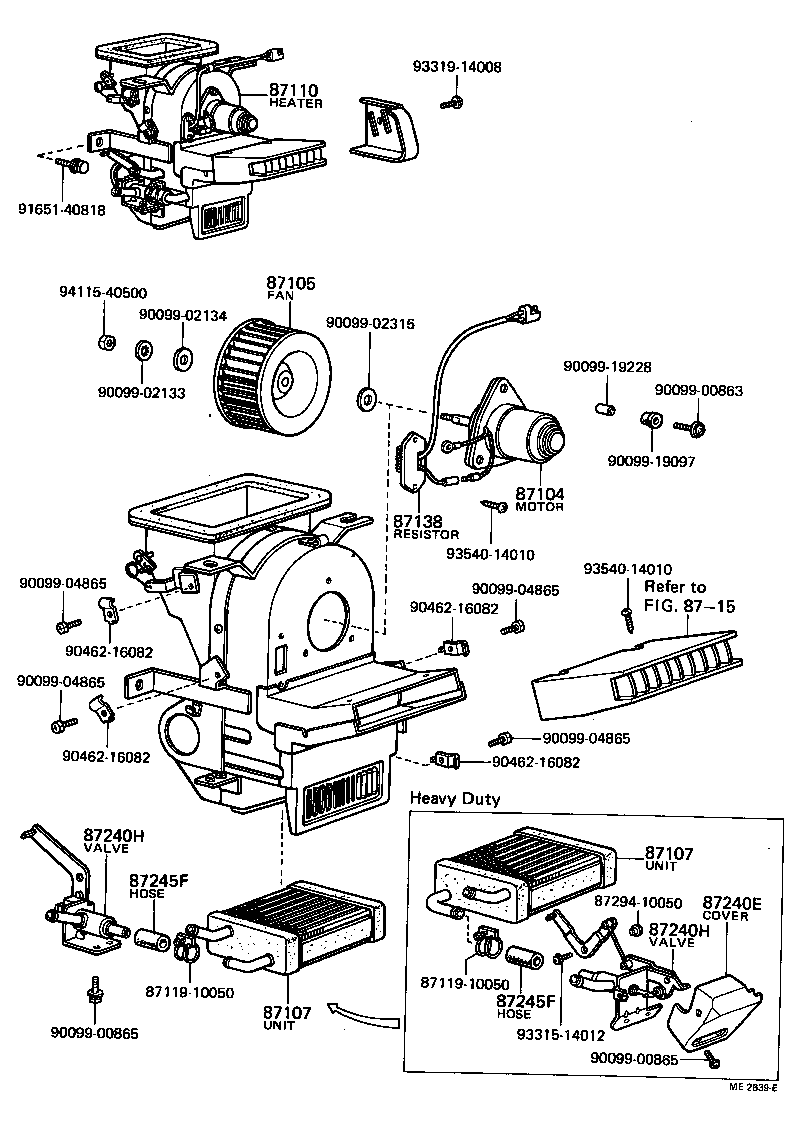

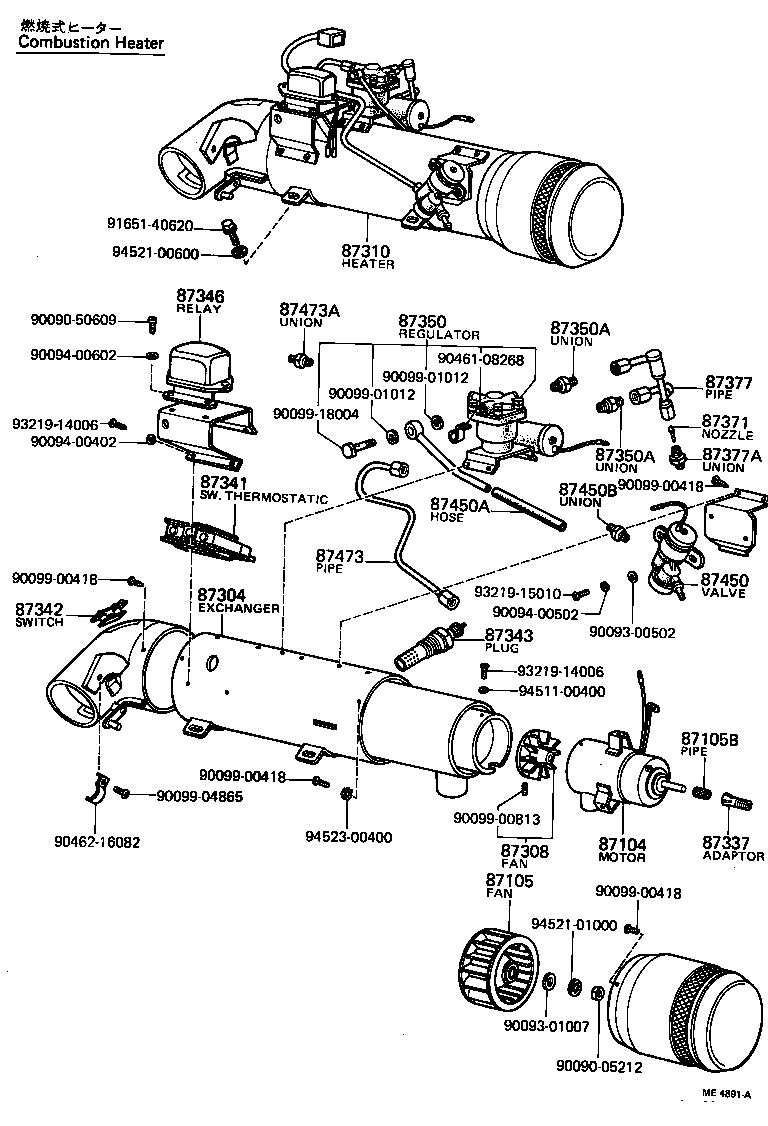

Figure ME4889B ME4889B 1969-04 → 1971-12 Figure ME4890A ME4890A 1969-04 → 1971-12 Figure ME4891A ME4891A 1969-04 → 1971-12 Figure ME5070 ME5070 1969-04 → 1971-12 Figure ME2338D ME2338D 1969-04 → 1973-10 Figure ME2338D ME2338D 1973-10 → 1975-11 Figure ME2639E ME2639E 1973-10 → 1975-11 Figure ME4689A ME4689A 1975-11 → —

Part groups

PNCDescription
53751 Reinforcement, Heater Support
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87105B Pipe Varnish, Heater Blower Fan
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87117 Lever, Heater
87123 Knob, Heater
87138 Resistor, Heater Blower
87240E Cover, Heater Water Valve
87240H Valve Assy, Water Unit
87245F Hose, Heater Water, Inlet F
87304 Exchanger, Heater Combustion Heat
87308 Fan Sub-assy, Heater Combustion Blower, NO.2
87310 Heater Assy, Combustion
87337 Adapter, Heater Blower Motor
87341 Switch, Thermostatic Combustion Heater
87342 Switch Emergency, Combustion Heater
87343 Plug, Combustion Heater Glow
87344 Wiring, Combustion Heater, NO.1
87344F Fuse, Wiring Heater, NO.1
87346 Relay, Combustion Heater
87350 Regulator Assy, Combustion Heater Fuel
87350A Union, Heater Fuel Regulator
87371 Nozzle, Combustion Heater Fuel
87377 Pipe, Combustion Heater Fuel
87377A Union, Heater Fuel Pipe
87422 Pipe, Combustion Heater Inlet
87429 Pipe, Combustion Heater Outlet
87431 Bracket, Combustion Heater, NO.1
87432 Bracket, Combustion Heater, NO.2
87450 Valve Sub-assy, Heater Fuel Magnet, W/Filter
87450A Hose (FOR HEATER FUEL MAGNET VALVE TO STRAINER)
87450B Union, Fuel Magnet Valve
87473 Pipe, Combustion Heater Fuel, NO.1
87473A Union (FOR HEATER FUEL PIPE)
87478 Fender, Fuel Pipe
87485 Wire, Heater (FOR COMBUSTION TYPE)
87503 Rail Sub-assy, Center Baffle Side, RH
87505 Rail Sub-assy, Center Baffle, Center
87507 Rail Sub-assy, Center Baffle Side, LH
87591 Baffle, Radiator Grille, Center
87610 Exchanger Assy, Heater Heat
87610A Gasket (FOR HEATER HEAT EXCHANGER EXHAUST PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
