Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Blower Motor

4 part groups · 2 illustrations

Illustrations

Figure ME4892A

ME4892A 1969-04 → 1971-12

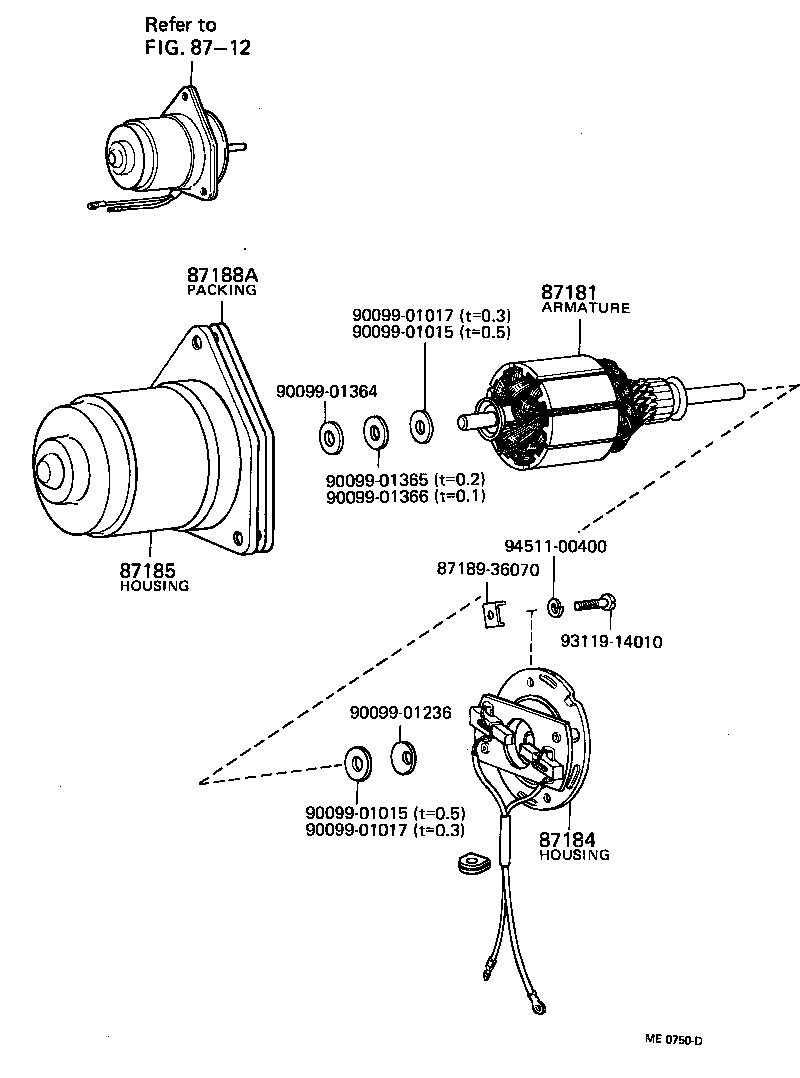

Figure ME0750D

ME0750D 1969-04 → 1973-01

Part groups

PNC	Description
87181	Armature, Blower Motor
87184	Housing, Blower Motor, NO.1
87185	Housing, Blower Motor, NO.2
87188A	Packing, Heater Blower Motor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
