Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

37 part groups · 3 illustrations

Illustrations

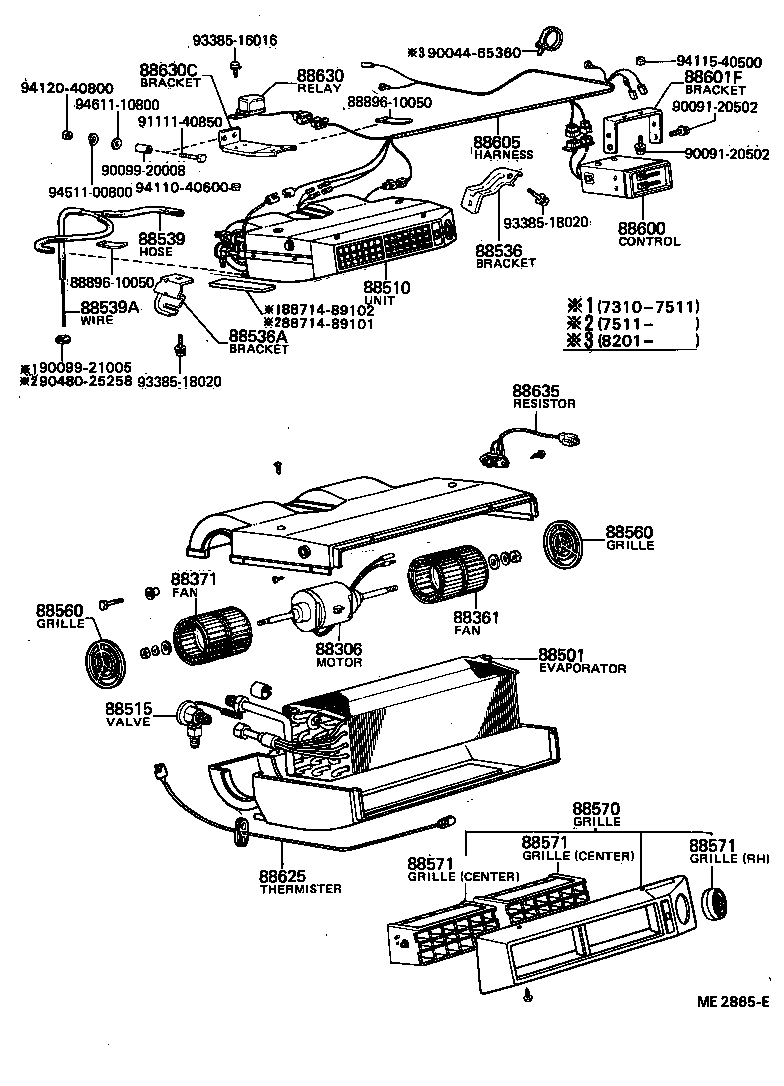

Figure ME0270F ME0270F 1969-04 → 1973-10 Figure ME0272F ME0272F 1969-04 → 1971-12 Figure ME2865E ME2865E 1973-10 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88539 Hose, Cooler Unit Drain, NO.1
88539A Wire, Drain Hose(FOR COOLER)
88551 Armature, Cooler Blower Motor
88552 Stator, Cooler Blower Motor, RH
88553 Holder, Cooler Blower Motor Brush
88553B Bush (FOR COOLER BLOWER MOTOR BRUSH HOLDER)
88554 Housing, Cooler Blower Motor, NO.1
88556 Housing, Cooler Blower Motor, NO.2
88560 Grille Assy, Cooler Air Inlet
88570 Grille Sub-assy, Cooler Air Outlet
88571 Grille, Air Outlet
88572 Case, Cooler Air Outlet
88600 Control Assy, Air Conditioner
88601 Switch Sub-assy, Cooler Control
88601F Bracket, Cooler Control Switch
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605F Fuse(FOR COOLER WIRING HARNESS)
88611 Knob, Cooler Control Switch
88622 Indicator, Cooler Control Resistance
88623 Dial, Cooler Thermostat
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88640 Relay Assy, Cooler Stabilizer
88650 Amplifier Assy, Cooler Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
