Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 4 illustrations

Illustrations

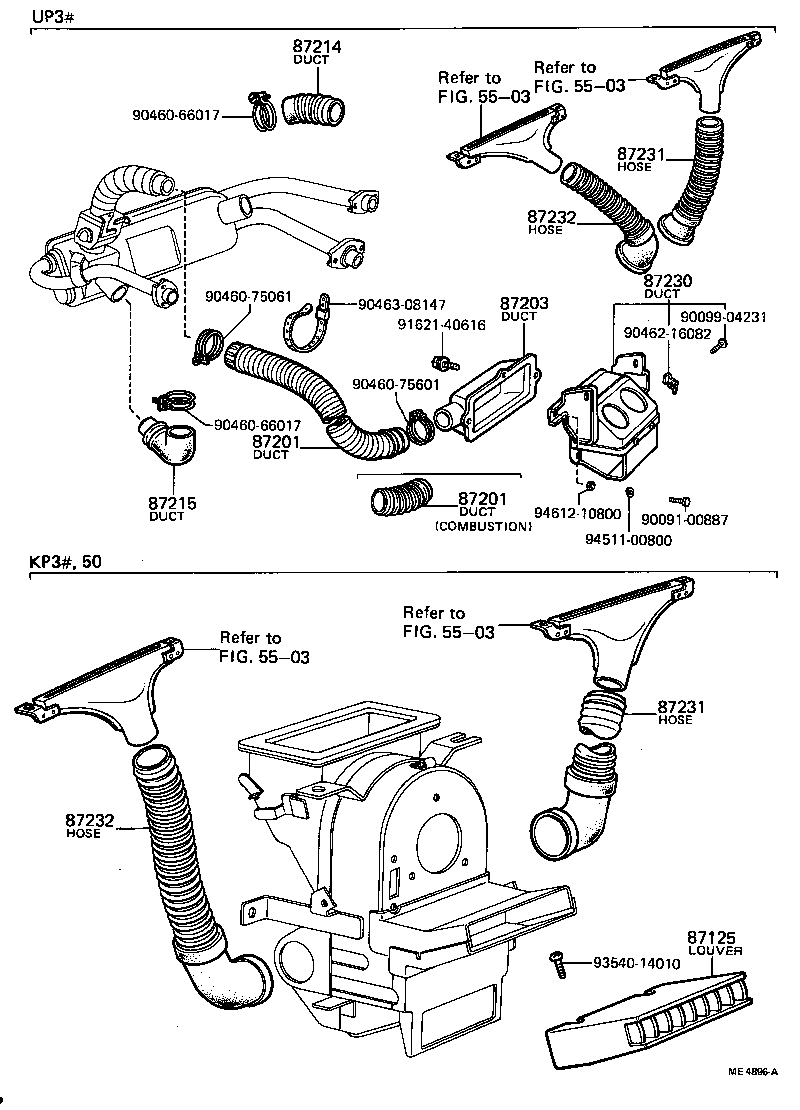

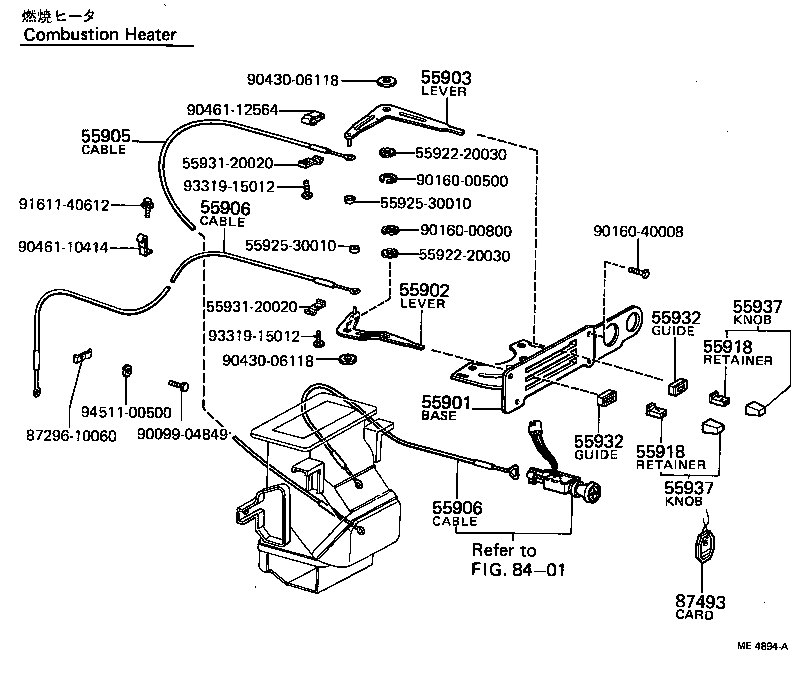

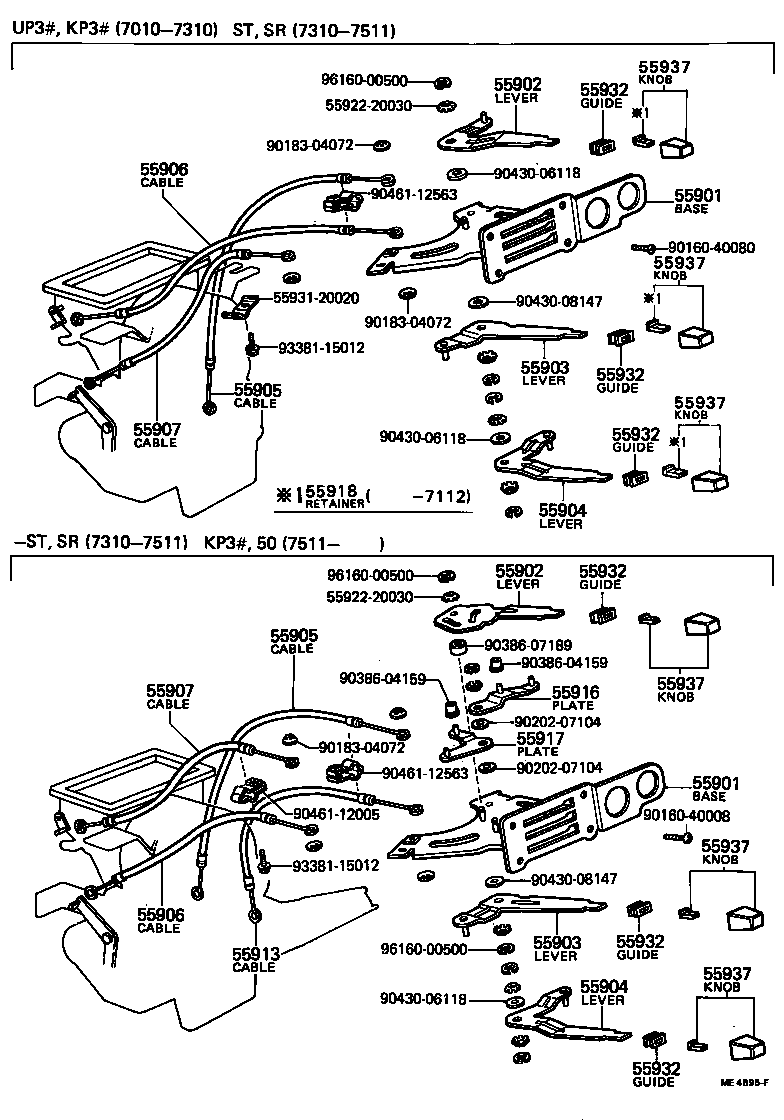

Figure ME4893A ME4893A 1969-04 → 1970-10 Figure ME4894A ME4894A 1970-10 → 1971-12 Figure ME4895F ME4895F 1970-10 → — Figure ME4896A ME4896A 1969-04 → —

Part groups

PNCDescription
55901 Base Sub-assy, Heater Control
55902 Lever Sub-assy, Defroster Control
55903 Lever Sub-assy, Heater Control
55904 Lever Sub-assy, Air Inlet Butterfly Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55913 Cable Sub-assy, Boost Vent Control
55916 Plate, Defroster Door Control
55917 Plate, Air Inlet Door Control
55918 Retainer, Heater Control Lever
55932 Guide, Lever, NO.1
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
87125 Louver, Ventilation
87201 Duct Sub-assy, Air, NO.1
87203 Duct, Heater Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87230 Duct Assy, Air, Heater
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87490 Panel Assy, Heater Control
87492 Ornament, Heater Control Panel
87493 Card, Heater Control Knob Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
