Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 2 illustrations

Illustrations

Figure ME4897C

ME4897C 1969-04 → 1975-11

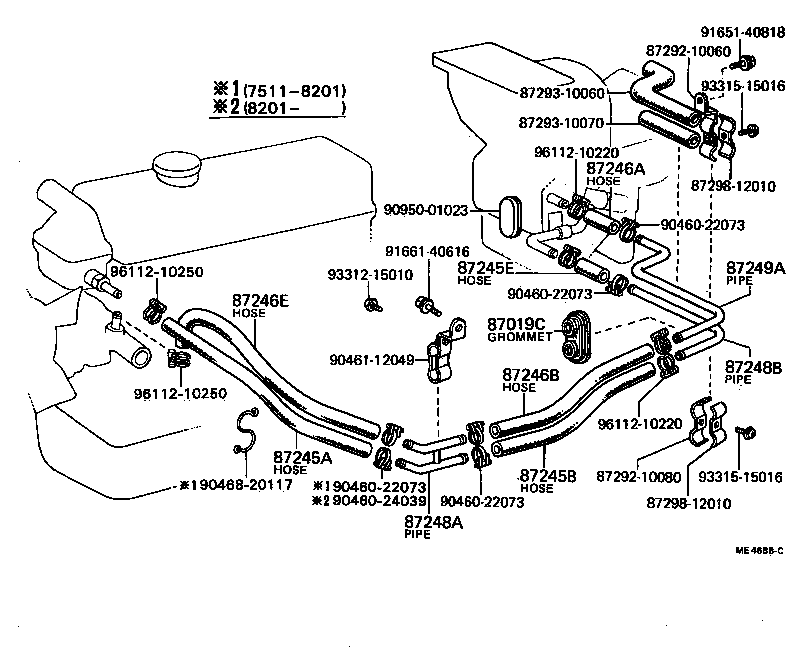

Figure ME4688C

ME4688C 1975-11 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246E	Hose, Heater Water, Outlet E
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
