Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 2 illustrations

Illustrations

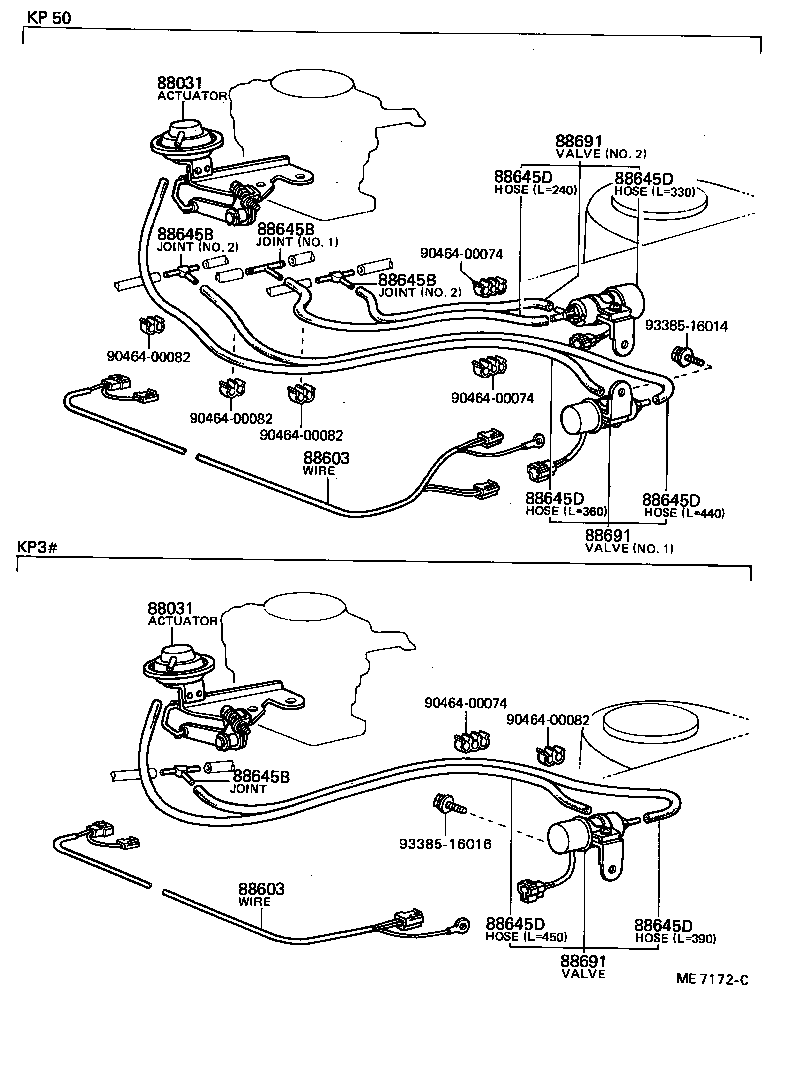

Figure ME5017B ME5017B 1975-11 → 1977-10 Figure ME7172C ME7172C 1977-10 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031D Screw, Throttle Adjusting(FOR IDLE-UP ACTUATOR)
88031E Spring, 1ST Idle(FOR IDLE-UP ACTUATOR)
88031G Ring, Snap(FOR IDLE-UP ACTUATOR)
88603 Wire, Idle UP Device
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88646 Bracket, Idle UP Device, NO.1
88646A Bracket, Idle UP Device, NO.2
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
