Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

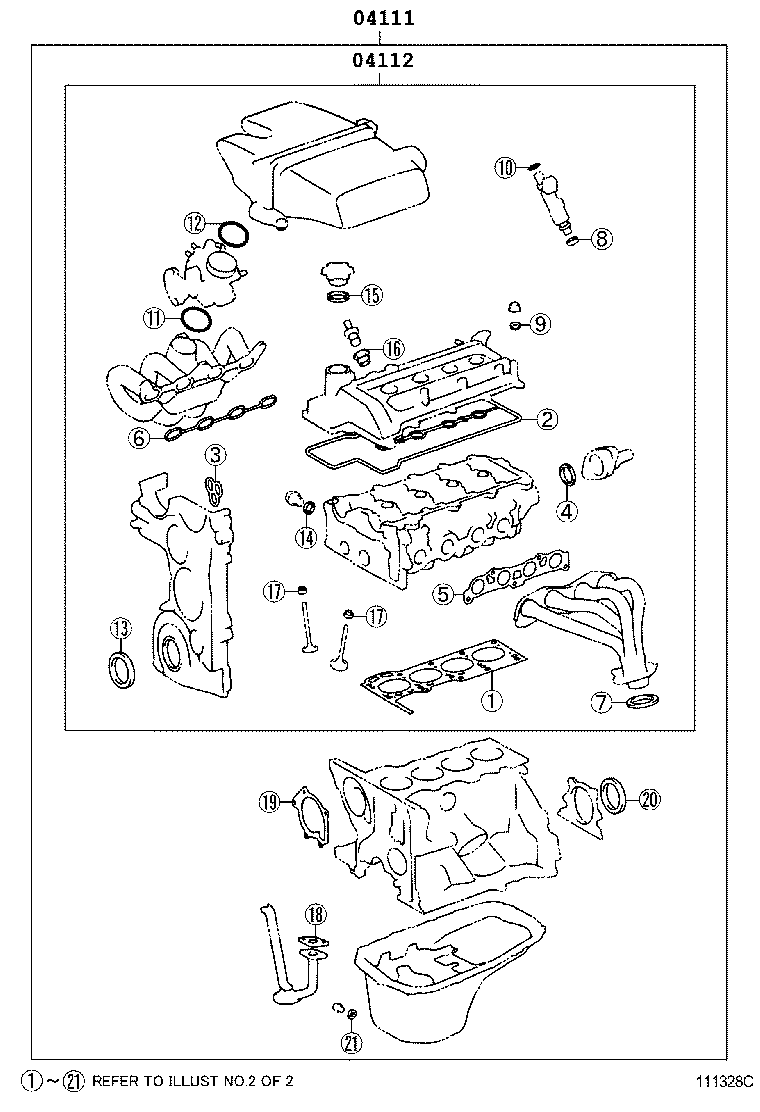

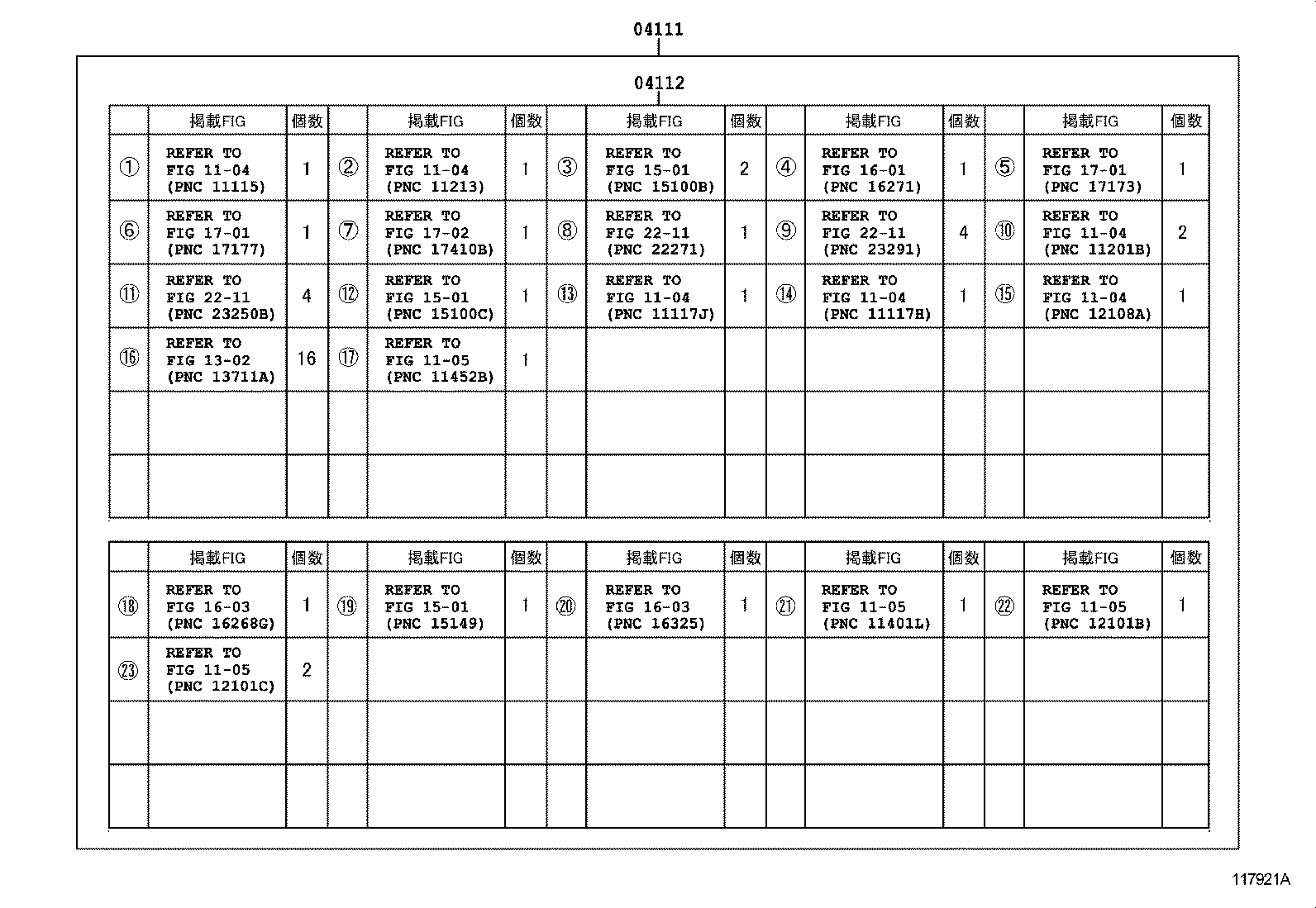

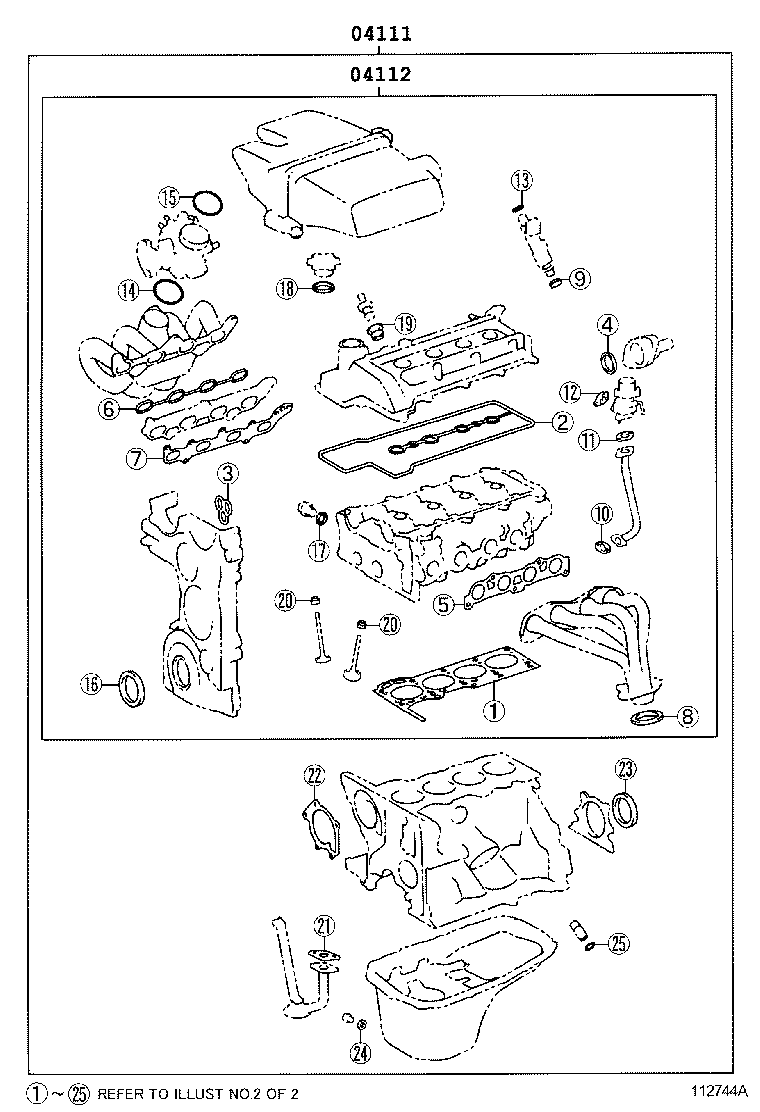

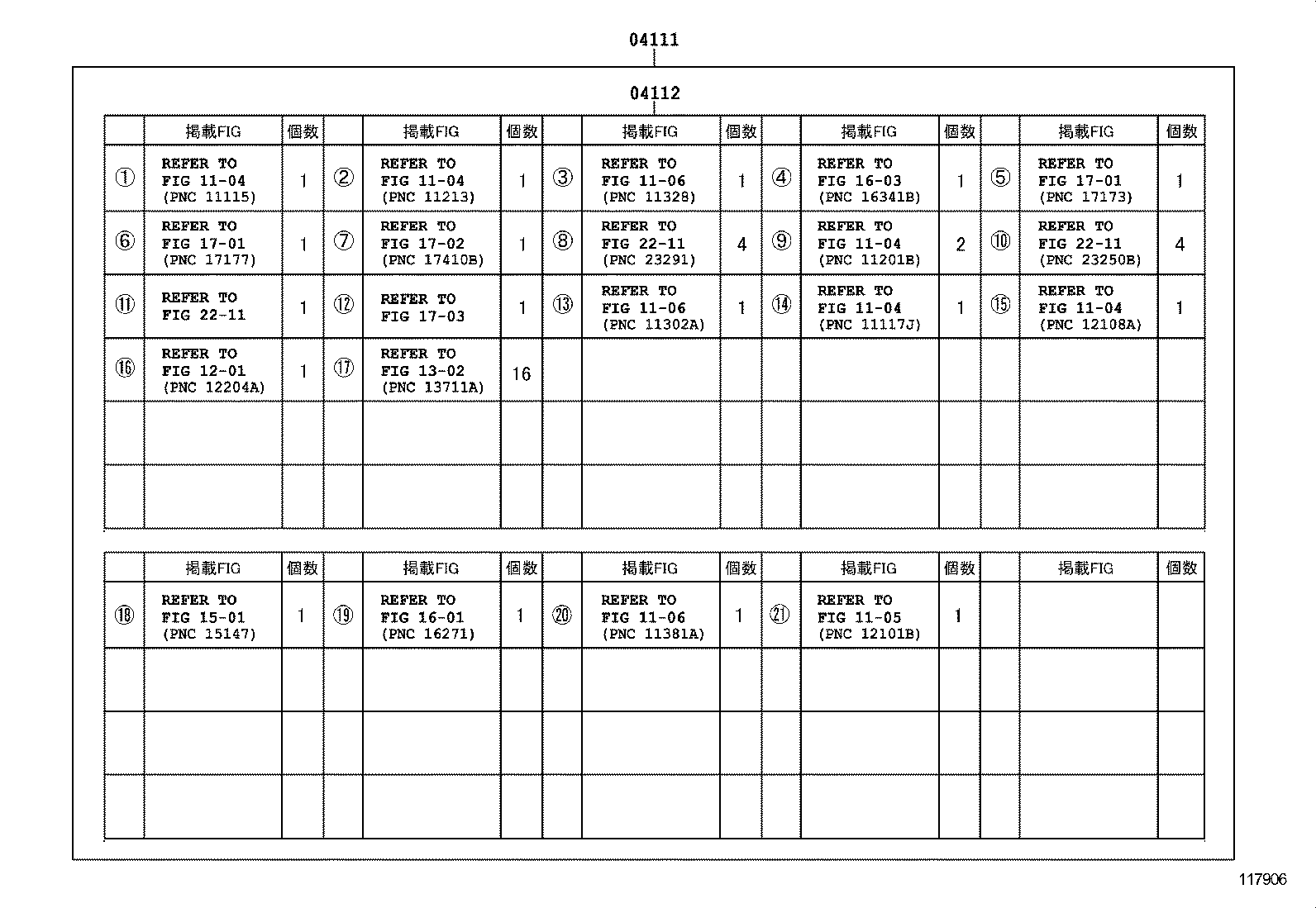

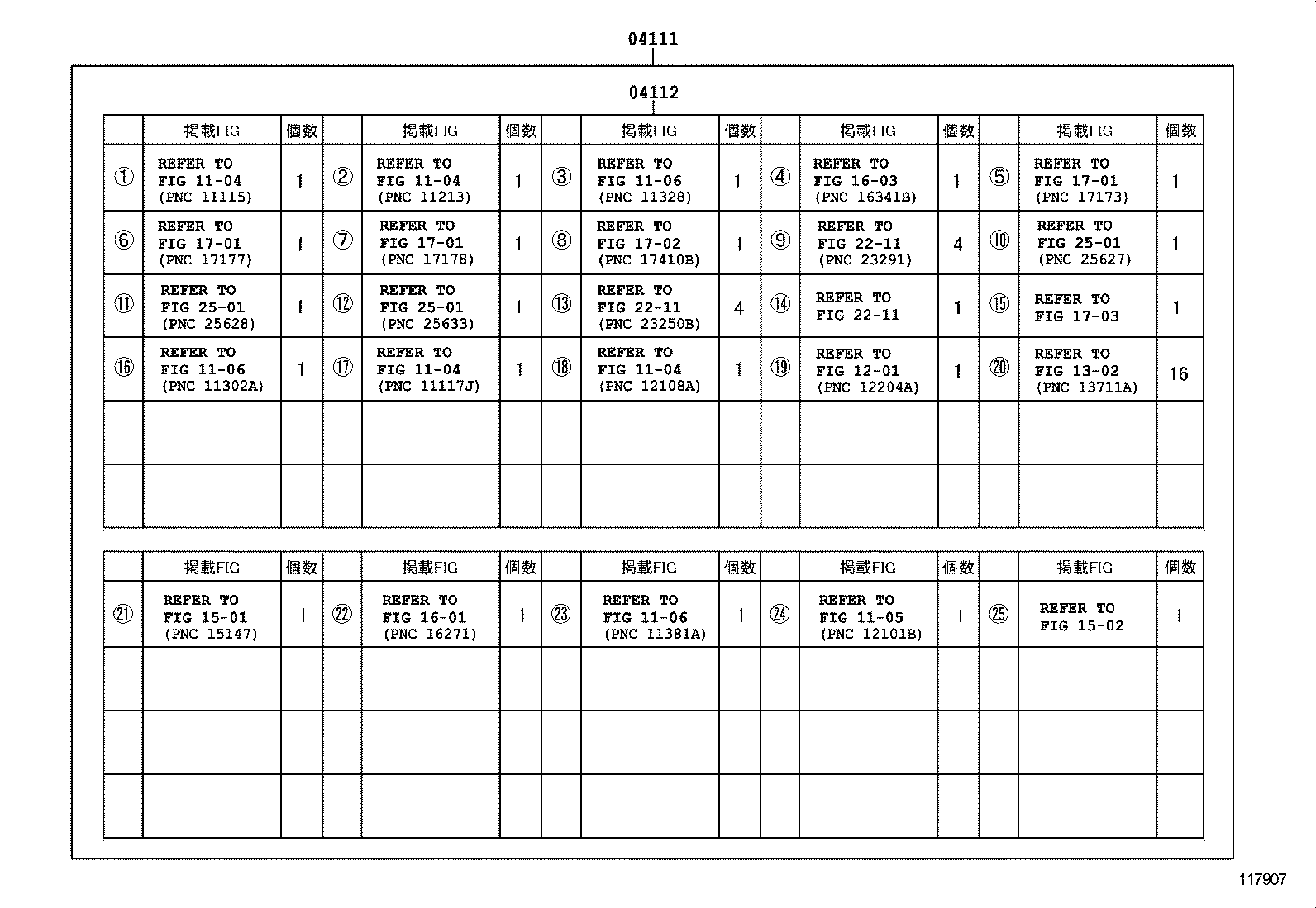

Figure 111476G 111476G 1999-08 → — Figure 117921A 117921A 1999-08 → — Figure 111328C 111328C 1999-01 → — Figure 112744A 112744A 2002-12 → — Figure 117906 117906 1999-01 → — Figure 117907 117907 2002-12 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
