Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07
Camshaft & Valve

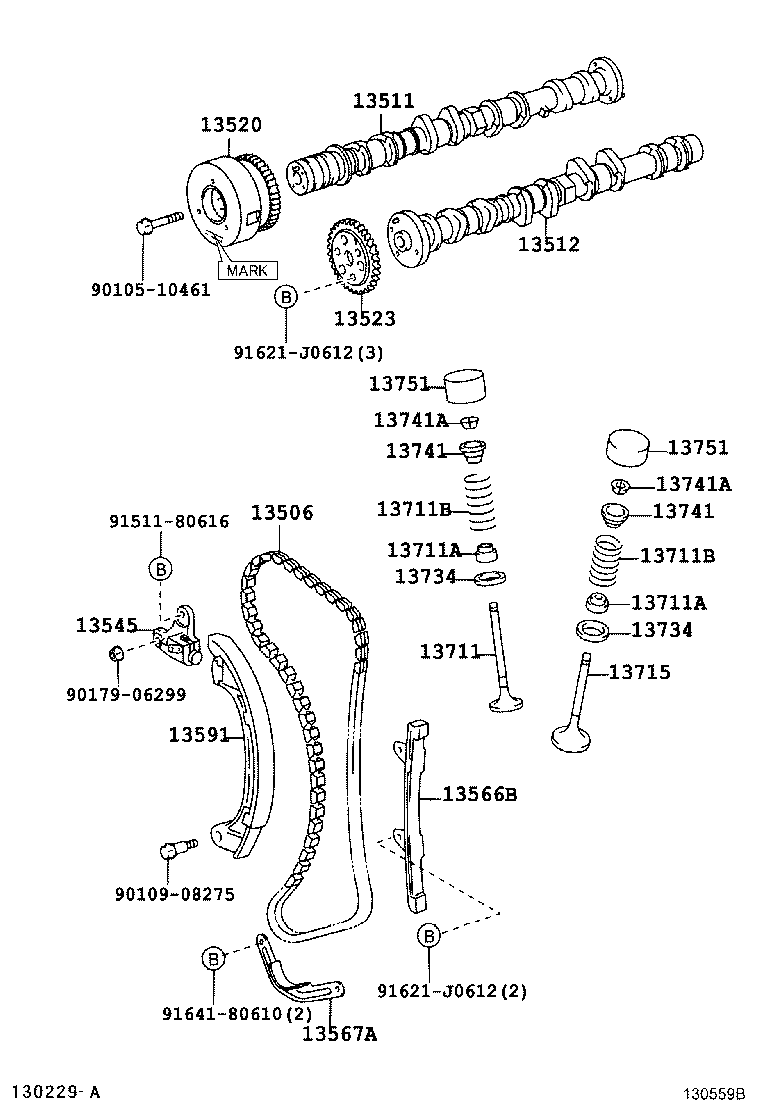

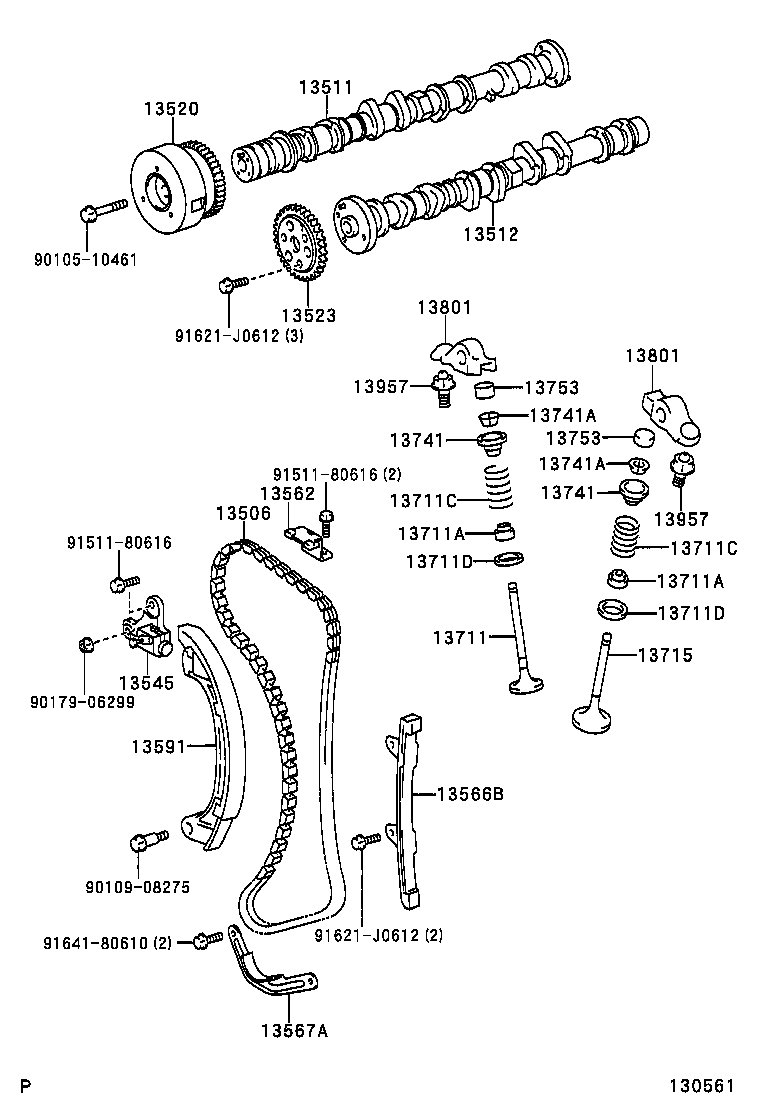

27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13506 | Chain Sub-assy |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13520 | Sprocket Assy, Camshaft Timing |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13545 | Plunger, Chain Tensioner |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13566B | Guide, Timing Chain |
| 13567A | Guide, Timing Chain, NO.2 |
| 13591 | Arm, Timing Chain Tension |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13753 | Shim, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13957 | Pivot, Valve Rocker Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
