Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 10 illustrations

Illustrations

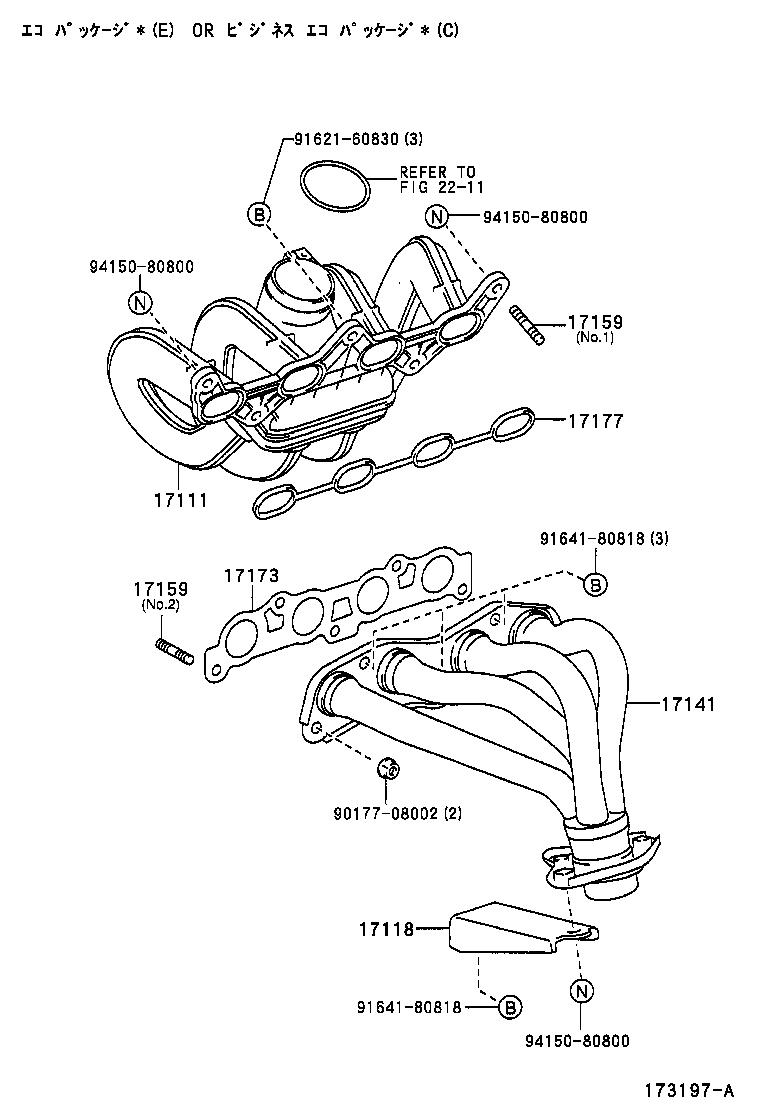

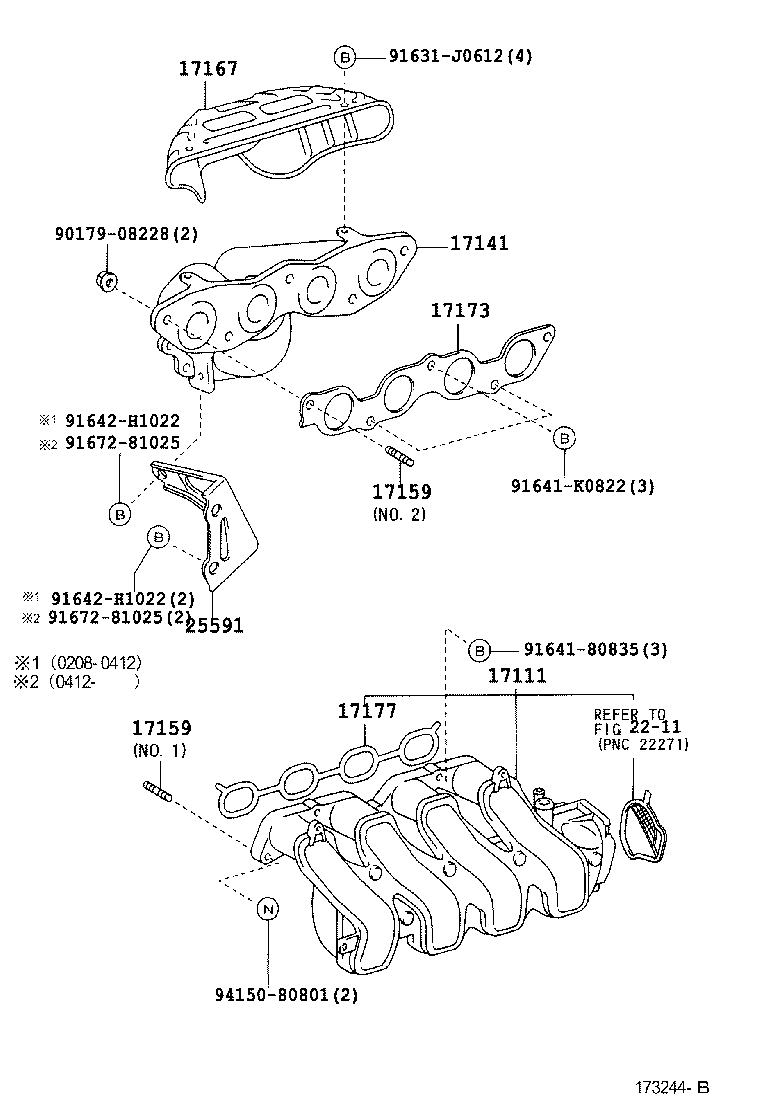

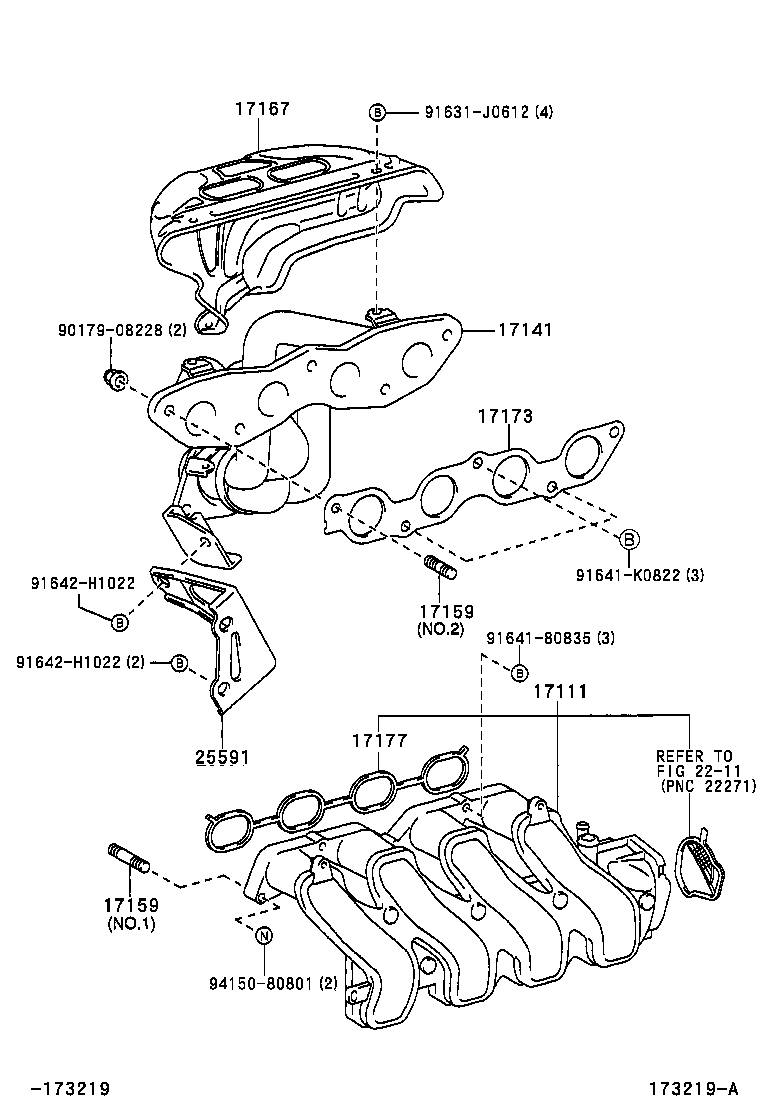

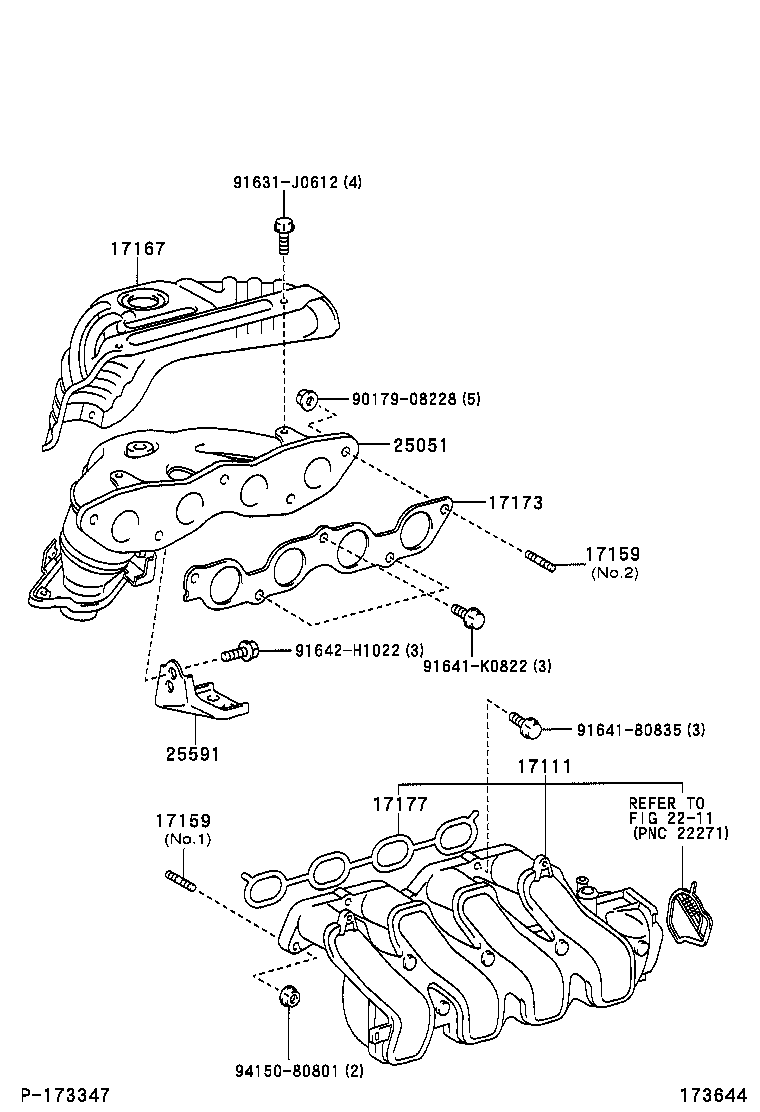

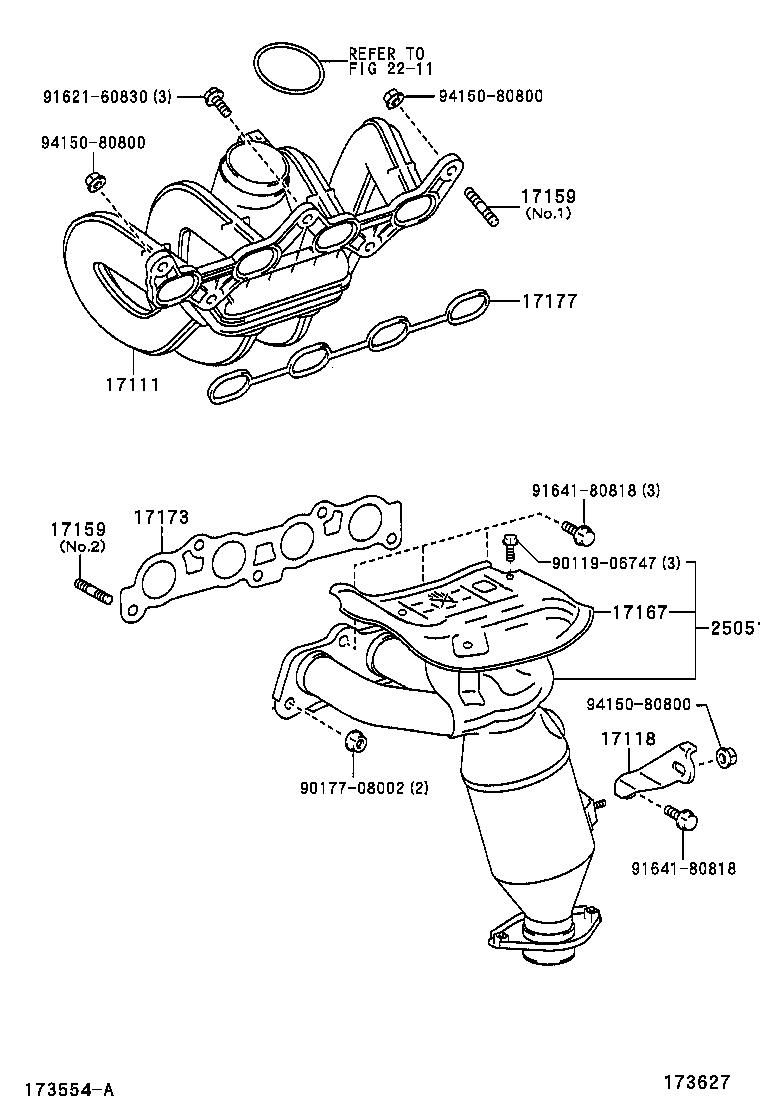

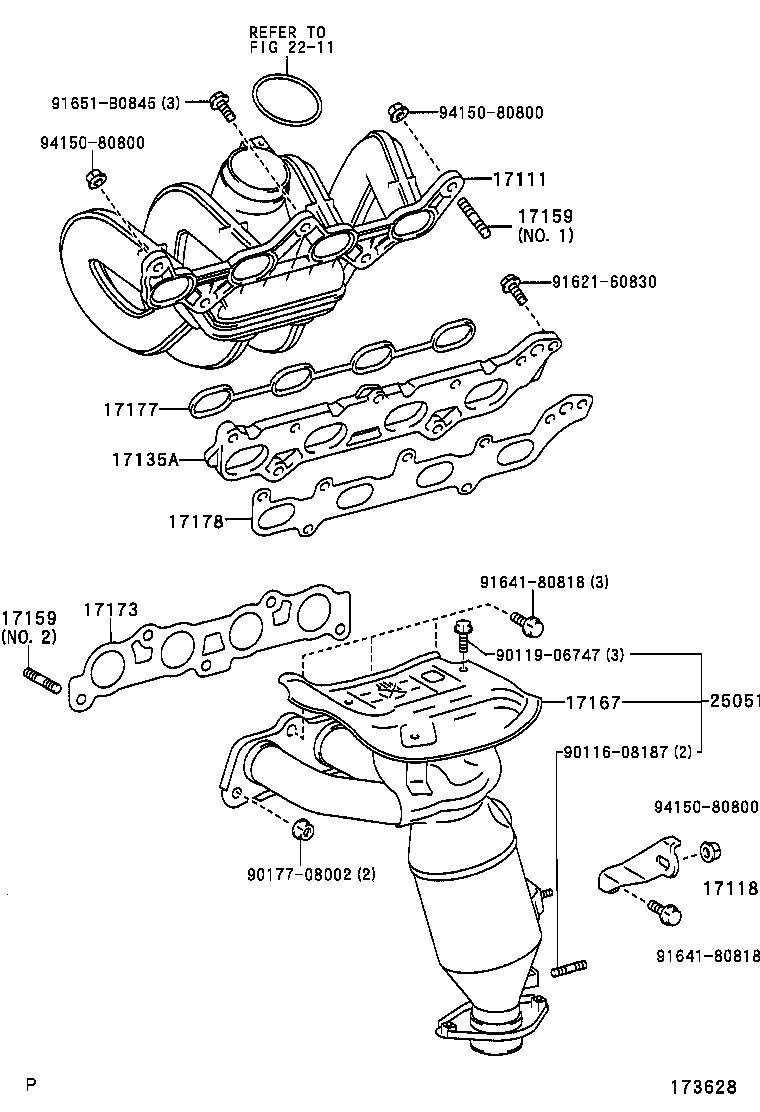

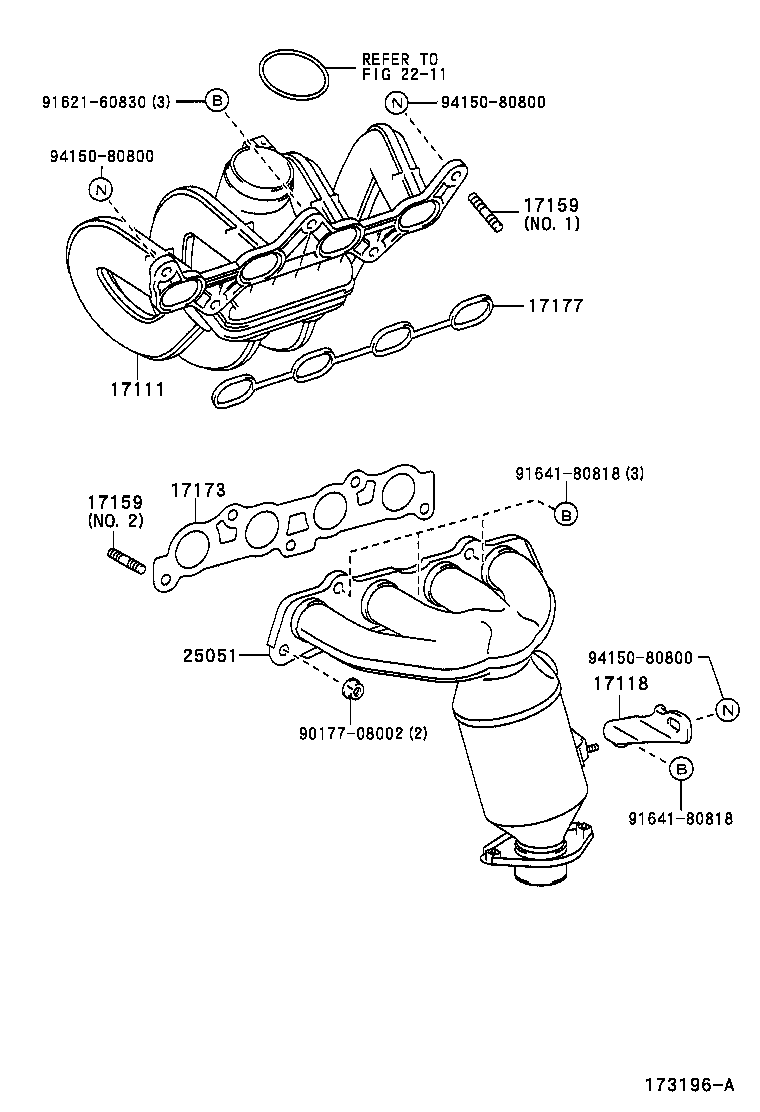

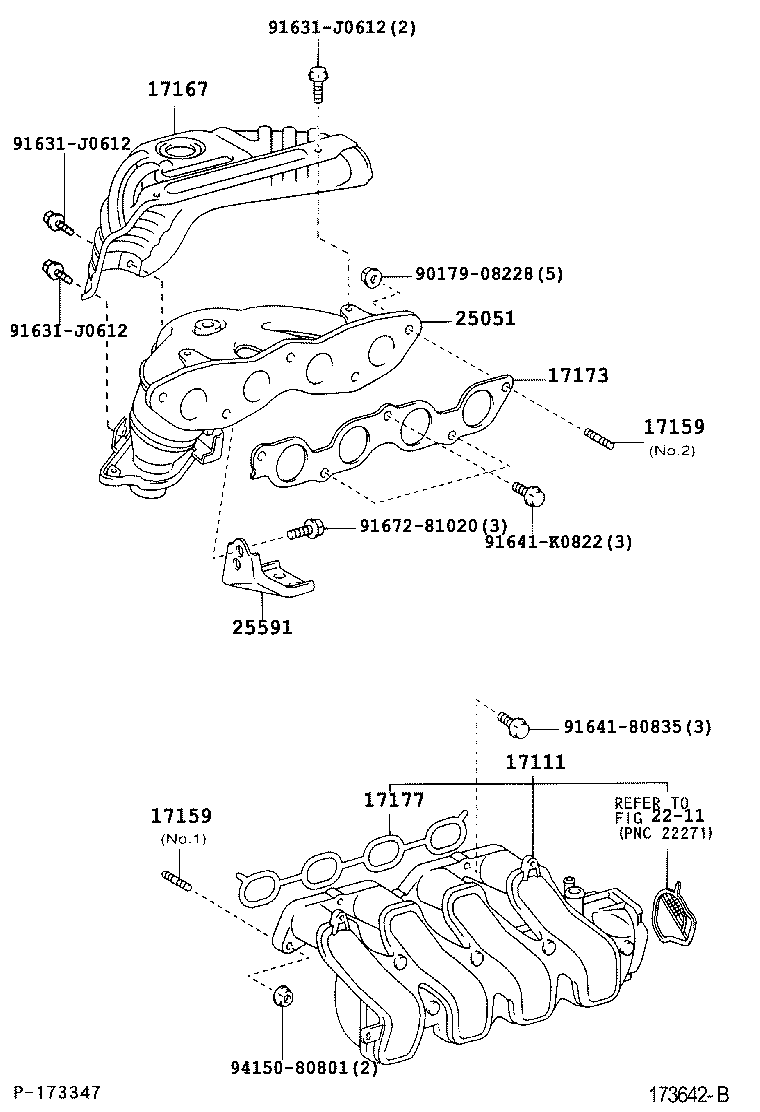

Figure 172136C 172136C 1999-08 → 2002-08 Figure 173219A 173219A 2000-10 → 2002-08 Figure 173244B 173244B 2002-08 → — Figure 173644 173644 2002-08 → 2002-12 Figure 173642B 173642B 2002-12 → — Figure 171973A 171973A 1999-01 → 2001-12 Figure 173196A 173196A 2001-12 → 2002-12 Figure 173197A 173197A 2001-12 → 2002-12 Figure 173627 173627 2002-12 → — Figure 173628 173628 2002-12 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
