Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

16 part groups · 5 illustrations

Illustrations

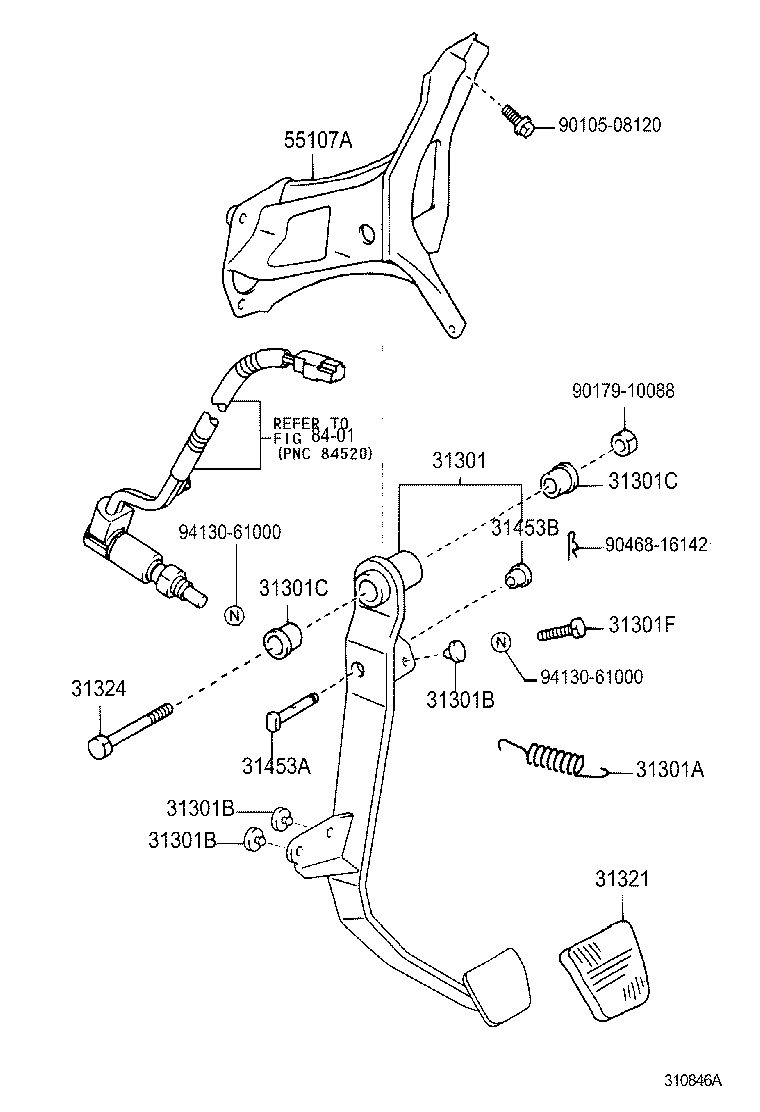

Figure 310554B 310554B 1999-01 → — Figure 310846A 310846A 2001-05 → — Figure 311128 311128 1999-01 → — Figure 311129 311129 1999-09 → — Figure 310777B 310777B 2001-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482C Clamp(FOR CLUTCH TUBE)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
