Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07

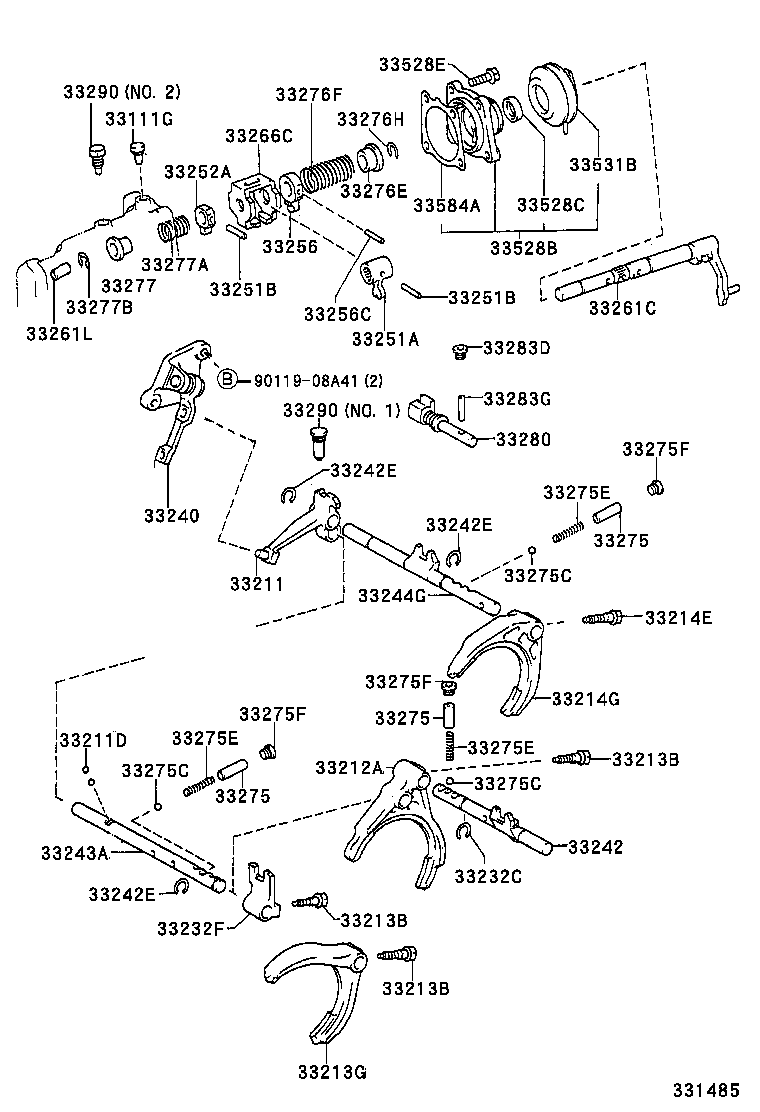

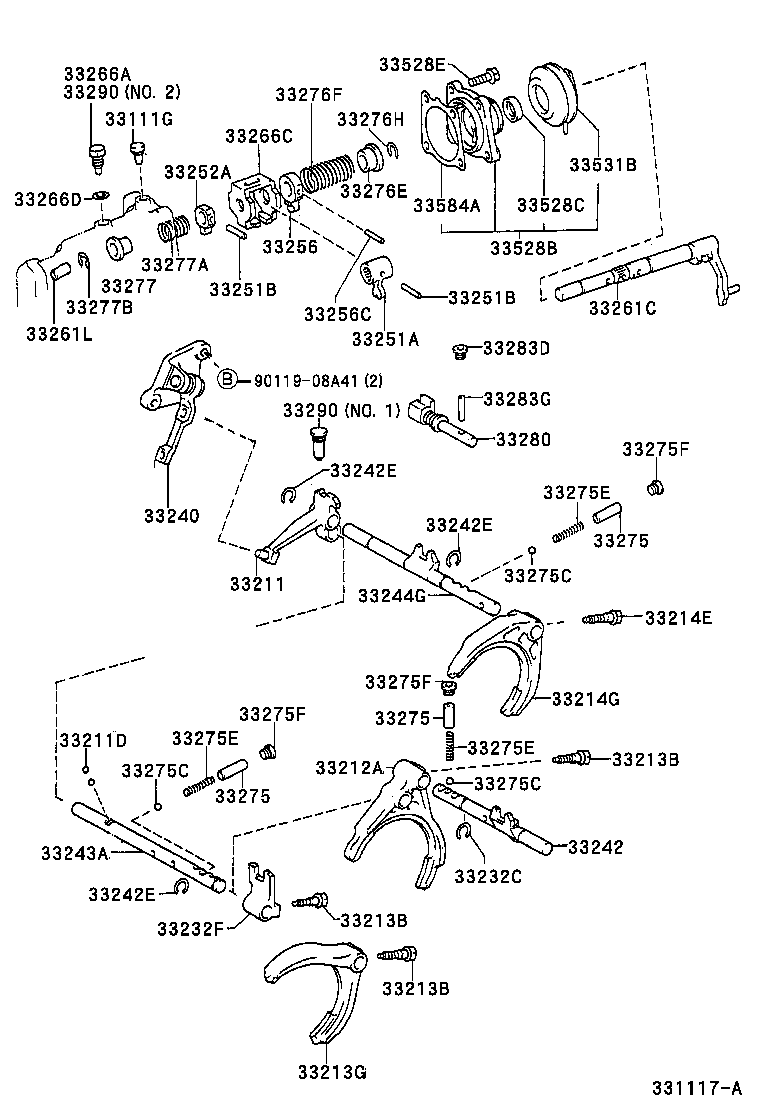

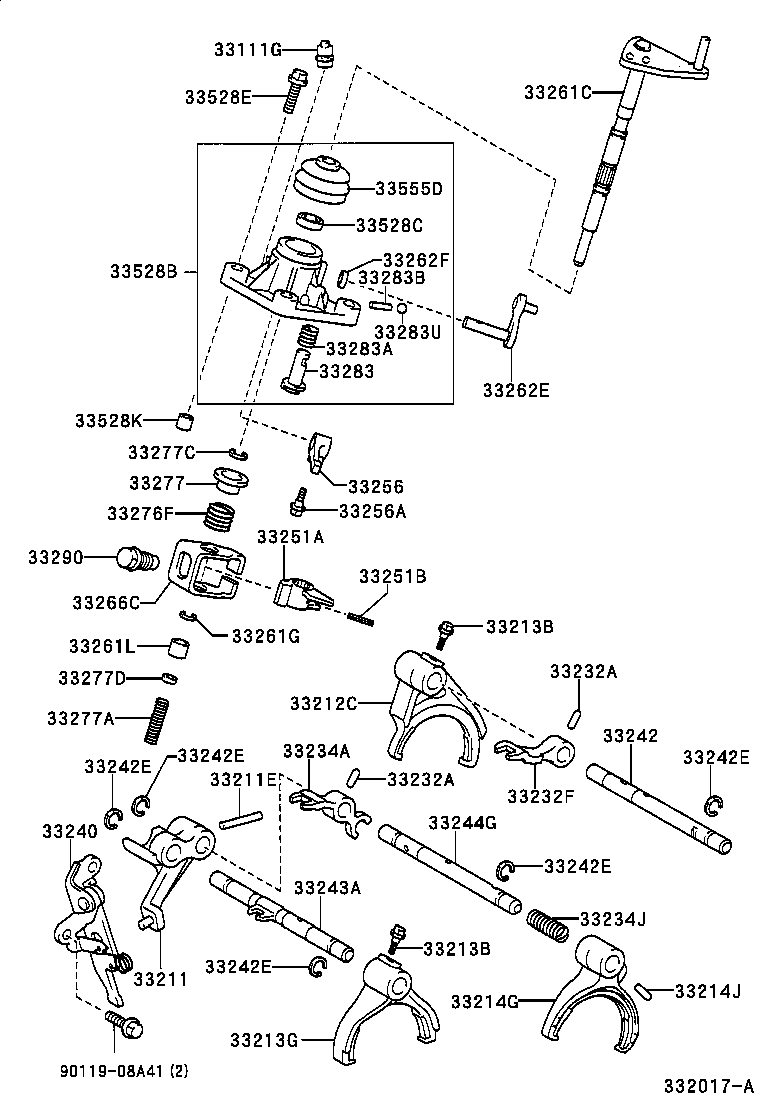

Gear Shift Fork & Lever Shaft (MTM)
62 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111G | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33211 | Fork, Reverse Shift |
| 33211D | Ball(FOR REVERSE SHIFT FORK) |
| 33211E | Pin, Straight(FOR REVERSE SHIFT FORK) |
| 33212A | Fork, Gear Shift, NO.1 |
| 33212C | Fork, Gear Shift, NO.1 |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214E | Bolt(FOR GEAR SHIFT FORK LOCK) |
| 33214G | Fork, Gear Shift, NO.3 |
| 33214J | Pin, Straight(FOR 5TH SHIFT FORK) |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33232C | Ring, Snap (FOR 1ST & 2ND SHIFT HEAD) |
| 33232F | Head, Gear Shift, NO.1 |
| 33234A | Head, Gear Shift, NO.3 |
| 33234J | Spring, Compression (FOR SHIFT RETURN) |
| 33240 | Bracket Assy, Reverse Shift Arm |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244G | Shaft, Gear Shift Fork, NO.3 |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251B | Pin, Slotted Spring (FOR SHIFT INNER LEVER) |
| 33252A | Lever, Shift, Inner NO.2 |
| 33256 | Lever, Select Inner |
| 33256A | Bolt, Set (FOR SELECT INNER LEVER) |
| 33256C | Pin, Slotted Spring (FOR SELECT INNER LEVER) |
| 33261C | Shaft, Shift & Select Lever |
| 33261G | Ring, Snap (FOR SHIFT & SELECT LEVER SHAFT) |
| 33261L | Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT) |
| 33262E | Shaft, Select Lever |
| 33262F | Seal, Oil (FOR SELECT LEVER SHAFT) |
| 33266A | Bolt (FOR SHIFT INTERLOCK PLATE) |
| 33266C | Plate, Shift Interlock |
| 33266D | Gasket (FOR SHIFT INTERLOCK PLATE) |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33276E | Seat, Select Spring, NO.1 |
| 33276F | Spring, Compression, NO.1 (FOR SELECT RETURN) |
| 33276H | Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT) |
| 33277 | Seat, Select Spring, NO.2 |
| 33277A | Spring, Compression, NO.2 (FOR SELECT RETURN) |
| 33277B | Ring, E (FOR SELECT SPRING NO.2 SEAT) |
| 33277C | Ring, Shaft Snap (FOR SELECT SPRING NO.2 SEAT) |
| 33277D | Spacer (FOR SELECT RETURN SPRING) |
| 33280 | Pin Assy, Reverse Restrict |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283A | Spring, Compression (FOR REVERSE RESTRICT PIN) |
| 33283B | Pin, Straight (FOR REVERSE RESTRICT PIN) |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33283U | Ball, Reverse Restrict Pin |
| 33290 | Ball Assy, Lock, NO.1 |
| 33528B | Cover, Control Shaft |
| 33528C | Seal, Oil (FOR CONTROL SHAFT COVER) |
| 33528E | Bolt (FOR CONTROL SHAFT COVER) |
| 33528K | Pin, Ring (FOR CONTROL SHAFT COVER SET BOLT) |
| 33531B | Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT) |
| 33555D | Boot, Shift Lever |
| 33584A | Gasket, Control Shift Lever Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
