Valve Body & Oil Strainer (ATM)

155 part groups · 10 illustrations

Illustrations

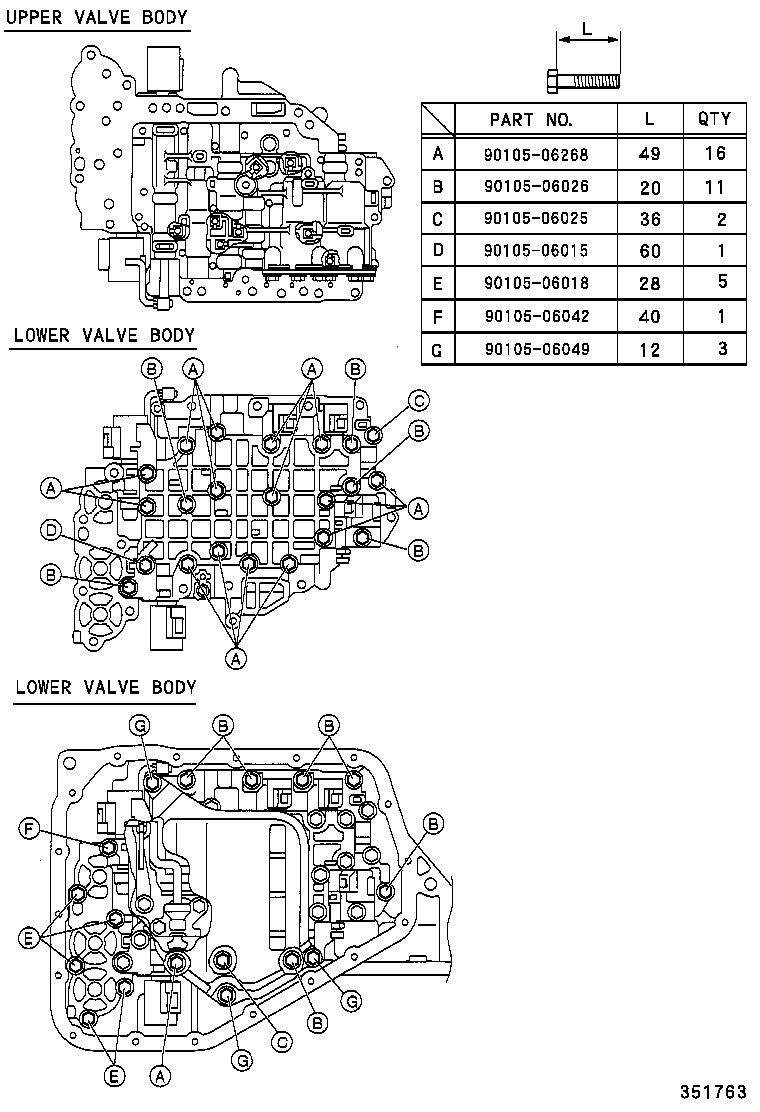

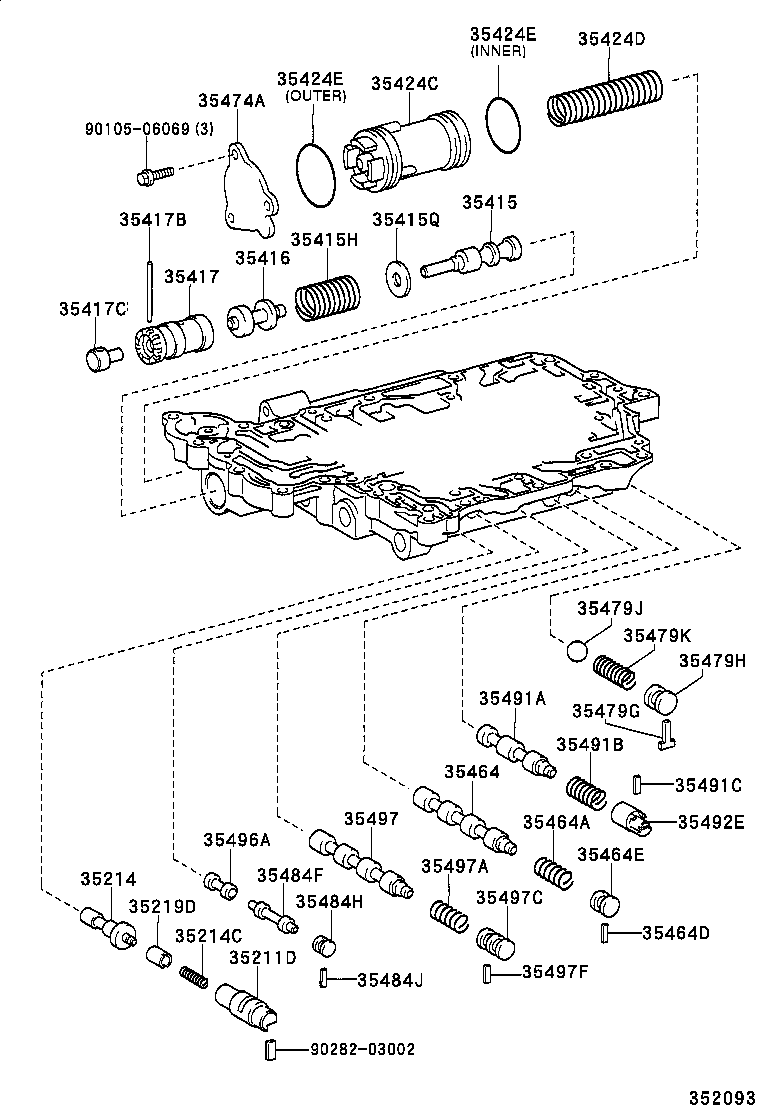

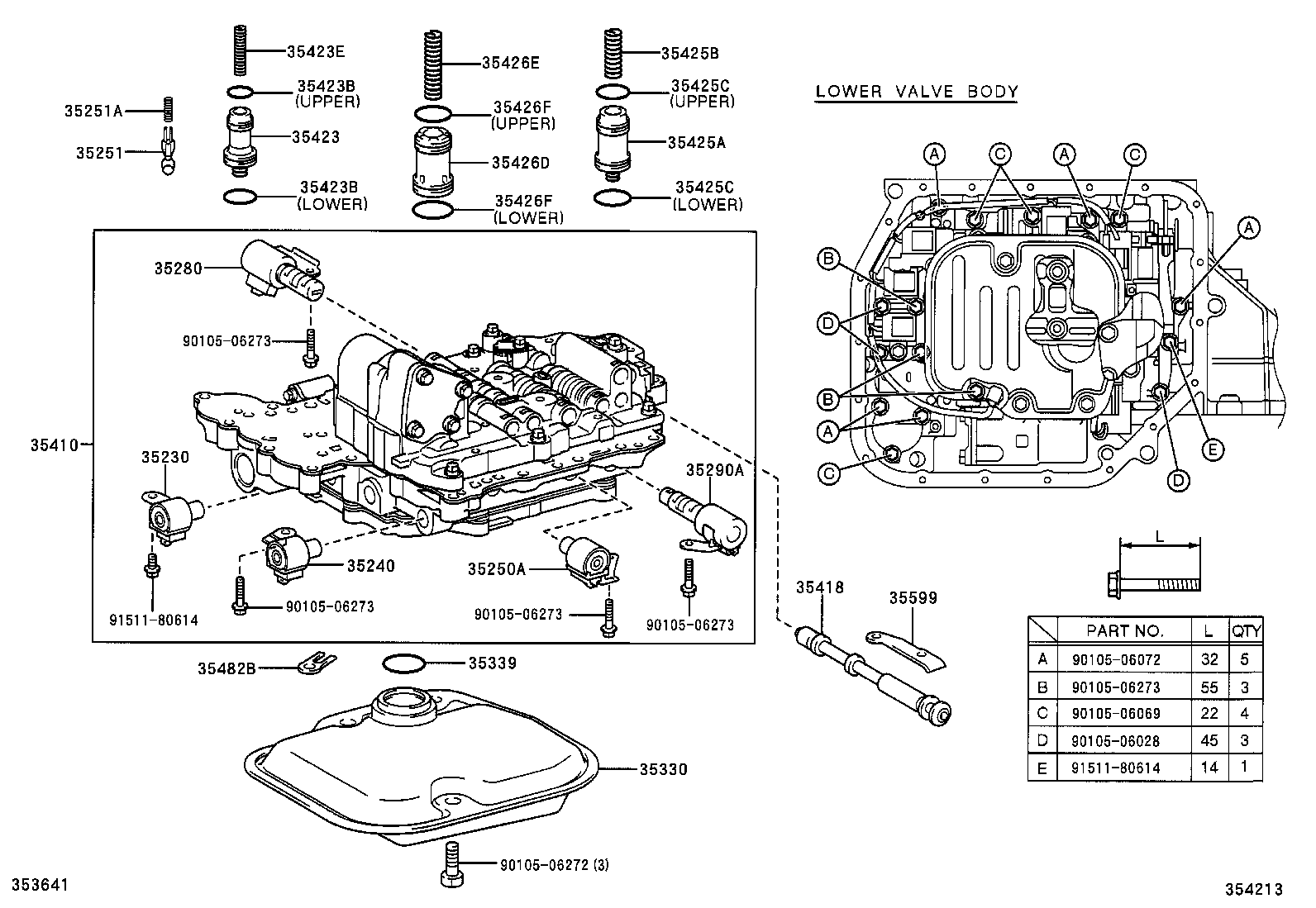

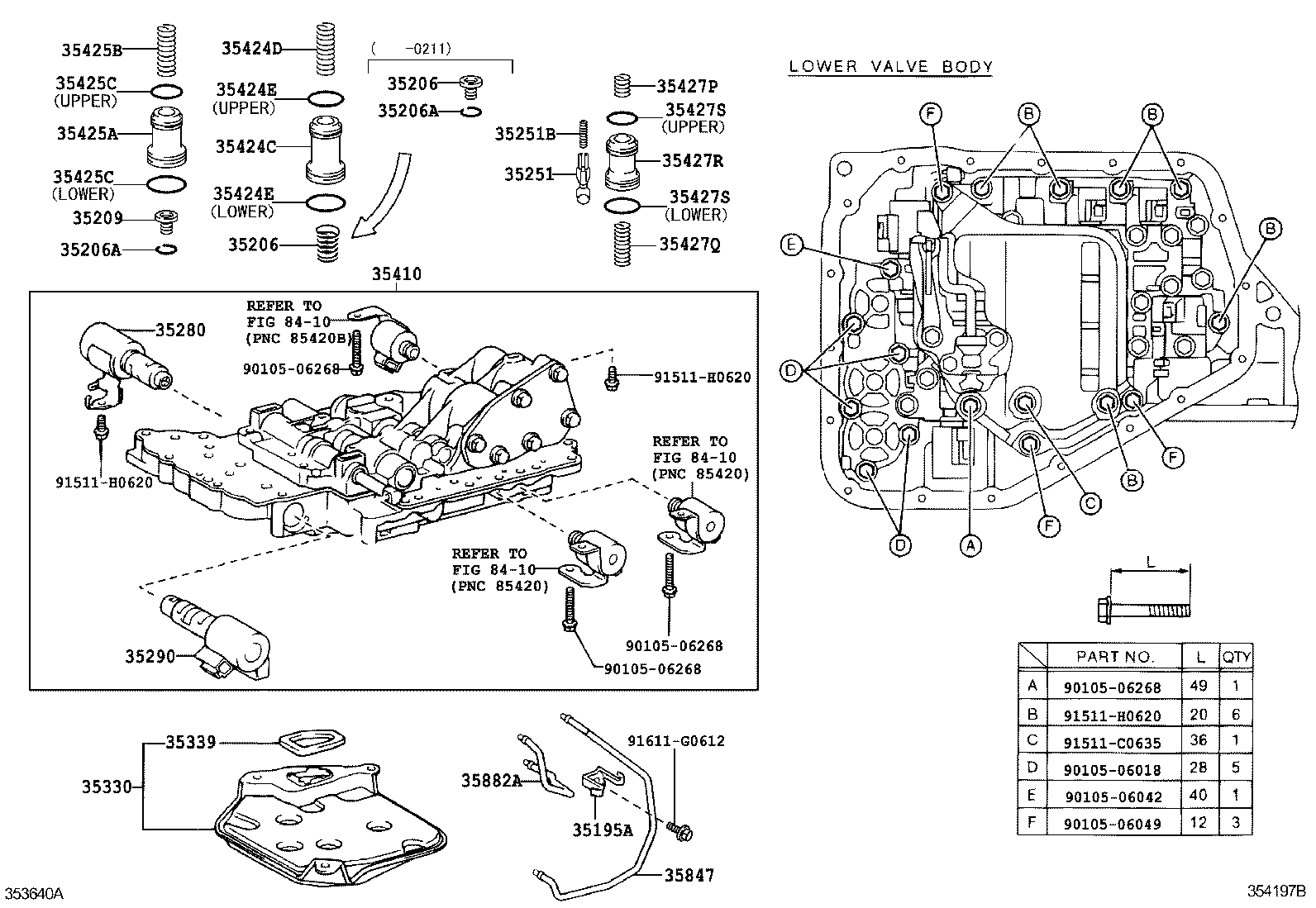

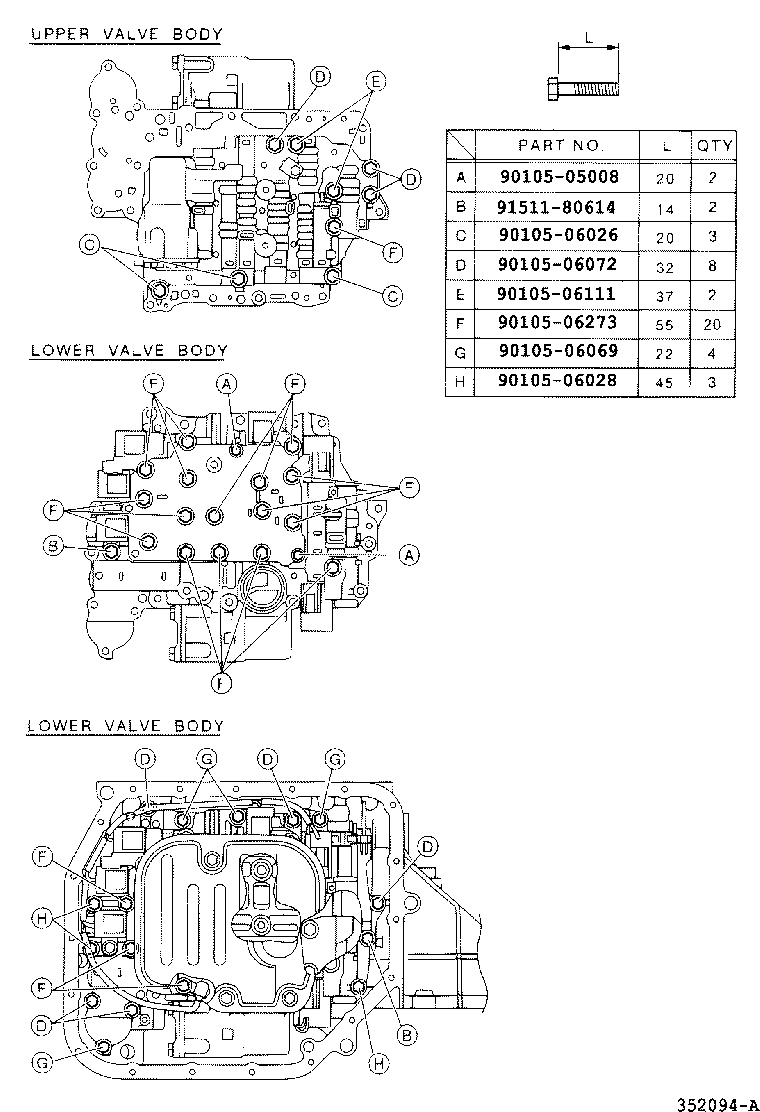

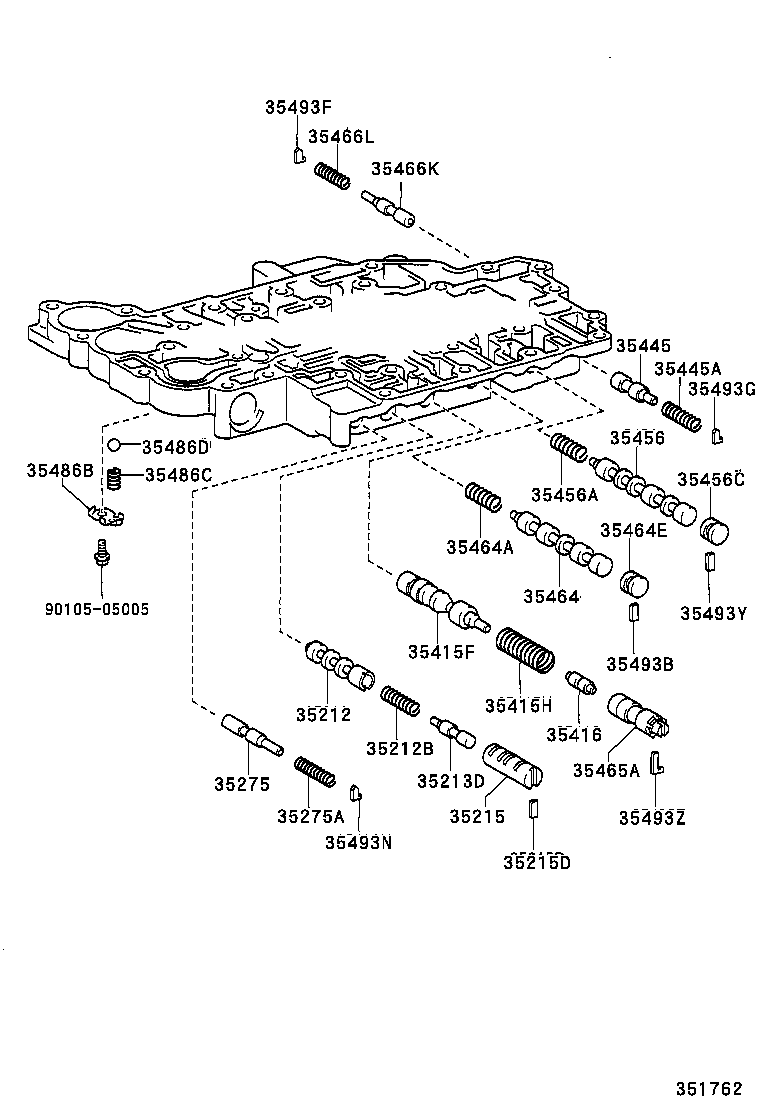

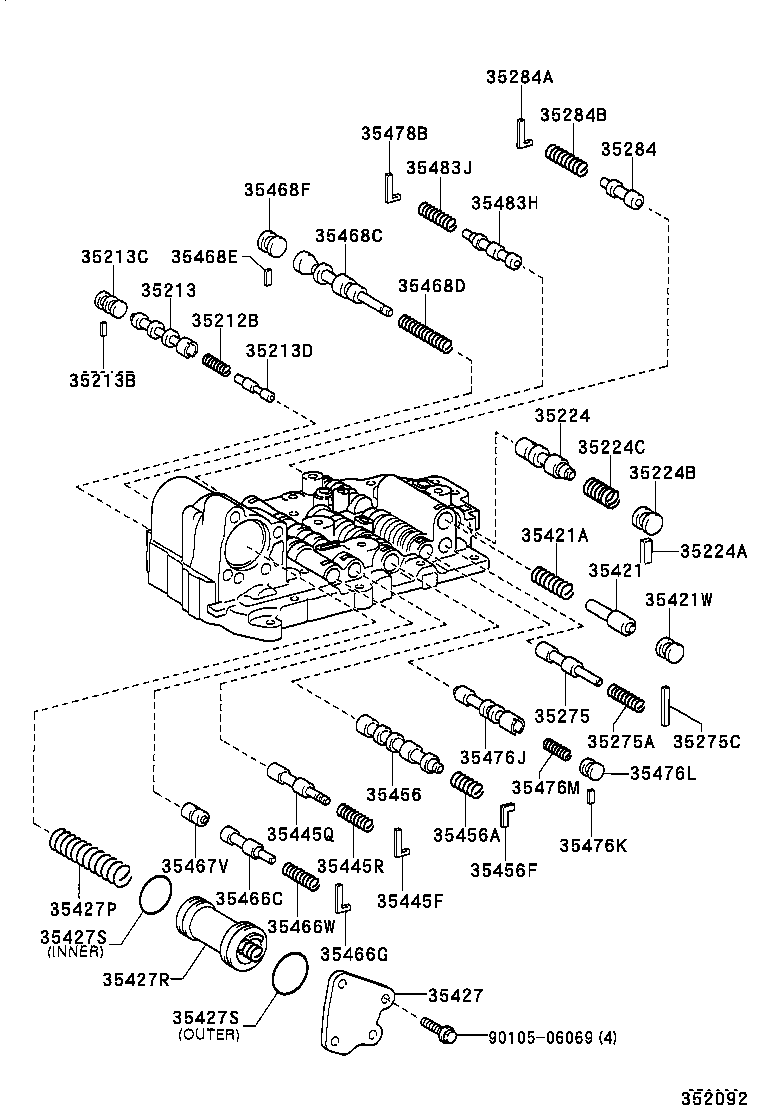

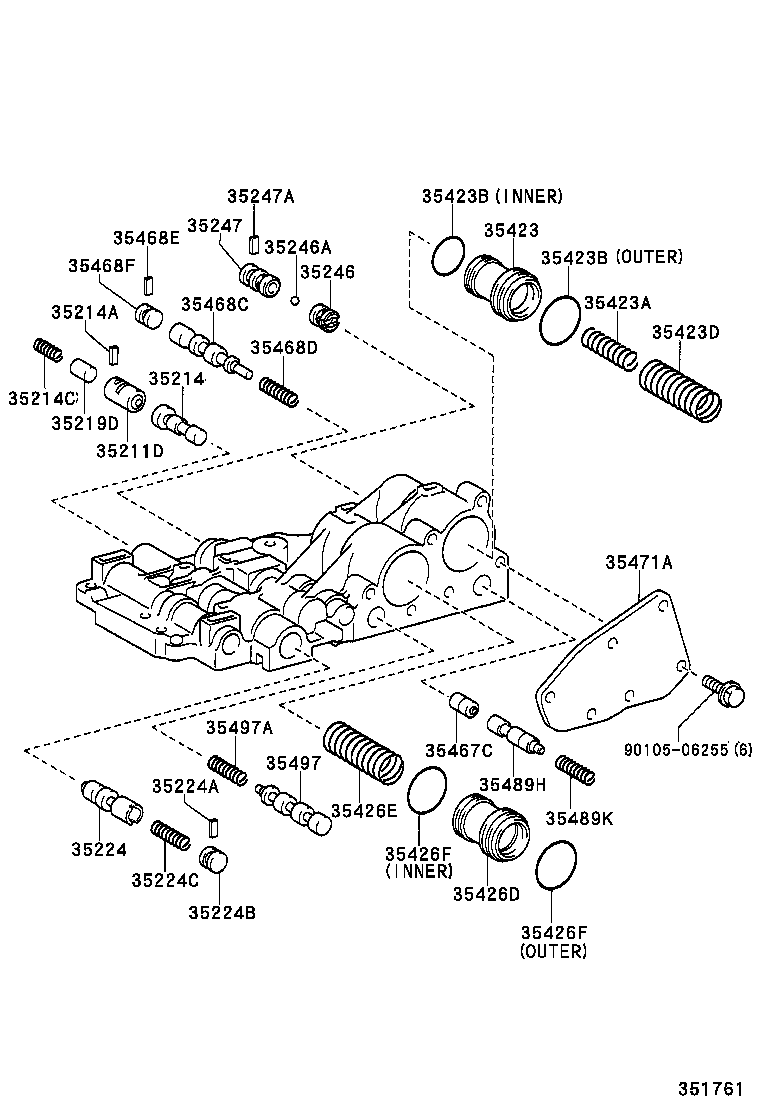

Figure 351760C 351760C 1999-01 → 2001-12 Figure 351761 351761 1999-01 → 2001-12 Figure 351762 351762 1999-01 → 2001-12 Figure 351763 351763 1999-01 → 2001-12 Figure 352091 352091 2000-10 → 2001-12 Figure 352092 352092 2000-10 → 2001-12 Figure 352093 352093 2000-10 → 2001-12 Figure 352094A 352094A 2000-10 → 2001-12 Figure 354197B 354197B 2001-12 → — Figure 354213 354213 2001-12 → —

Part groups

PNCDescription
35195A Clamp, Transaxle Apply Tube, NO.1
35206 Spring Sub-assy, C-1 Accumulator
35206A Ring, Hole Snap (FOR C-1 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35213B Key, Straight (FOR LOCK UP CONTROL VALVE)
35213C Plug (FOR LOCK UP CONTROL VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215 Sleeve, Lock UP Relay Valve
35215D Key, Straight(FOR LOCK UP RELAY VALVE SLEEVE)
35219D Plunger, Lock UP Control Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35246 Valve, Check, NO.1
35246A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.1)
35247 Valve, Check, NO.2
35247A Key, Straight(FOR CHECK VALVE NO.2)
35250A Solenoid Assy, Transmission, NO.3
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35251B Spring, Compression(FOR CHECK BALL BODY)
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35290 Solenoid Assy, Line Pressure Control
35290A Solenoid Assy, Line Pressure Control
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35410 Body Assy, Transmission Valve
35415 Valve, Pressure Regulator
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415Q Spacer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417B Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE)
35417C Plug(FOR PRIMARY REGULATOR VALVE)
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419E Valve, Check, NO.3
35419L Spring, Compression (FOR CHECK VALVE NO.3)
35420F Ball, Check, NO.1
35420H Cover, Check Ball
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421W Plug, C-1 Accumulator Valve
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35423D Spring, Compression (FOR B-2 ACCMULATOR PISTON)
35423E Spring, Compression (FOR B-2 ACCMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427 Cover, Accumulator
35427P Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427Q Spring Compression, NO.2(FOR B1 ACCUMULATOR PISTON)
35427R Piston B-1 Accumulator
35427S Ring, O(FOR B-1 ACCUMULATOR PISTON)
35432 Plate, Valve Body, NO.1
35437B Plate, Valve Body Cover
35438G Plate, Valve Body, NO.2
35441C Strainer, Solenoid Oil
35442A Strainer, Solenoid Oil, NO.2
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445F Key, Straight (FOR LOW MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35450E Ball (FOR UPPER VALVE BODY)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35465A Sleeve, Primary Regulator Valve Plunger
35466C Valve, 3-4 Shift Timing
35466G Key, Straight (FOR 2ND LOCK VALVE)
35466K Valve, Clutch Apply Control
35466L Spring, Compression (FOR CLUTCH APPLY CONTROL VALVE)
35466W Spring, Compression(FOR 3-4 SHIFT TIMING VALVE)
35467C Plunger, Orifice Control Valve
35467V Plunger, 3-4 Shift Timing Valve
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35471A Cover, Upper Valve Body
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35476J Valve, Coast Relay
35476K Key, Straight(FOR COAST RELAY VALVE)
35476L Plug(FOR COAST RELAY VALVE)
35476M Spring, Compression(FOR COAST RELAY VALVE)
35477 Gasket, Valve Body Cover
35478B Key, Valve Spring, NO.2
35479G Key, Valve Spring, NO.1
35479H Plug(FOR VALVE SPRING KEY)
35479J Ball(FOR VALVE SPRING KEY)
35479K Spring, Compression(FOR VALVE SPRING KEY)
35482B Clamp, Temperature Sensor
35483H Valve, 4-3 Shift Timing, NO.1
35483J Spring, Compression(FOR 4-3 SHIFT TIMING VALVE)
35484F Valve, 4-3 Shift Timing, NO.2
35484H Plug(FOR 4-3 SHIFT TIMING VALVE)
35484J Key, Straight(FOR 4-3 SHIFT VALVE)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35488C Gasket, Valve Body Cover, NO.2
35489H Valve, C-1 Orifice Control
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35493B Seat, 1-2 Shift Valve Plug
35493F Seat, Shift Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493N Seat, Solenoid Modulator Valve Plug
35493Y Seat, 2-3 Shift Valve Plug
35493Z Seat, Shift Valve Plug, NO.1
35495B Ball, Check, NO.1
35496A Plunger, 4-3 Shift Timing Valve, NO.2
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35599 Cover, Manual Detent Spring
35847 Tube, Transmission Lube Apply
35882A Tube, Differential Gear Lube Apply
