Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 6 illustrations

Illustrations

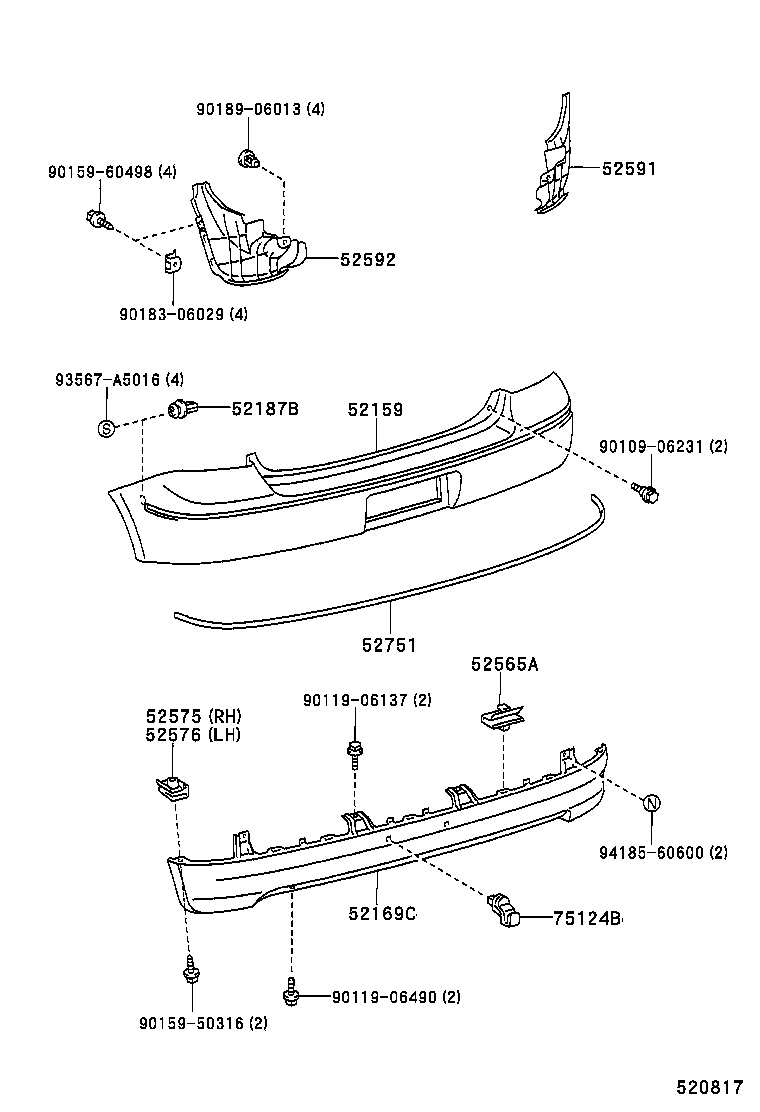

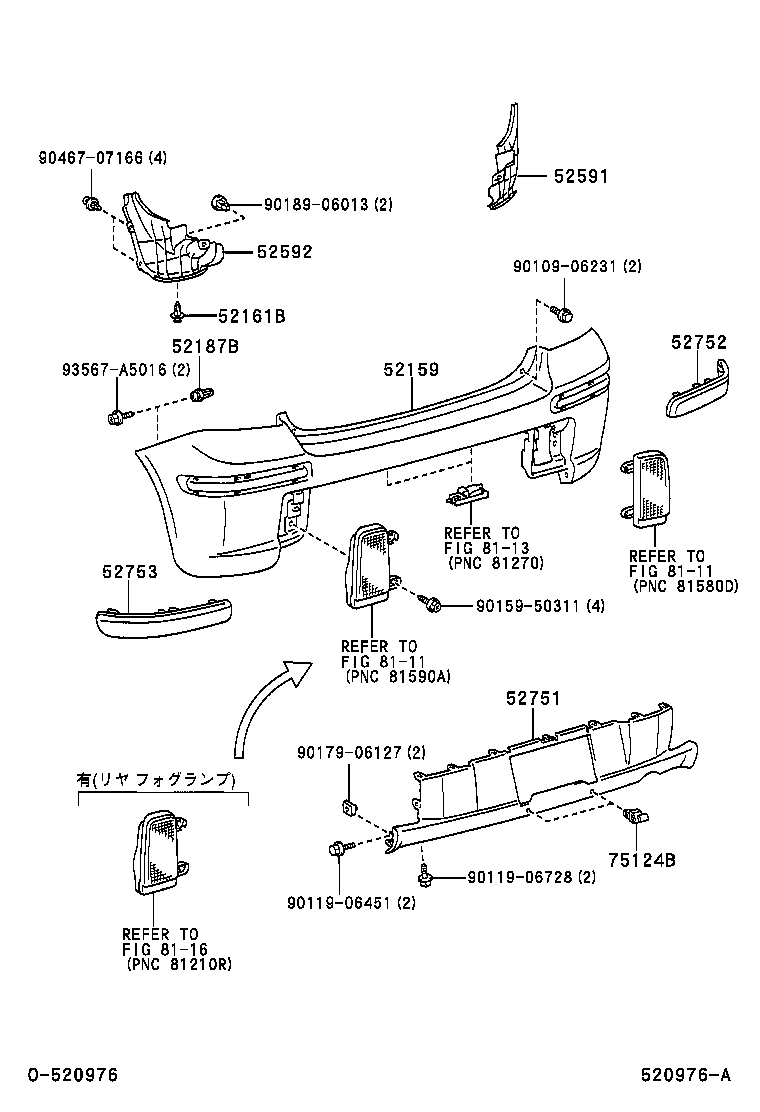

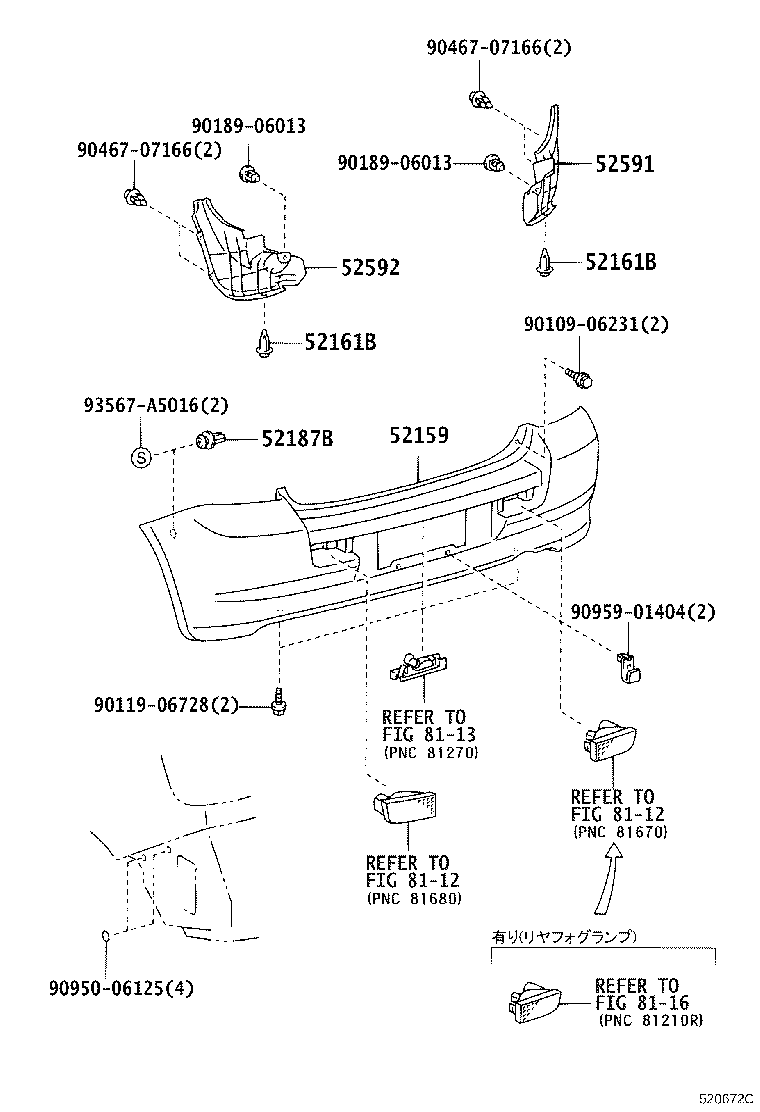

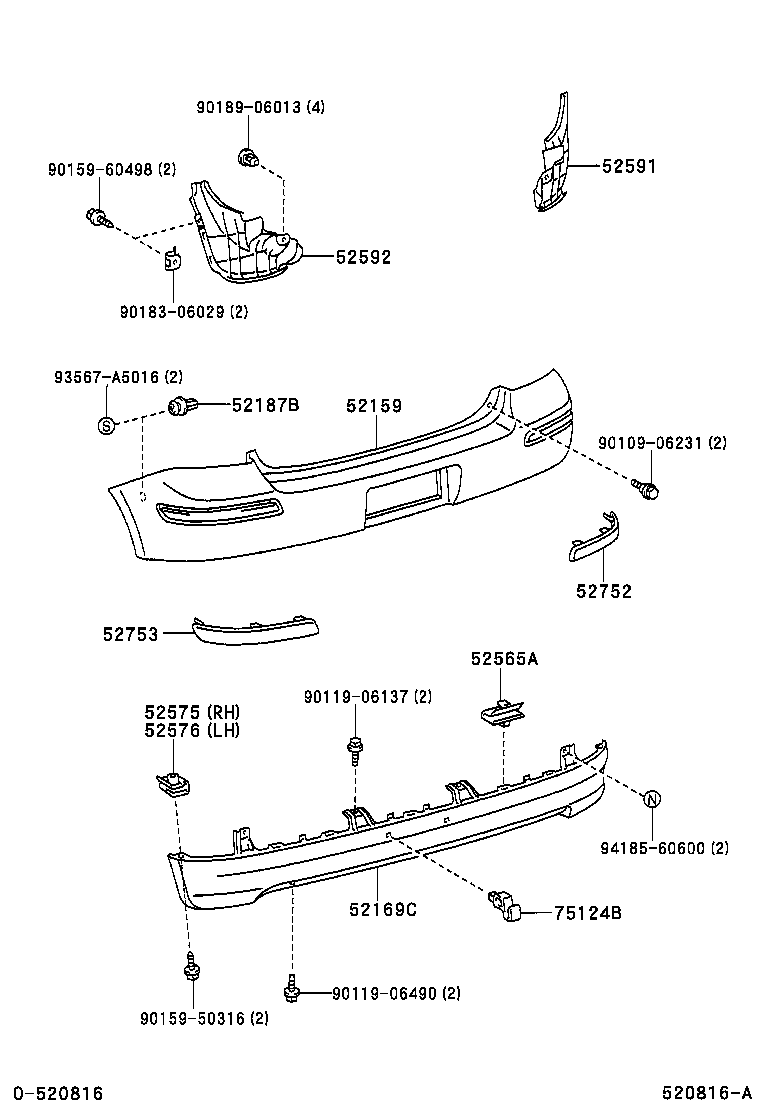

Figure 520468B 520468B 1999-01 → 2001-12 Figure 520672C 520672C 2000-10 → 2002-12 Figure 520817 520817 2001-12 → 2002-12 Figure 520816A 520816A 2001-12 → 2002-12 Figure 520816A 520816A 2002-12 → — Figure 520976A 520976A 2002-12 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52187B Guide, Rear Bumper Location
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
75124B Bracket, Rear License Plate Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
