Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 4 illustrations

Illustrations

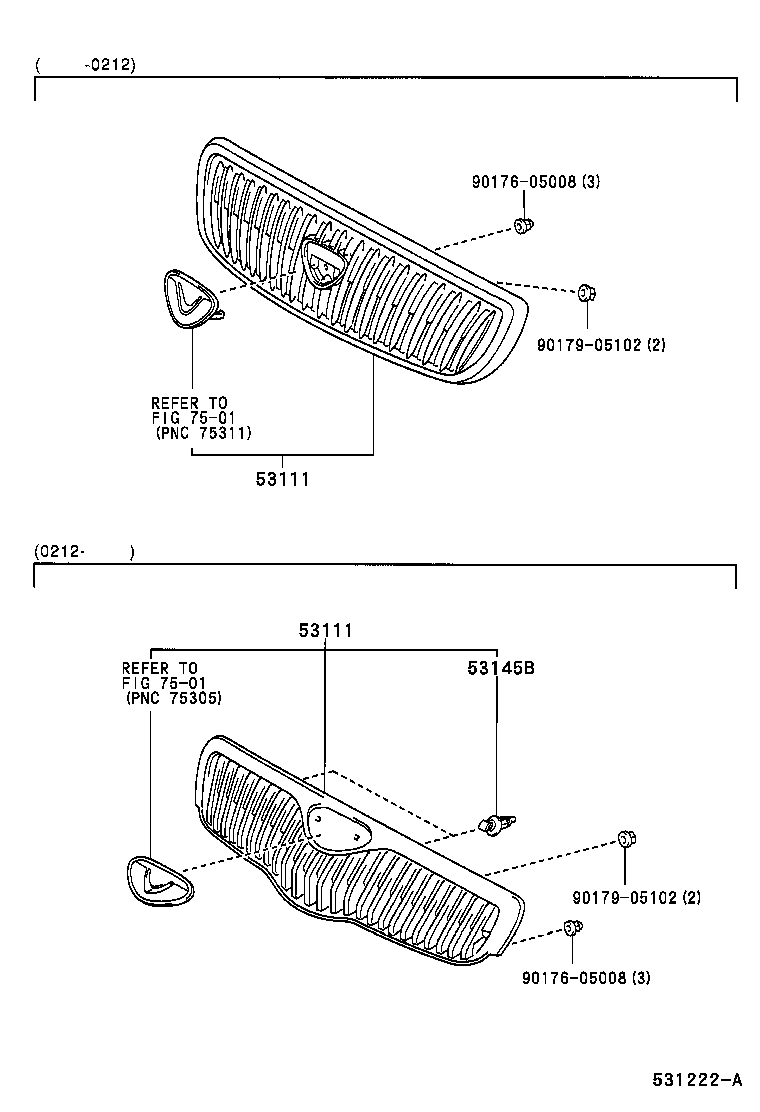

Figure 531015 531015 2000-10 → 2002-12 Figure 530869B 530869B 1999-01 → — Figure 531222A 531222A 1999-09 → — Figure 531447 531447 2002-12 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53145B Clip, Radiator Grille Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
