Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

13 part groups · 2 illustrations

Illustrations

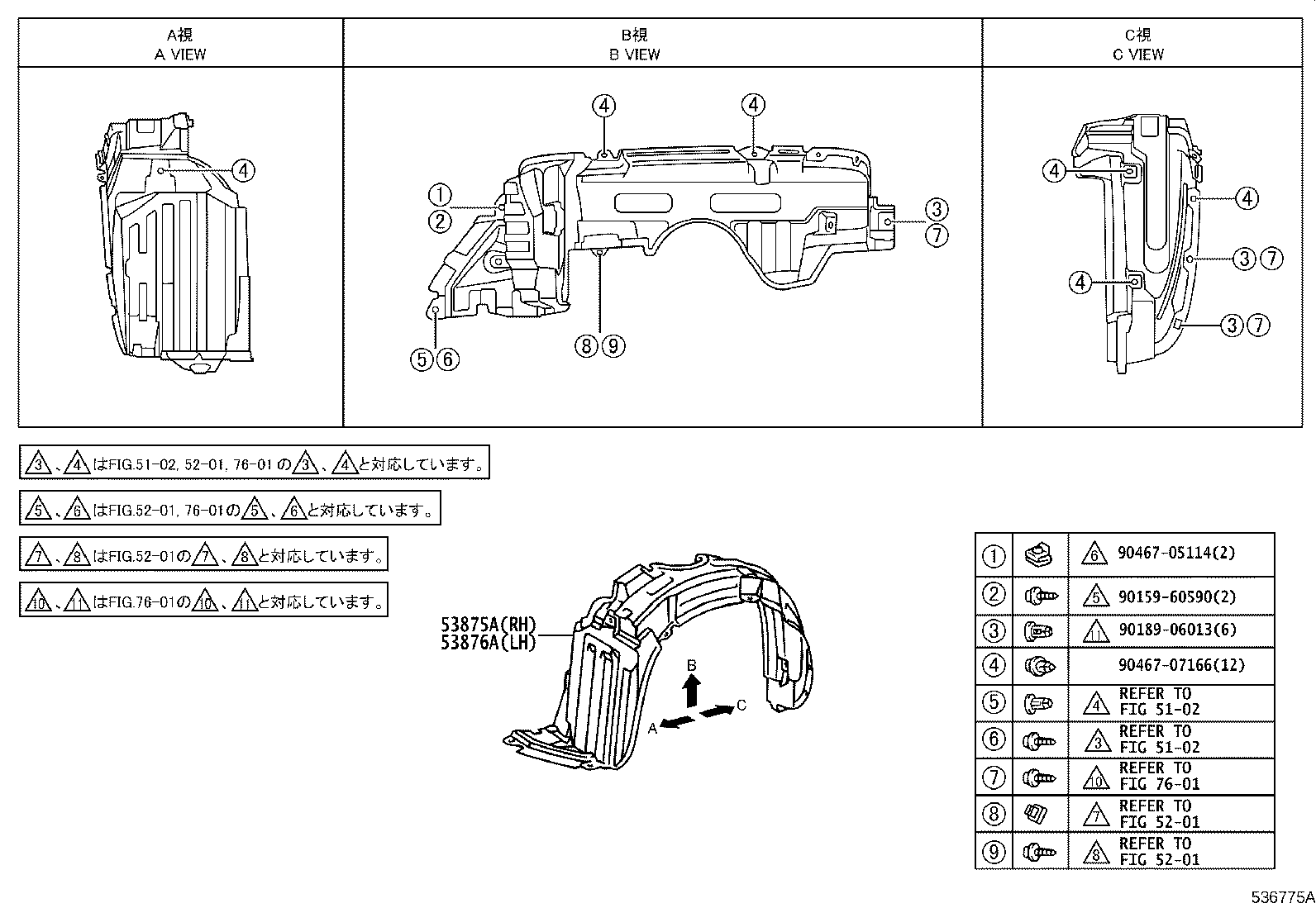

Figure 536774 536774 1999-01 → — Figure 536775A 536775A 1999-01 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827B Protector, Front Fender Side Panel
53828B Protector, Front Fender Side Panel, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
