Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07

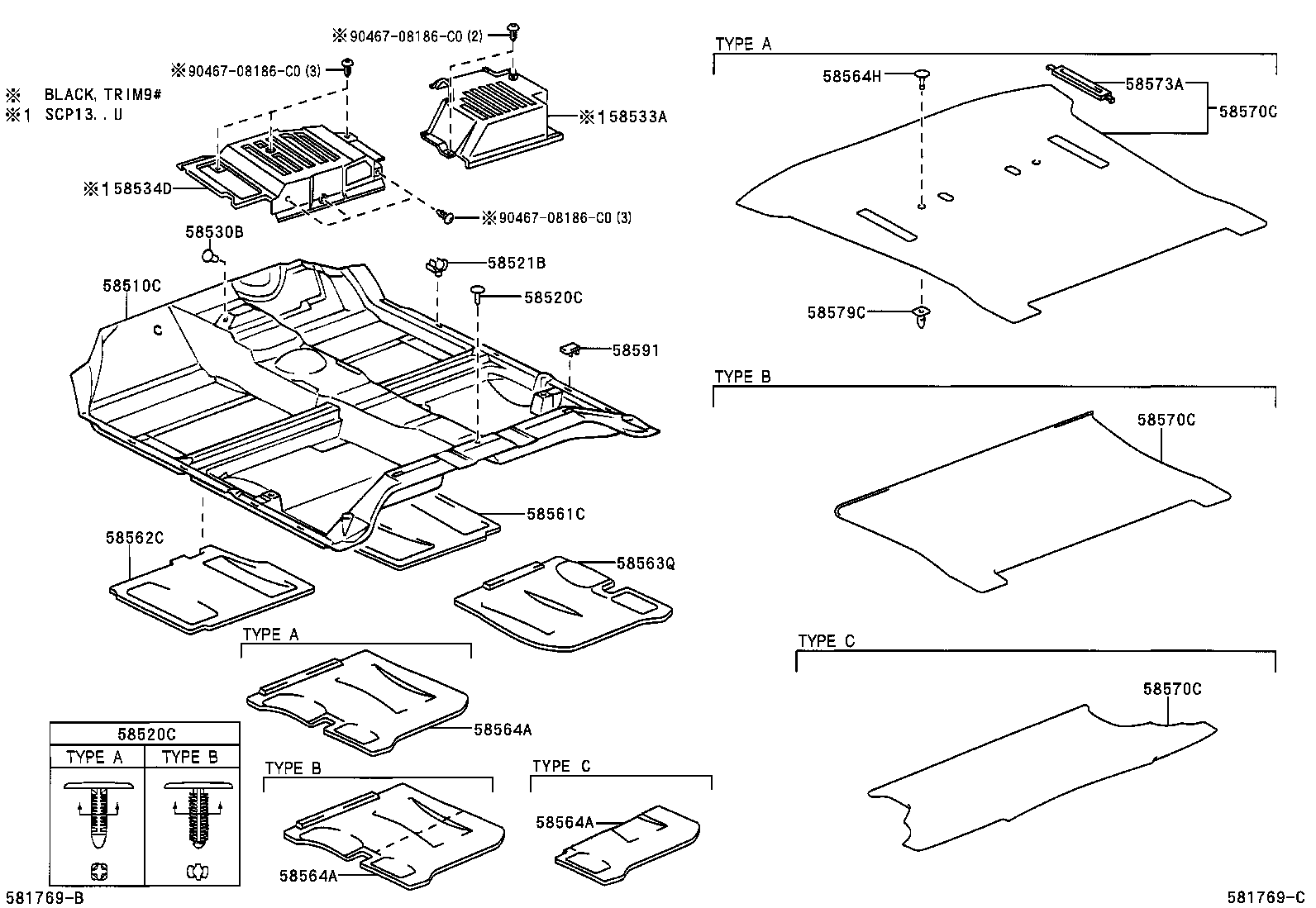

Mat & Carpet
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58533A | Cover, Floor Carpet, Center RH |
| 58534D | Cover, Floor Carpet, Center LH |
| 58561C | Silencer, Front Floor, NO.1 |
| 58562C | Silencer, Front Floor, NO.2 |
| 58563Q | Silencer, Front Floor, NO.3 |
| 58564A | Silencer, Front Floor, NO.4 |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
| 58570C | Carpet Assy, Rear Floor |
| 58573A | Plate, Rear Floor Mat Support |
| 58579C | Clip, Rear Floor Carpet Set |
| 58591 | Cover, Floor Carpet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
