Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07

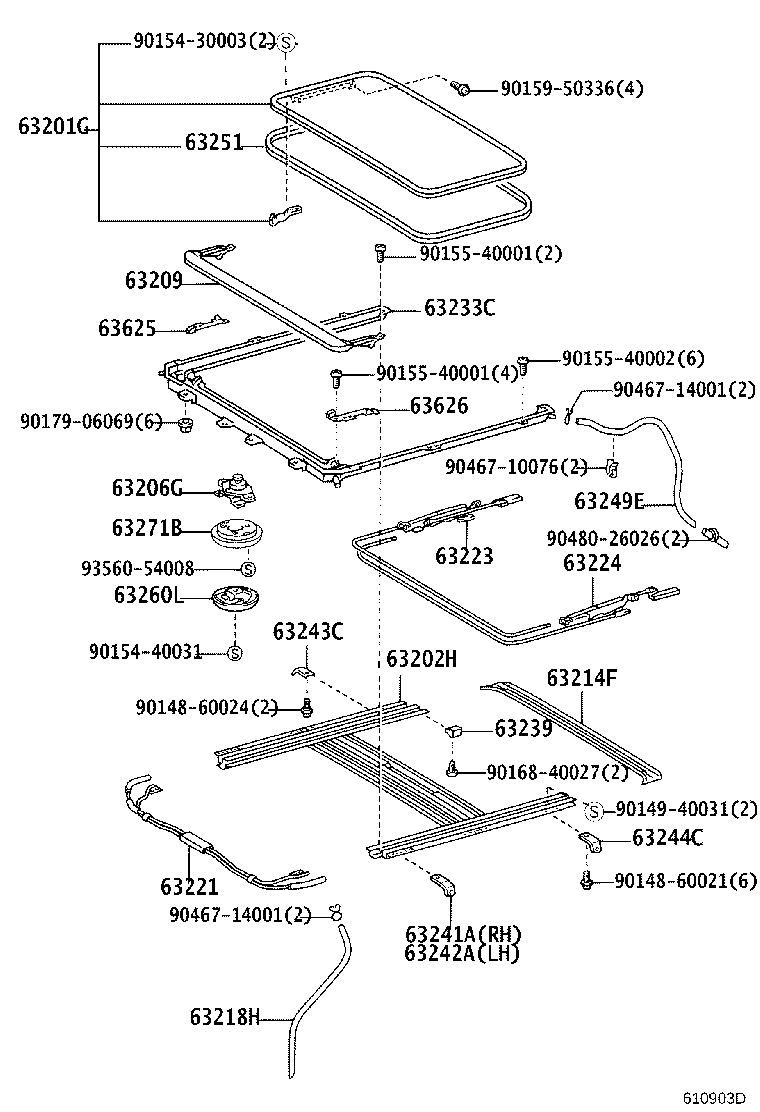

Roof Panel & Back Window Glass
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63033B | Bracket Sub-assy, Room Lamp, NO.1 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63132 | Panel, Windshield Header, Inner |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63218H | Hose, Sliding Roof Drain |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63260L | Handle Assy, Sliding Roof Regulator |
| 63271B | Bezel, Sliding Roof |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
