Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07

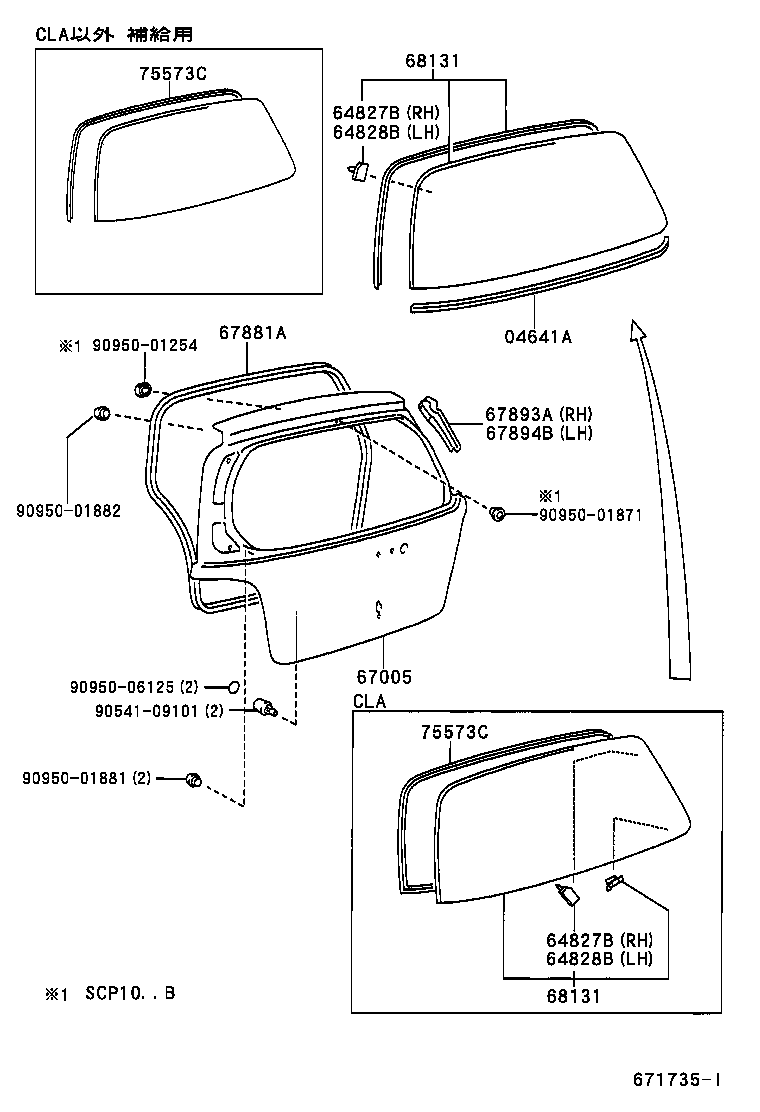

Back Door Panel & Glass
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 64827B | Clip, Back Window Glass, RH |
| 64828B | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
| 75573C | Moulding, Back Window, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
