Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 4 illustrations

Illustrations

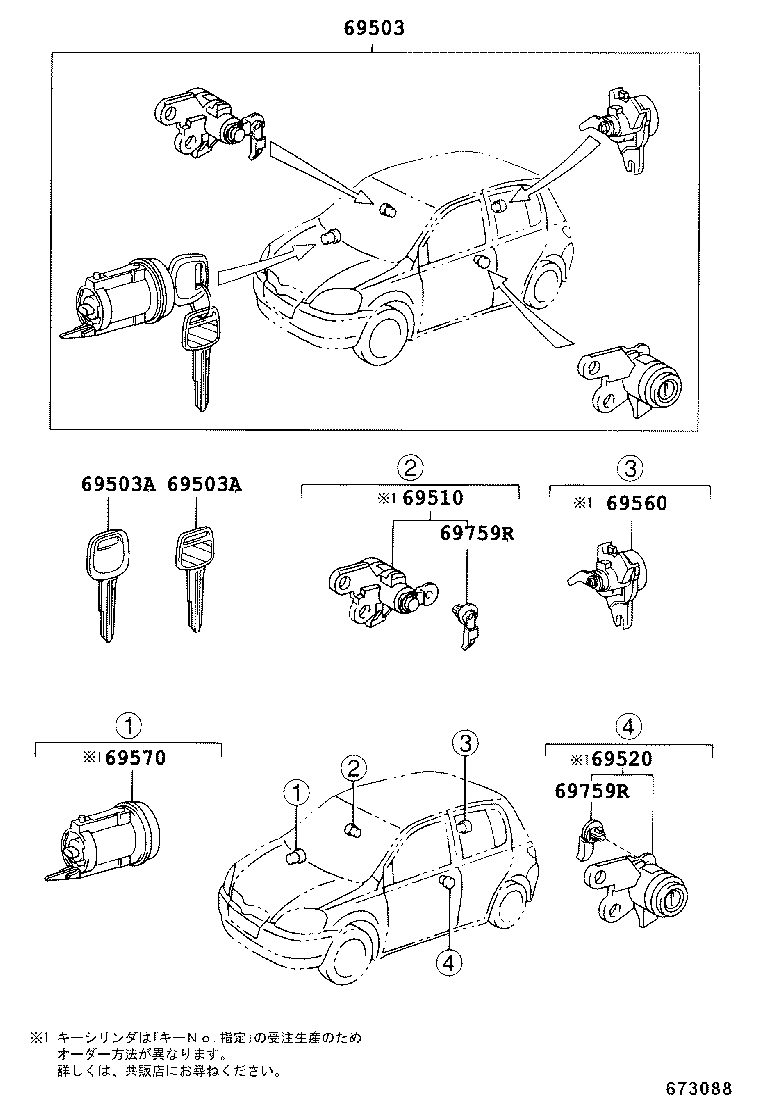

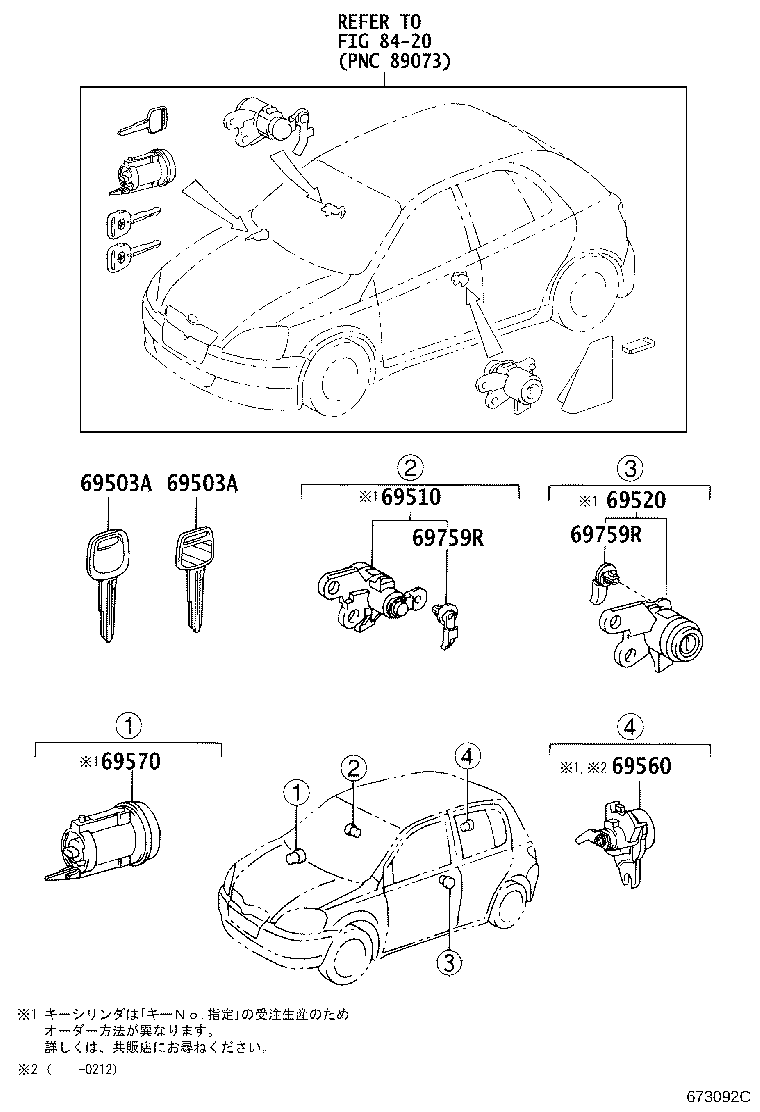

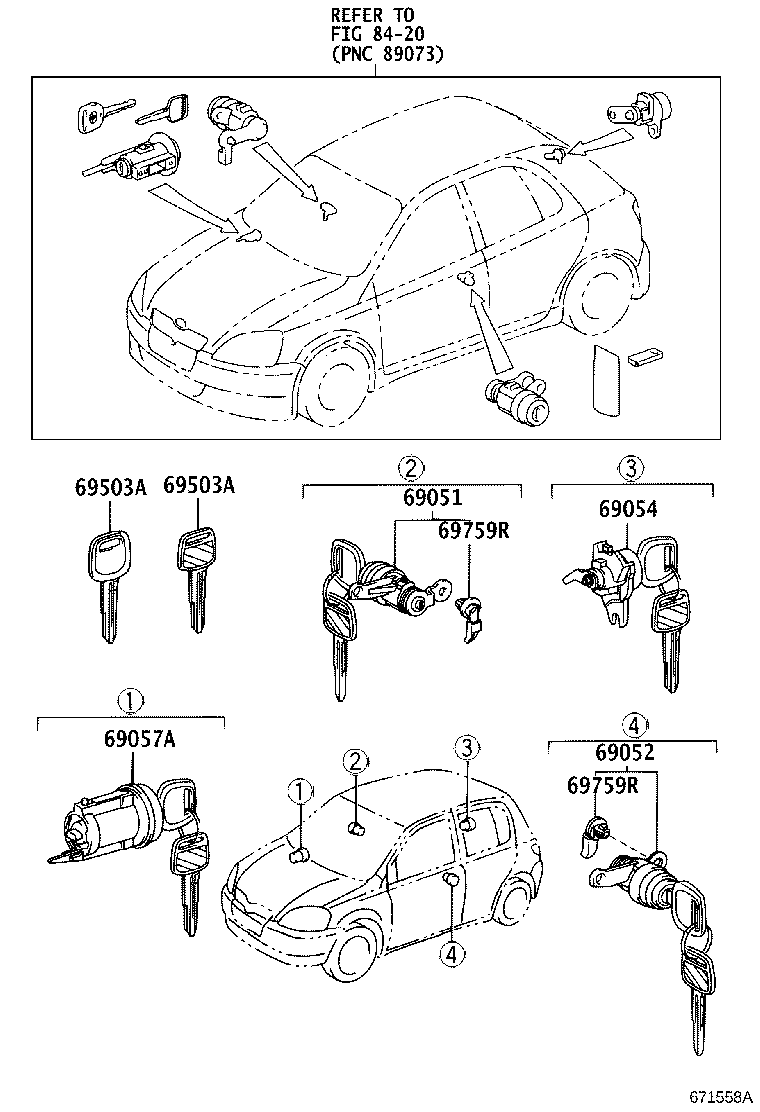

Figure 671531 671531 1999-01 → 2001-12 Figure 671558A 671558A 1999-01 → 2001-12 Figure 673088B 673088B 2001-12 → — Figure 673092C 673092C 2001-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
