Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

61 part groups · 11 illustrations

Illustrations

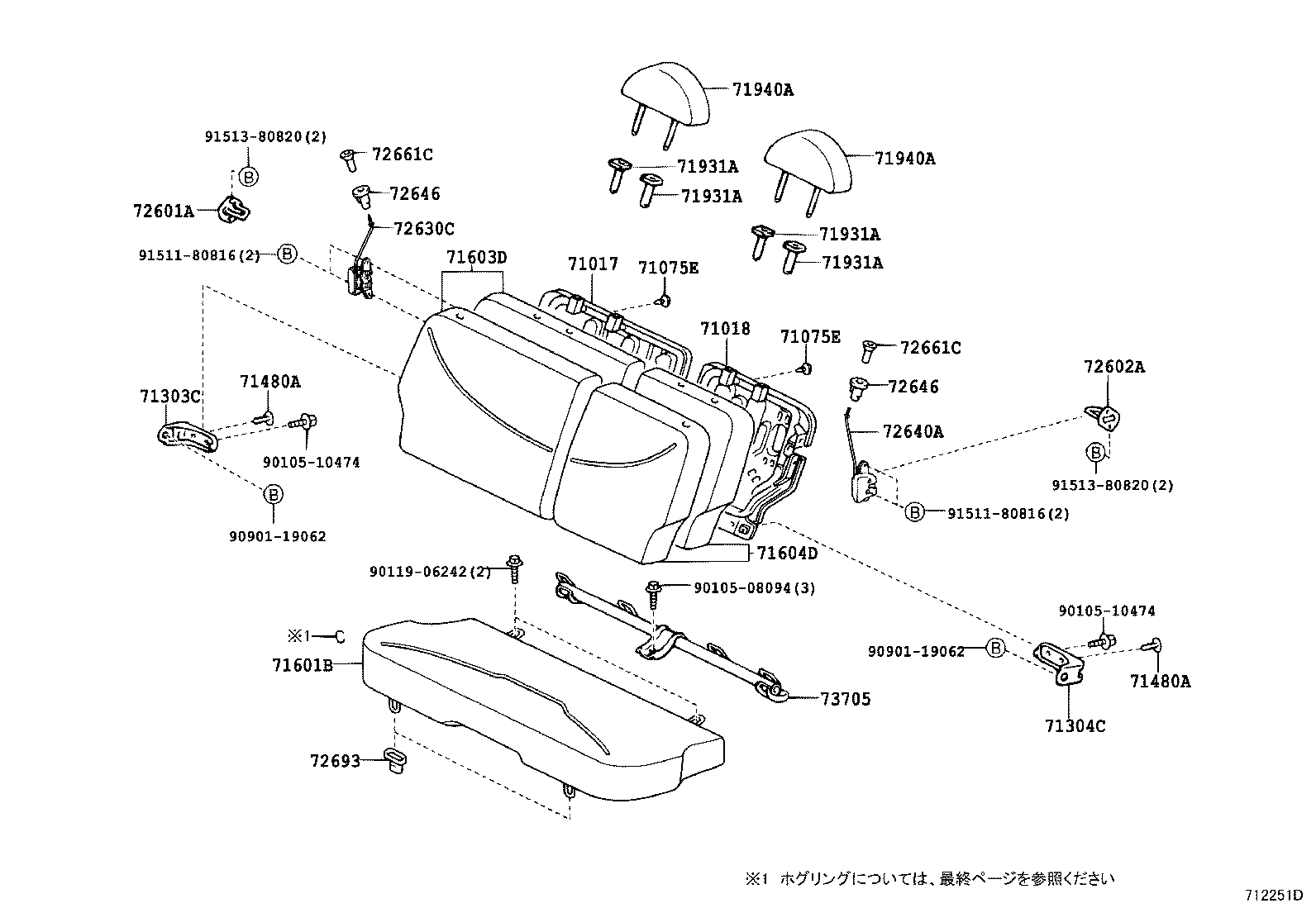

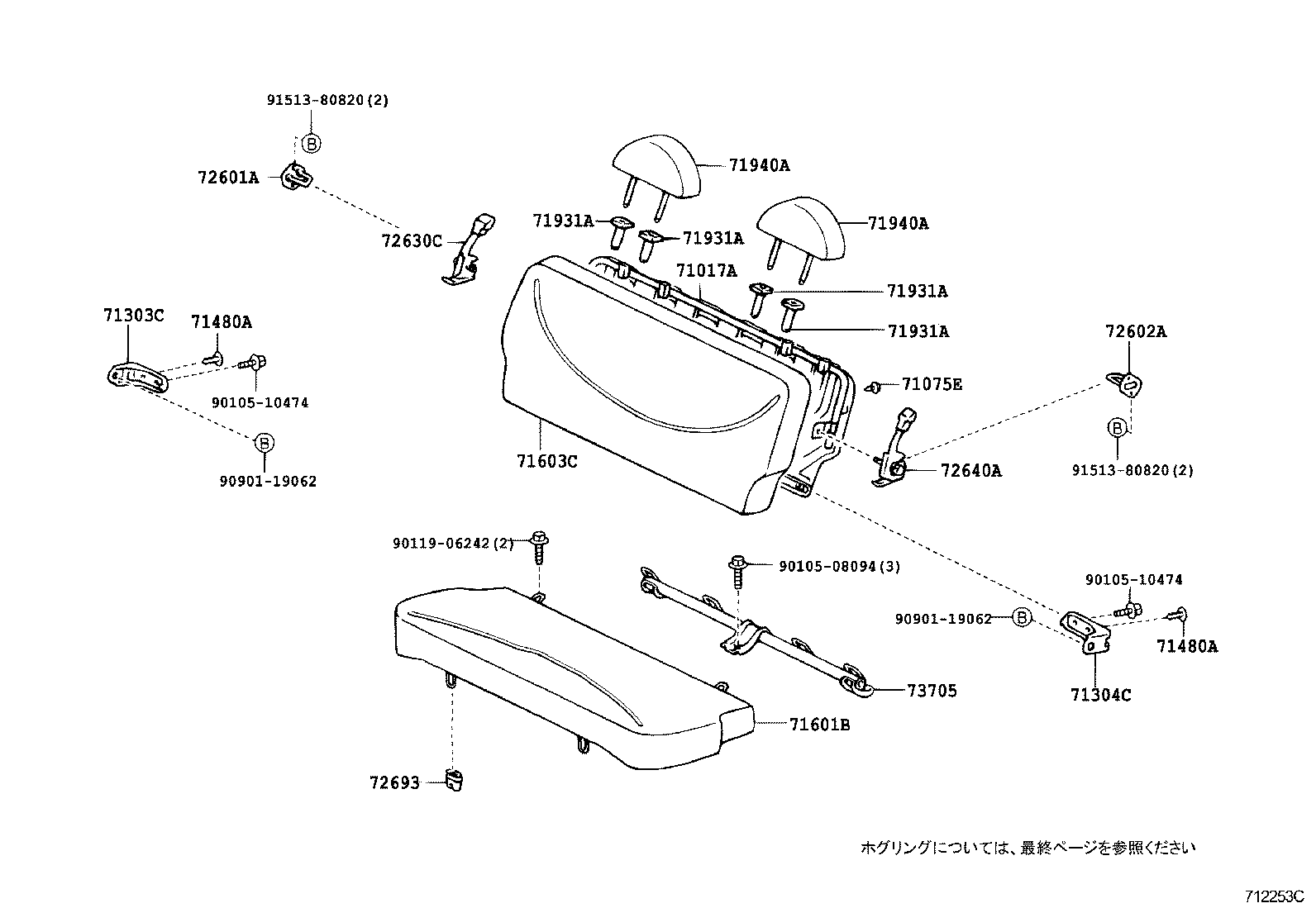

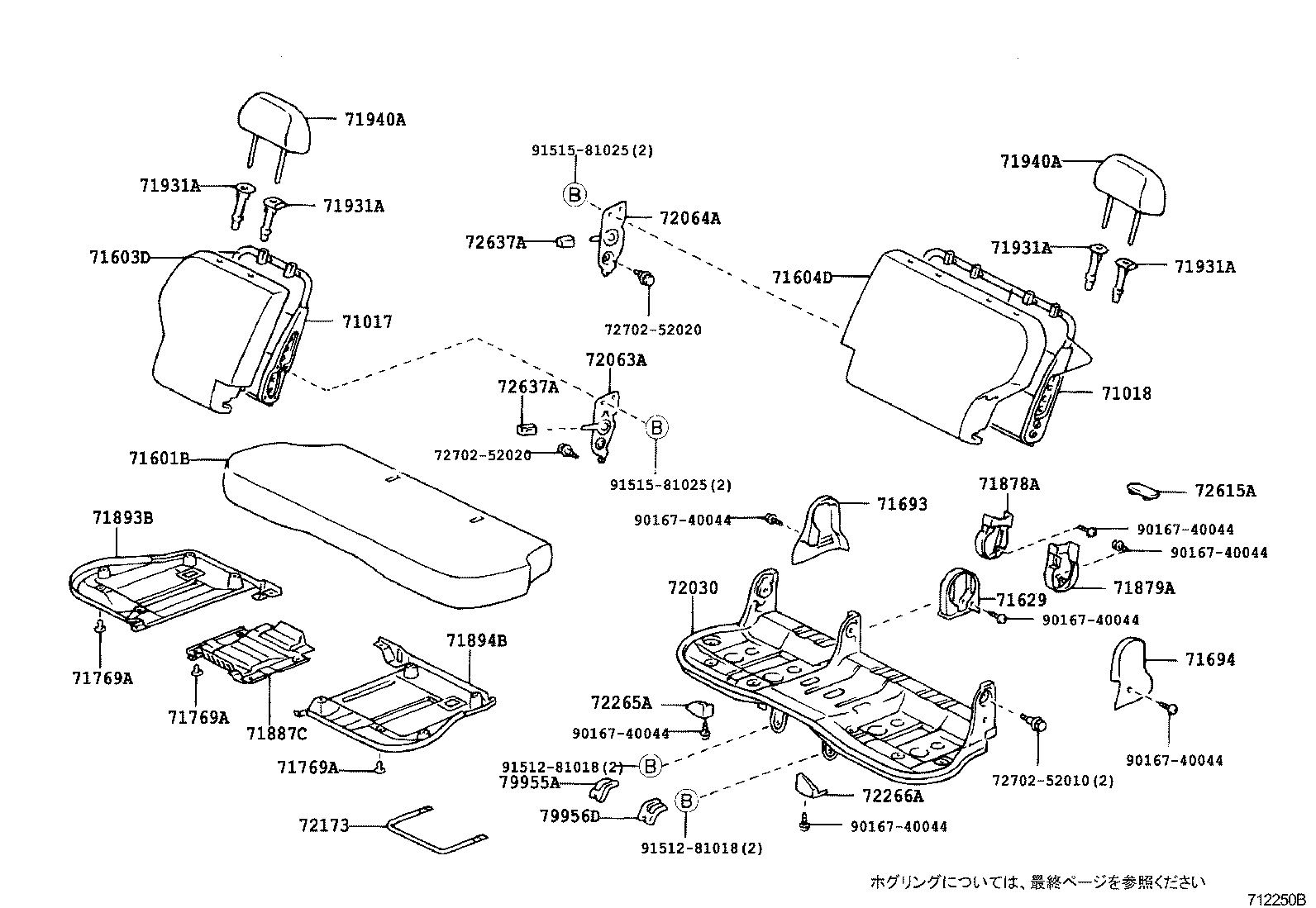

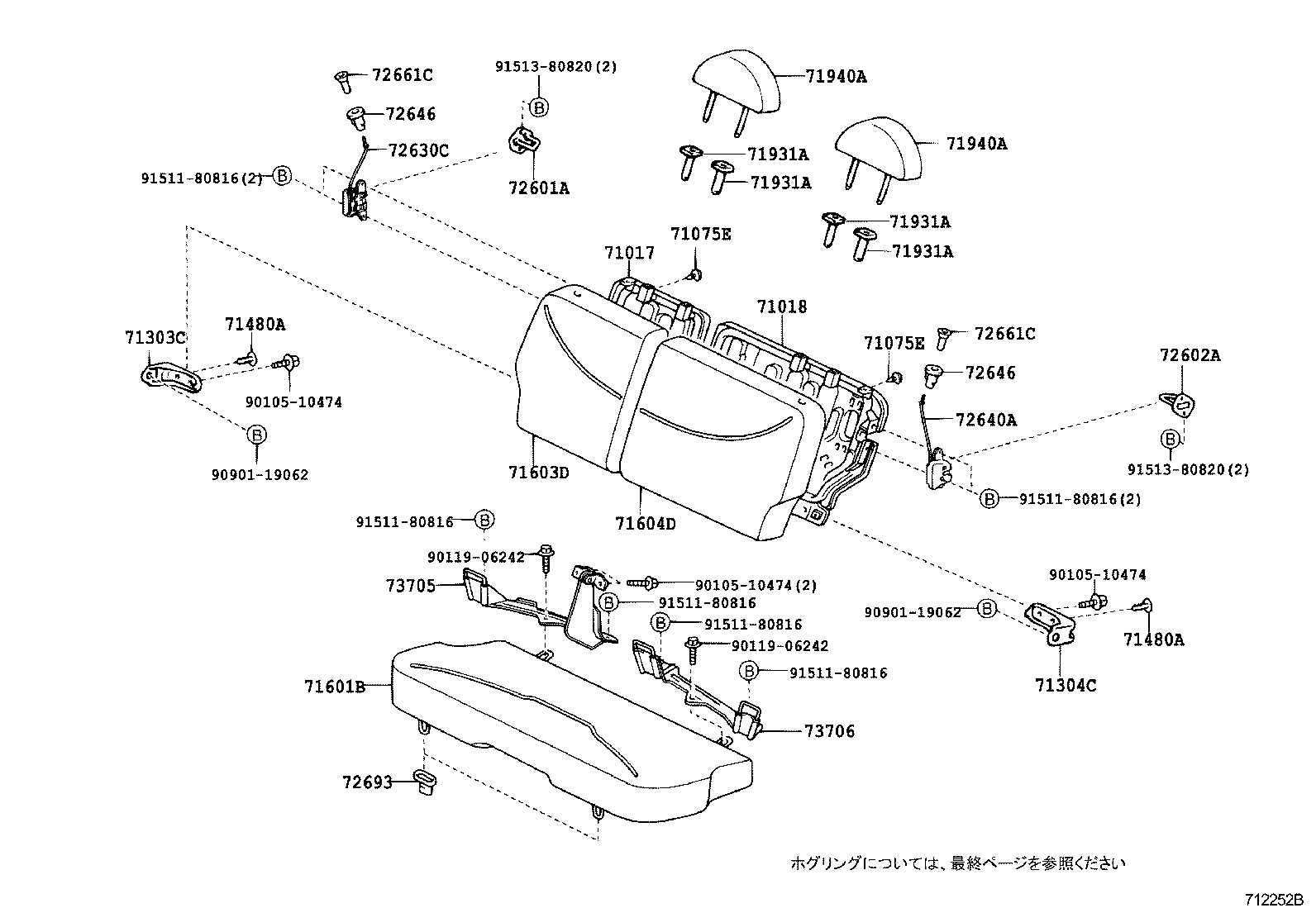

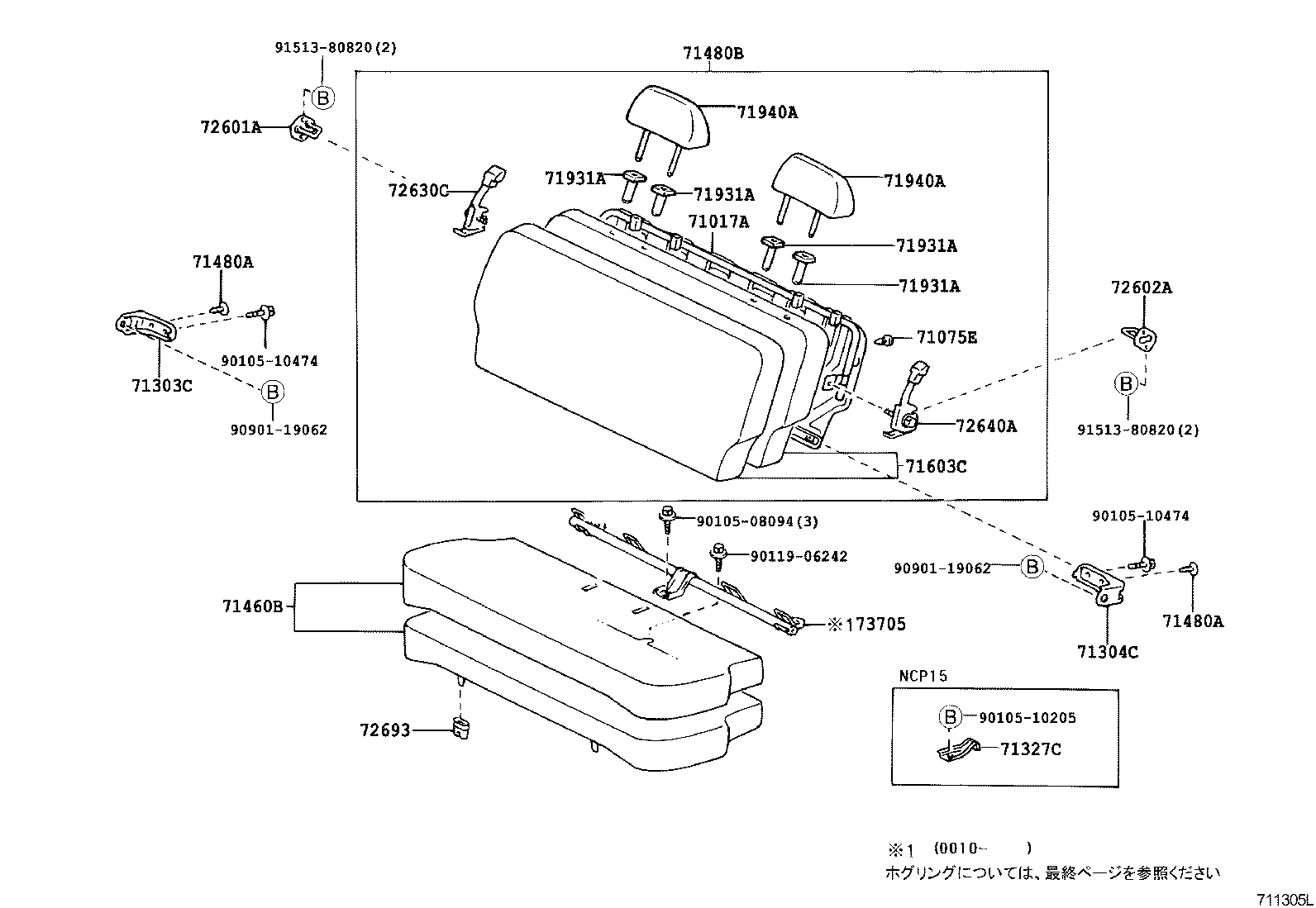

Figure 711304C 711304C 1999-01 → 2001-12 Figure 711304C 711304C 1999-09 → 2001-12 Figure 711304C 711304C 2000-10 → 2001-12 Figure 711305L 711305L 1999-01 → 2001-12 Figure 712253C 712253C 2001-12 → 2002-12 Figure 712250B 712250B 2001-12 → — Figure 712250B 712250B 2002-02 → — Figure 712251D 712251D 2001-12 → — Figure 712252B 712252B 2001-12 → — Figure 712703F 712703F 2002-12 → — Figure 718165A 718165A 1999-01 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71075E Clip(FOR REAR SEAT)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71323B Hinge, Rear Seatback, Inside, RH
71324F Hinge, Rear Seatback, Inside, LH
71327C Bracket, Rear Seat Cushion
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480A Clip (FOR REAR SEATBACK)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71601B Pad Sub-assy, Rear Seat Cushion W/Cover
71601C Pad Sub-assy, Rear Seat Cushion W/Cover, RH
71602A Pad Sub-assy, Rear Seat Cushion W/Cover, LH
71603C Pad Sub-assy, Rear Seatback W/Cover
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71629 Cover, Rear Seat Cushion Hinge
71637A Pad, Rear Seat Cushion Cover, Rear RH
71691B Cover, Rear Seat Lock, Outer RH
71692B Cover, Rear Seat Lock, Outer LH
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71695A Protector, Rear Seat, NO.1 RH
71696A Protector, Rear Seat, NO.2 LH
71769A Clip, Rear Seatback Board
71878A Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71887C Carpet, Rear Seat Cushion
71887D Mat, Rear Seat Cushion, RH
71888A Mat, Rear Seat Cushion, LH
71893B Carpet, Rear Seat Cushion, Under RH
71894B Carpet, Rear Seat Cushion, Under LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72030 Adjuster Assy, Rear NO.1 Seat
72063A Arm Sub-assy, Rear Seatback Lock, RH
72064A Arm Sub-assy, Rear Seatback Lock, LH
72173 Handle, Rear Seat Track Adjusting
72265A Cover, Seat Track Upper Rail, RH
72266A Cover, Seat Track Upper Rail, LH
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72615A Cover, Rear Seatback Lock Striker, RH
72630C Lock Assy, Rear Seatback, RH
72637A Handle, Rear Seat Lock
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72690A Strap Assy, Rear Seat Lock Release
72693 Hook, Rear Seat Cushion Lock
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
79955A Cover, Rear Seat Front Bracket, RH
79956D Cover, Rear Seat Front Bracket, LH
79959 Cover, RR Seat Leg
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
