Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 3 illustrations

Illustrations

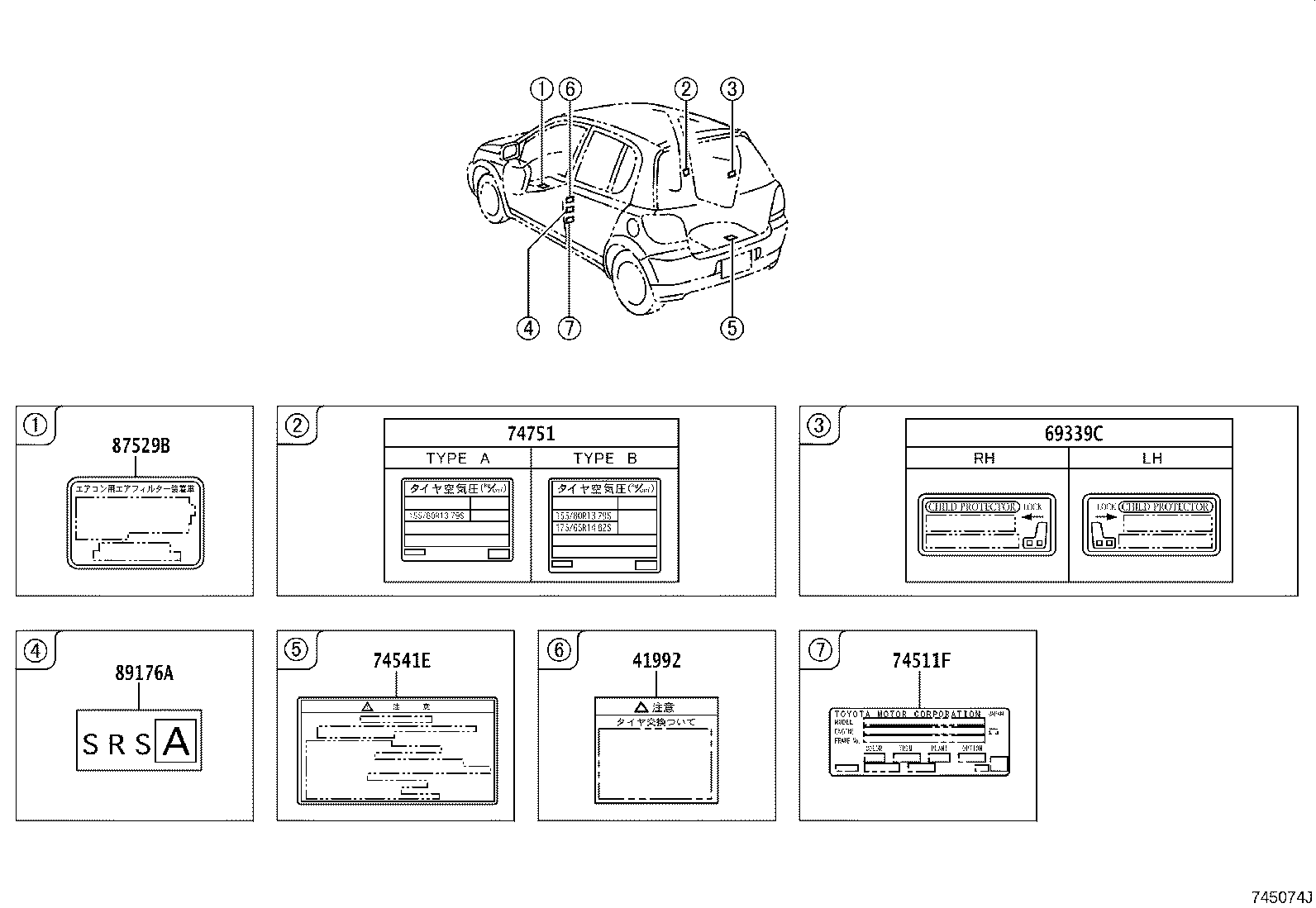

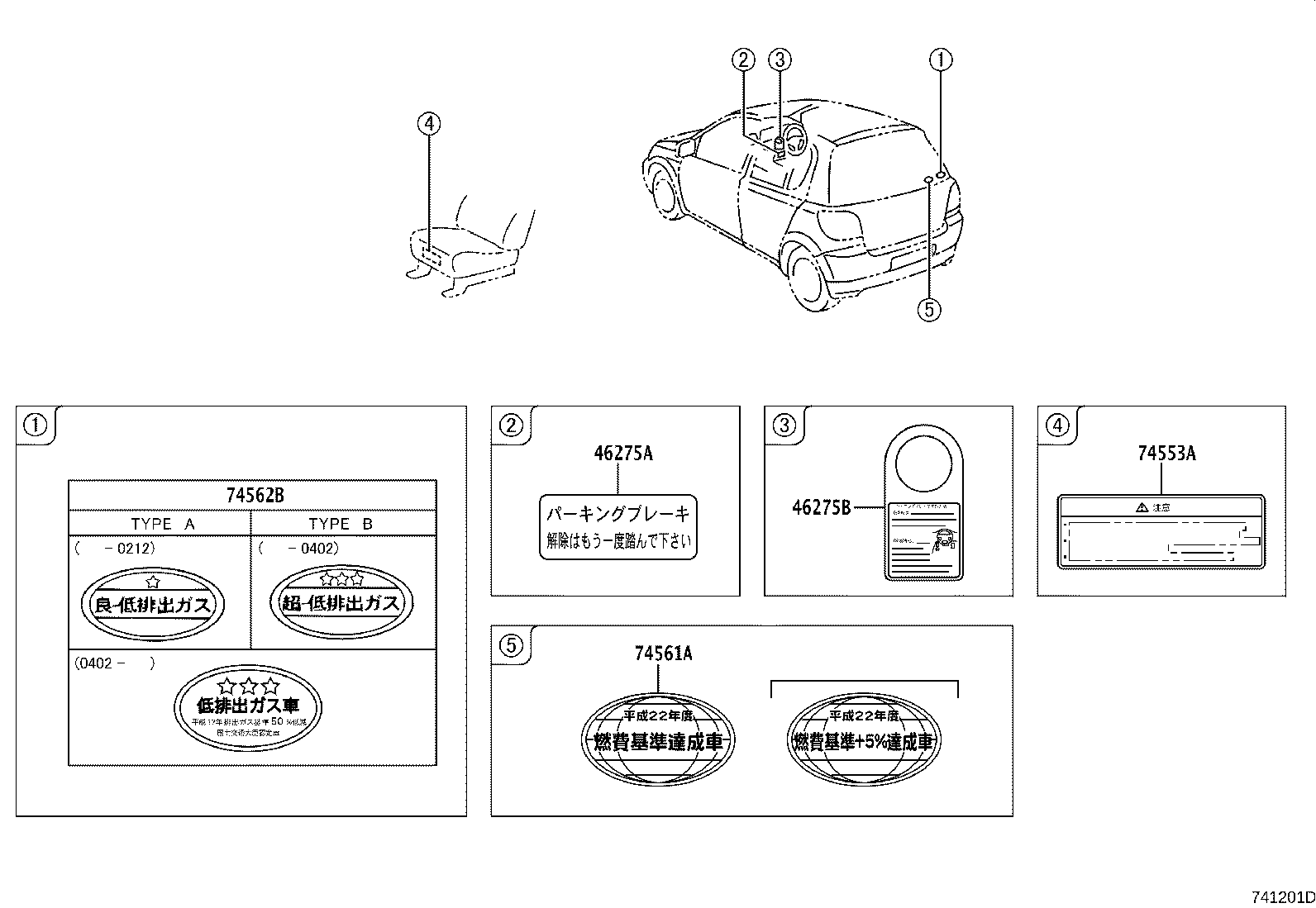

Figure 745424 745424 1999-01 → — Figure 740574J 740574J 1999-01 → — Figure 741201D 741201D 1999-01 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
47991 Label, Brake Tube Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541E Plate, Compact Spare Tire Caution
74553A Plate, Front Seat Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
75341C Plate, Hood Name
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
