Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07

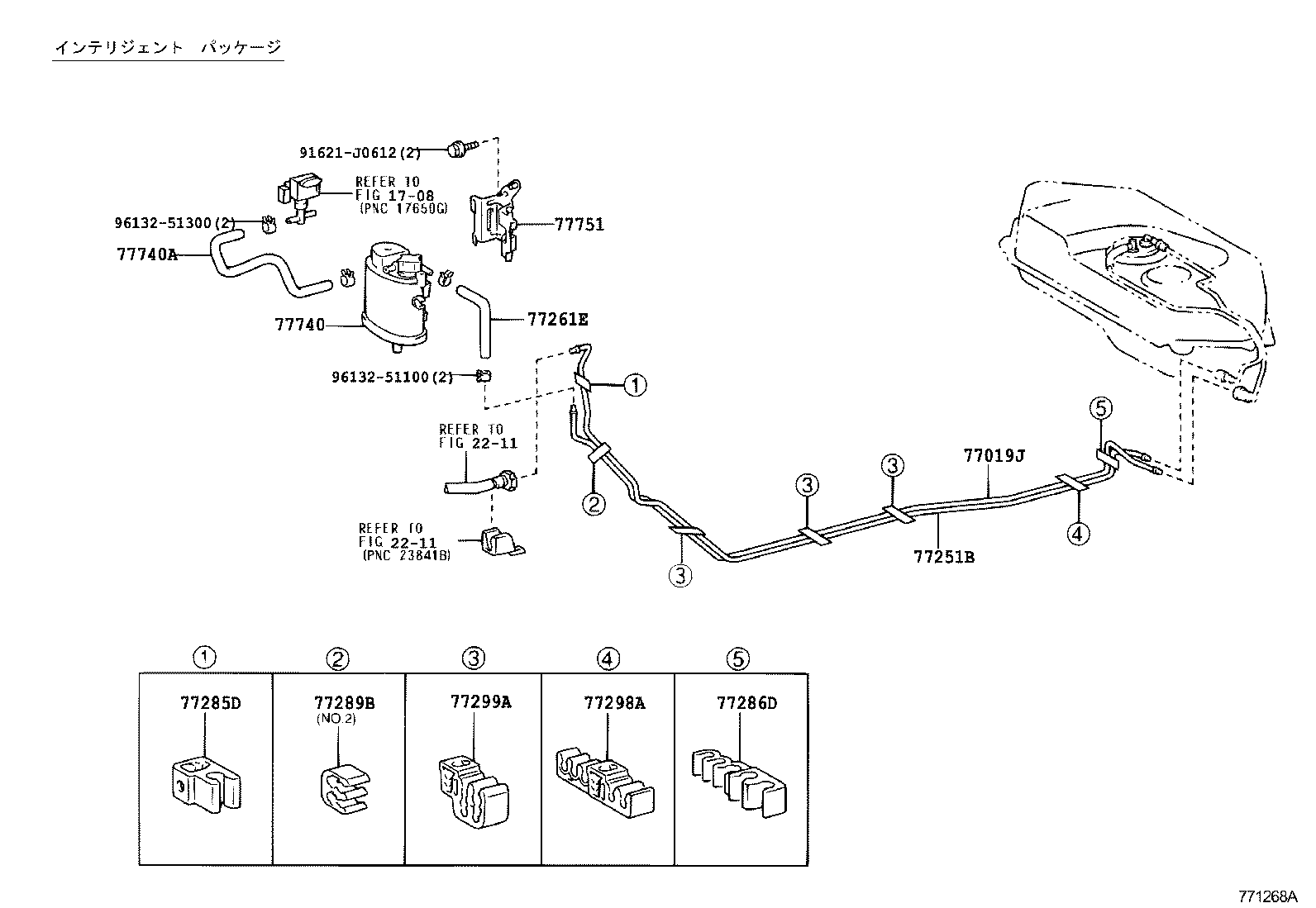

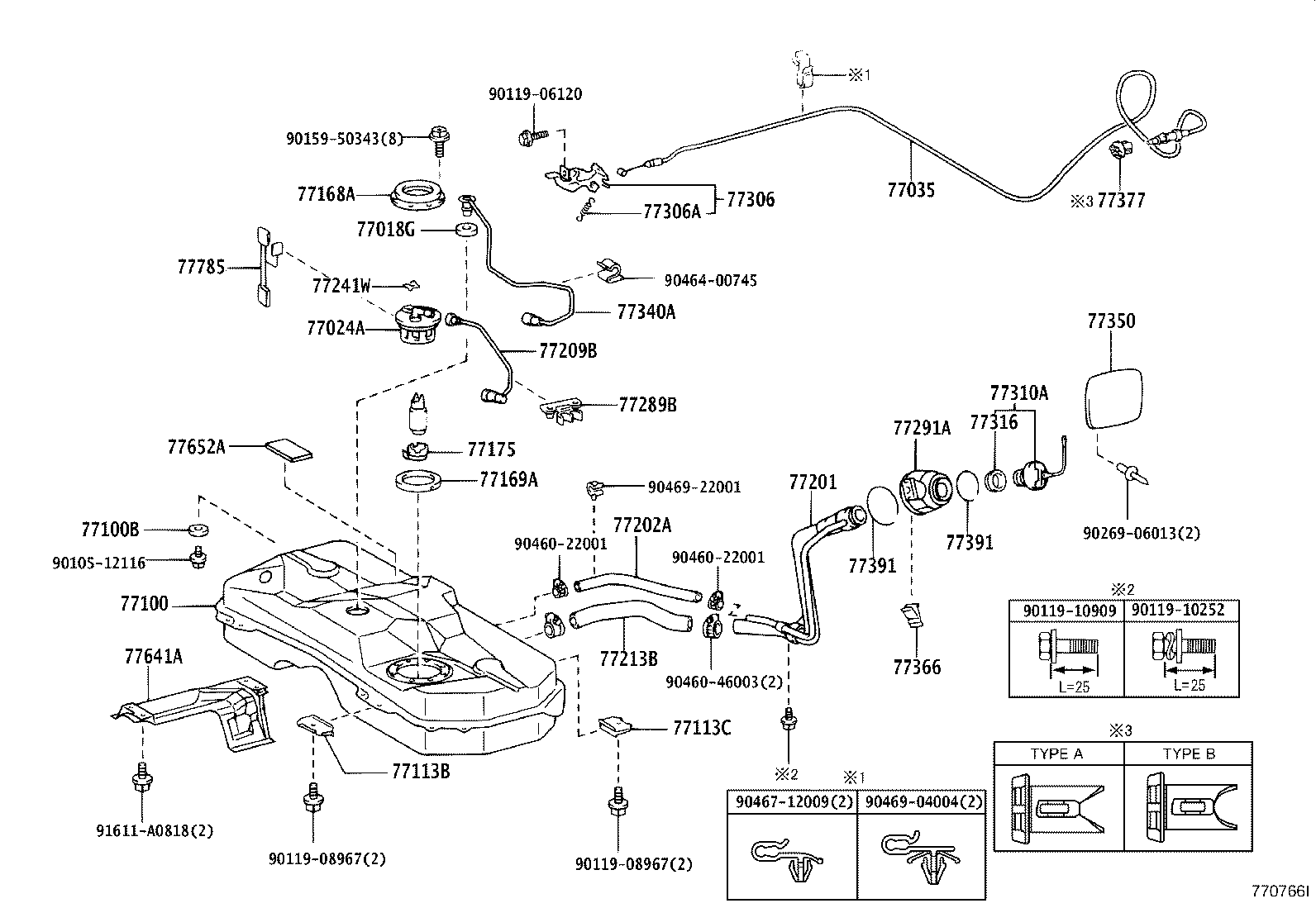

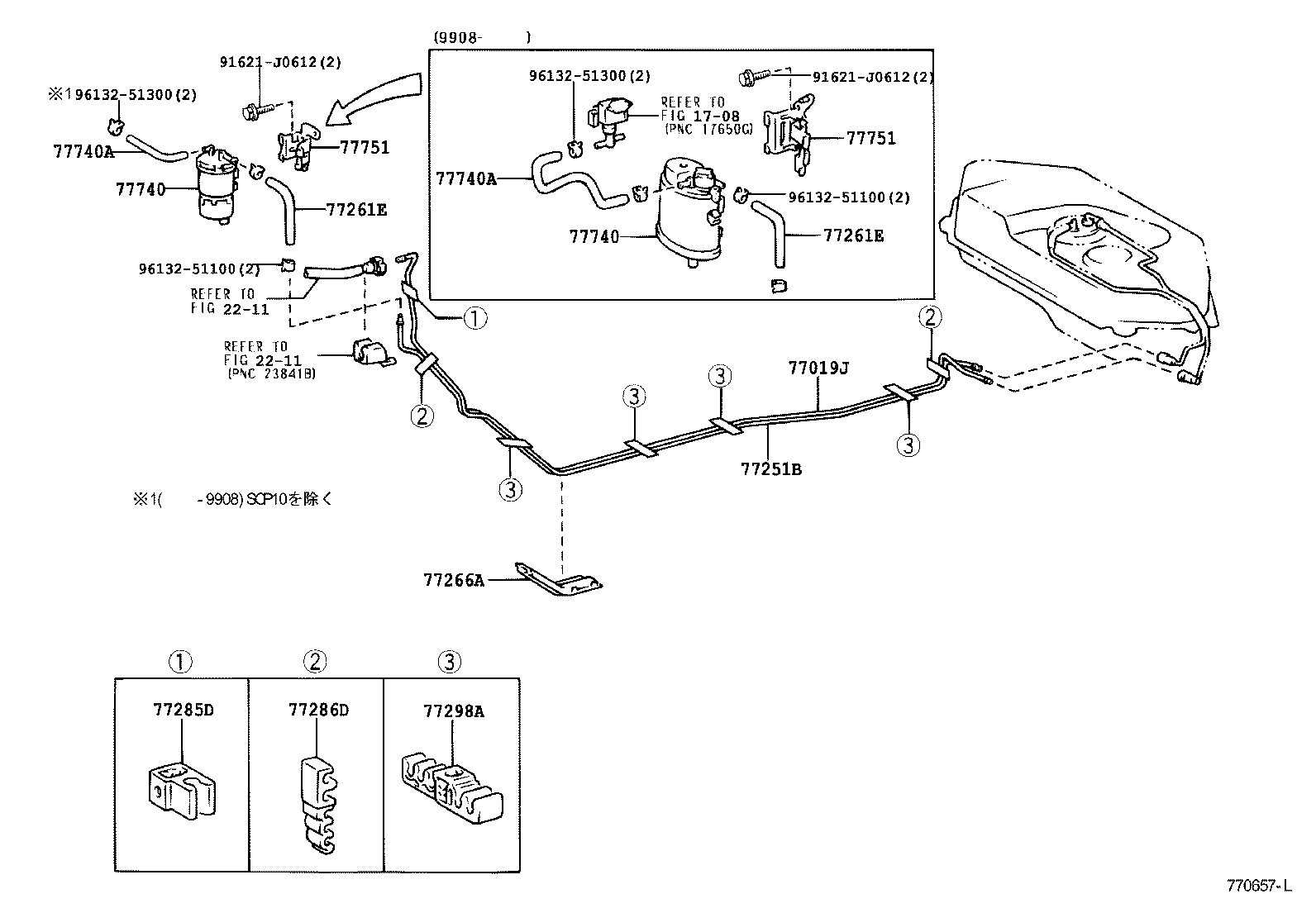

Fuel Tank & Tube

43 part groups · 5 illustrations

PNC	Description
77018G	Gasket, Fuel Tank Evap/Vent Tube
77019J	Tube Sub-assy, Fuel Tank TO Canister
77024A	Plate Sub-assy, Fuel Suction
77027	Tube Sub-assy, Fuel Evaporation, NO.2
77035	Cable Sub-assy, Fuel Lid Lock Control
77100	Tank Assy, Fuel
77100B	Gasket(FOR FUEL TANK)
77113B	Plate, Fuel Tank Side
77113C	Plate, Fuel Tank Side
77168A	Plate, Fuel Tank Vent Tube Set
77169A	Gasket, Fuel Suction Tube Set
77175	Support, Fuel Suction, NO.2
77201	Pipe Sub-assy, Fuel Tank Inlet
77202A	Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77209B	Tube Sub-assy, Fuel Pump
77213B	Hose, Fuel Tank TO Filler Pipe
77241W	Clip, Tube Joint
77251B	Tube, Fuel Main
77261E	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A	Protector, Fuel Tube, NO.1
77285D	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286K	Clamp, Fuel Tube, NO.2
77289B	Clamp, Fuel Tube, NO.3
77291A	Shield, Fuel Tank Filler Pipe
77298A	Clamp, Fuel Tube, NO.4
77298C	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77306	Lever Sub-assy, Fuel Lid Lock Open
77306A	Spring, Fuel Lid Open Lever
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77340A	Valve Assy, Fuel Cut Off W/Tube
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77641A	Protector, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77740	Canister Assy, Charcoal
77740A	Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77751	Bracket, Charcoal Canister Base
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
