Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

21 part groups · 6 illustrations

Illustrations

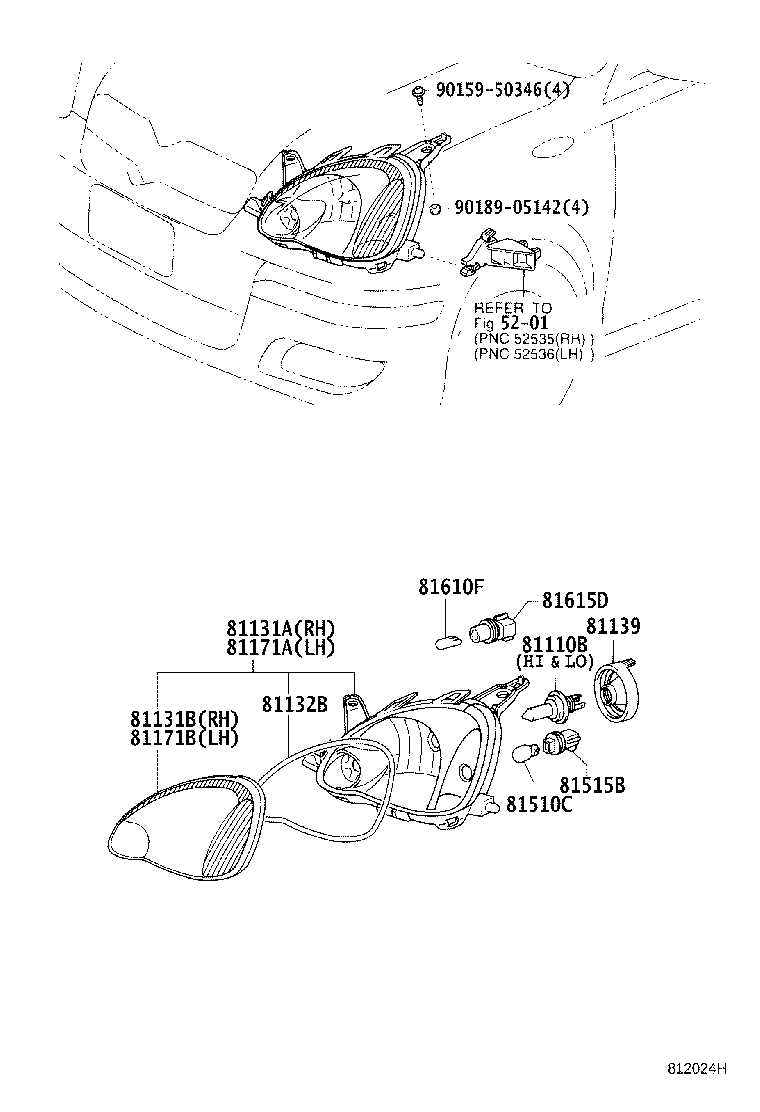

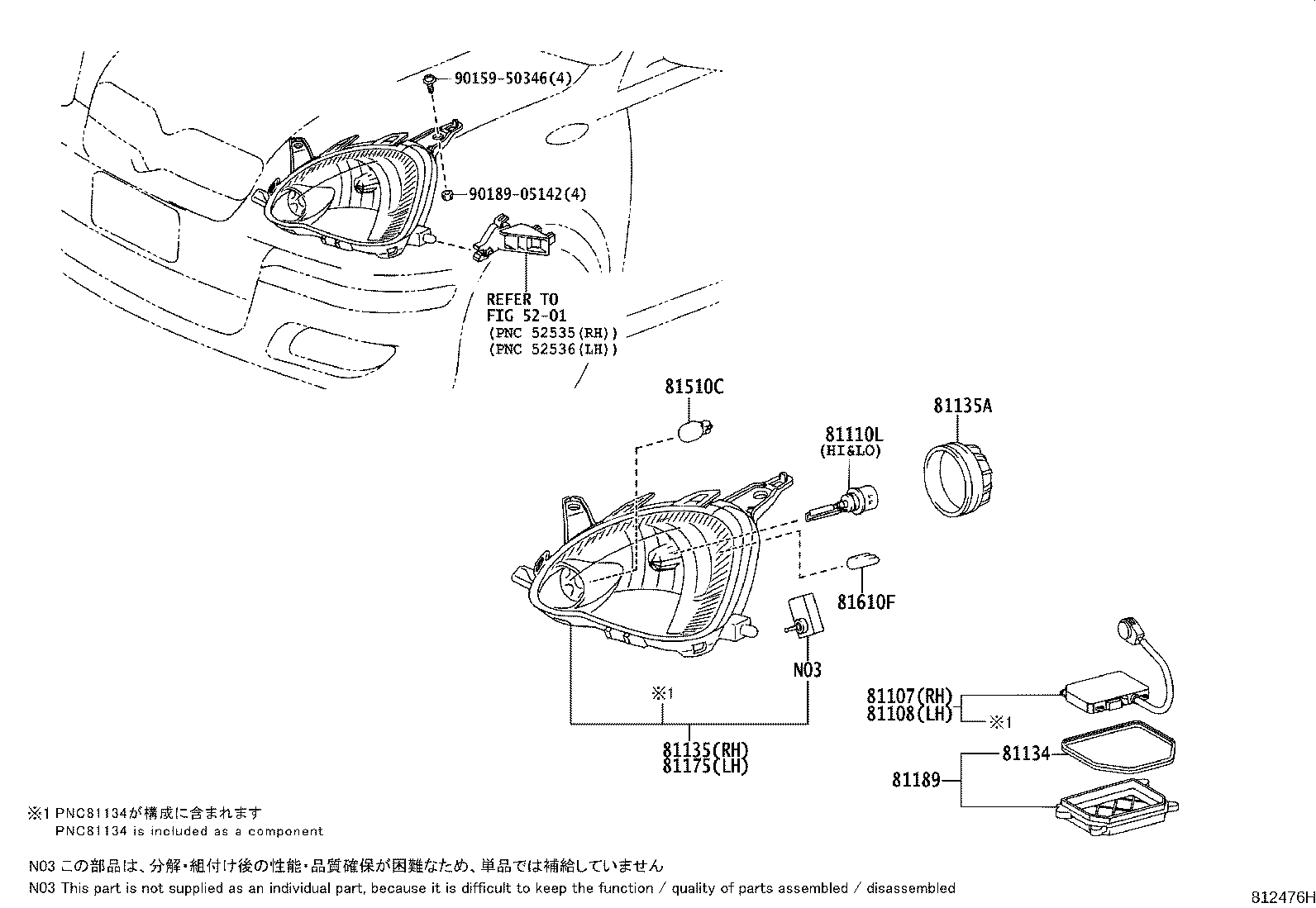

Figure 811081G 811081G 1999-01 → 2001-12 Figure 811081G 811081G 2001-12 → 2002-12 Figure 812024H 812024H 2001-12 → 2002-12 Figure 812024H 812024H 2002-12 → — Figure 812476H 812476H 2002-12 → — Figure 812515A 812515A 2002-01 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135A Cap, Locking
81139 Cover, Headlamp Socket
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
