Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

19 part groups · 3 illustrations

Illustrations

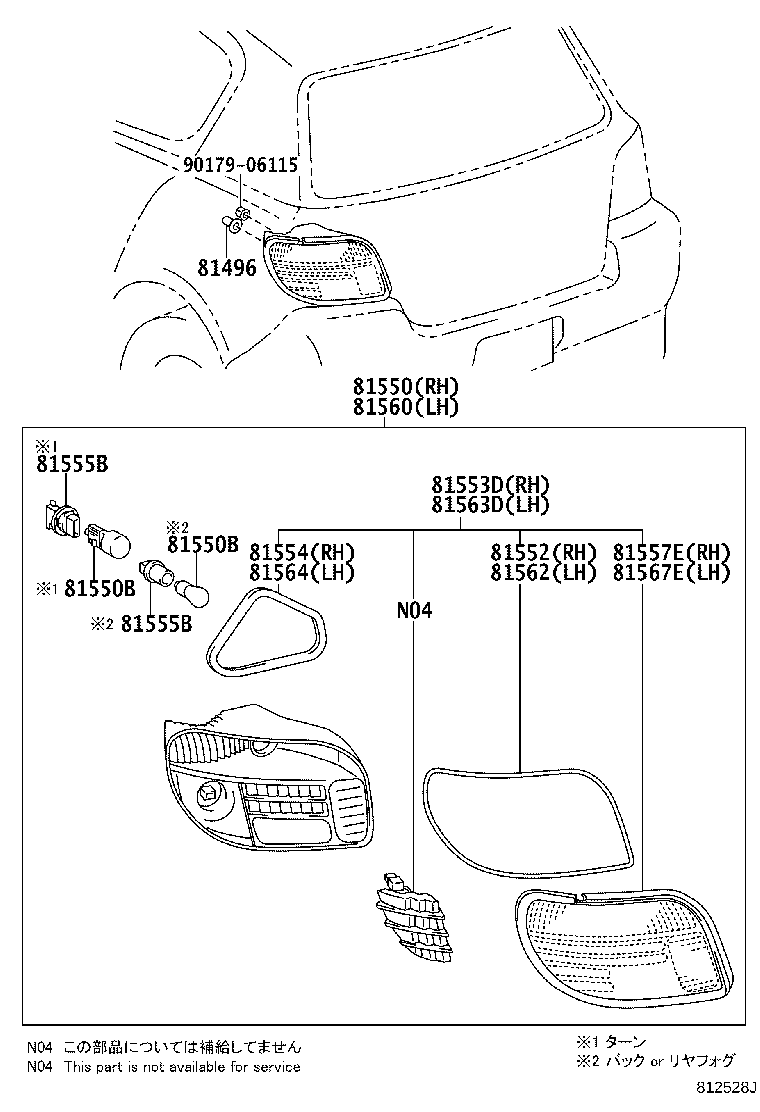

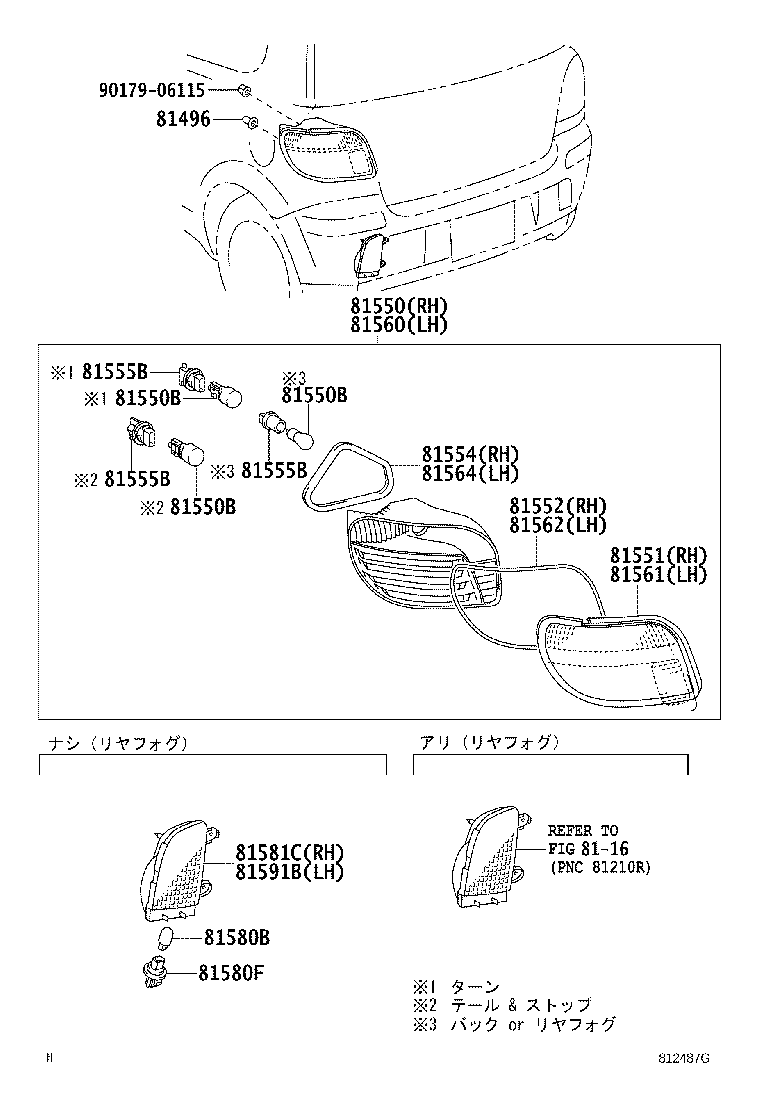

Figure 811088H 811088H 1999-01 → 2002-12 Figure 812487G 812487G 2002-12 → — Figure 812528J 812528J 2002-12 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81553D Lens, Rear Combination Lamp, NO.1 RH
81554 Gasket, Rear Combination Lamp Body, RH
81555B Socket Plug, NO.1
81557E Lens, Rear Combination Lamp, RH NO.2
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81563D Lens, Rear Combination Lamp, NO.1 LH
81564 Gasket, Rear Combination Lamp Body, LH
81567E Lens, Rear Combination Lamp, LH NO.2
81580B Bulb (FOR REAR LAMP)
81580F Socket Plug, Rear Lamp
81581C Lens And Body, Rear Lamp, RH
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
