Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 14 illustrations

Illustrations

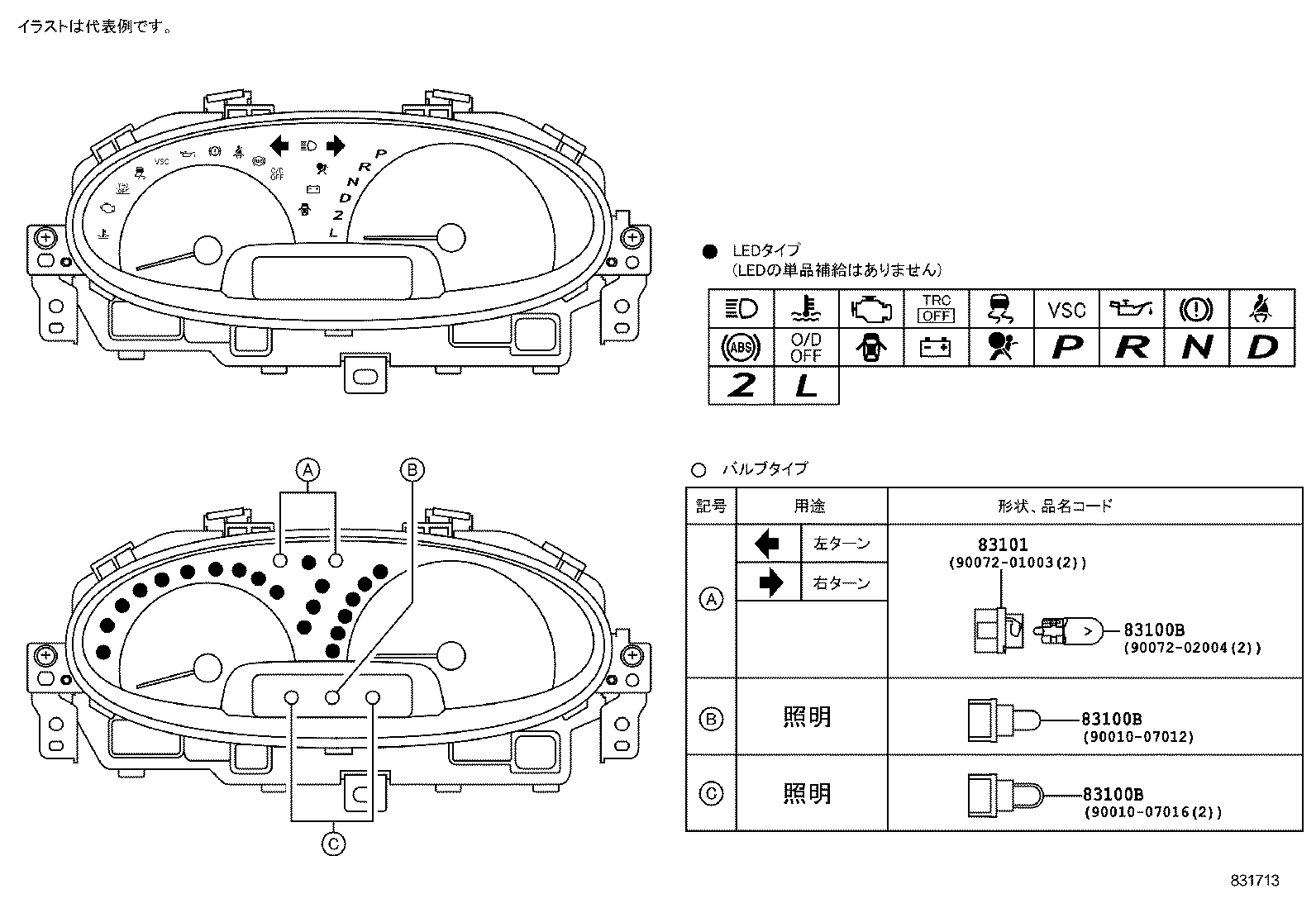

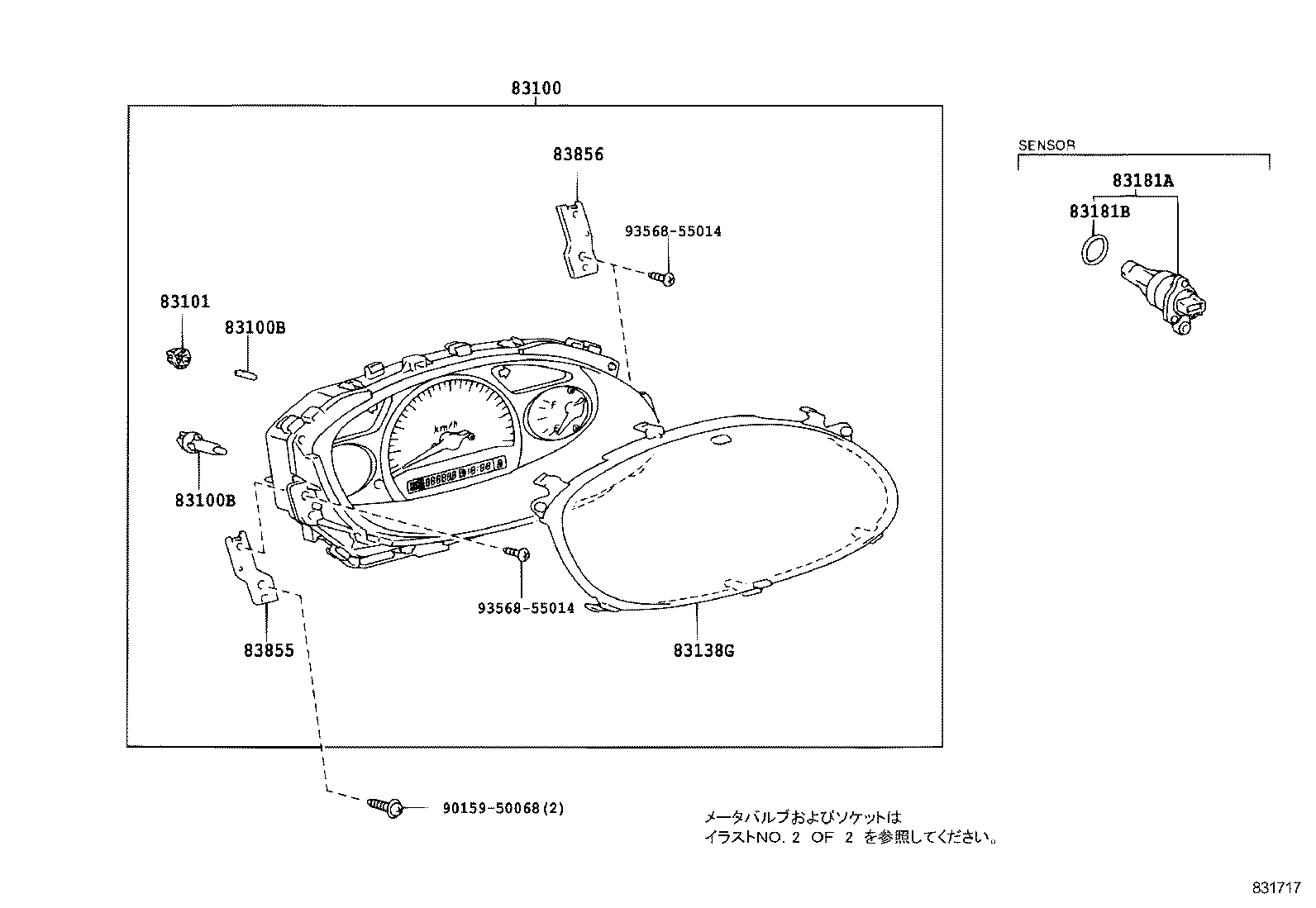

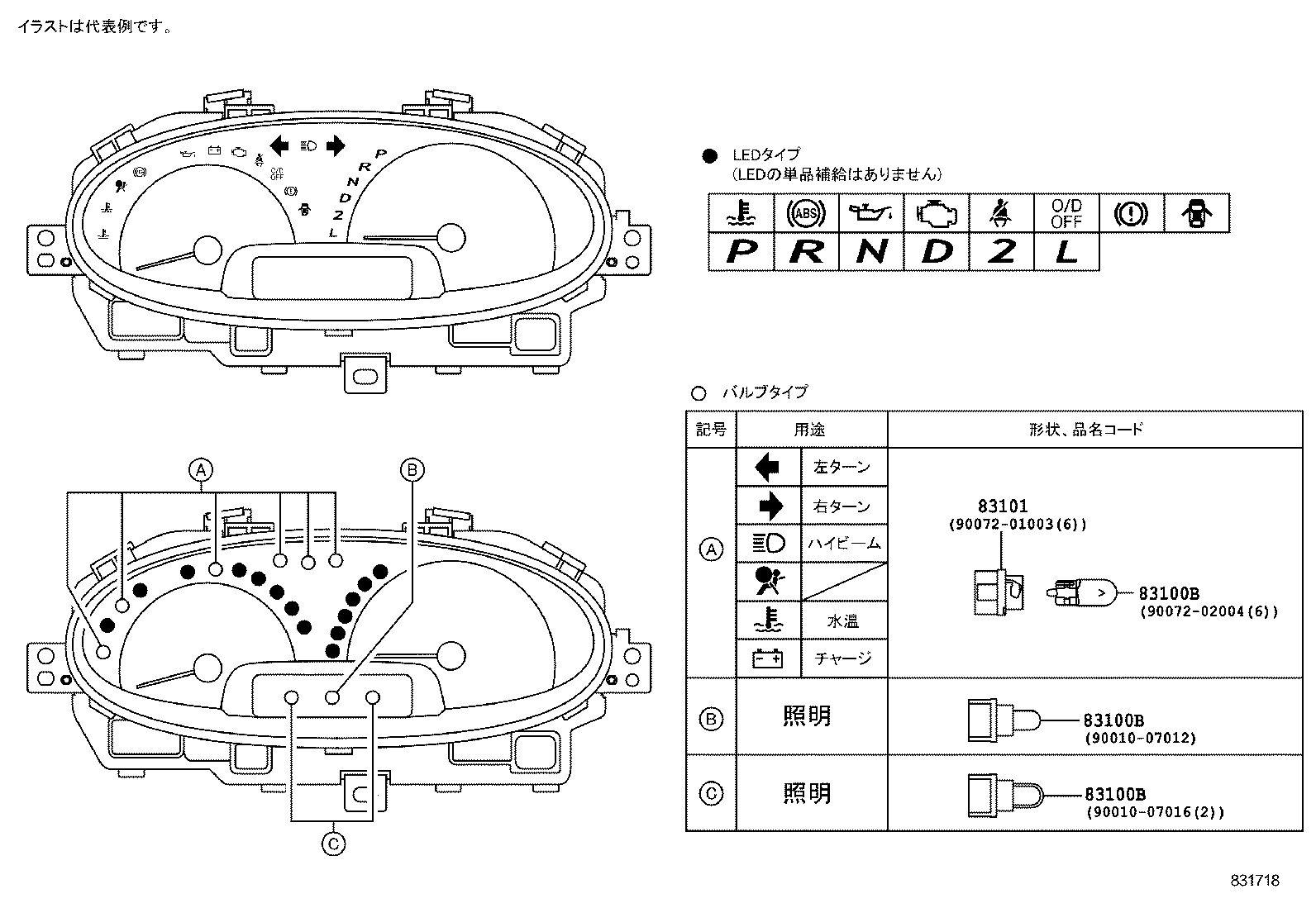

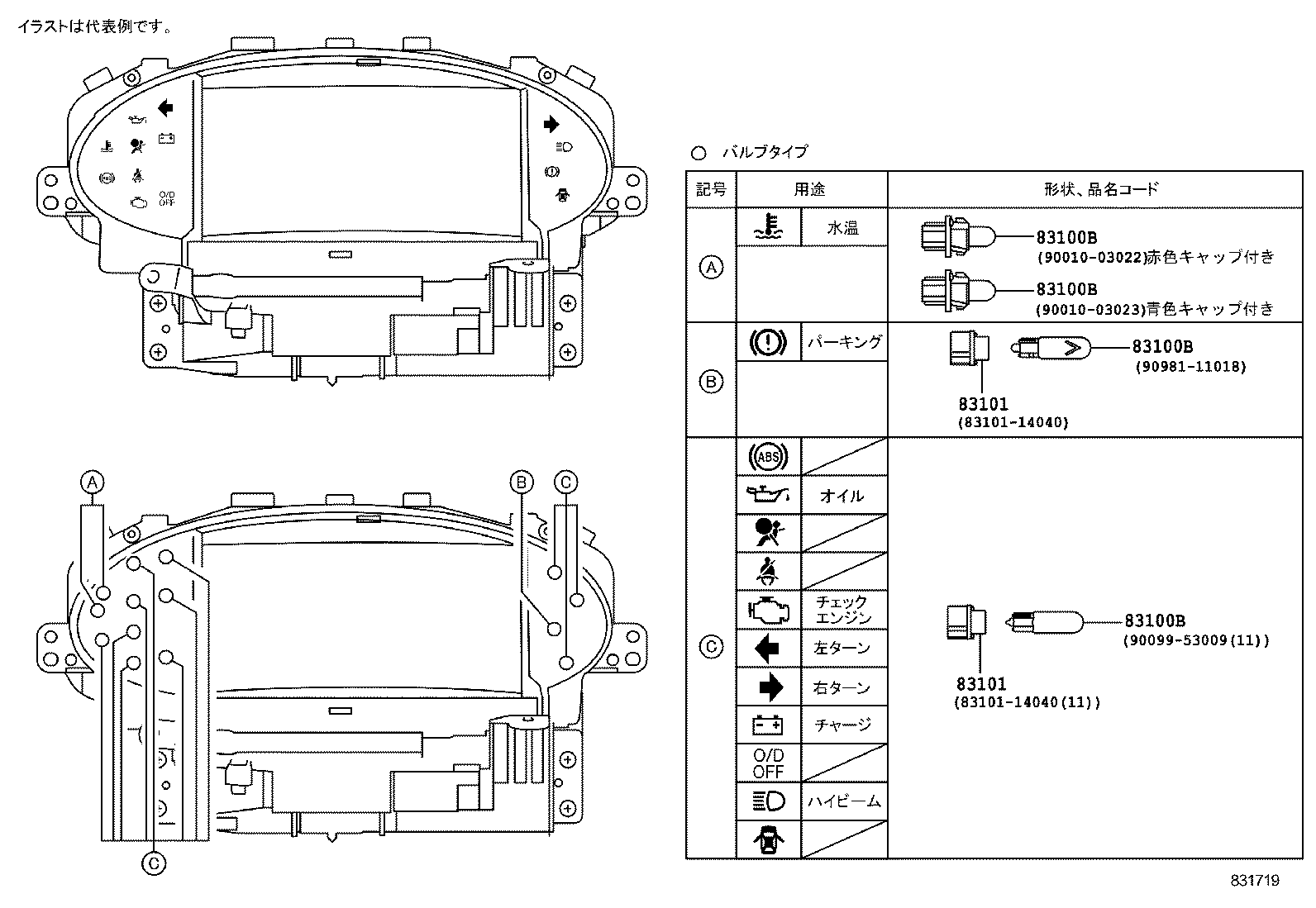

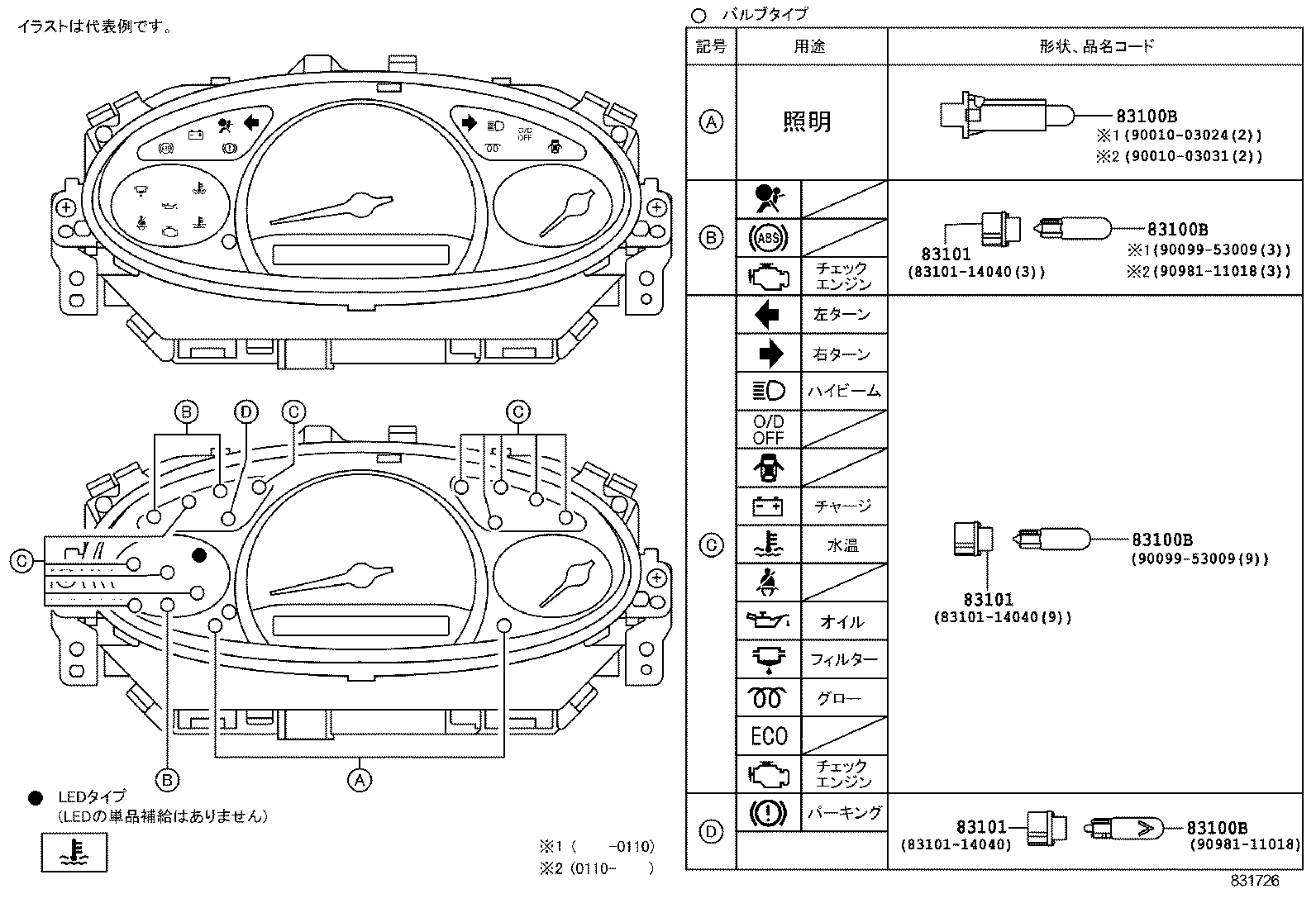

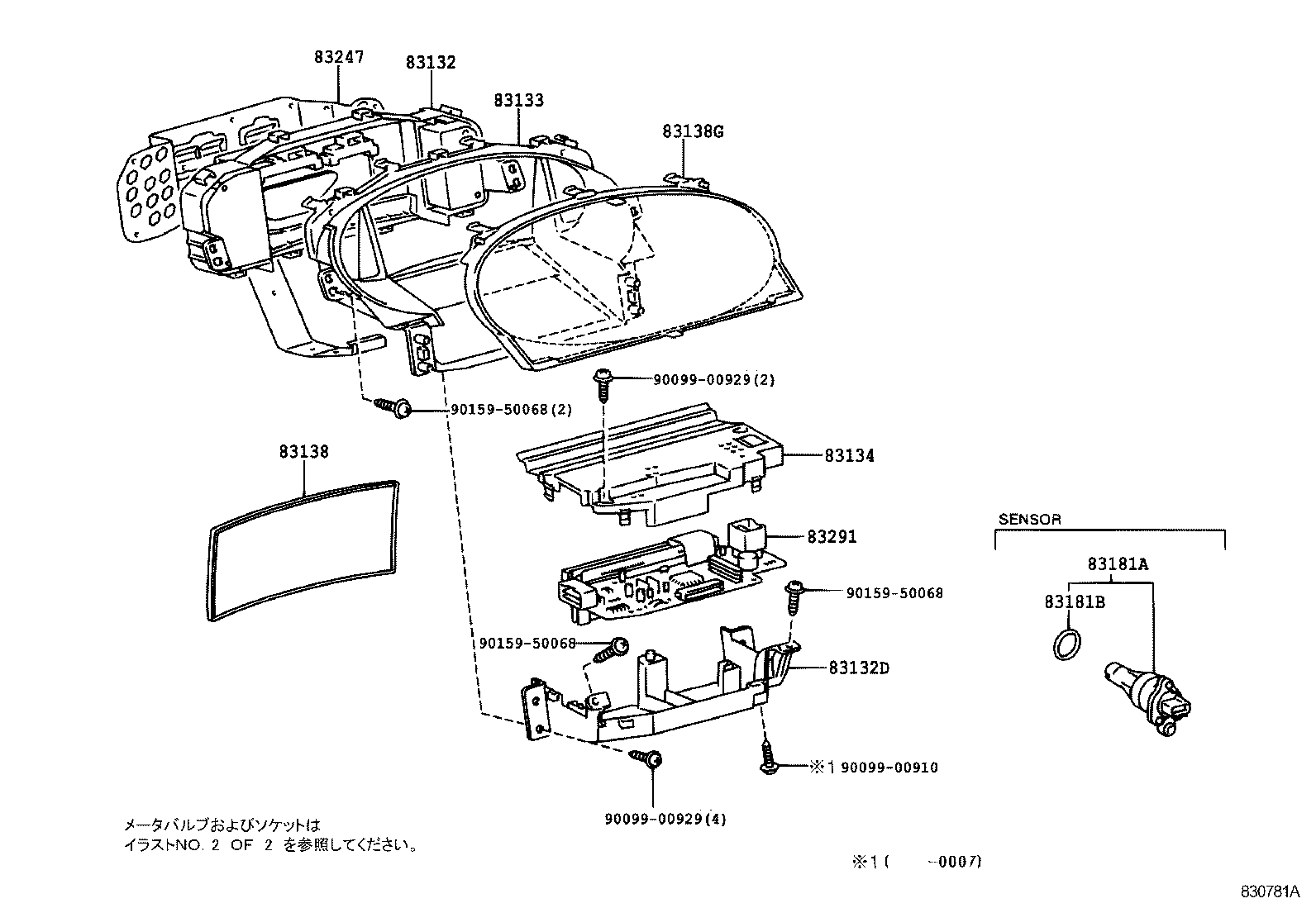

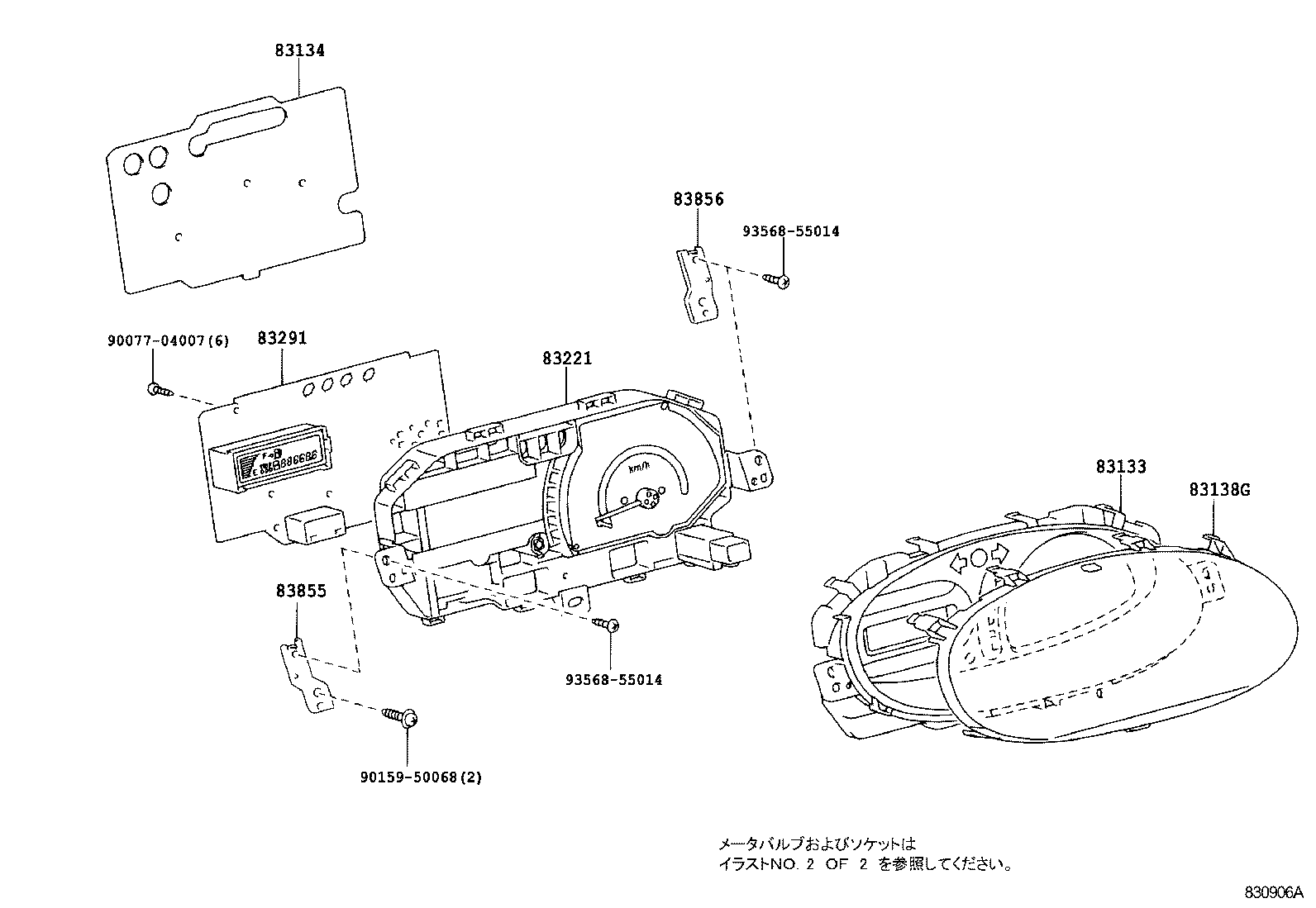

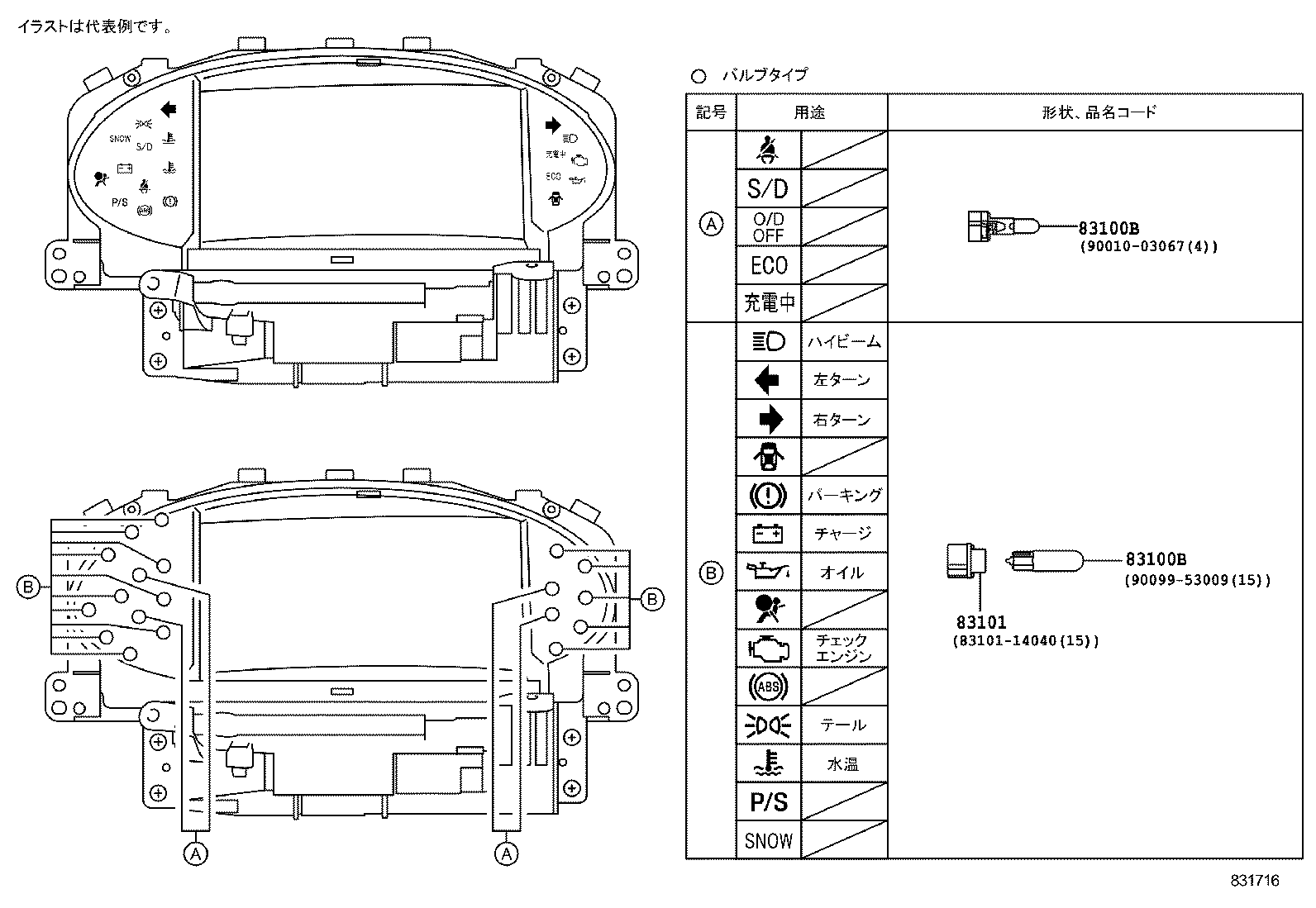

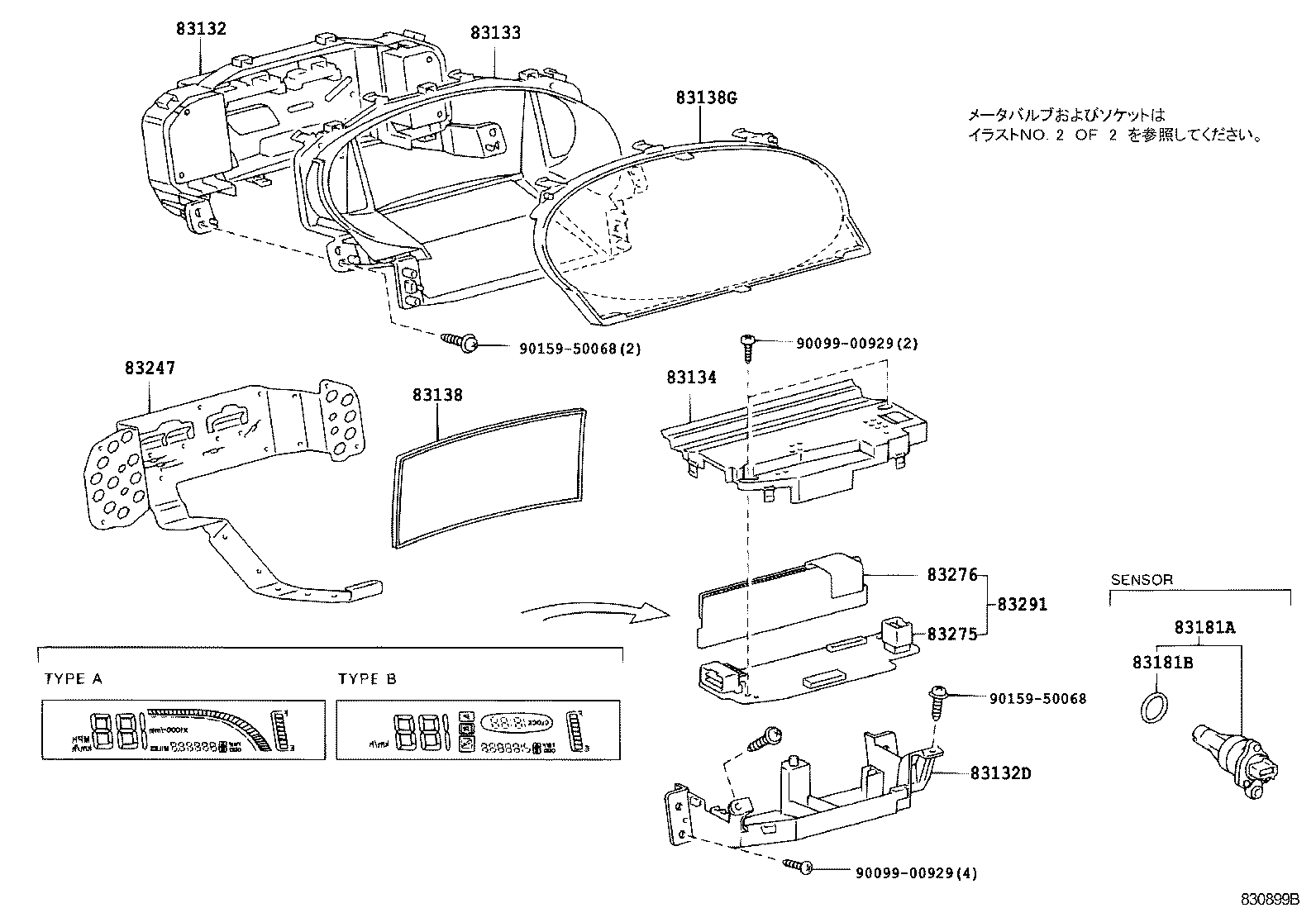

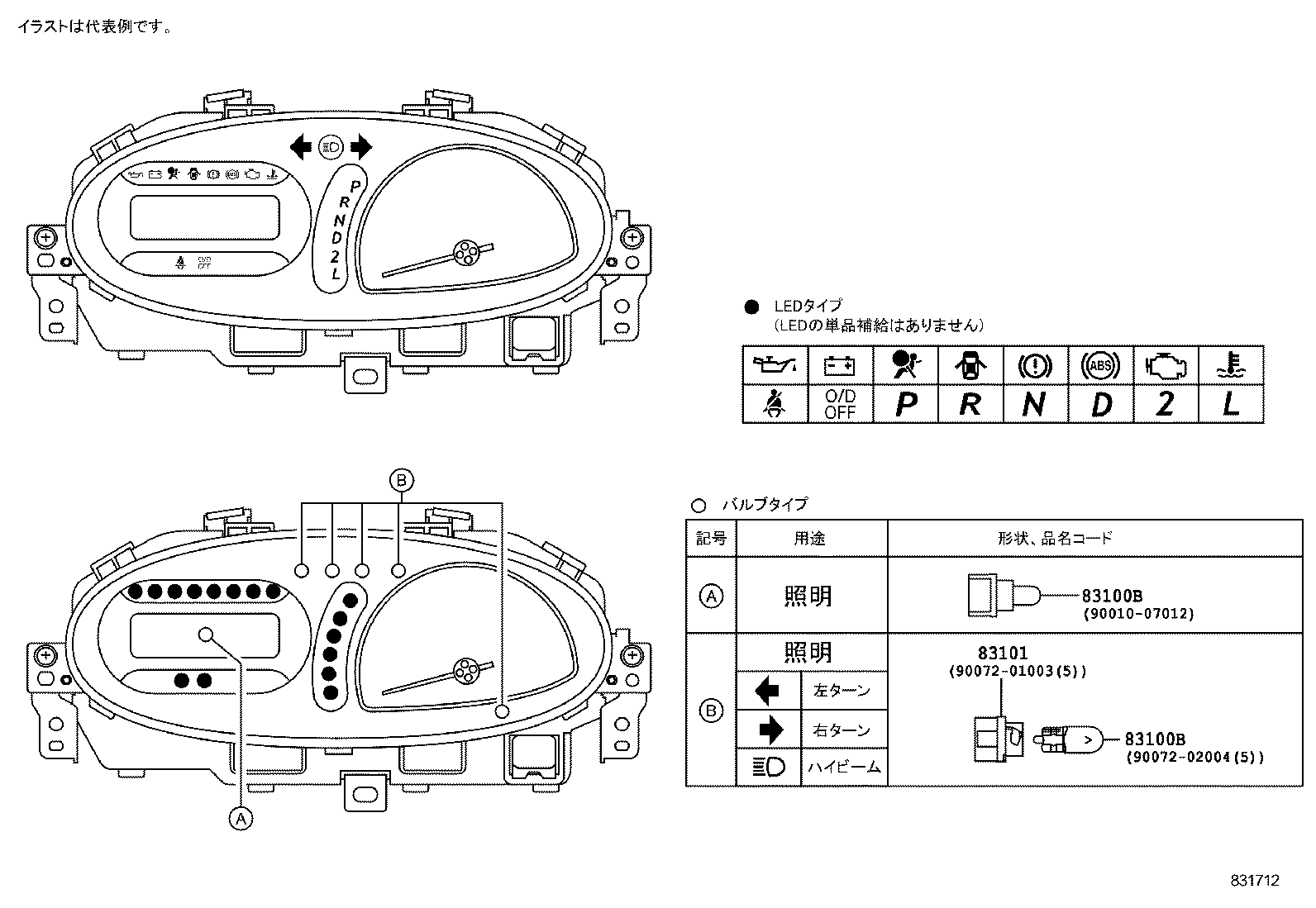

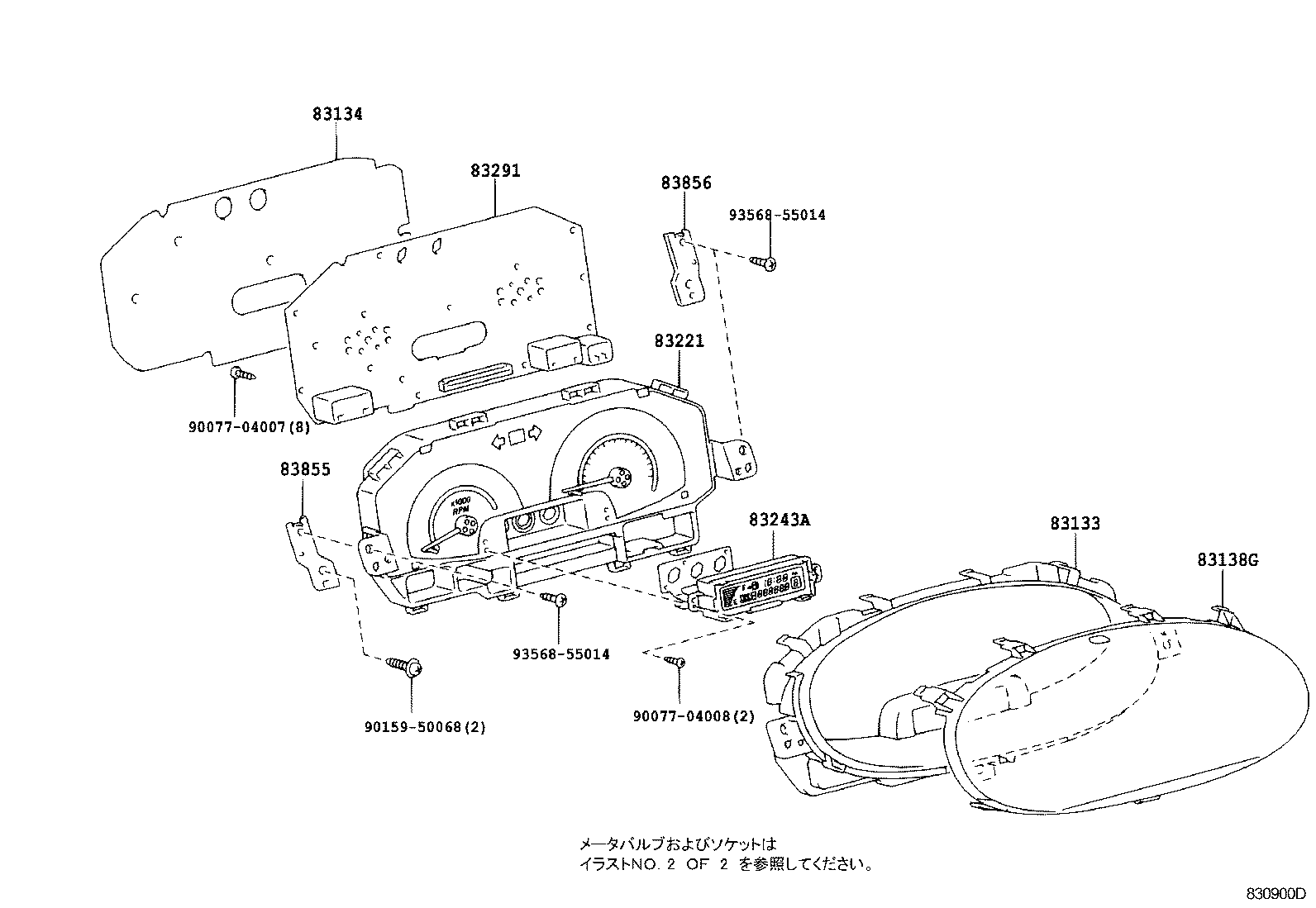

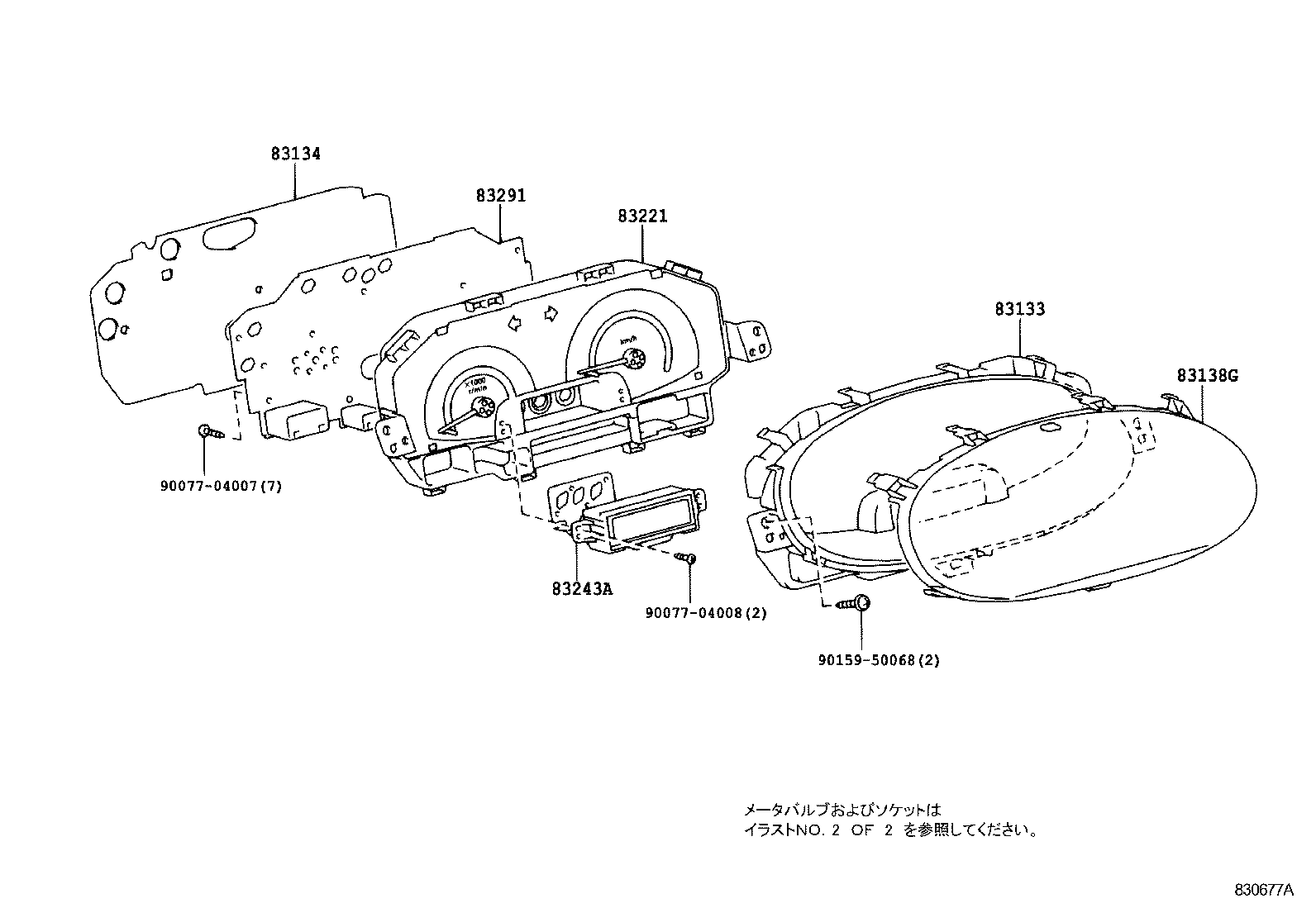

Figure 830780A 830780A 1999-01 → 2002-12 Figure 830781A 830781A 1999-01 → 2002-12 Figure 830677A 830677A 2000-10 → 2002-12 Figure 831717 831717 2002-12 → — Figure 830899B 830899B 2002-12 → — Figure 830906A 830906A 2002-12 → — Figure 830900D 830900D 2002-12 → — Figure 831726 831726 1999-01 → 2002-12 Figure 831719 831719 1999-01 → 2002-12 Figure 831718 831718 2000-10 → 2002-12 Figure 831714 831714 2002-12 → — Figure 831716 831716 2002-12 → — Figure 831712 831712 2002-12 → — Figure 831713 831713 2002-12 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83221 Meter, Speed
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83275 Plate,Computer Meter Circuit NO.1
83276 Plate,Computer Meter Circuit NO.2
83291 Computer, Combination Meter
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
