Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

100 part groups · 16 illustrations

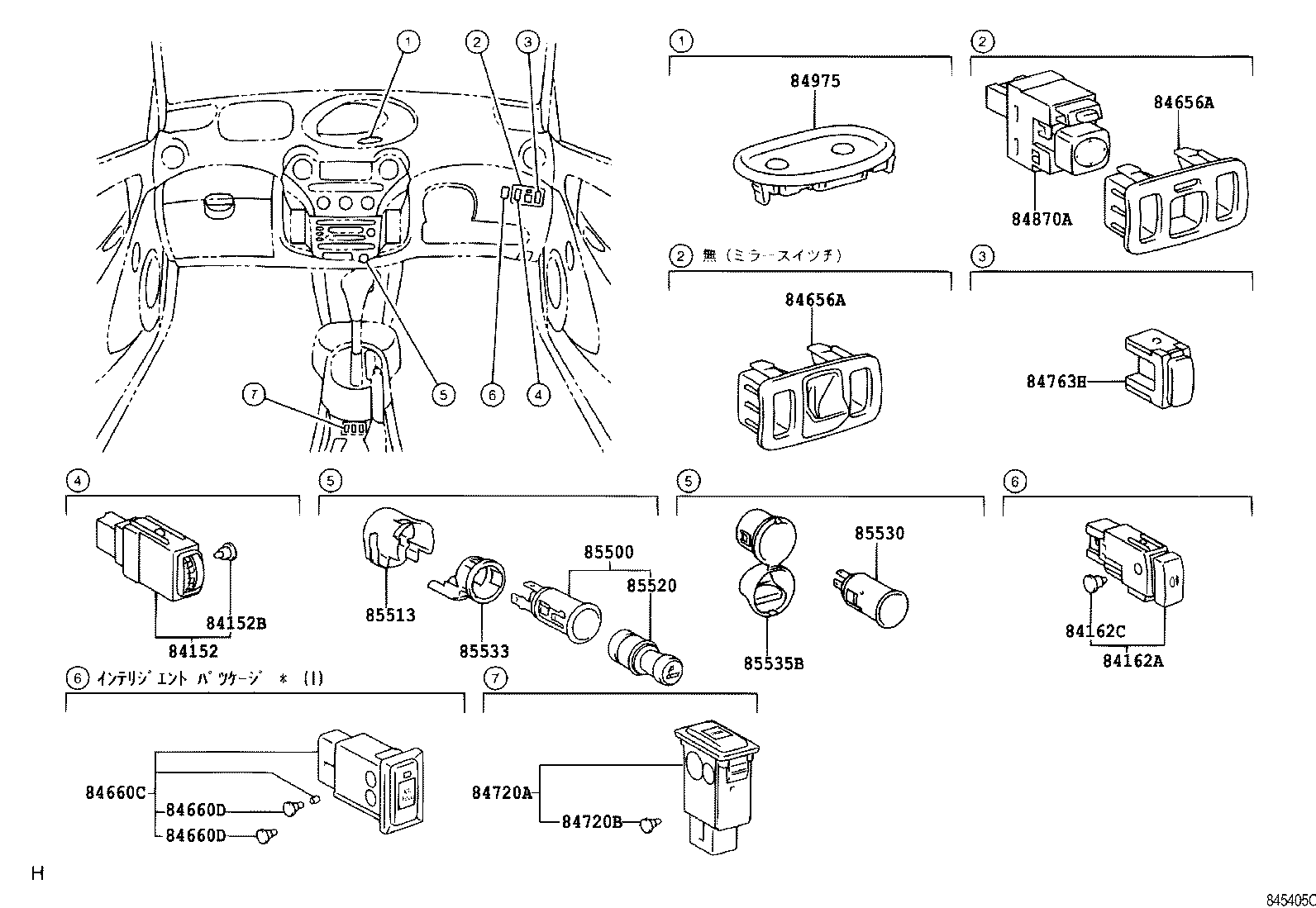

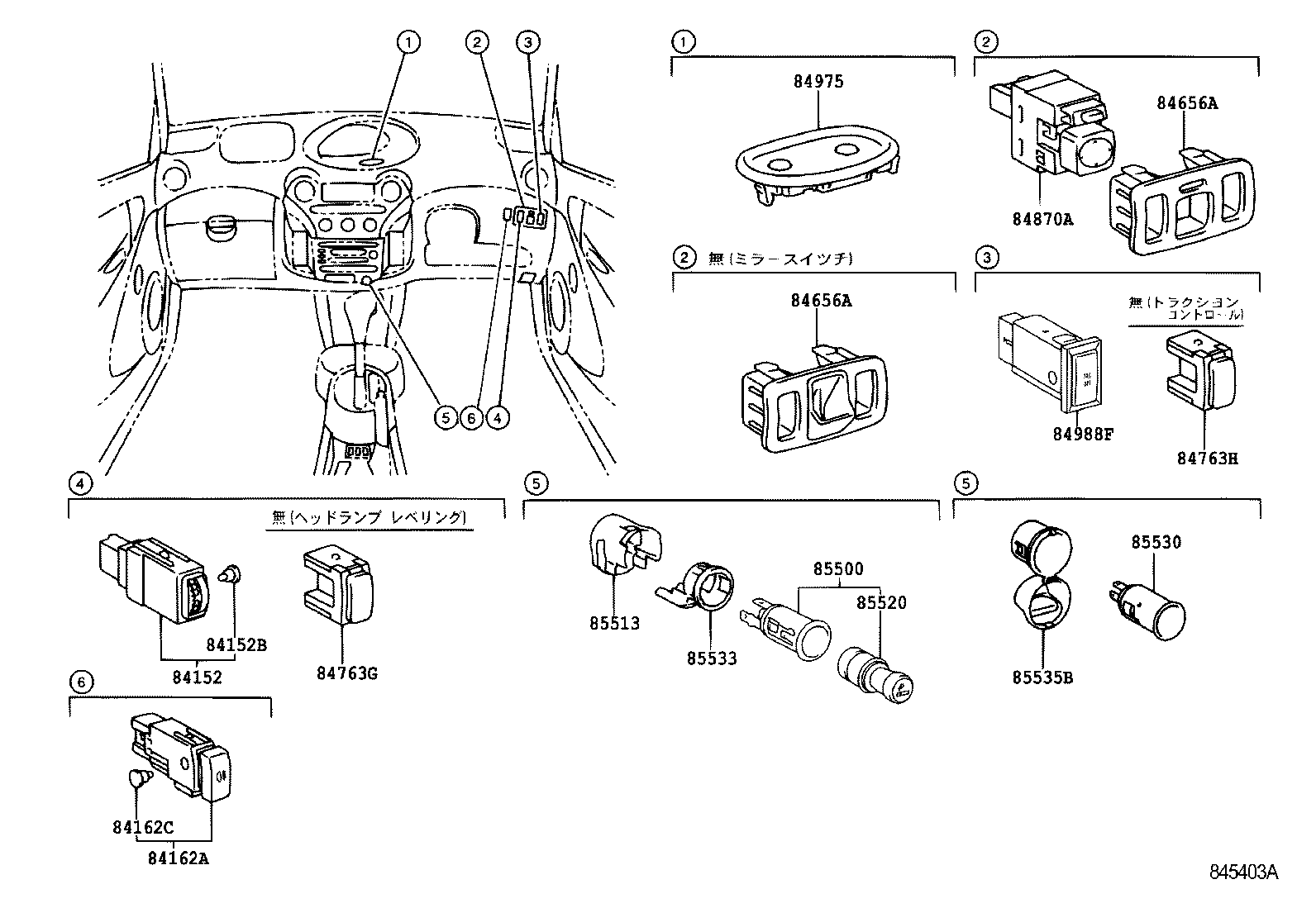

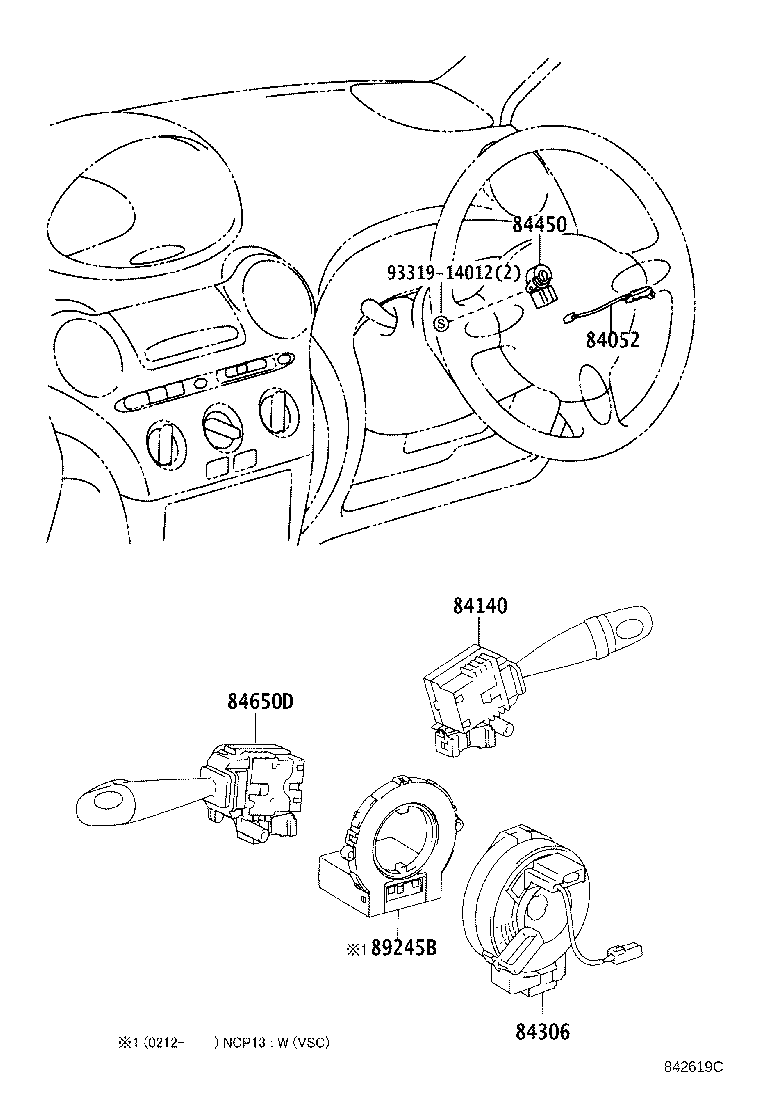

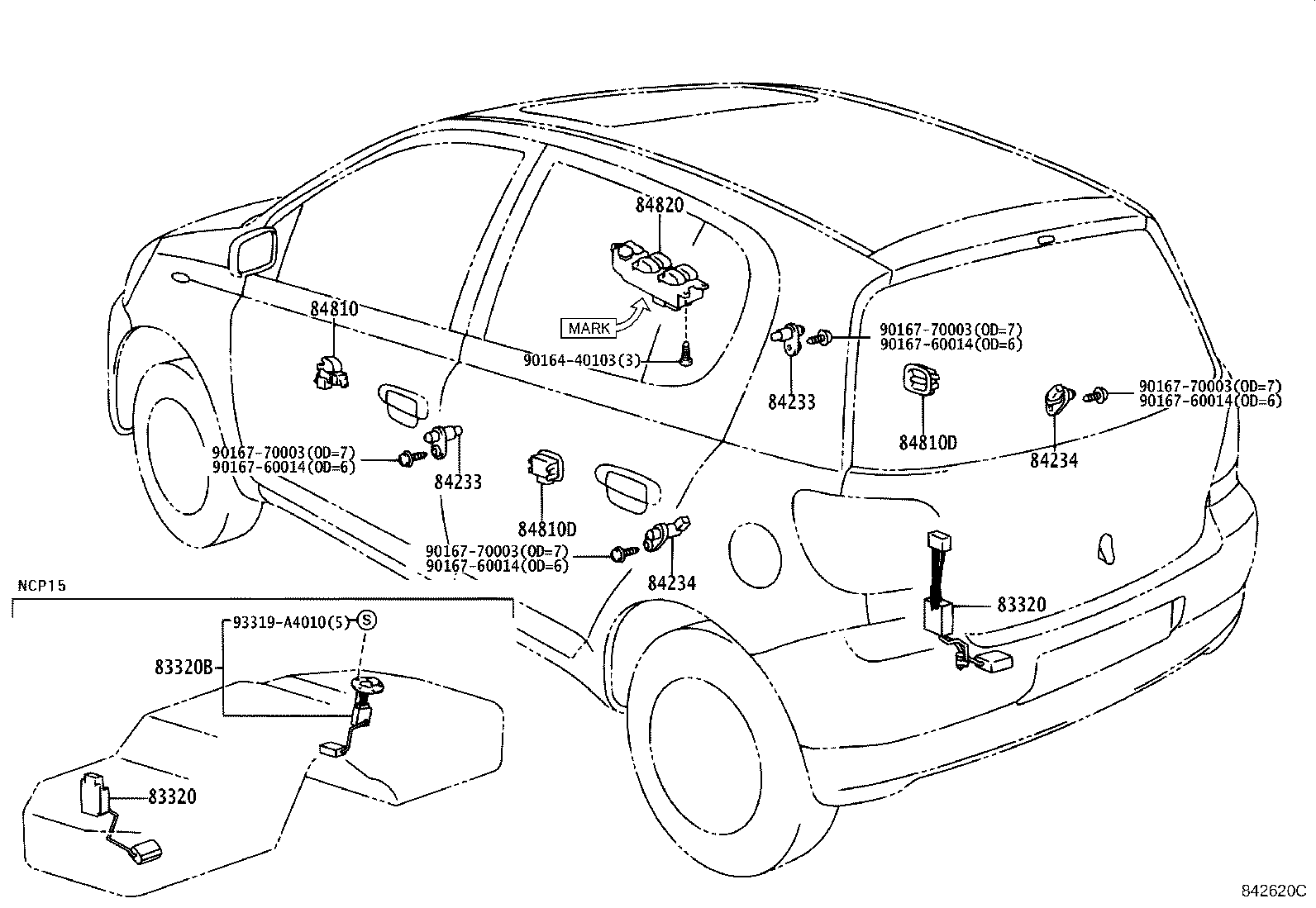

Illustrations

842903 1999-08 → 2002-08

843861 2001-01 → 2002-12

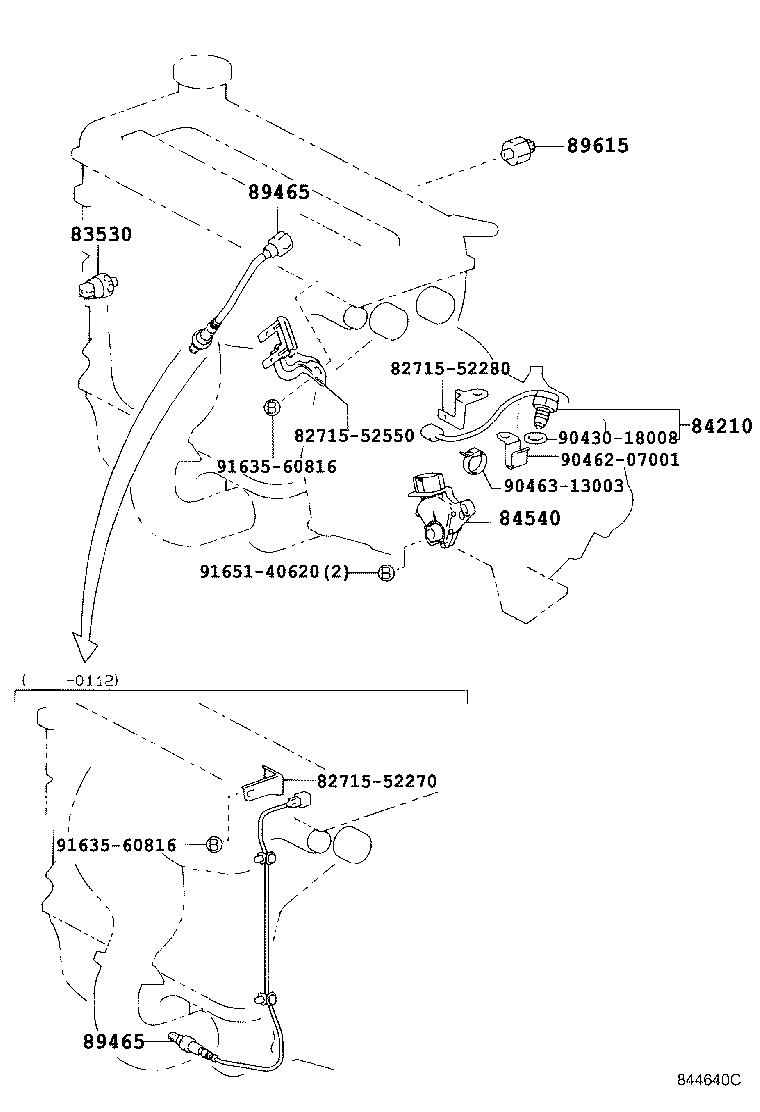

844640C 1999-01 → —

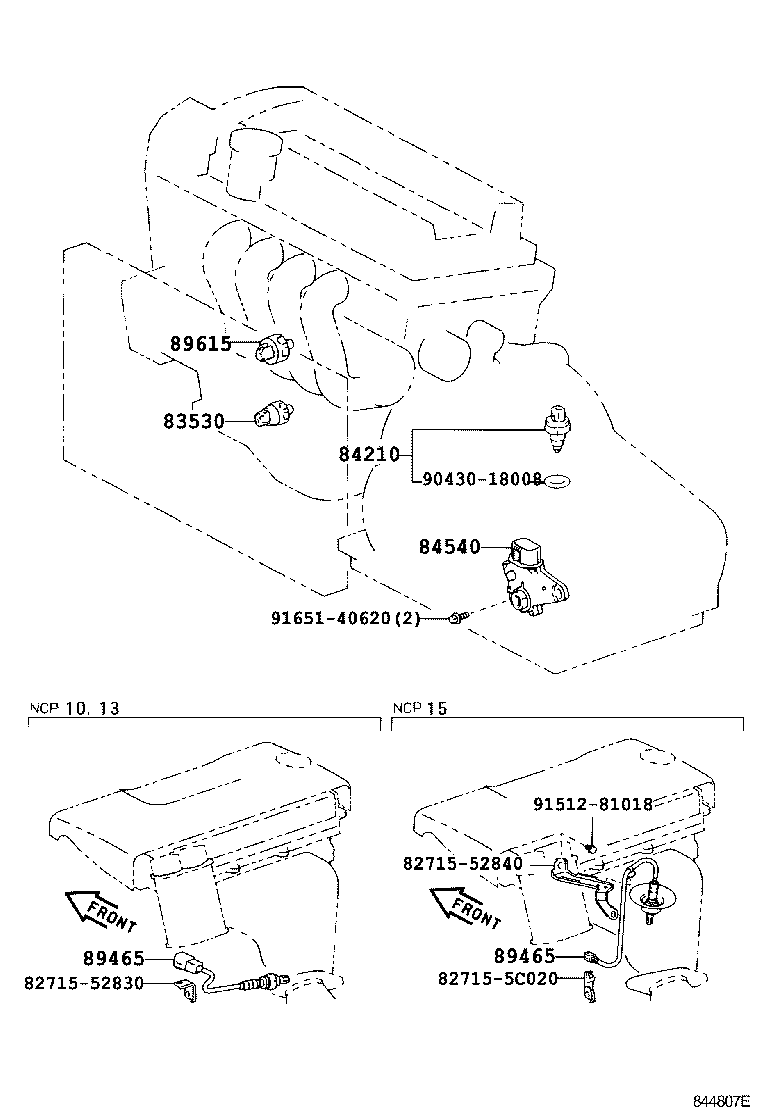

844807E 2002-08 → —

845400 2002-12 → —

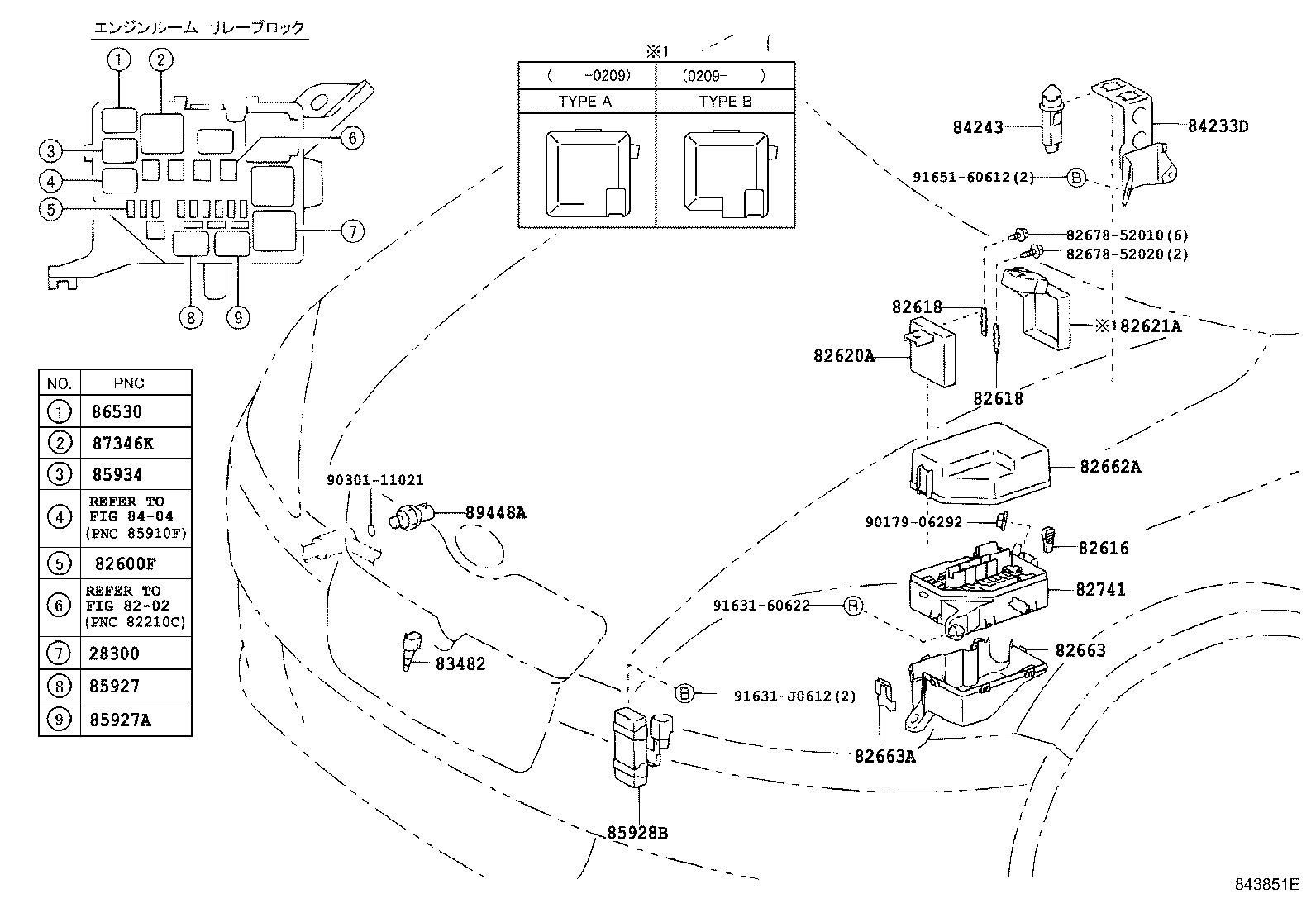

843851E 1999-01 → 2002-12

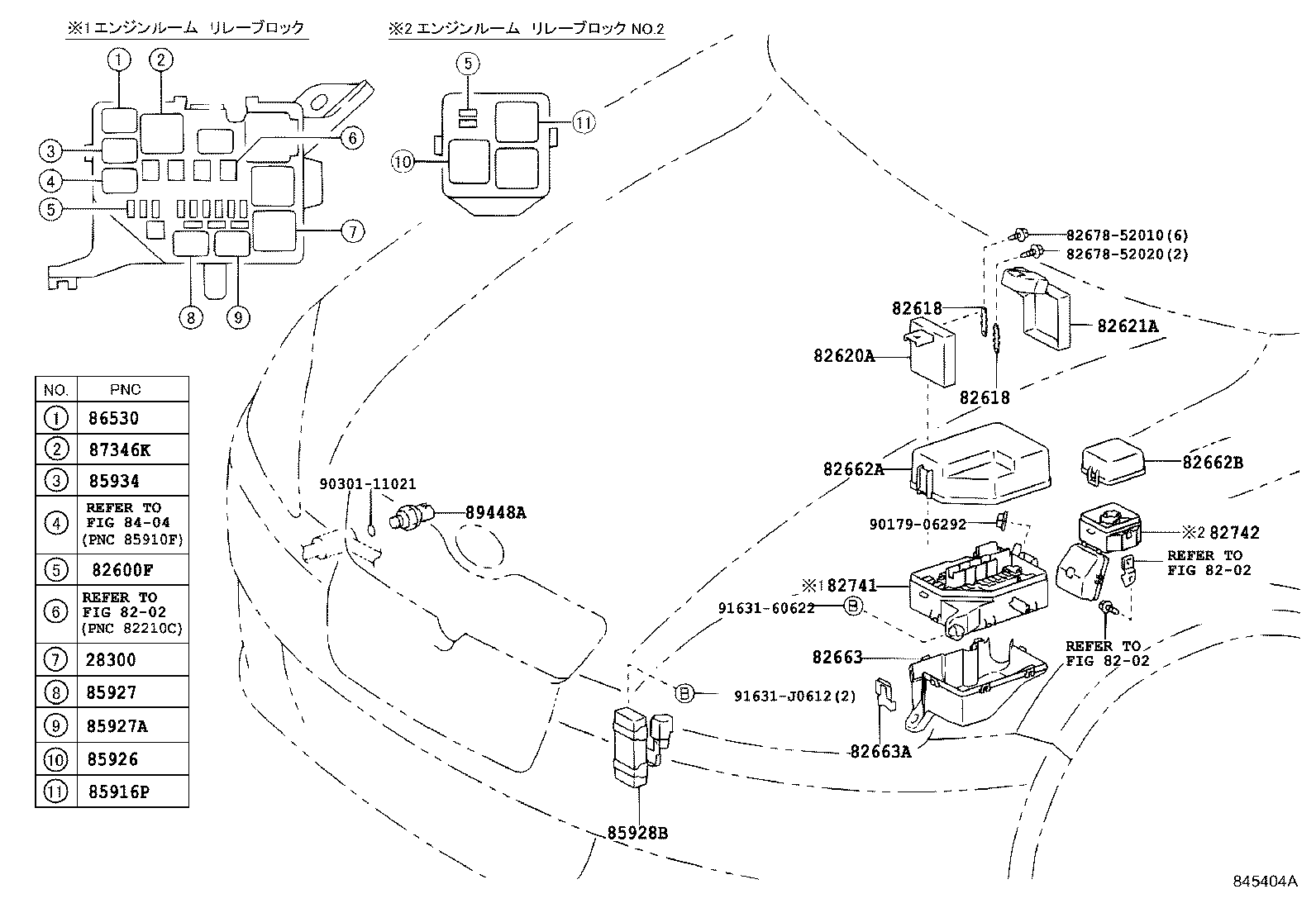

845404A 2002-12 → —

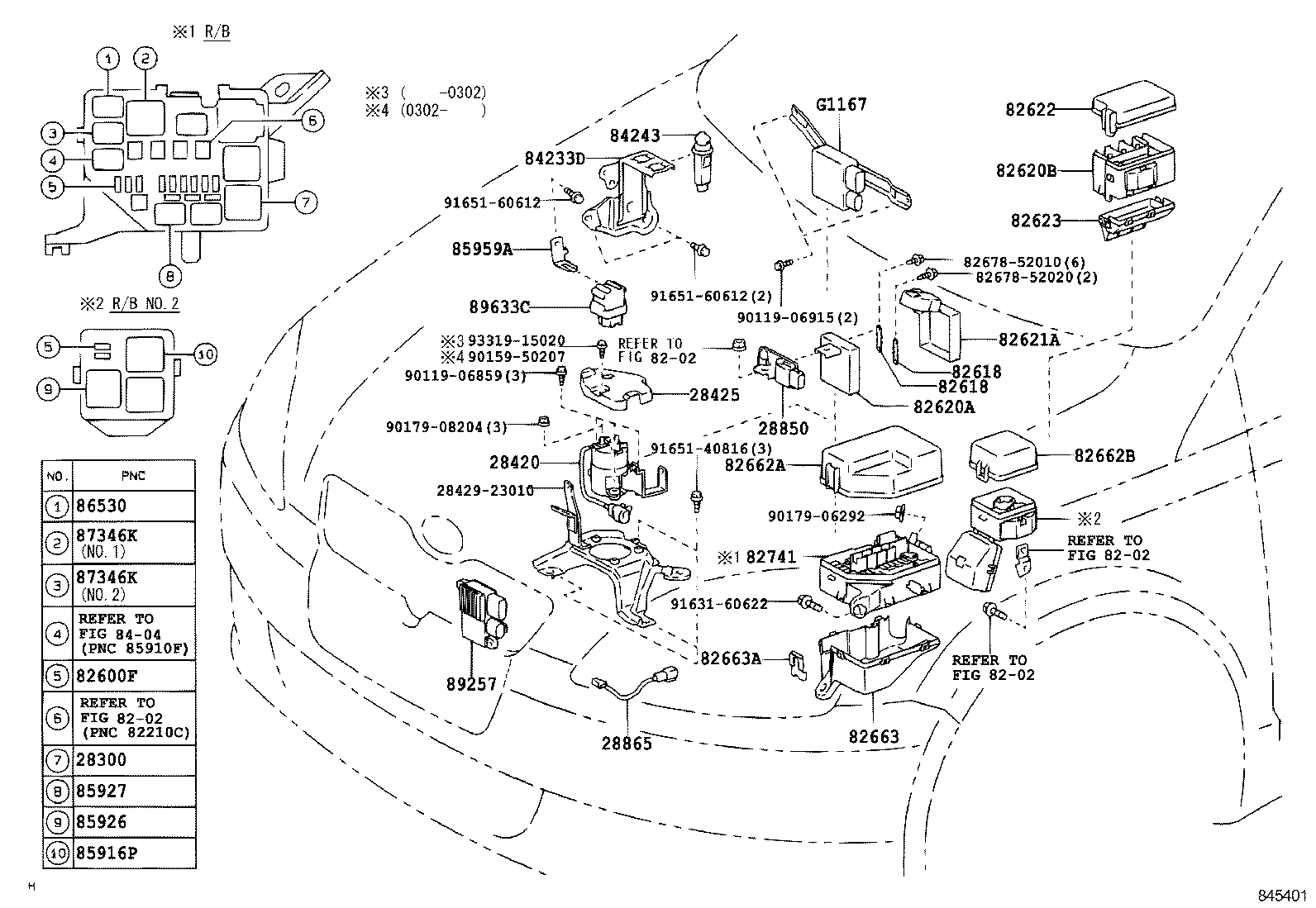

845401B 2002-12 → —

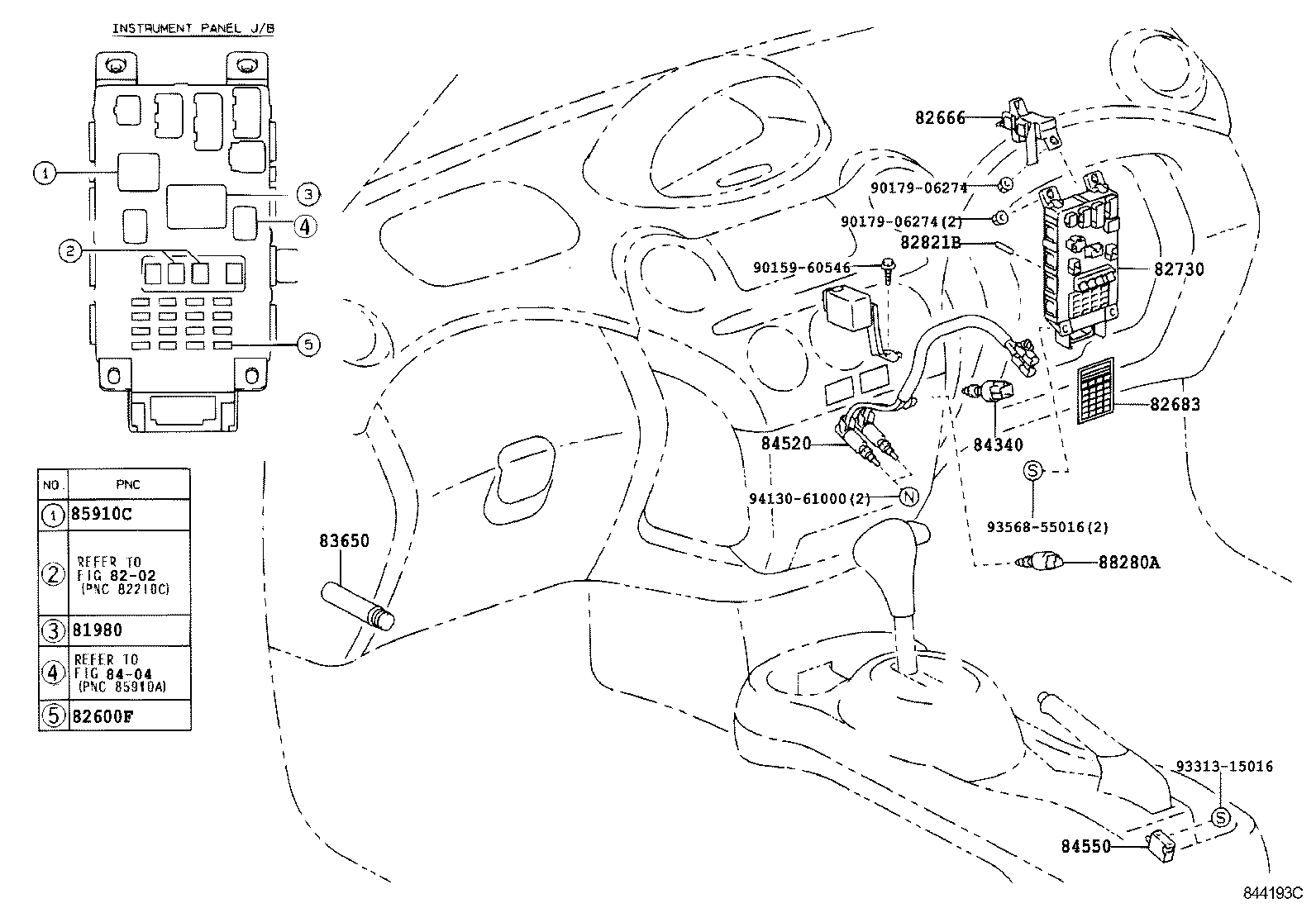

844193C 1999-01 → 2002-12

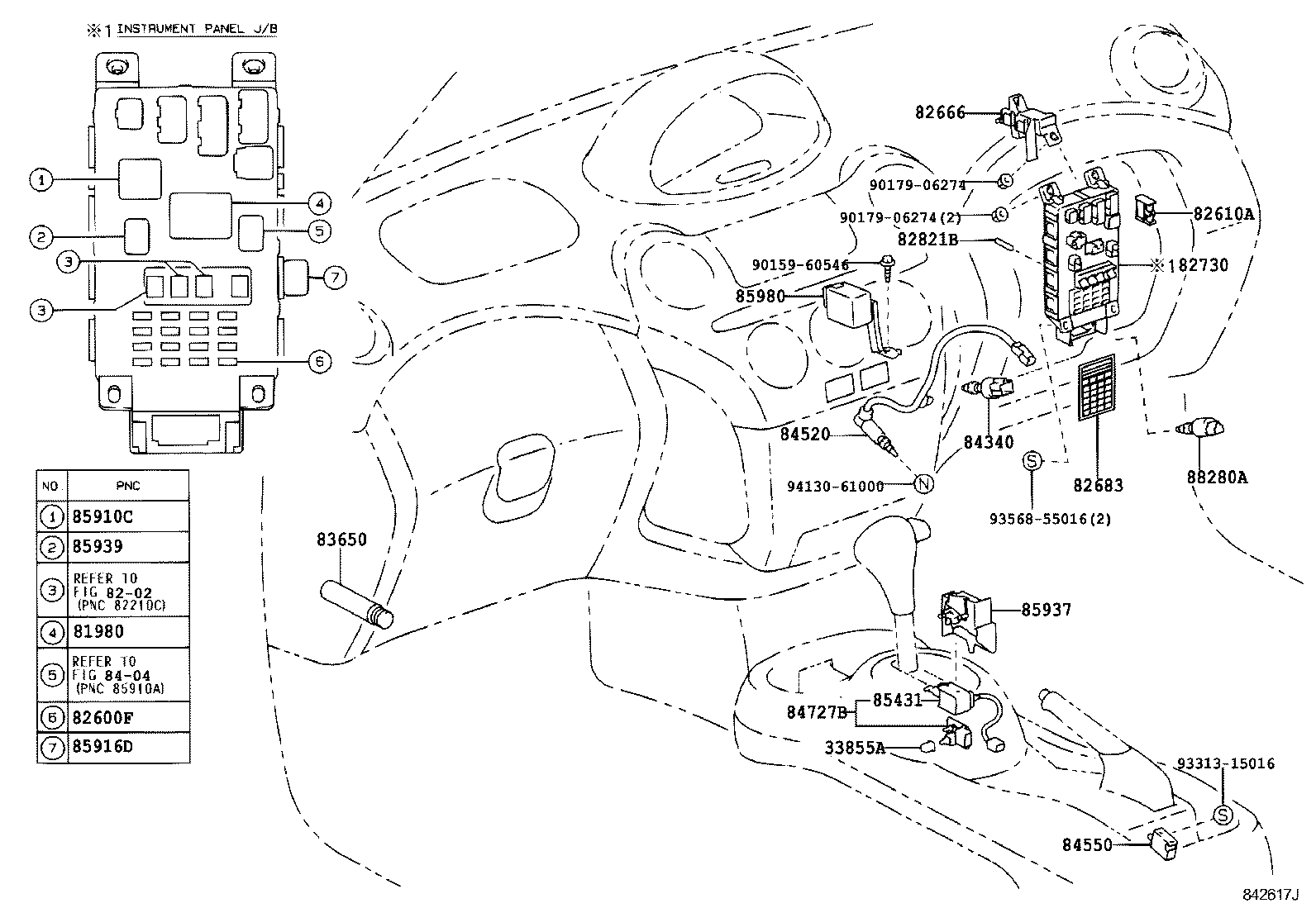

842617J 1999-01 → —

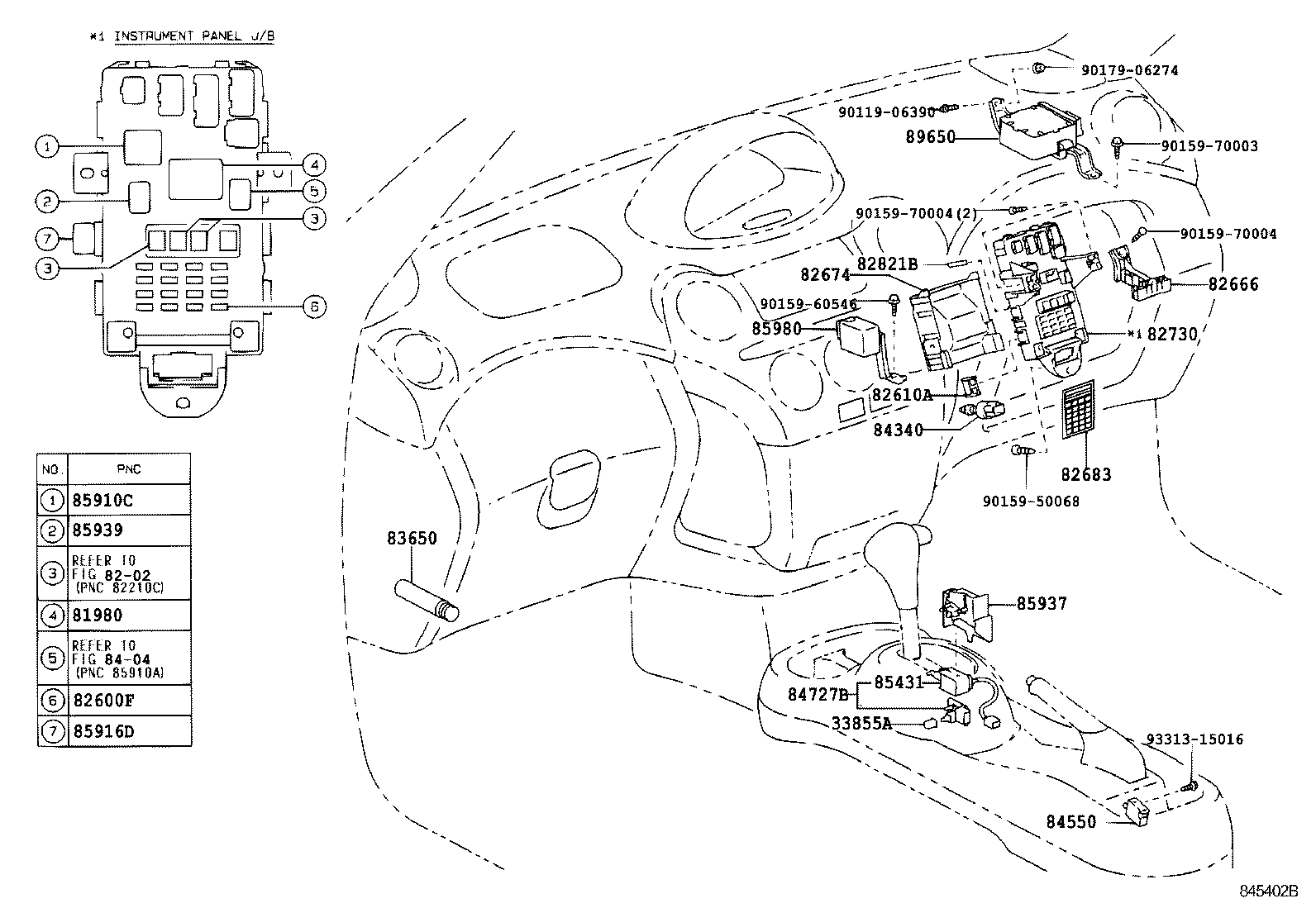

845402B 2002-12 → —

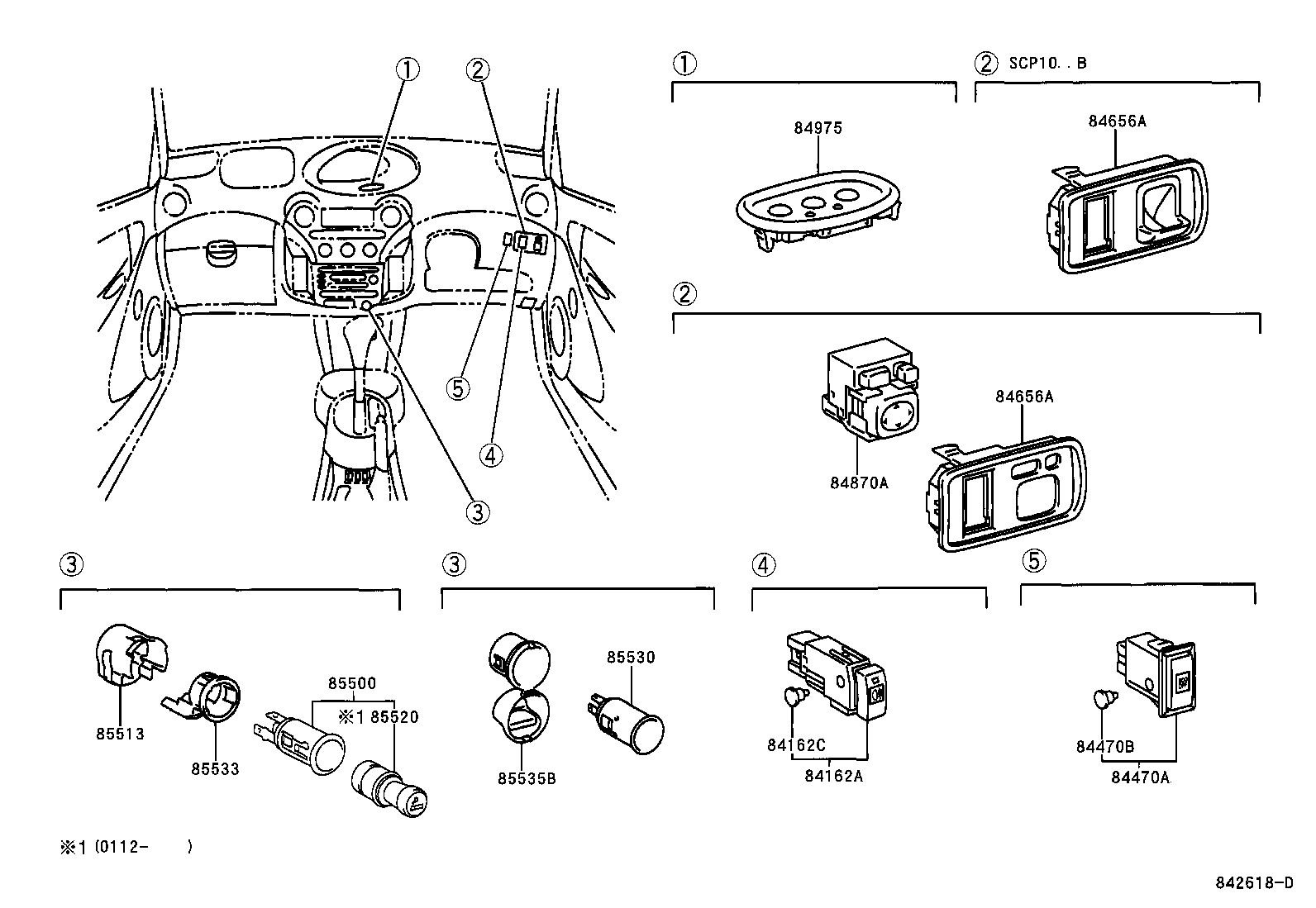

842618D 1999-01 → 2002-12

Part groups

PNC	Description
28300	Relay Assy, Starter
28420	Relay Assy, Voltage Converter
28425	Cover, Voltage Converter Relay
28850	Sensor Assy, Battery Current
28865	Sensor, Battery Thermometer
33855A	Cover, Shift Lock Unit
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82610A	Block Assy, Fuse
82616	Puller, Fuse
82618	Fuse, Fuse Block
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82622	Cover, Fusible Link, Upper
82623	Cover, Fusible Link, Lower
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82674	Cover, Junction Block Lower
82683	Plate, Fuse Block Caution
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82821B	Cover, Connector
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83482	Sensor, Outer Ambient Temperature
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A	Switch, Rear Fog Lamp
84162C	Bulb (FOR REAR FOG LAMP SWITCH)
84210	Switch Assy, Back-up Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233D	Bracket, Engine Hood Switch
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84243	Switch, Engine Hood
84306	Cable Sub-assy, Spiral
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84470A	Switch Assy, Ecorun Cancel
84470B	Bulb, Ecorun Cancell Switch
84520	Switch Assy, Clutch Start
84540	Switch Assy, Neutral Start
84540D	Switch Assy, Neutral Start
84540E	Gasket, Neutral Start Switch
84540F	Gasket, Neutral Start Switch
84550	Switch Assy, Parking Brake
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A	Bezel, Switch
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84720A	Switch Assy, Pattern Select, NO.1
84720B	Bulb (FOR PATTERN SELECT SWITCH)
84727B	Switch & Solenoid Set, Shift Lock
84763G	Cover, Hole NO.1
84763H	Cover, Hole NO.2
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84975	Switch, Trip
84988F	Switch, Traction Control
85431	Solenoid, Shift Lock
85500	Lighter Assy, Cigarette
85513	Cover, Cigarette Lighter
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85533	Lens, Cigarette Lighter Indicator
85535B	Cover, Power Outlet Socket, NO.1
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85928B	Resistor, Cooling Fan
85934	Relay, Magnet-clutch
85937	Protector, Shift Lock Control
85939	Relay, Power Window
85959A	Holder, Relay
85980	Relay Assy, Door Control
86530	Relay Assy, Horn
87346K	Relay, Ptc Heater
88280A	Switch Assy, Clutch
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89448A	Sensor, Power Steering Oil Pressure
89451A	Sensor, Shift Lever Position
89465	Sensor, Oxygen
89615	Sensor, Knock Control
89633C	Relay, Traction Control
89650	Computer Assy, Power Steering
G1167	Controller, Oil Pump Motor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
