Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07
Overdrive & Electronic Controlled Transmission
9 part groups · 3 illustrations

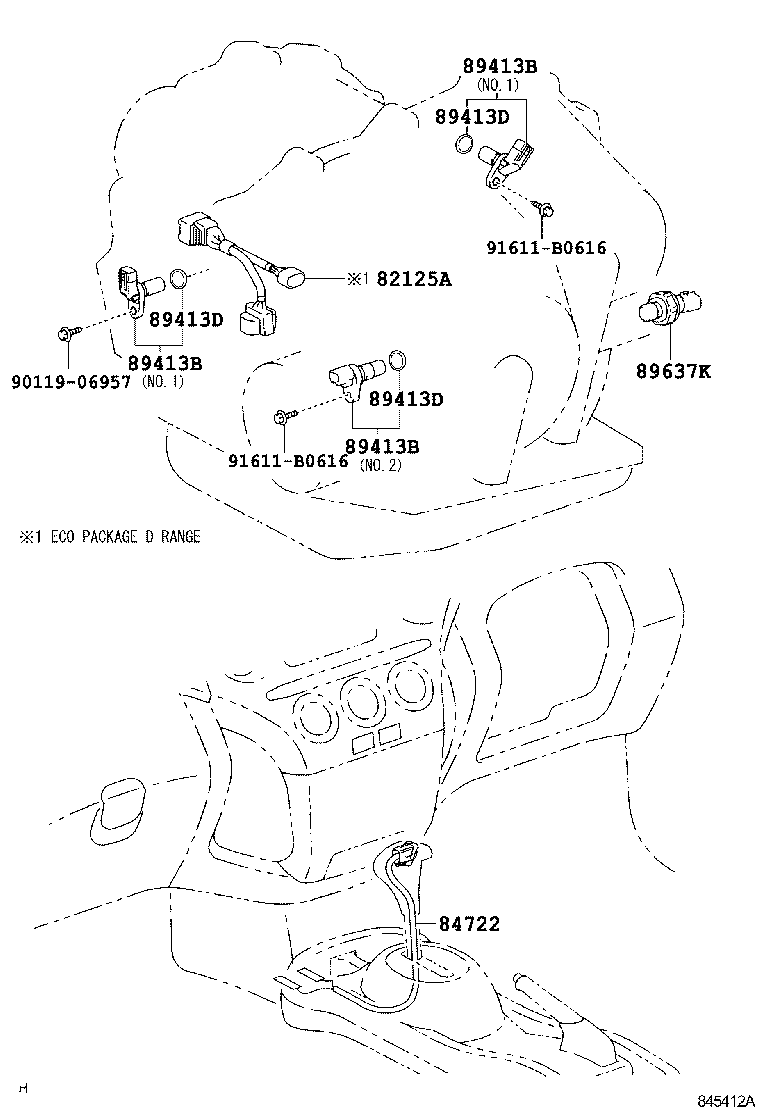

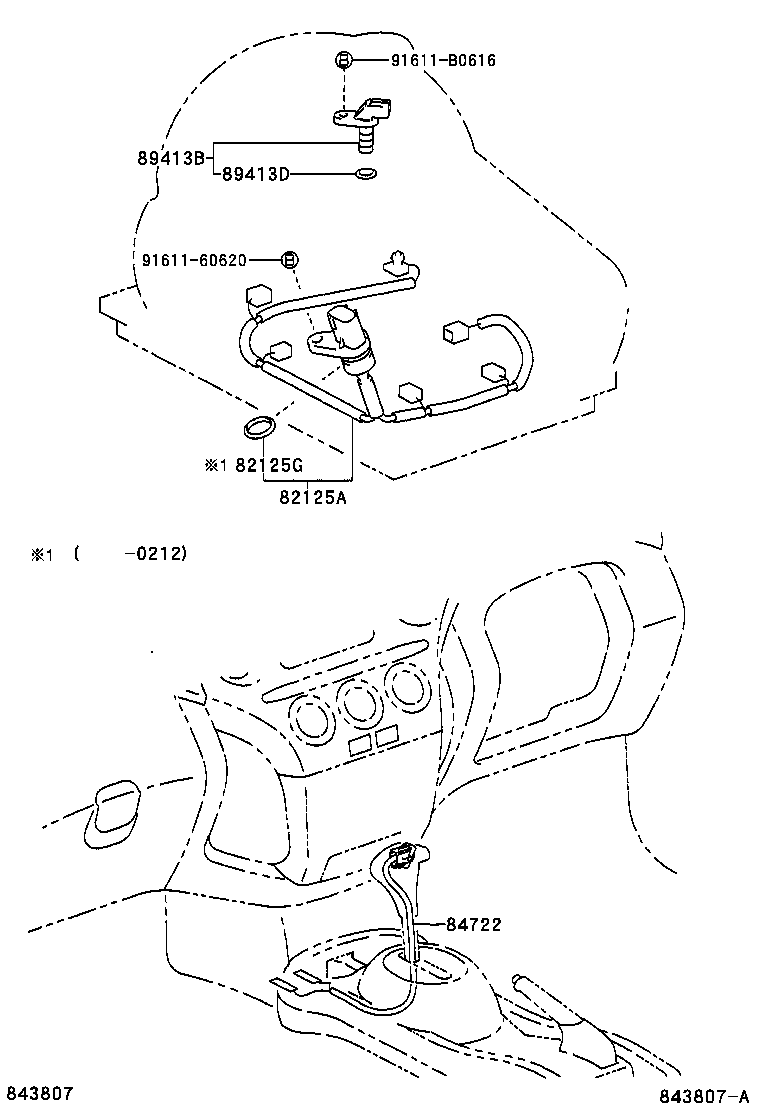

Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89637K | Sensor, Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
