Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 4 illustrations

Illustrations

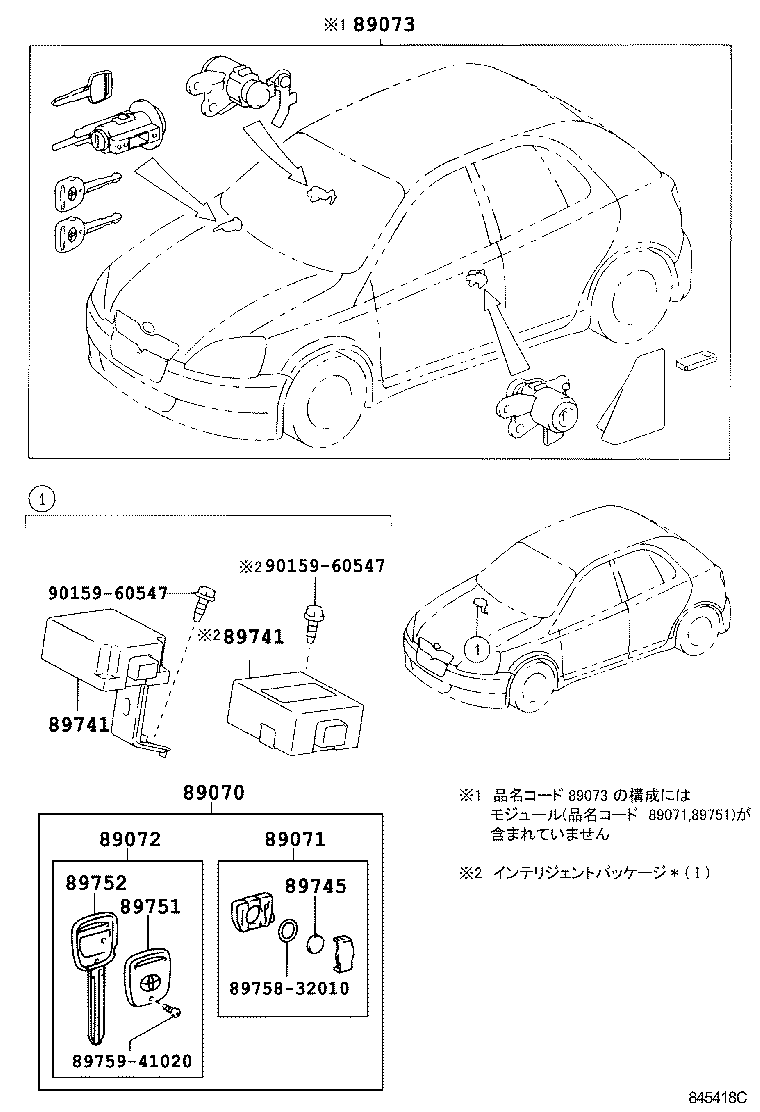

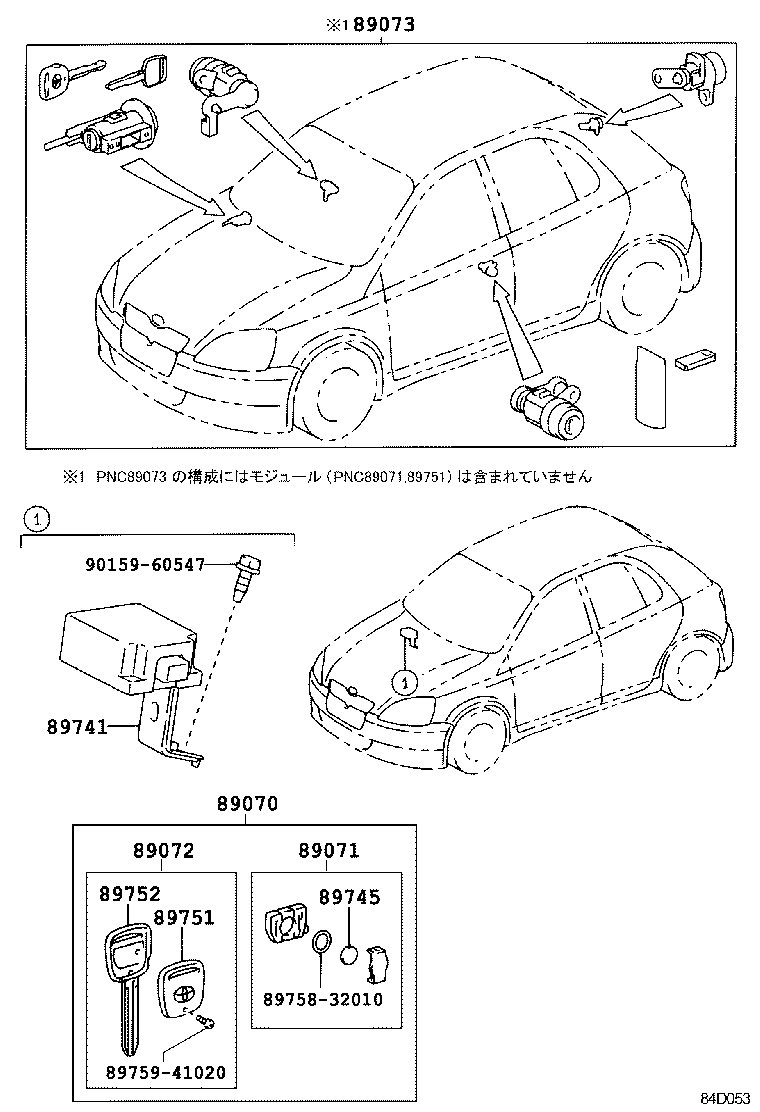

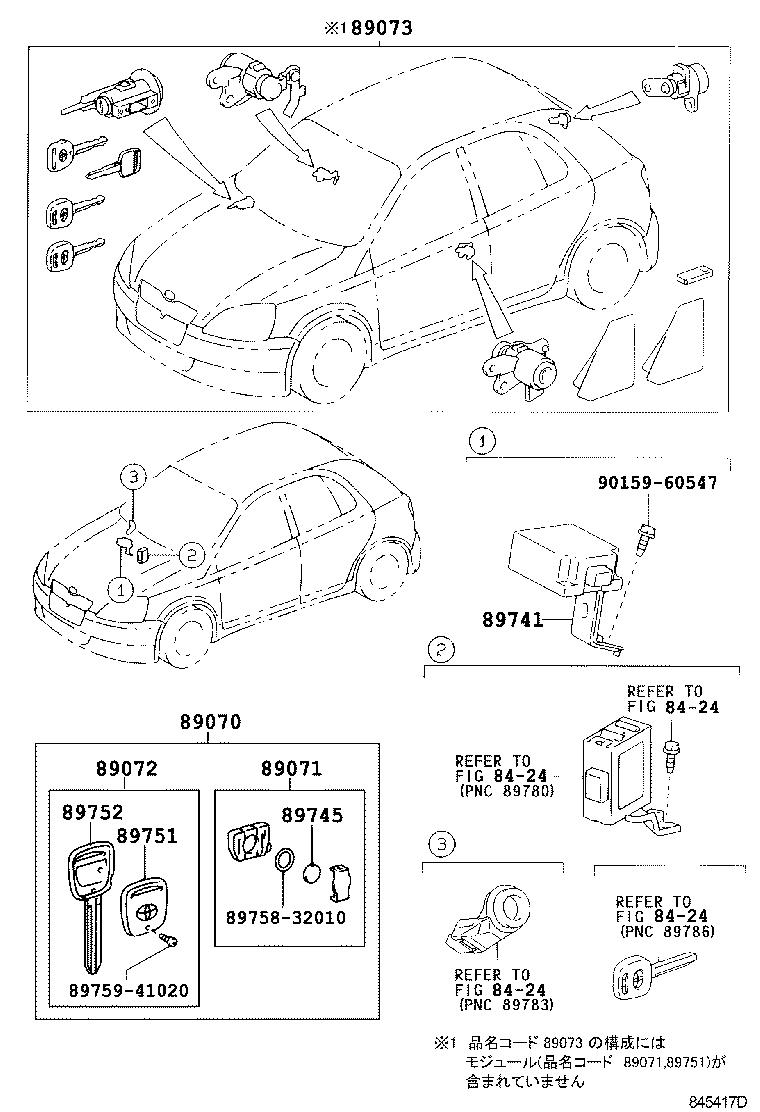

Figure 842597H 842597H 1999-01 → 2001-12 Figure 84D053 84D053 2001-12 → 2002-12 Figure 845418C 845418C 2002-12 → — Figure 845417D 845417D 2002-12 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89072 Housing Set, Door Control Transmitter
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
