Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

10 part groups · 2 illustrations

Illustrations

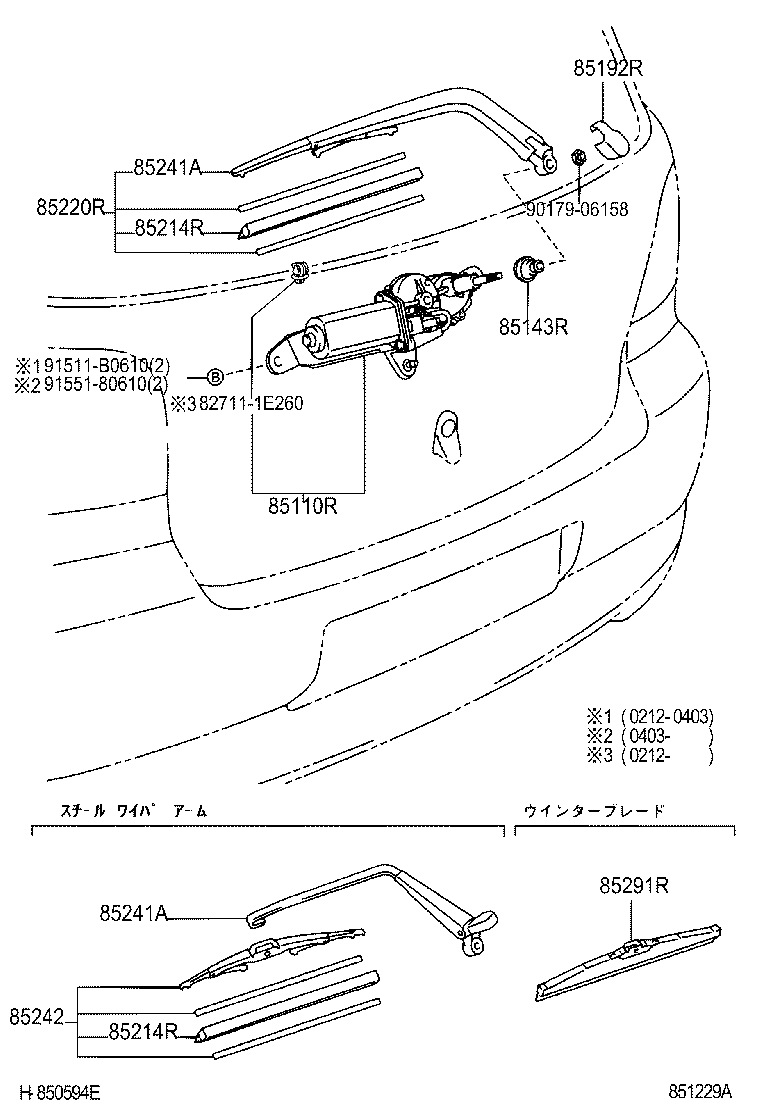

Figure 850594G 850594G 1999-01 → 2001-12 Figure 851229A 851229A 2001-12 → —

Part groups

PNCDescription
85110R Motor Assy, Rear Wiper
85143R Grommet, Rear Wiper Motor
85192R Cover, Rear Wiper Arm
85214R Rubber, Rear Wiper
85220R Blade Assy, Rear Wiper
85224E Plate, Rear Wiper Rubber Backing, NO.1
85224F Plate, Rear Wiper Rubber Backing, NO.2
85241A Arm, Rear Wiper
85242 Blade, RR Wiper
85291R Blade,Rear Wiper, Winter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
