Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 3 illustrations

Illustrations

Figure 860867F

860867F 1999-01 → —

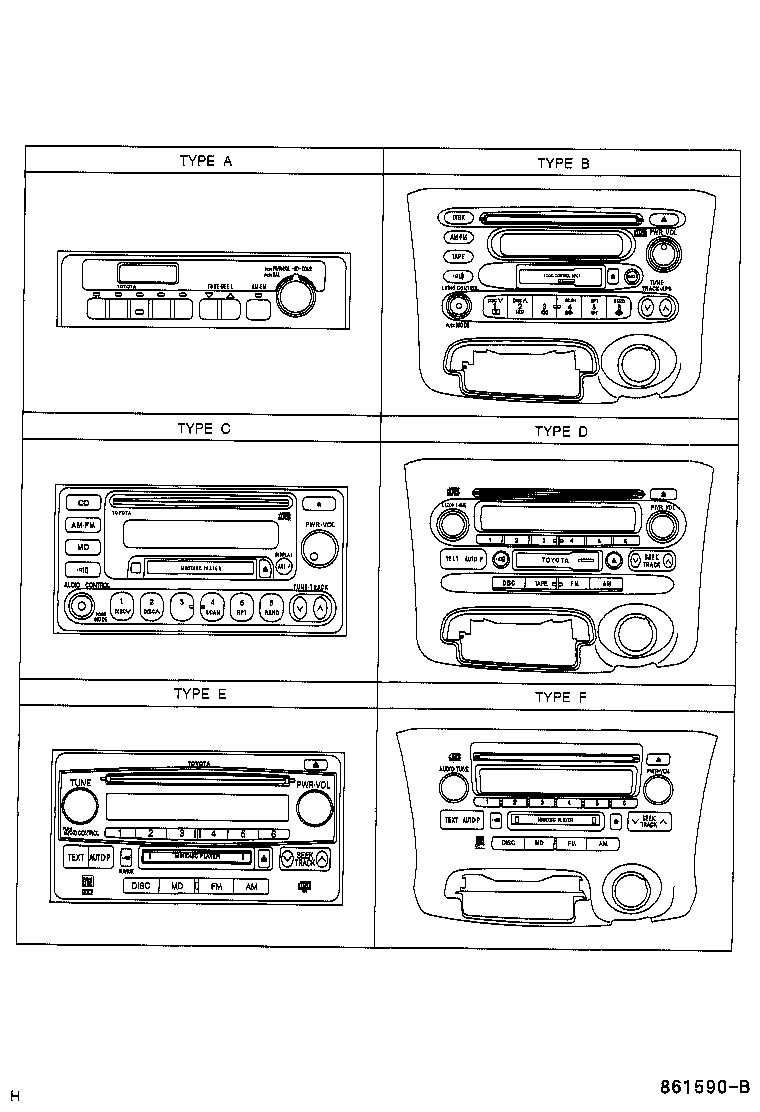

Figure 861590B

861590B 1999-01 → —

Figure 860868J

860868J 1999-01 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011Q	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
