Toyota Vitz
1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan
Discontinued model
Data version 2005-07
Antenna
9 part groups · 3 illustrations
Part groups

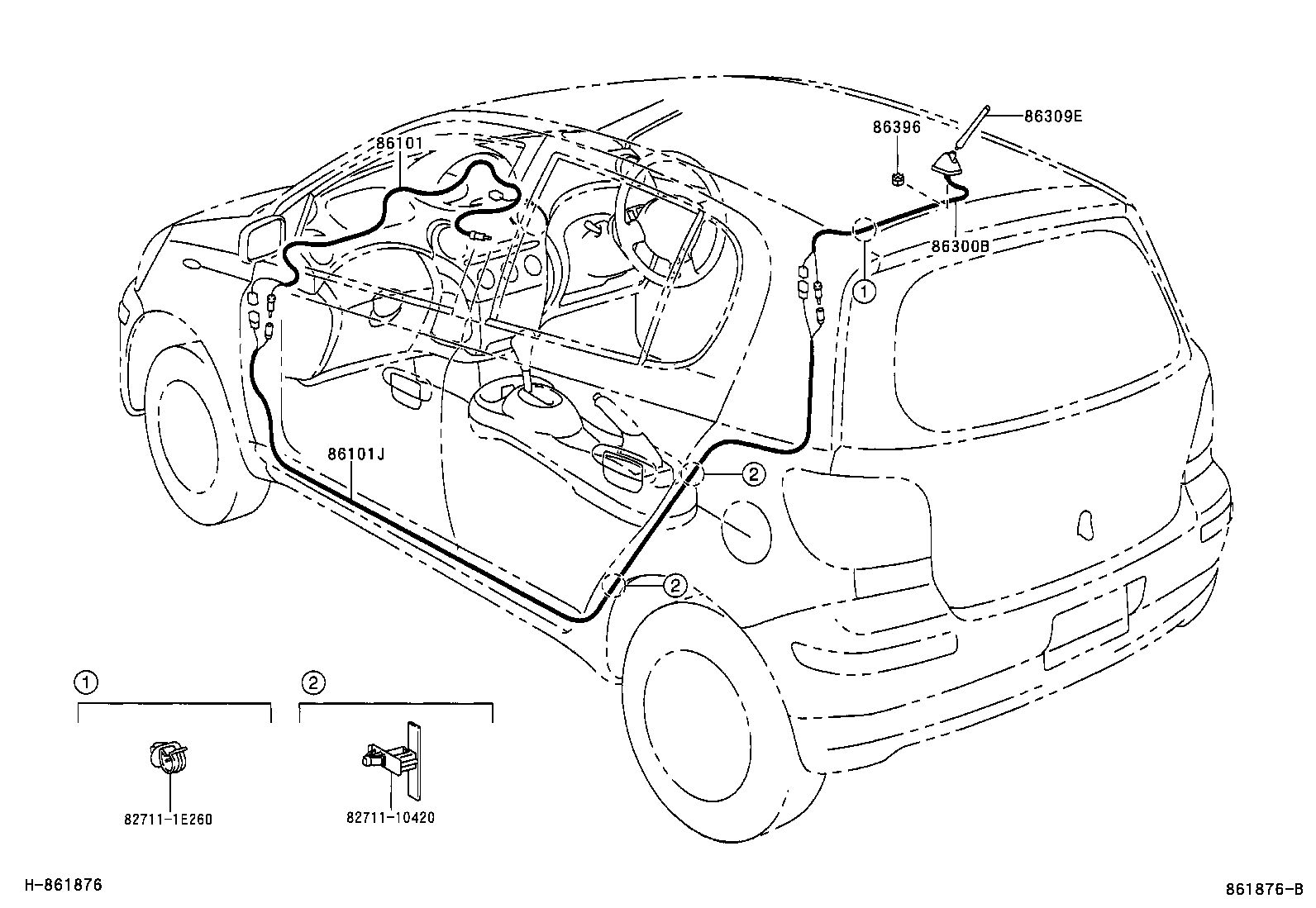

| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300F | Holder Assy, Antenna (CORD/POLE SEPARATE TYPE) |
| 86309 | Pole Sub-assy, Pillar Antenna |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |

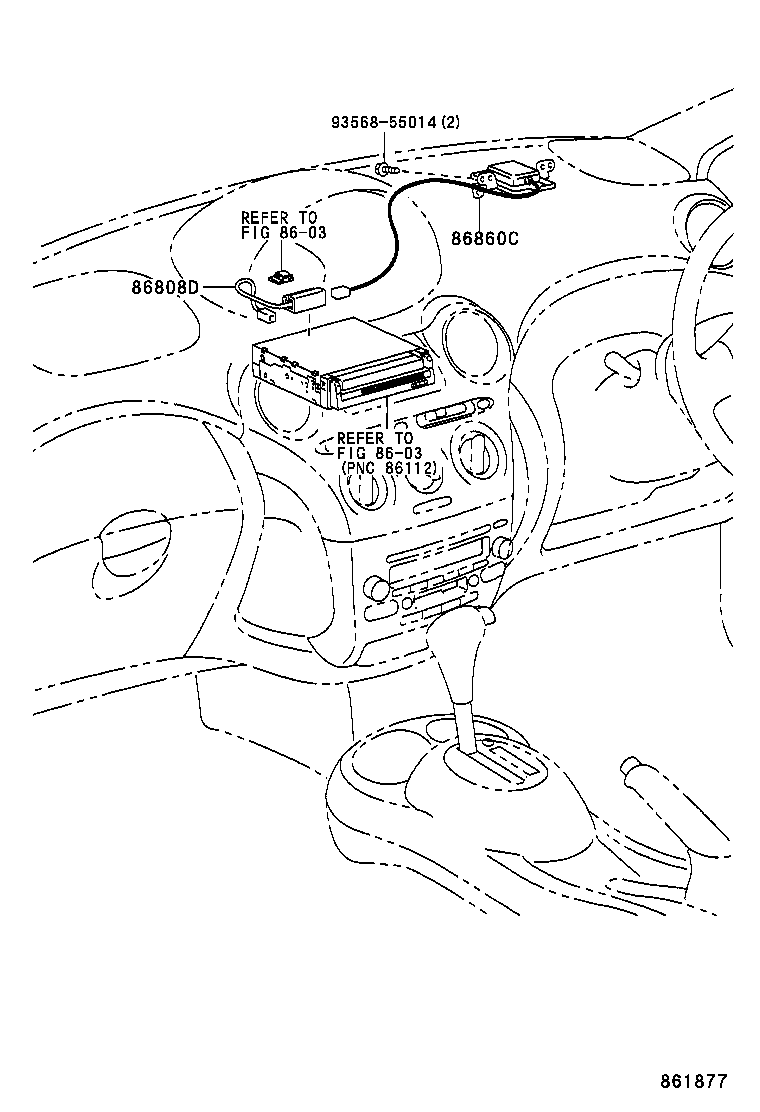

| 86808D | Cord Sub-assy, Navigation Antenna |
| 86860C | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
